    Kingston HP 8GB Ram wont recognise by my toughbook CF-31 MK3

    Discussion in 'Panasonic' started by scpres, Mar 16, 2019.

  1. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31
    Hello

    I bought Kingston HP 8GB 2Rx8 PC3L-12800SE DDR3L-1600 1.35V Memory card and my Toughbook cf 31 wont recognise it. The Toughbook boots up but it wont show in my system. Its just the Samsung same specs that shows on the system. It can be read in CPU-Z its exactly the same as the Samsung brand. Any idea guys?

    Its different because I have other ram that when installed my Toughbook wont boot at all, but this one boots to windows yet it wont show in the system.

    Any help ill be greatly appreciated.

    I have attached the CPU-z for reference.


    Attached Files:

    scpres, Mar 16, 2019
    #1
  2. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31

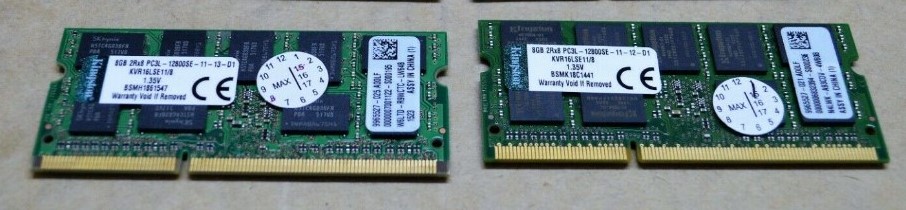

    The RAM is attached here for your info;


    Attached Files:

    scpres, Mar 16, 2019
    #2
  3. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    Does it work somewhere else? Can you install it as a single module, without Samsung one?

    BaRRmaley, Mar 16, 2019
    #3
    Shawn likes this.
  4. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,020
    Messages:
    11,276
    Likes Received:
    8,813
    Trophy Points:
    931
    Did you use msconfig tweaks to use Max memory size?

    Vasudev, Mar 16, 2019
    #4
    UNCNDL1 likes this.
  5. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31
    NOPE?
    HOW CAN I USE THAT? PLEASE HELP

    YES I tried with only single ram which is the Kingston andit wont boot just black screen. but theres light on the toughbook

    Last edited by a moderator: Mar 17, 2019
    scpres, Mar 16, 2019
    #5
  6. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,020
    Messages:
    11,276
    Likes Received:
    8,813
    Trophy Points:
    931
    So it means it never been enabled. Do you see any black marks especially DRAM ICs or the gold contact pin? Try rubbing the gold contact with a cloth and try again.

    Vasudev, Mar 17, 2019
    #6
    toughasnails likes this.
  7. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    I think you've bought a fake memory. Never buy RAM or flash on ebay.

    BaRRmaley, Mar 17, 2019
    #7
    Vasudev and UNCNDL1 like this.
  8. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    If you bought all 4,
    Do the other 3 work?
    Label the memory 1,2,3,4--- Which one is bad? Or are all four not working?

    Do you mean other ram installed won't boot when installed alone?
    Or won't boot when installed with the "bad" 8gb memory stick?

    Shawn, Mar 17, 2019
    #8
    toughasnails and Vasudev like this.
  9. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,020
    Messages:
    11,276
    Likes Received:
    8,813
    Trophy Points:
    931
    Depends on seller sometimes they mix good and bad ones when ordered in packs.

    Vasudev, Mar 17, 2019
    #9
  10. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Try one stick at a time. When you find a good stick that boots into windows shut it down and try that stick in the other memory slot to see if it boots into windows. Just want to check to see if both memory slots are ok. In the past I have seen bad memory slots before.

    toughasnails, Mar 17, 2019
    #10
    UNCNDL1, custom90gt, Vasudev and 1 other person like this.
  11. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31
    I tried three of those ram and all won’t boot when installed. Both ram slot is working because my cf 31 has 4GB and 8 ram both slot and both works. Only when I put those Kingston ram it won’t boot but boot when I put my Samsung all together. It’s really weird.

    When I combine Kingston and Samsung cf 31 will boot but Kingston is not recognised by the system. But I can see it on cpuz. Properties that’s why I manage to get a screen capture that I attached here.

    Last edited by a moderator: Mar 20, 2019
    scpres, Mar 19, 2019
    #11
  12. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Shawn, Mar 19, 2019
    #12
    UNCNDL1, BaRRmaley and Vasudev like this.
  13. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31
    Thanks for this mate

    I am pretty sure that's the cause. I already contacted the seller and I will return the four ram to get a refund..

    scpres, Mar 20, 2019
    #13
    Vasudev likes this.
  14. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    Shawn Eagle Eye :))

    BaRRmaley, Mar 20, 2019
    #14
    Vasudev and Shawn like this.
  15. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Screenshot-2019-3-20 I Am a Google Search Ninja Foxy Wine Pocket.png

    Shawn, Mar 20, 2019
    #15
    toughasnails and Vasudev like this.
  16. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31
    Hello Guys

    I bought a faulty Dell 11 7130 and it has aWWAN EM 8805 on it. Do you think it will work on my toughbook CF31 mk3?

    scpres, Mar 21, 2019
    #16
  17. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    no.
    Not without a bunch of work reprogramming it.
    A couple guys here said they made a non Panasonic branded card work.
    I followed the instructions to the letter and made 3 useless cards.

    Shawn, Mar 21, 2019
    #17
  18. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31
    Ohh that’s a shame. Thanks for the reply

    scpres, Mar 21, 2019
    #18
  19. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31
    hello

    I just install the Ericcson F5521gw whats the WWAN ID to put in optional kit on the bios please? for it to be recognised by my Toughbook cf31 MK3

    the Ericcson F5521gw is from FZ-G1 MK1 that I bought from ebay that's not working. It has a 256GB ssd and this wwan. Unfortunately its not being recognised by my Toughbook cf 31 mk3? any ideas
    ?? I don't know what to put in optional key in wwan ID? I found that it "d"? please help?

    Last edited by a moderator: Mar 25, 2019
    scpres, Mar 24, 2019
    #19
