    LEDco Docks for Cf-28 & Cf-29 for $9.99?

    Discussion in 'Panasonic' started by r1nick, Apr 1, 2011.

  1. r1nick

    r1nick Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    Well yes, plus $34.95 shipping :D, they can be found on eCrater here.

    We have purchased a total of 19 so far, 1 at the regular price, then 3 shipments of 6 each afterwards for $180 total out the door per shipment. That brings the price down to $30 each (not so bad, eh?).

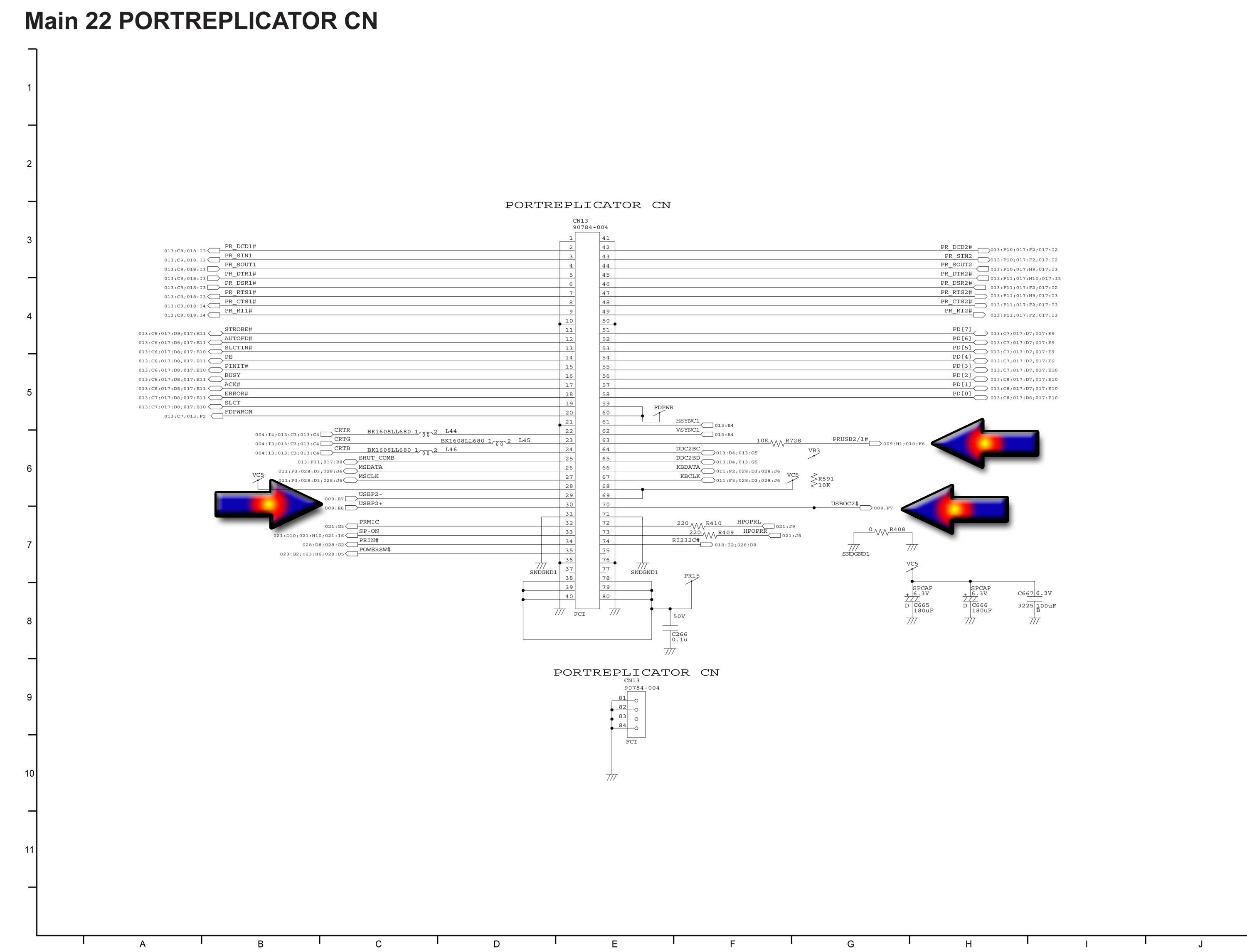

    My question is, since this guy selling them claims that LEDco made over 50 different models of this docking station (and I believe this to be true after tearing apart 13 of the 19 we bought so far), can anyone out there point me in the right direction for the port replicator USB wiring on the attached schematic?

    It appears that most of the docks are using USB 1.0 which is fine for GPS, however for our techs that are traveling the country and attaching pictures and then syncing them to our home server via a USB MiFi on the road, 1.0 is just tooooo slow. And so I would like to hardwire a USB DigiHub into 5 of these units. Only thing is, my knowledge of USB ends at the colors of the wires that you can see when building a desktop (black, white, red, & green).

    Can anyone tell me what numbers are for what color? I think I can take it from there :)


    Attached Files:

    r1nick, Apr 1, 2011
    #1
  2. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    I can get one local for FREE... I bought a CF-29 parts machine from a local guy and he said that if I drive over I can pick up the dock for free...

    Maybe I should do it? It's 1 hour drive each way - so 2 hours total time in the vehicle at 14mpg...

    Rob, Apr 1, 2011
    #2
  3. denrosten

    denrosten Notebook Evangelist

    Reputations:
    149
    Messages:
    477
    Likes Received:
    21
    Trophy Points:
    31

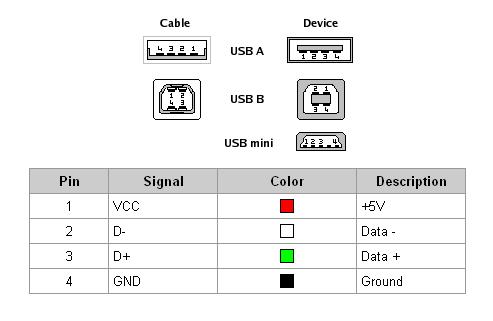

    here you go :)

    So 28 will be Red
    29 White
    30 Green
    31 Black


    Attached Files:

    denrosten, Apr 1, 2011
    #3
  4. r1nick

    r1nick Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    you da' man, denrosten... tanks! :)

    r1nick, Apr 4, 2011
    #4
  5. ICTECH

    ICTECH Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    What would the difference be between a Ledco dock for a CF-29 and CF-30?

    ICTECH, Apr 17, 2011
    #5
  6. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    TopCop1988, Apr 17, 2011
    #6
  7. ICTECH

    ICTECH Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the reply TC. I ordered one of the Ledco 9.99 specials and wasn't sure if I could use the break-out box(power supply issues) with my CF-29 only or also with my CF-30.

    ICTECH, Apr 17, 2011
    #7
  8. j0llyr0ger

    j0llyr0ger Notebook Enthusiast

    Reputations:
    69
    Messages:
    37
    Likes Received:
    5
    Trophy Points:
    16
    Hi!

    I have a dock for the CF-29 and the breakout box. There are three power
    wires from the dock, red, black and blue. What's the blue for?

    As far as the breakout box goes, is it powered by the dock? or is a
    separate 12v supply necessary? I notice a 12 IN standard connector on
    the breakout box. Also, is the USB fed from the main cable? because
    there is a USB IN port, so that's confusing, especially since the USB
    connector on the toughbook is inaccesible when in the dock.

    Thanks for your help!!

    Lee

    j0llyr0ger, Mar 26, 2012
    #8
  9. j0llyr0ger

    j0llyr0ger Notebook Enthusiast

    Reputations:
    69
    Messages:
    37
    Likes Received:
    5
    Trophy Points:
    16
    Does anyone know what the BLUE wire is for?

    I'm assuming it's another hot, because I get the power LED on the dock, but no charging.

    Also, I'm now assuming the breakout box get's its power from elsewhere, as it would just be too easy to feed it all from one place. :/

    Anyone have any gems of wisdom?

    j0llyr0ger, Mar 26, 2012
