    More questions from the noob, Backlit Keyboards!

    Discussion in 'Panasonic' started by Azrial, Dec 6, 2009.

  1. Azrial

    Azrial Notebook Deity

    Reputations:
    598
    Messages:
    1,403
    Likes Received:
    87
    Trophy Points:
    66
    Do all emissive backlit keyboards made for the CF-29 interchange? I am seeing references to a "two connector" style keyboard.

    I could find nothing on this is the Wiki or FAQ. :confused:

    Azrial, Dec 6, 2009
    #1
  2. TBtech29

    TBtech29 Notebook Evangelist

    Reputations:
    459
    Messages:
    362
    Likes Received:
    0
    Trophy Points:
    30
    the rubberized and the hybrid emissive will interchange with the cf-29 and the cf-30.

    the 2 connector one i believe is the chicklet (normal cheap keyboard style) backlight,

    I have only seen that style of keyboard in a cf-vkbl01m

    TBtech29, Dec 6, 2009
    #2
  3. Azrial

    Azrial Notebook Deity

    Reputations:
    598
    Messages:
    1,403
    Likes Received:
    87
    Trophy Points:
    66
    Wow fast answer!

    By "hybrid emissive" you mean the one with actual keys over the ruber membrane I assume?

    There is a closed eBay listing for a backlit keyboard for the CF-29 with two connectors.

    I believe that the "cf-vkbl01m" you are referring to is a remote keyboard designed for mobile applications?

    Azrial, Dec 6, 2009
    #3
  4. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    The only two wire backlite type that I have seen is the rubber backlite originally made for the cf-27

    I used one on my cf-28 and cf-29 and it worked fine
    The normal backlite models require a third connector for powering the backlite

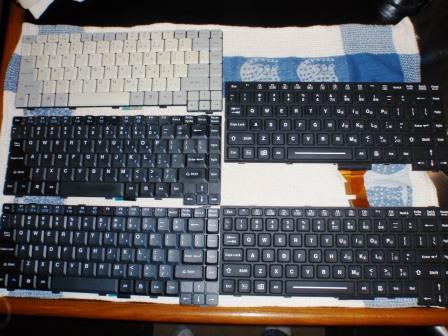

    Top right keyboard in this picture is the two wire backlite rubber keyboard

    Alex


    Attached Files:

    • key.JPG
      File size:
      43.4 KB
      Views:
      181
    Alex, Dec 6, 2009
    #4
  5. TBtech29

    TBtech29 Notebook Evangelist

    Reputations:
    459
    Messages:
    362
    Likes Received:
    0
    Trophy Points:
    30
    by hybrid emissive, thats the plastic keys but has a backlight in it and there is a small plastic "frame" around each key.

    TBtech29, Dec 6, 2009
    #5
  6. tough-2-go

    tough-2-go Notebook Deity

    Reputations:
    493
    Messages:
    759
    Likes Received:
    0
    Trophy Points:
    30
    Why do you call it a hybrid?

    tough-2-go, Dec 6, 2009
    #6
  7. TBtech29

    TBtech29 Notebook Evangelist

    Reputations:
    459
    Messages:
    362
    Likes Received:
    0
    Trophy Points:
    30
    because its a mix of the rubber kb (backlite) and the chicklet kb (hard plastic keys)

    TBtech29, Dec 6, 2009
    #7
  8. Azrial

    Azrial Notebook Deity

    Reputations:
    598
    Messages:
    1,403
    Likes Received:
    87
    Trophy Points:
    66
    Soooo, these three part numbers

    CF-WKB303VM
    CFWKB293M
    N2ABZJ000071

    Plus the French one, CFWKB294C.

    I had it backwards!! :eek:

    Azrial, Dec 6, 2009
    #8
  9. tucker100

    tucker100 Notebook Guru

    Reputations:
    46
    Messages:
    63
    Likes Received:
    0
    Trophy Points:
    15
    This is a question asked out of pure ignorance of the subject, but don't you need the inverter board for any of the 3 ribbon emissives for the cf28 mk 2 and 3s?

    tucker100, Dec 6, 2009
    #9
  10. Springfield

    Springfield Notebook Deity

    Reputations:
    507
    Messages:
    942
    Likes Received:
    127
    Trophy Points:
    56
    Yep. The 29's are different tho.

    Springfield, Dec 6, 2009
    #10
  11. Ray32825

    Ray32825 Notebook Guru

    Reputations:
    35
    Messages:
    58
    Likes Received:
    0
    Trophy Points:
    15

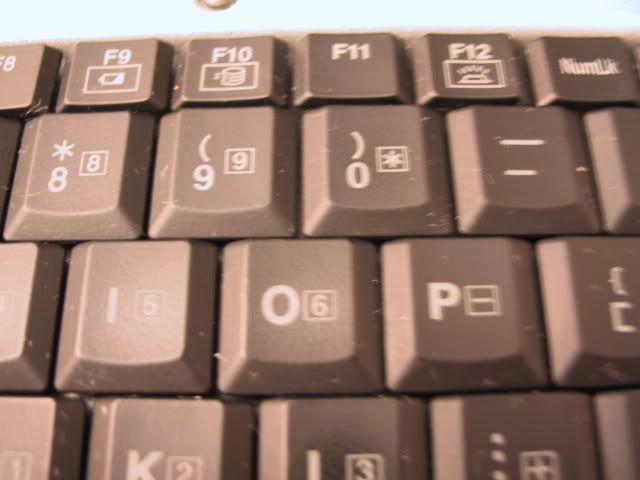

    Yeah!! How many different backlit keyboards do these CF-28s have? I seem to have three different ones already. First is this funny one that has a grey plastic around the keys (notice the raised sides of the F11). Is this the chicklet style? This backlight does not work :mad: Is there an easy fix for this?
    [​IMG]

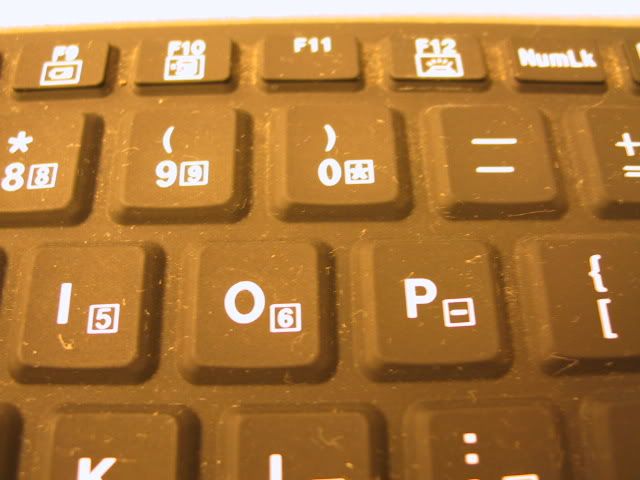

    Next is the fully rubberized one that is quite hard to type on, but is great for those who hunt and peck.
    [​IMG]

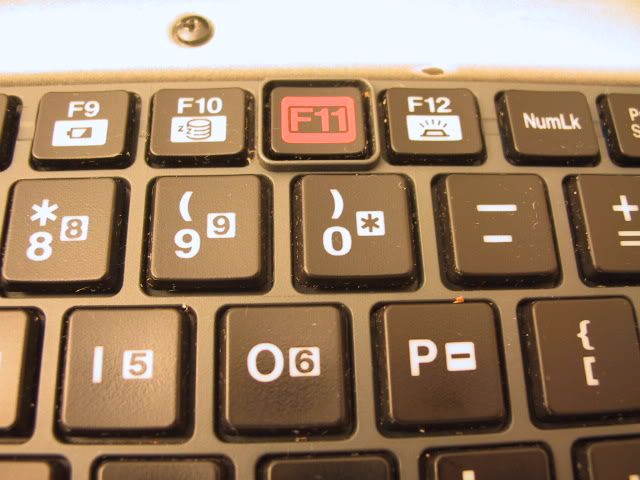

    And finally my favorite one so far, the black keys with green lights. :)
    [​IMG]

    Ray32825, Dec 6, 2009
    #11
  12. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    Easy, But expensive

    You need a cf-29 or cf-30 to take advantage of the backlite feature that requires 5v dc
    The cf-28 units with the optional hardware output an ac voltage around 70v ac to illuminate keyboard #3



    Alex

    Alex, Dec 6, 2009
    #12
  13. Toyo

    Toyo Notebook Deity

    Reputations:
    305
    Messages:
    1,258
    Likes Received:
    36
    Trophy Points:
    66
    I went thru agony trying to figure out what type to go with when I was getting my 1st TB. Ended up with the plastic emissive, no regrets at all.

    Is the green backlit one still available?

    Toyo, Dec 8, 2009
    #13
