    My custom internal wireless for my CF-M34

    Discussion in 'Panasonic' started by aaron7, Apr 1, 2010.

  1. aaron7

    aaron7 Notebook Consultant

    Reputations:
    20
    Messages:
    288
    Likes Received:
    9
    Trophy Points:
    31

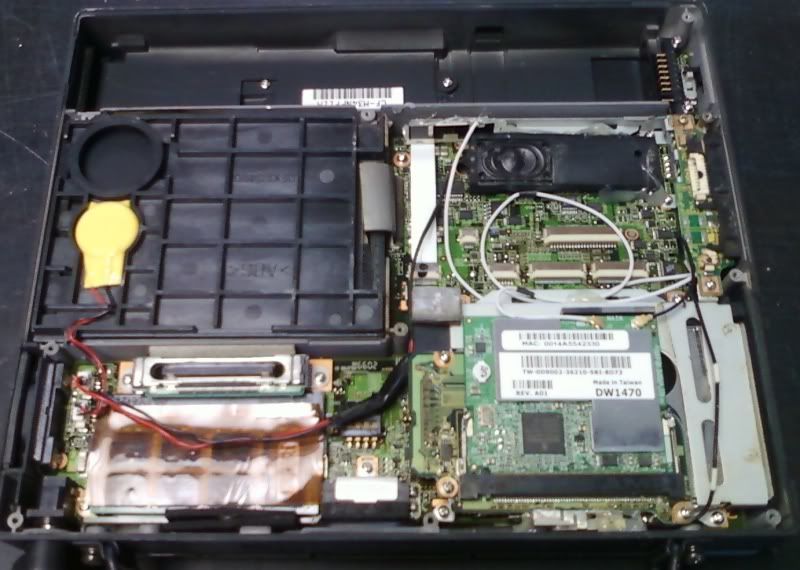

    Ok... so I hacked it together in 15 minutes... but it works fine!

    Used a Broadcom a/b/g card from a Dell and gutted the antenna wires from the same laptop.

    Used some hot glue to mount everything in there and BAM! Wireless!

    I'd like to upgrade it to a more powerful card at some point and a screen mounted antenna too.

    [​IMG]

    aaron7, Apr 1, 2010
    #1
  2. denrosten

    denrosten Notebook Evangelist

    Reputations:
    149
    Messages:
    477
    Likes Received:
    21
    Trophy Points:
    31
    Did you tried with the laptop closed?
    I don't think you will have a strong signal inside the metal case.

    denrosten, Apr 1, 2010
    #2
  3. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,361
    Likes Received:
    370
    Trophy Points:
    251
    I was thinking the same thing..... ;)

    Toughbook, Apr 1, 2010
    #3
  4. aaron7

    aaron7 Notebook Consultant

    Reputations:
    20
    Messages:
    288
    Likes Received:
    9
    Trophy Points:
    31
    Yes, I sealed it all up and get full signal to my router downstairs and 2 bars to the router in the neighbors house! Not as strong as my other laptop, but totally usable.

    aaron7, Apr 1, 2010
    #4
  5. Azrial

    Azrial Notebook Deity

    Reputations:
    598
    Messages:
    1,403
    Likes Received:
    87
    Trophy Points:
    66
    Nice job! However, I would rig an outside antenna. The antenna is the most important part of any RF circuit, speaking as a ham...

    Azrial, Apr 1, 2010
    #5
  6. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    Here how you can have a better antena installation on CF-m34. If you've got an spare antena of cf-29 including its cover you can mount it to the right and left side of the Lcd by using a hex screw the one used on serial, VGA and parallel port(you know what I am talking about). Just measure the distance of its individual screw slot of the antena cover and by using a half tapping screw you can mount it to the lcd. Why I knew this. Its my other secret.

    ohlip

    ohlip, Apr 1, 2010
    #6
  7. ToughNut

    ToughNut Notebook Evangelist

    Reputations:
    164
    Messages:
    495
    Likes Received:
    0
    Trophy Points:
    30
    Nice thinking there, Teo. Any idea what the antenna+cover will cost from HL?

    You managed to make any of covers from that black rubber thingie you were playing with?

    Ron in SG

    ToughNut, Apr 1, 2010
    #7
  8. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    I put an antenna under the palmrest on my cf-m34
    Not great reception but usable when close to the access point


    Alex

    Alex, Apr 1, 2010
    #8
