    My long range WLAN test.

    Discussion in 'Panasonic' started by cz75-danwesson, Jun 30, 2010.

  1. cz75-danwesson

    cz75-danwesson Notebook Guru

    Reputations:
    7
    Messages:
    59
    Likes Received:
    0
    Trophy Points:
    15
    This is my parabolic dish, fitted with a feed horn for 2ghz and 5 ghz.
    The gain on 2ghz is 26 dB and 35dB on 5 ghz.
    [​IMG]
    [​IMG]

    The creen card is a log periodic antenna, soldered to a 50 ohm hardline coax.
    [​IMG]
    The log periodic antenna is from:
    Kent Electronics, WA5VJB

    I picked up a hotspot that was 4100 meters away, the signal strength on that was -77dBm. The minimum signal strength required for a 1mbit transfer rate is -95 dBm.

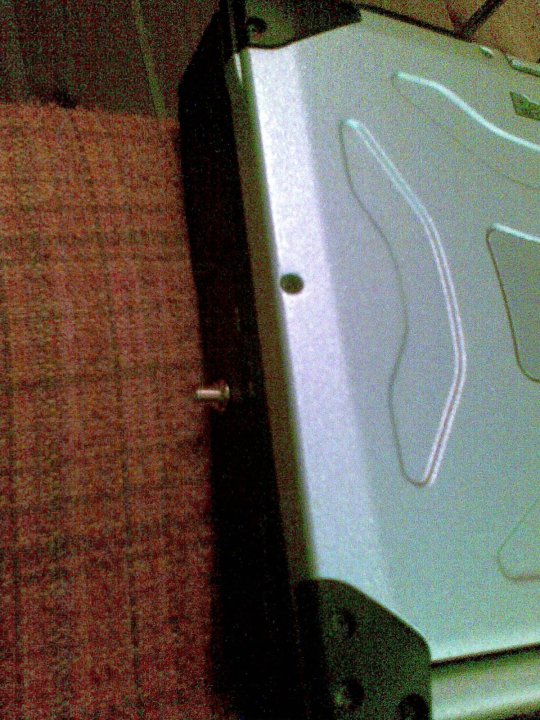

    I have mounted a RP-SMA pigtail that is connected to my engenius card, on the lid covering the PMCIA card slot.


    Attached Files:

    cz75-danwesson, Jun 30, 2010
    #1
  2. jimrx7

    jimrx7 Notebook Consultant

    Reputations:
    25
    Messages:
    136
    Likes Received:
    1
    Trophy Points:
    31
    impressive..

    jimrx7, Jun 30, 2010
    #2
  3. gmgfarrand

    gmgfarrand Notebook Evangelist

    Reputations:
    104
    Messages:
    515
    Likes Received:
    3
    Trophy Points:
    31
    Not bad..
    I put my pigtail out the back but still under the door, so if I need it, I slide the door open.

    gmgfarrand, Jun 30, 2010
    #3
  4. Rob

    Rob Toughbook Aficionado

    Reputations:
    452
    Messages:
    3,946
    Likes Received:
    65
    Trophy Points:
    116
    SWEET! Zap them aliens on Jupiter while you're at it! :D

    Rob, Jun 30, 2010
    #4
  5. cz75-danwesson

    cz75-danwesson Notebook Guru

    Reputations:
    7
    Messages:
    59
    Likes Received:
    0
    Trophy Points:
    15
    The card is rated at 600mW at 2.4 ghz, that results in a ERP of 115 W with 25 db gain.
    600mW at 35 dB gain results in 1156W ERP.

    The 1000 feet dish at Arecibo Observatory has 60 Db of gain, if that one are feeded with 600mW, the result are 365853 W ERP!

    Thats 365.853 Kilowatts of radiated energy!

    If it is fed with 100W, the result is...

    60.97 MEGAWATT ERP!

    cz75-danwesson, Jun 30, 2010
