    PCI E CARD on CF19 MK1 how enable

    Discussion in 'Panasonic' started by mick711, Oct 1, 2009.

  1. mick711

    mick711 Notebook Guru

    Reputations:
    15
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15
    Hello

    I look for find my problem i see the post for the wwan cf19 but i dont find .
    I just buy Sierra PCI E card MC8780 but i can t see it on my computer

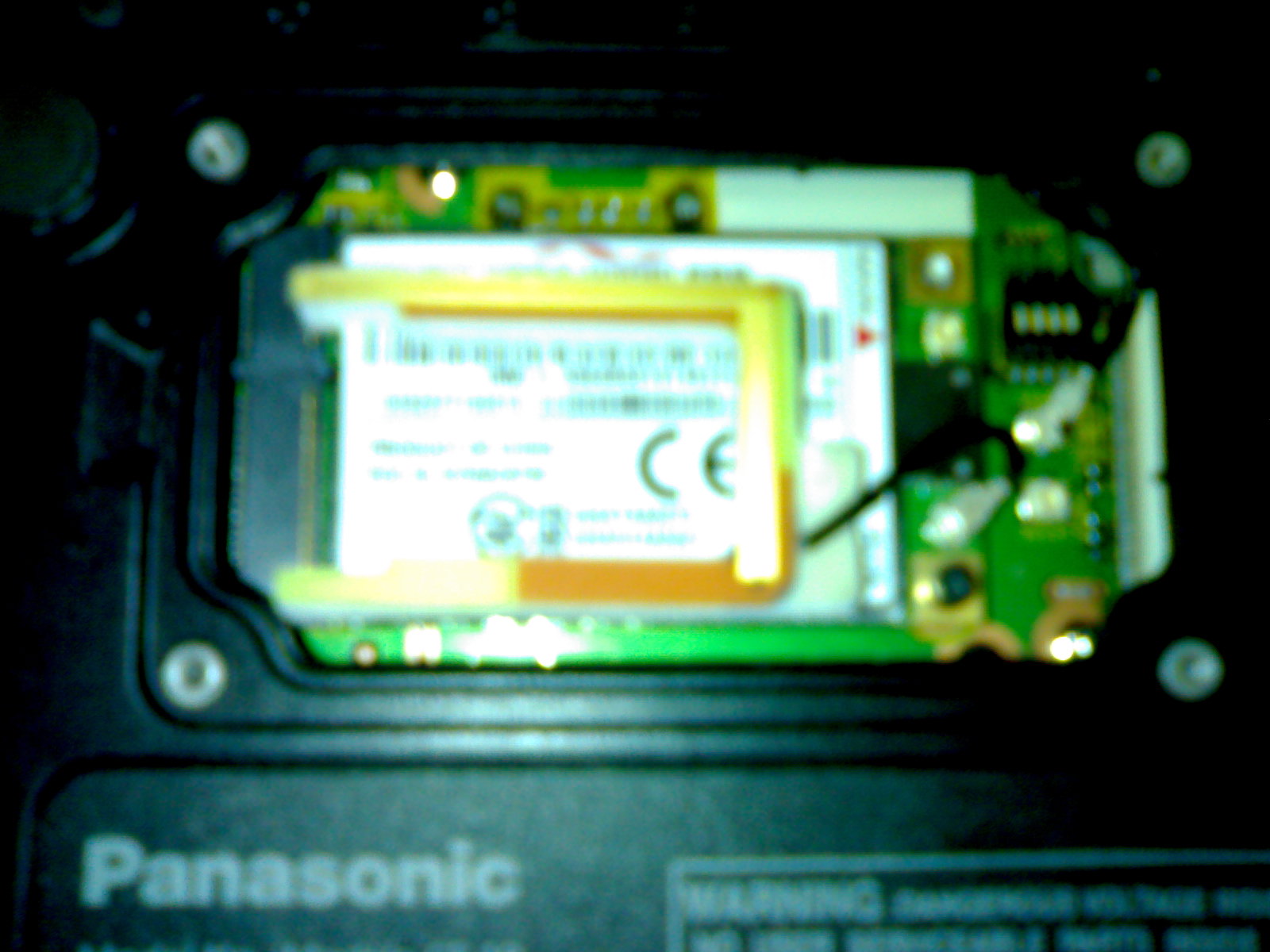

    Do you know how enable it i dont know if switch (up right) on the case is all off see picture and i put all ON but not work.

    Thanks for help


    Attached Files:

    mick711, Oct 1, 2009
    #1
  2. onirakkiss

    onirakkiss Notebook Deity

    Reputations:
    552
    Messages:
    711
    Likes Received:
    23
    Trophy Points:
    41
    u need a better camera :)
    look at the pictures in the thread and u will find how to set the dip-switches.

    onirakkiss, Oct 1, 2009
    #2
  3. mick711

    mick711 Notebook Guru

    Reputations:
    15
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15
    Ok for camera ;) sorry

    Thanks onirakiss for your help i see that you have CF19C with MC8781 so i think you can help me ;)
    Just my Bios is the last
    Bios V1.00L16
    Embeded controller V1.00L11

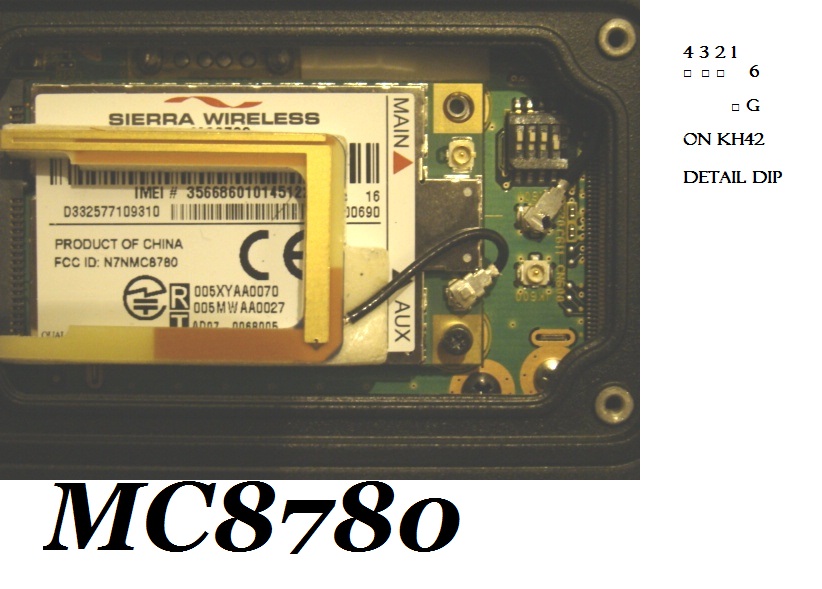

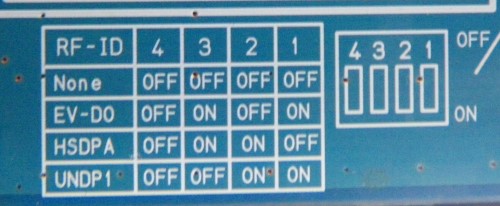

    EDIT i find on the web picture of DIP SWITCH configuration for CF19


    Attached Files:

    mick711, Oct 1, 2009
    #3
  4. mick711

    mick711 Notebook Guru

    Reputations:
    15
    Messages:
    69
    Likes Received:
    0
    Trophy Points:
    15
    OK it Work Sorry for that just have good switch config and enjoy thanks to the man who post this picture i think it's a member of notebookreview because i see a member with the same background (i like it )

    Link where i find : http://www.flickr.com/photos/30544787@N04/

    Now find the drivers for AirCard that i try 3g watcher but don't work

    EDIT : i'm noob for work go to install dir and run DriverInst.exe :D

    EDIT just for more info :

    http://www.alphamicro.net/resources...5-Mini-Card-Dev-Kit-Quick-Start-Guide-1.3.pdf

    mick711, Oct 1, 2009
    #4
