    PCMCIA to USB 2.0 Port 480M Inside Hide requirements

    Discussion in 'Panasonic' started by TheSpiritOfRadio, Jul 6, 2012.

  1. TheSpiritOfRadio

    TheSpiritOfRadio Notebook Consultant

    Reputations:
    36
    Messages:
    205
    Likes Received:
    8
    Trophy Points:
    31
    I haven't been able to find the answer to this question so far. Maybe I didnt search hard enough. but will this work in my CF-28 mark1? because on the ebay add it says requirements PCMCIA Type II slot. how do I know if my mark 1 has the proper slot?
    thanks for the feedeback

    TheSpiritOfRadio, Jul 6, 2012
    #1
  2. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    Has to work. But most of these adapters are not very stable. Can't recommend them.
    Even tried USB 3.0 adapter - it becomes very hot. Old USB 2.0 was glitchy too.

    BaRRmaley, Jul 6, 2012
    #2
  3. MasterBlaster2039

    MasterBlaster2039 Notebook Evangelist

    Reputations:
    76
    Messages:
    350
    Likes Received:
    1
    Trophy Points:
    31
    If I were you, I would store an normal USB 2.0 PCMCIA card wrapped in a plastic bag or so (to prevent electric shortcuts), inside the media-pocket of the CF-28.

    When you need the USB 2.0 card, simply take it out of your media pocket and insert it into the PCMCIA slot.

    Yep. Leave the DVD/CD-rom at home or in a laptop bag.

    I myselve do this most of the time. I have several USB 2.0 pcmcia cards that have the bulby end. The card you mentioned in this link is indeed an Ake card or something similar. They seem to have a rather hight fault rate. Some get way too hot, some even damage your CF-28/CF-29.

    MasterBlaster2039, Jul 6, 2012
    #3
  4. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    As the original Toughbook Forum Importer of those cards let me strongly suggest that you stay away from them. They seemed like a good idea at the time, but have proven to be more trouble than they are worth. As has been previously stated, a faulty one can actually do serious damage to your computer.
    CAP

    capt.dogfish, Jul 6, 2012
    #4
  5. TheSpiritOfRadio

    TheSpiritOfRadio Notebook Consultant

    Reputations:
    36
    Messages:
    205
    Likes Received:
    8
    Trophy Points:
    31
    Other than having the other types of cards that stick out what other alternative cards may you guys suggest that are compact and can fit/hide inside the PCMCIA slots until I need them?
    thank you

    EDIT: Also, is there a good memory card adapter that I put in the 2nd slot?
    this?

    Also, Also, is there a good PCMCIA to Bluetooth adapter that i can put into the hidden PCMCIA slot?
    this?

    TheSpiritOfRadio, Jul 6, 2012
    #5
  6. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81

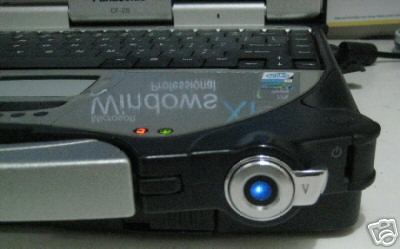

    As i remember, Its been 4 years so long ago. I inserted a billionton bluetooth on that hidden PCMCIA by taking it out the antena a replace the whole sytem and then solder a coax for an extension antena on the plastic side. Also soldered two tiny wire into monitor led and place it into the keyhole. See picture.

    ohlip


    Attached Files:

    ohlip, Jul 9, 2012
    #6
