Panasonic W8: Upgrading RAM, Harddrive, and Operating System to Windows 7 64 bit.

Hello all! I am from slickdeals, and got in on the Panasonic W8 for $379 deal. No one has volunteered to post a "how to" thread on how to do these upgrades, though it has been discussed, so I decided to do it.

NOTE: You take responsibility for any consequences as a result of altering your computer. You are liable for your own screw ups.

This is written for someone with not much experience in changing computer components, like myself.

I'm going to break it up into several posts, and start with the simplest step:

UPGRADING THE RAM

This is really very easy. You can find information (which I will share here as well) in the manual on pages 20-21 on how to upgrade the RAM. Taking the new RAM out of the retail packaging will probably take more time than actually inserting it.

I used Crucial 2GB 256Mx64PC2-5300 CT25664AC667 DDR2 200-Pin SODIMM Laptop Memory, which I purchased on Amazon for about $30. People have reported successfully using a 4GB RAM module as well. Note that 32 bit windows operating systems can only recognize ~3.4 GB RAM, and the system comes with two, so unless you are planning on changing to a 64 bit operating system, there is no point in getting more than an additional 1 GB of RAM.

Directions:

Panasonic Manual: Upgrade Memory Page 20, Inserting the RAM close up and Page 21
(I left the images huge, so hid them behind links).


Unplug your W8 from the AC adapter, close the lid, flip over the computer, and remove the battery.

Optional: Generally, I always wear my anti-static wrist band when messing with computer components. You can also just occasionally touch a grounded item (a piece of metal on the computer for instance) to discharge any static electicity, but I'd rather be safe than sorry.

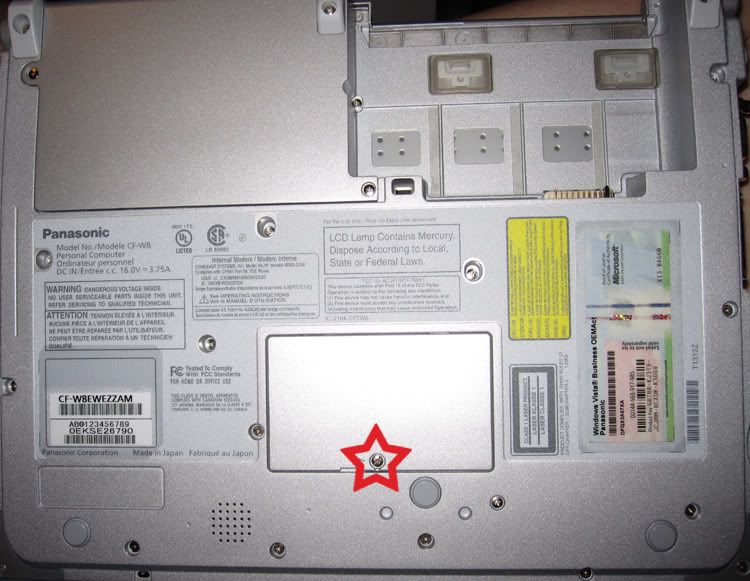

See the red star? That's the screw you need to remove. It kind of looks like a phillips, but it is not, use a flathead screwdriver unless you have a fancy screwdriver that has that particular shape.

Remove the screw, and flip up the cover. There's a little notch on the bottom, stick a fingernail in that and it will pull right up.

Now it will look like this:


Have you looked at the manual? DO IT BEFORE YOU PROCEED (unless you already know what you are doing, but then you shouldn't even be reading this).

I don't have pictures of this step because I only have two hands.

Line up the notch in the RAM with the protrusion in the plastic (look at everything first!), and insert at about a 30 degree angle (please look at the manual, it describes this better and has diagrams). Insert until you can no longer see the gold terminals, then slowly press it down until the tabs click into place. If you feel like you have to force it in, STOP, and make sure you have it as in as far forward as reasonably possible.

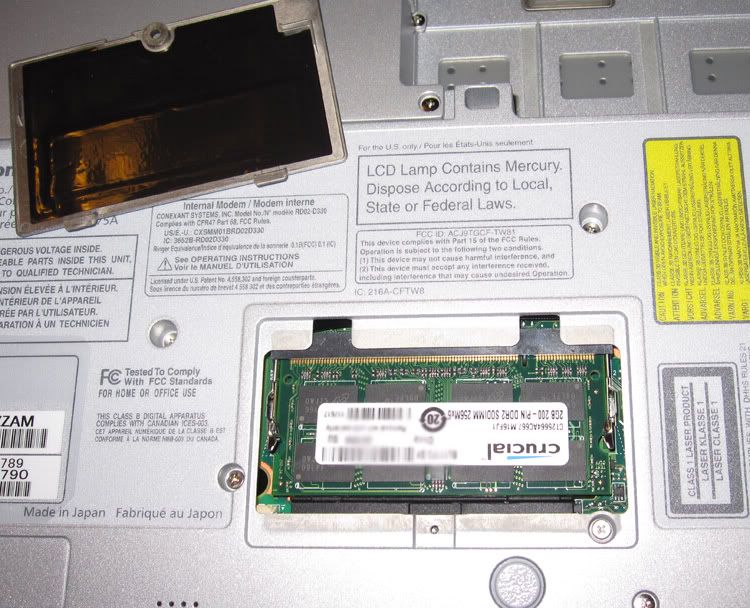

It looks like this after the tabs have popped closed.



Replace the cover and the screw, and it will look... well, exactly the same!

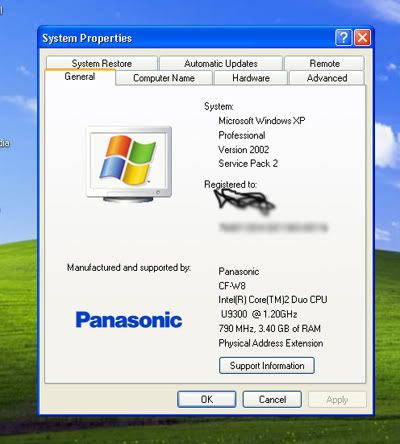

Recommended: verify that it was a success. Reattach the battery or the AC adapater, flip her back over, and verify that the RAM has been recognized by your computer. (Turn it on, right click on Computer/ My Computer and select properties. If you haven't yet upgraded the OS (still 32 bit Windows XP) it will show 3.40 GB RAM (with a 2+ GB RAM module).



If it doesn't show the RAM, repeat the above steps and make sure that you installed the RAM correctly, and that you are using the correct type of RAM (which is also listed in the manual).

Coming up next: Upgrading the Hard Drive!



REPLACING YOUR HARD DRIVE.

The W8 (from my deal) came with a 160 GB hard drive. I probably could have lived with it, at least for a few years, but I decided that if I was going to upgrade, I might as well do it now, rather than have to go to the trouble of saving and backing up all my data from this hard drive in a few years.

I used a Western Digital Scorpio Blue 500 GB 2.5 inch Hard Drive, 8 MB Cache, 5400 RPM SATA, that I also got from Amazon. It had good reviews, and was about $55.

With hard drives, try not to touch the circuit board or the connectors (the gold areas).

Directions:

Once again, remove the AC adapter, and the battery. Pay more attention to discharging static this time around (if you aren't using the anti-static wristband), it takes longer than the RAM and it seems like it'd be easier to screw something up if you shock it. This is still not a very challenging thing to do, though.

This time, there are 6 screws to remove, but this time they are all phillips head. Before you even flip over the laptop, there are two screws to remove (by the right side, the two screws right below the screen).

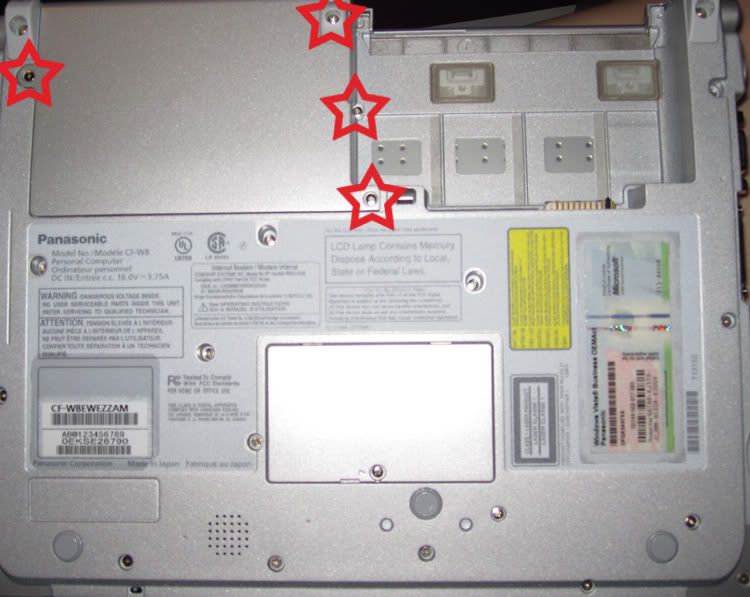

Close the screen, and flip the laptop. Here are the other four screws you need to remove. Be sure to keep them in a safe place!

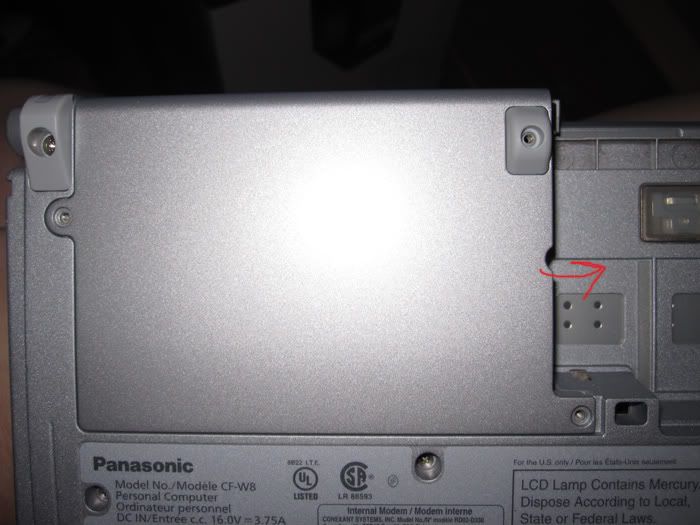

When you have removed all the screws, you should move the cover to the right, and then lift. If you are having a hard time removing it, be sure that you got all of the screws.

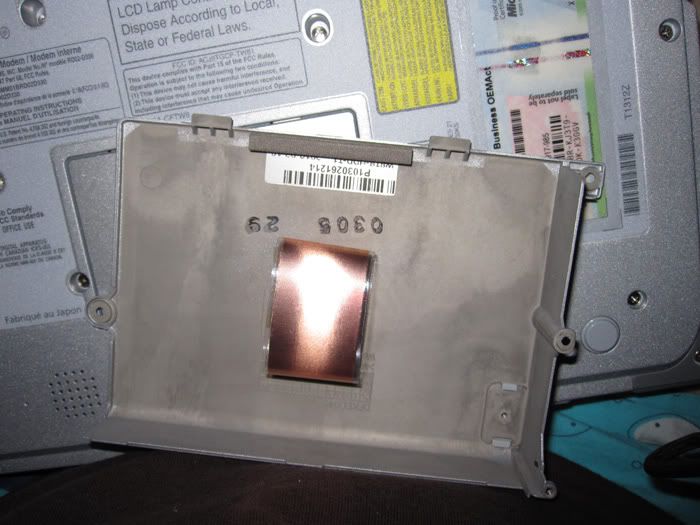

The cover from the bottom:

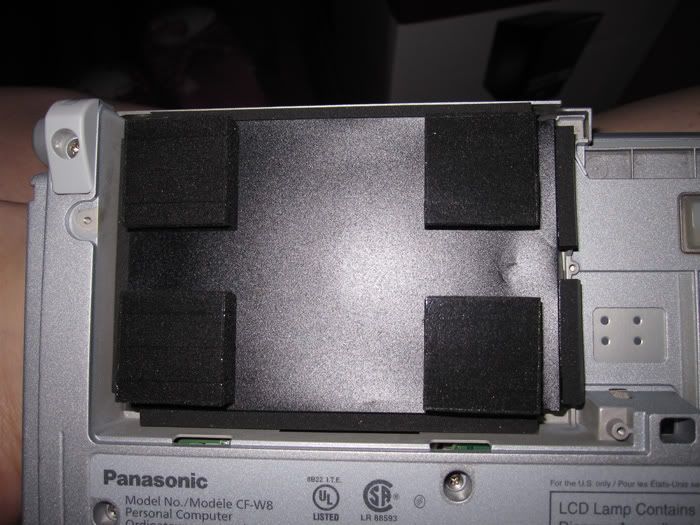

What it's going to look like inside:


To understand what you are looking at, there are four foam pads on the bottom, and that is a sort of black plastic bag, with the foam attached.

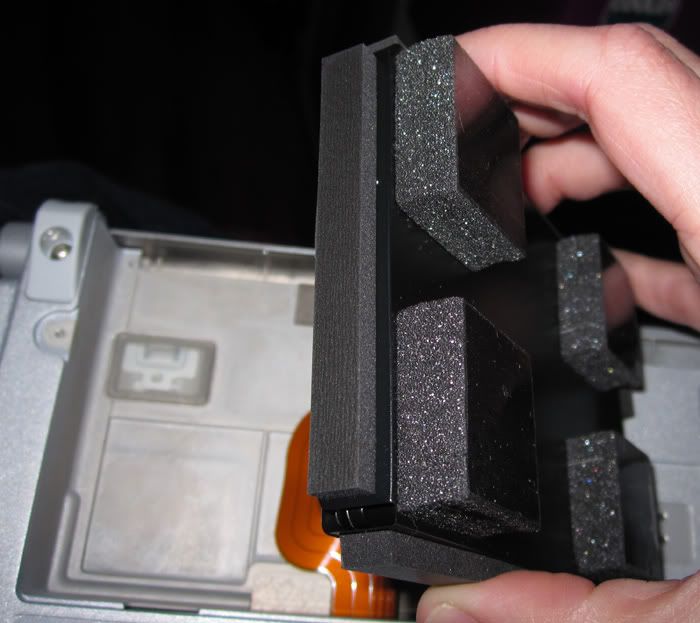

There is nothing holding the hard drive down, no screws or anything (I guess that's why there are 6 screws on the cover), so you can simply pick it up and flip it over. Now it'll look like this.

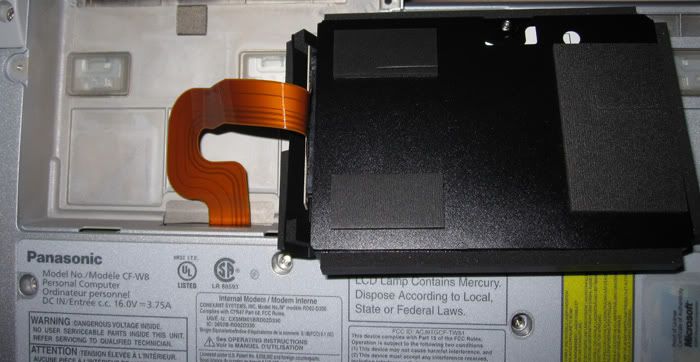

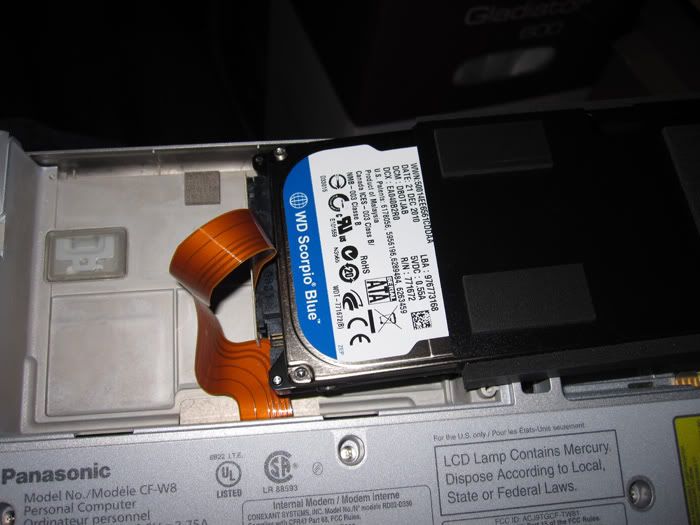

That cord is your sata cord, and you can see it connected to the hard drive. You can either pull the hard drive out of the padding now (you want to pull it from the side where you can see the SATA cord attached, because it is the only way to get it out) or you can detach the SATA cord and then remove the hard drive from the padding.

Disconnecting the cord is not difficult, just gently wiggle and pull the connector from the hard drive. Then attach the new hard drive.

Now, slide (gently!) the new hard drive into the foam jacket. Pay attention to the orientation



the thinner foam padding (on top right now) should have the metal shielded section of the hard drive against it. This is so the cord is not bent oddly when it is put back in place. No need to stress the cord.

Once you have it all the way back in


Go ahead and flip it back over (look and make sure the cord is laying nice and flat)


Get everything back the way it was

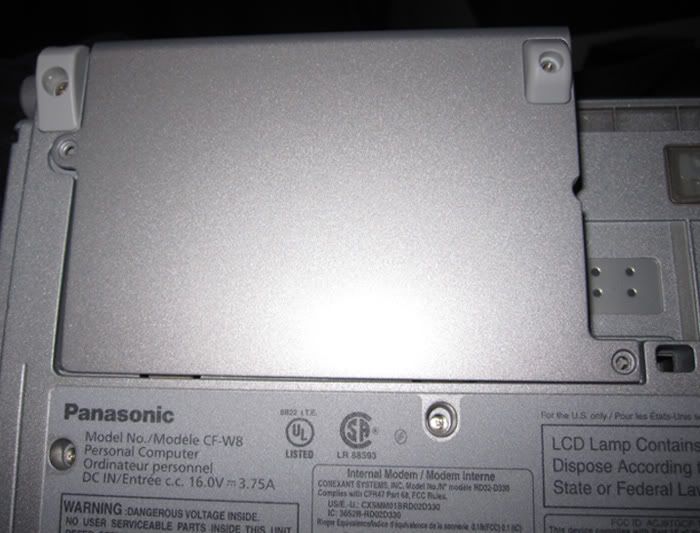

And put the cover back on.



You'll have to push it down and over, and probably hold it down while you put in the first few screws.

By the way, the two longer screws go on the top, there are 3 short screws, and the screw with a thicker "top" section goes in the little leg on the bottom.

Now, you'll either need to reinstall the operating system on your new hard-drive, or install a new one.

Next: Installing an Operating System!



This was the part that caused me the most problems, simply because I'm not a "computer nerd" and don't have a lot of experience with this aspect of things.

First, if you are installing an "Upgrade" version of Windows 7 (as I was) you will have to reinstall Windows XP from the recovery disk included with your computer. Yes, it'll take about 30 minutes, but I don't know of a way around it.

First, however, you have to be able to put the disk in, and read it!

So, you have everything screwed back together, and everything looks hunky dory? Go ahead and reattach the battery/ AC adapter, flip your computer back over, and turn it out.

Now, hit the F2 button when it starts booting up. Keep hitting it, there is a notification on the bottom that will tell you to hit F2 for setup, and that is what you need.

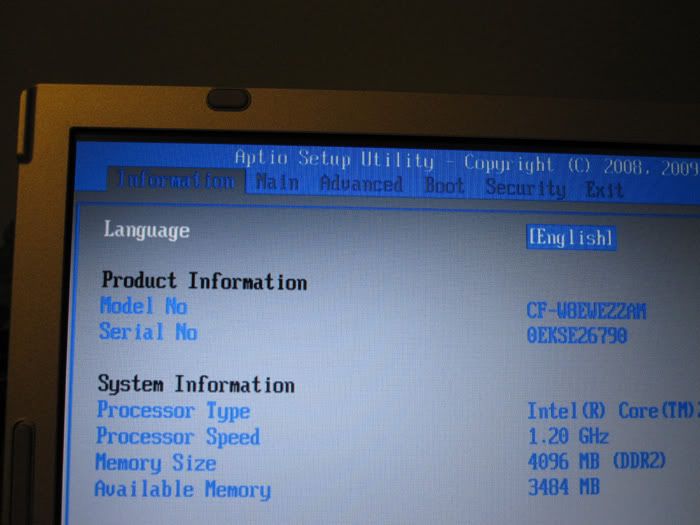

You'll start out on this screen.


See the tabs on top? You need to go over to the "Main" tab, and change Optical Drive Power to "On" (it defaults to Off).

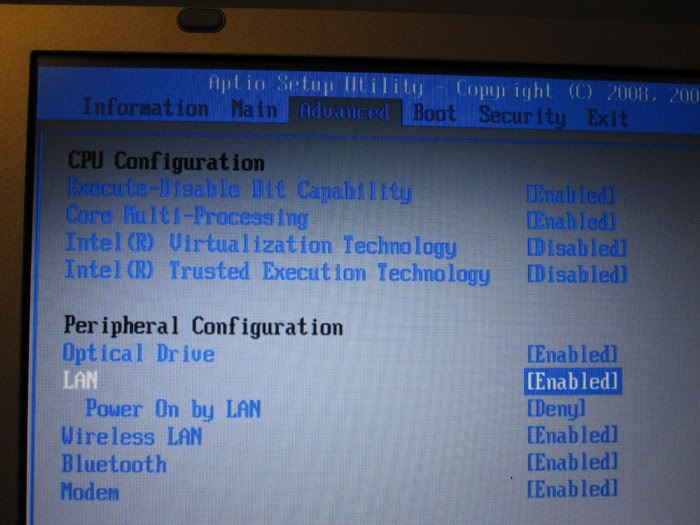

Now go over to the "Advanced" tab, and turn Optical Drive to Enabled.

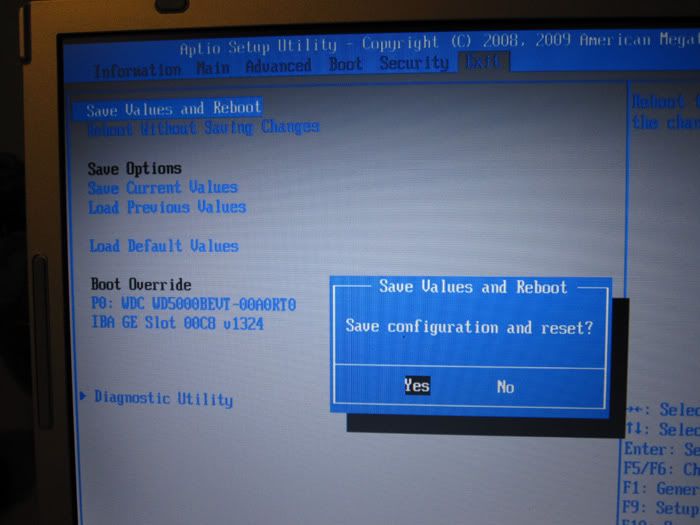

You can play with the Boot order if you want, but you don't need to. Go over to the Exit tab, and hit Save Values and Reboot.


Once it reboots, you will be able to open up the optical drive and insert the operating system CD (either one of the Windows XP or Windows Vista cds that came with the laptop, or if you have a full install of another operating system, you could install it now with the optical drive.

It will then boot from the CD and install the OS. Follow the directions.


So, once you have XP installed, if you want to go to 64 bit Windows 7, you will need to reboot again. You will need to install it going from the F2/ Setup menu again, so once again, when prompted, hit F2.

Go over to the Boot tab. This is the order it will look for boot information from, normally floppy drive is first.
Change the order so Optical Drive is listed before Hard Drive. (sorry, I didn't take pictures of this). Put your Windows 7 64 bit CD in now, if you haven't already.

Go to the Exit tab and Save and Reboot again.

Now Windows 7 will start to install. Follow the prompts.


The install generally goes very well. Windows 7 will not find a few drivers, though (most noticably the touch pad driver that allows for the circular scrolling).

I'm going to address how to do that in the next post, because I need a break!



This website will be your friend. Use it often.
Toughbook drivers

First, don't be dumb like I was at first. Follow the installation instructions, it is a PDF file that will tell you what to install first. It will make your life much easier. It also will tell you how to install them.

Do a search in the website provided for "f9" in the text box. For step 1 (required) hit "All Drivers". You can also narrow it down to your operating system (in my case, Windows 7 64 bit) in step 4.

Do the search, and one of the first things that come up is installation instructions.

So, first you need the OS INF driver installed. Search for "OS INF f9" and the file that comes up should be the one you need (double check the file name in the Installation Instructions).

Note that the installation instructions also tell you how to install it (in this case, by running setup.exe) and where the file is unpacked (you can copy and paste this into a windows address bar to be taken to the location).

Lather, rinse, and repeat for the utilities listed in the Installation Instructions.

(If anything, it is even more tedious typing this out then it is doing it, so please just follow the directions as given in the installation instructions, and you will be fine).

Note: the Sound Driver would not install for me, but the sound works fine.

To regain the touch pad circular scrolling (after you have done the steps listed in the installation instructions!), change "All Drivers" in Step 1 to Keyboard, Mouse and Peripherals, and download the wheel pad utility and the touch pad driver. (First two that come up on the list when you search for f9).

At this point, there should be no unidentified devices left in device manager, and everything should be working better than new!


Good luck!



Rep to you....very good job



Excellent, thank you!



I take it that the 623MB zip file of W8 Win7 drivers on the Panasonic driver search page is essentially useless?



I've been wondering that as well. On one hand some people are saying that Win 7 64bit is easier to install since people have found all the right drivers. On the other hand Panasonic supports Win7 32 for this machine. It's not clear which is really better for me assuming you want to stick with the stock 2gb configuration. I don't need to upgrade mine. I have a more powerful 15" laptop for those times.



Just curious... a couple of times now I've seen one of the veteran members post "rep to you" -- I assume meaning awarding one of the "rep" power points in appreciation for a very useful post. But the posters "rep" total remains the same, as in this case where it is still at zero. Am I wrong about what is happening, or is there some missing step?



It takes so many Reputation/Feedback from members to get a green block and I am not sure how many. You have 1 green block.....check and see how many members left you Reputation/Feedback .This would be a good question for Alex.



Rep Power is what you're asking about. It is determined by some arcane formula I don't understand. The Green "jelly beans" represent the amount of rep points you have received from other members, your "Rep Power" represents how may points a user gets when you give him some. Get it? Got it! Good!!!
CAP



I've a W8 too and I upgrade the OS to Windows 7 64 bit as well as the intel x25-m 120 SSD drive.
The problem is I can't get the write benchmark as state, I only got 135 not 250MB/s. Driver up to date and using the latest intel RST driver.
When I check the intel tool box I found this toughbook limit the SATA to SATA I. I can't take the advantage of the SSD unless i know how to change the SATA I to SATA II (maybe bios update?). Japan have a premium version W8 use SSD and it can reach 250MB/s write and ~80MB/s read. I email to the technical support but no response. Can someone answer this or have solution, please.........



Not bad tutorial not bad at all. Although as far as hard drive i WOULD have gotten the hybrid 500gb which is half hard half ssd by seagate.

Yes unfortunately the TB is not sata 2 i found that out on my cf 30. Its hardware related so you cannot change it.



I suspect they put a cap on the SATA port in order to reduce the power usage. Bios update might do the trick.
Here is the premium W8 version that reach the maximum write and ~70 on the read.
Panasonic Toughbook W8 gets SSD treatment | Laptop, Netbook & Tablet PC



To answer rep power and green beans
Rep power is increased by 1 for each 250 posts you make
Every 150 days of membership you get 1 as well

You use your rep power to give a member more green beans
You get a dark green bean for each 100 points you receive as rep from members , and the light green take 200 points
You see the amount of rep's you have looking in your user CP
If you have a rep power of 5 and you rep a new member with 0 they need to have 95 more points to get the second box



Hi Chloe,

I followed you over here from SD.

The one thing I'm a bit confused about are:

I) You (and others) have suggested we use the drivers for the F9. But, usually when people suggest we follow the instructions, they usually seem to be referring to the instructions for our unit, the W8. So,

(1) Do we follow the upgrade instructions for the W8, but use the F9 drivers?

(2) Why are we using the F9 Drivers and are we supposed to use all/only the F9 drivers, or are we using some F9 drivers and some W8 drivers?


Question to Anyone:
Chloe's instructions go through a Vista or XP install on the way to a Win7 update. What different steps, if any, would I need to do in doing a simple Clean Install of Win 7? (64-bit)?


Thanks in Advance.



chloeishere, nice write up to clarify upgrade procedure. Thanks much!!



Here are my steps. Hope it helps.

Pre-install:
Download intel latest RST and video driver to your USB drive. Also go to this Japanese site (you don't have to understand Japanese in this case, you tell by the driver name) ?????? | ?????? ????????

Here's the file I download (some driver you don't need it because Windows 7 will find most of them, 8 and 10 is a must. 5 and 12 is a must if you utilize the onboard security chip) : item 1,3,5,6,8,9,10,11,12,16,17. Also I'm using the battery re-calibration and wireless condisableuti from the zip file ( Toughbook Computer Support - Search Downloads).

1. I'm using this guide to format my drive.
SSD / HDD : Optimize for Windows Reinstallation - Windows 7 Forums

2. Disable internet: wired or wireless.

3. Install the RST and video driver after the OS installation finished. Follow the screen instruction and restart when needed.

4. Double click the item you down from the step "pre-intall". It will extract all the file into C:\util2

5. go to the device manager and right click to install the missing driver. direct to the folder in C:\util2 . Two missing driver are hotkey and newmisc.

6. Restart. Turn on you internet, and get the microsoft update.

7. Once it's done, google windows 7 sp1. download it from microsoft site.

DONE!!!!!

Hope my instruction didn't 'K'onfuse anyone.....

*I'm using my W8 to type this.....
**right now I need to find a way to change the SATA I to SATAII to take full advantage of the SSD i upgarde.



thanks. Great illustrations and directions for us idiots.



Well... there ya go. Arcane formula it is.

mnem
Pi R^2? Pie are NOT square; pie are ROUND. Cornbread are square!



Great how-to Chloe!

Well, I finally got my W8 today but via eBay. Still no word from my US forward shipper if my order was processed beyond acceptance. Still saved a bundle off the current price here which is nearly twice what I paid.

Great thing was I decided to just try popping in the 128GB Kingston SSD which had Win7 Pro 32-bit installed on it from my old W7 into the W8 & hey bingo! After a few restarts & one anxious moment to see if Microsoft would allow me to activate the OS again (I had run the Win Vista Business recovery disk installation on the HDD I put back into the W7), everything seems like business like normal without having going through the hassles of reinstalling the OS & various programs again!

Now I'm deciding if it'll be worth the cost & effort to upgrade to a 64-bit version (mine's an OEM 32-bit only version).



I have a Panasaonic CF-W8 laptop looking to install Windows 7 64 bit, where can I get that installation instructions PDF file you are talking about?? Thanks ))



If you're using an HDD in a laptop, there is no point to having SATA2. It will only consume more power and give no performance benefit in return. An SSD or hybrid may give you some performance, but you'd have to know the internal transfer rate of the device to know for sure if it would.
