    Panasonic toughbook CF-28 replacing ihard drive

    Discussion in 'Panasonic' started by Wyoming88!, Jun 17, 2019.

  1. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    So you have a Cf-28 but the Hard drive is 20gb and you want 80gb. So I have made this as a guide.
    Step one: Open the back panel with the release sliders.
    Step 2: remove hard drive caddy with pulling up the tab then push and pull on one of each tabs
    Step 3 unscrew the screws with a size 1 (?) Philips-head and pull up the caddy
    Step 4 pull out the hard drive and replace with the other hard drive and do this process in reverse order.

    Wyoming88!, Jun 17, 2019
    #1
  2. scpres

    scpres Notebook Consultant

    Reputations:
    0
    Messages:
    106
    Likes Received:
    10
    Trophy Points:
    31

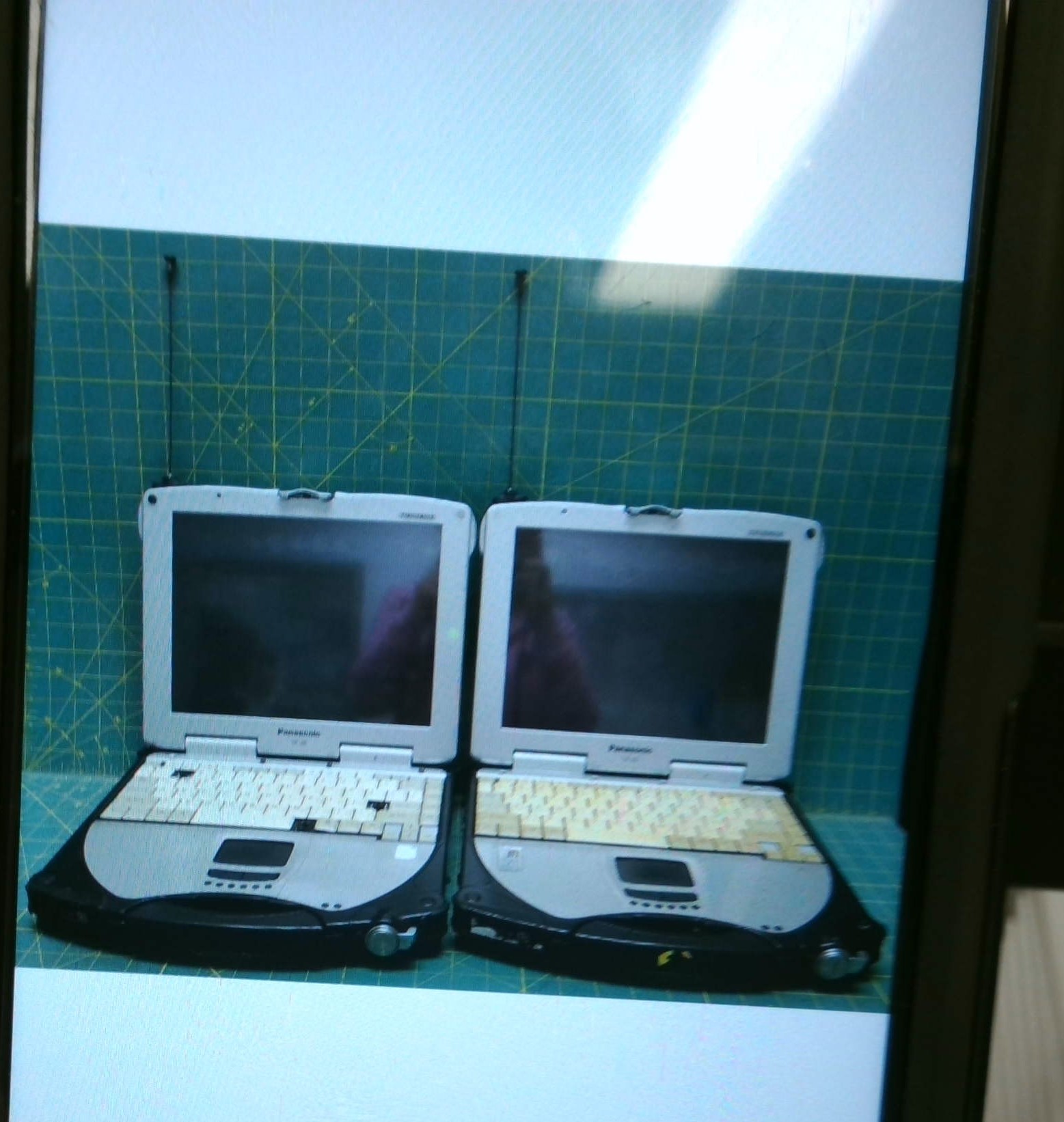

    Whats the antenna in cf 28 for? I have a CF30 MK4 with the same antenna ? how can I use it for ?


    Attached Files:

    • 28.jpg
      File size:
      331.5 KB
      Views:
      263
    scpres, Jun 17, 2019
    #2
  3. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    I believe that it is for wifi. My personal CF-28 has it

    Wyoming88!, Jun 18, 2019
    #3
  4. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    Maybe. I use Ethernet and rarely use the antenna

    Wyoming88!, Jun 18, 2019
    #4
  5. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    It's been a while since I have been around a 28 but I think the antenna is for CDMA service ??

    toughasnails, Jun 18, 2019
    #5
    katalin_2003 and Shawn like this.
  6. Springfield

    Springfield Notebook Deity

    Reputations:
    507
    Messages:
    942
    Likes Received:
    127
    Trophy Points:
    56
    There were 2 kinds of antennas on later CF-28s: cell (CDMA?) and wifi "B". The cell were common for police car use, but from what I saw the wifi was pretty rare. It was a Cisco card in a PC card slot hidden under the keyboard. I think the wifi was mainly used to connect to a CF-VDW07 wireless display using proprietary software that only runs under WinXP or Win2K. I still have a working setup like this . . .

    Springfield, Jun 18, 2019
    #6
    toughasnails, Shawn and UNCNDL1 like this.
  7. UNCNDL1

    UNCNDL1 Notebook Deity

    Reputations:
    225
    Messages:
    795
    Likes Received:
    183
    Trophy Points:
    56
    I remember I had to turn off that hidden WiFi to get my added wireless card to work.


    Sent from my CF-M34

    UNCNDL1, Jun 18, 2019
    #7
  8. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    What is the wireless card jst wondering

    Wyoming88!, Jun 18, 2019
    #8
  9. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    I think that the antenna Is for the wireless card (see attached photo). The 27 also has the antenna so it might be the wireless card


    Attached Files:

    Wyoming88!, Jul 17, 2019
    #9
  10. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    Ok. WWAN. I always forget that

    Wyoming88!, Jul 17, 2019
    #10
