    Part # for a CF-30 Keyboard?

    Discussion in 'Panasonic' started by Comptronic, Apr 10, 2011.

  1. Comptronic

    Comptronic Notebook Consultant

    Reputations:
    16
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    Could someone please confirm if:

    MP-03103USD8145
    or
    N2ABZY000152

    is a CF-30 Keyboard?

    Comptronic, Apr 10, 2011
    #1
  2. Kardan

    Kardan Notebook Evangelist

    Reputations:
    140
    Messages:
    304
    Likes Received:
    14
    Trophy Points:
    31
    Last week I removed what appeared to be the factory original standard keyboard from my CF-30 Mk1 and replaced it with an emissive. The part number on the back of the standard keyboard was N2ABZJ000033 -- so one of your numbers is at least in the right ballpark.

    Kardan, Apr 10, 2011
    #2
  3. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    I have about 4 standard keyboards in stock. and they ALL work with the CF-30's... I'll report back when I get to work tomorrow morning.

    Thanks

    Rob, Apr 11, 2011
    #3
  4. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    Turns out, I only have 1 of these and the P/N is below:

    Model: MP-03103USD8141
    P/N: N2ABZJ000033
    Rev: 0
    Vendor: Chicony
    Language: USA

    Thanks

    Rob, Apr 11, 2011
    #4
  5. Comptronic

    Comptronic Notebook Consultant

    Reputations:
    16
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    Well I hope it is for a CF-30. Also, does the CF-30 Keyboard also fit on a CF-29?

    Comptronic, Apr 11, 2011
    #5
  6. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Can you post photos of the front and rear of the keyboard?

    Shawn, Apr 11, 2011
    #6
  7. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    Of course!!!!!!!!

    Rob, Apr 11, 2011
    #7
  8. Comptronic

    Comptronic Notebook Consultant

    Reputations:
    16
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    Sweet! Thanks! I'll post pictures later.

    Comptronic, Apr 11, 2011
    #8
  9. Comptronic

    Comptronic Notebook Consultant

    Reputations:
    16
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    Sorry, I'm having issues posting the pictures. I will try again shortly.

    Comptronic, Apr 14, 2011
    #9
  10. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    You can use a host like imageshack too. Be sure that the photo's are NOT larger than 800x600.

    Thanks

    Rob, Apr 14, 2011
    #10
  11. Comptronic

    Comptronic Notebook Consultant

    Reputations:
    16
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30

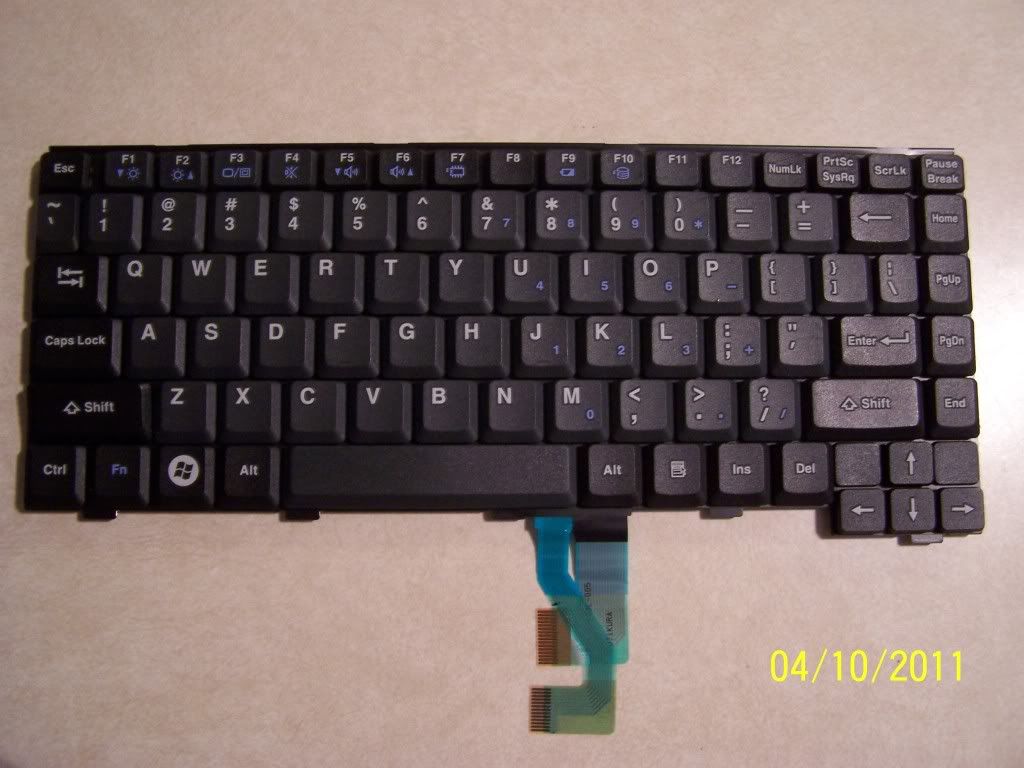

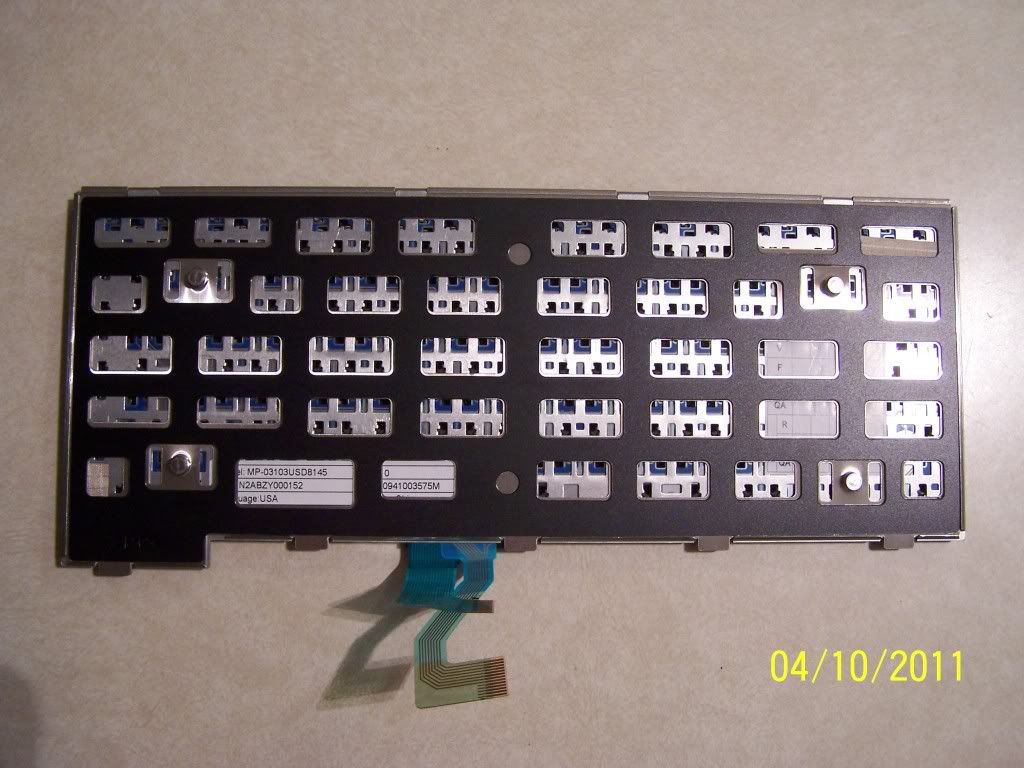

    Here they are.

    [​IMG]

    [​IMG]

    Comptronic, Apr 16, 2011
    #11
  12. Comptronic

    Comptronic Notebook Consultant

    Reputations:
    16
    Messages:
    186
    Likes Received:
    0
    Trophy Points:
    30
    Just so you know, I found out it doesn't fit. The standard CF-30 keyboard has the metal tabs that stick out so it looks it down. The CF-29 keyboard doesn't have these.

    How do they fit? You stated it does.

    Comptronic, May 15, 2011
    #12
  13. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    He prolly think that you know already. That was two years ago when he posted about a standard keyboard on CF-30. What he did was he took off that frame the one with 6 tabs. It has no difference with cf-29 keyboard with the exemption of the added frame.


    ohlip

    ohlip, May 15, 2011
