    Pinout for HDD Case for CF-27

    Discussion in 'Panasonic' started by marc22, Jun 18, 2011.

  1. marc22

    marc22 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hello,

    I'm trying to make working old laptop CF-27.

    I don't have HDD case, only HDD tape from motherboard to HDD case.
    I would like to make my own connection from that connector (hdd caddy) to normal mini IDE.


    I'm looking for pinout to CF-27 HDD tape.

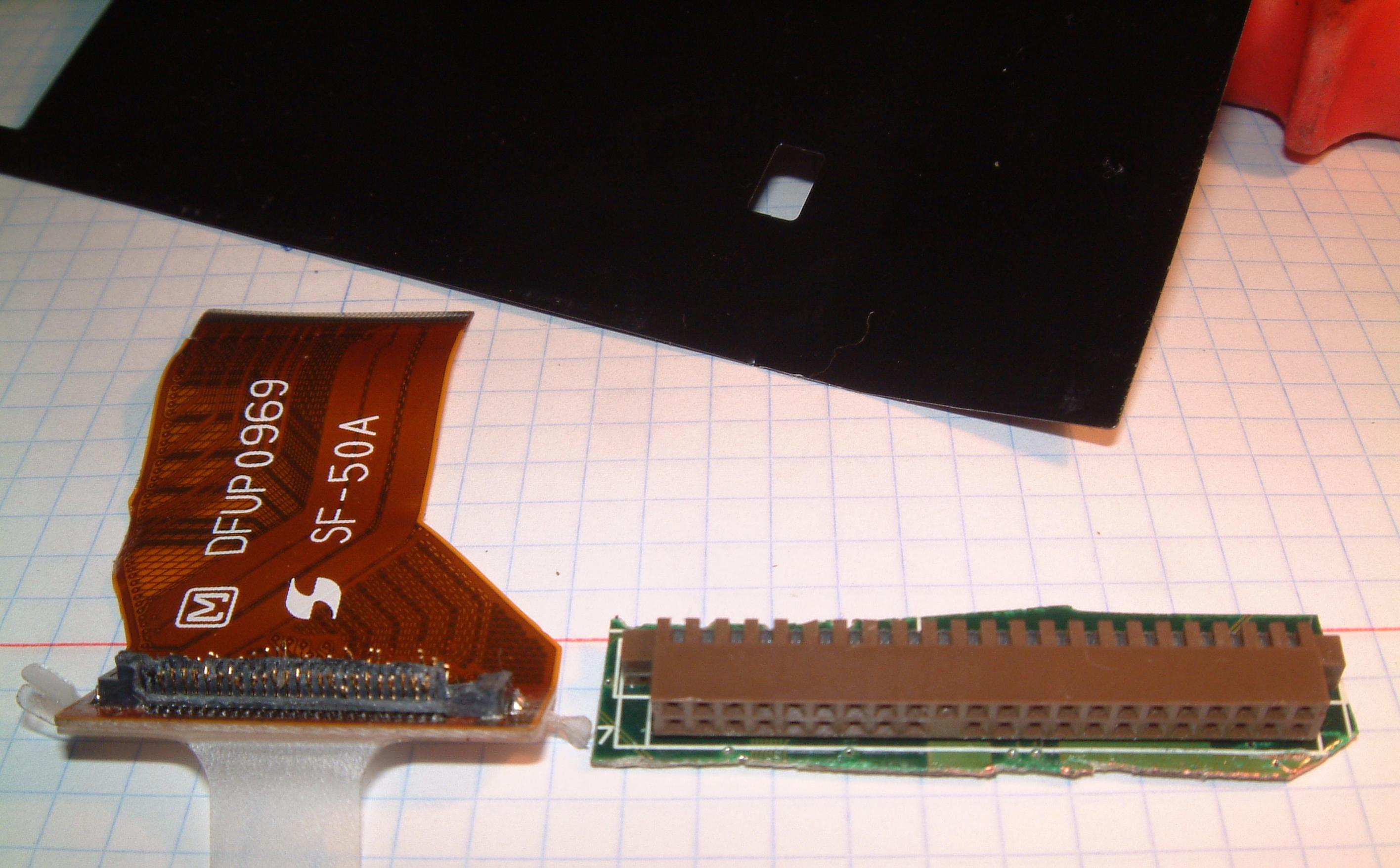

    In attachment i show my mini IDE connector, and HDD tape from CF-27 (between motherboard and HDD case).

    Maybe someone could give me manual with pinnout.

    Or maybe someone have original cable what change that wired connection to mini ide and can using ohm meter figure out with pin goes to mini IDE.



    Regards Marc
    //Sorry for my English


    Attached Files:

    marc22, Jun 18, 2011
    #1
  2. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    Do you want a CF-27 caddy complete with ribbon cable?
    CAP
