    Ram 512 Upgrade Cf-28pc P3800

    Discussion in 'Panasonic' started by junglew, May 10, 2008.

  1. junglew

    junglew Notebook Consultant

    Reputations:
    0
    Messages:
    193
    Likes Received:
    3
    Trophy Points:
    31
    hi to all from italy
    I have read the RAM post ..i look for upgrade 512 ram for my cf-28pc
    please..does someone have the sure model or the sure complete code to buy 512 ram module for cf-28PC p3800... SURE ...without to throw money with ebay purchase wrong models that they are not recognized??

    SODIMM SDRAM 512MB PC100 .(or 133??) MHZ 144PIN .....THIS IS SURE AND ENOUGH TO BE RECOGNIZED??
    ..there are a lot of rams with these characteristics and prices a lot of variable..
    in the forum does exist buy / sell?

    regards frank

    junglew, May 10, 2008
    #1
  2. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,361
    Likes Received:
    370
    Trophy Points:
    251
    You can ALWAYS go to www.800memory.com and plug in your laptop type to find the exact type of RAM you need... For any laptop!

    You want PC 133 RAM... With the 4 big chips on each side... Not the one with 8 chips on each side.

    Hope this helps...

    Toughbook, May 10, 2008
    #2
  3. junglew

    junglew Notebook Consultant

    Reputations:
    0
    Messages:
    193
    Likes Received:
    3
    Trophy Points:
    31
    ok thanks..
    this is model..
    512MB, 144-pin SODIMM, SDRAM, PC133 4 chips each side

    bud in ebay price is from 7 euro to... 55 euro..!!! with this reference.. 4 chips each side.....
    I would obviously choose low price.. but too difference of price..
    a lot of.as in sale for wrong purchase....
    regards

    :confused: :confused:

    junglew, May 10, 2008
    #3
  4. gravitar

    gravitar Notebook Deity

    Reputations:
    120
    Messages:
    976
    Likes Received:
    0
    Trophy Points:
    30

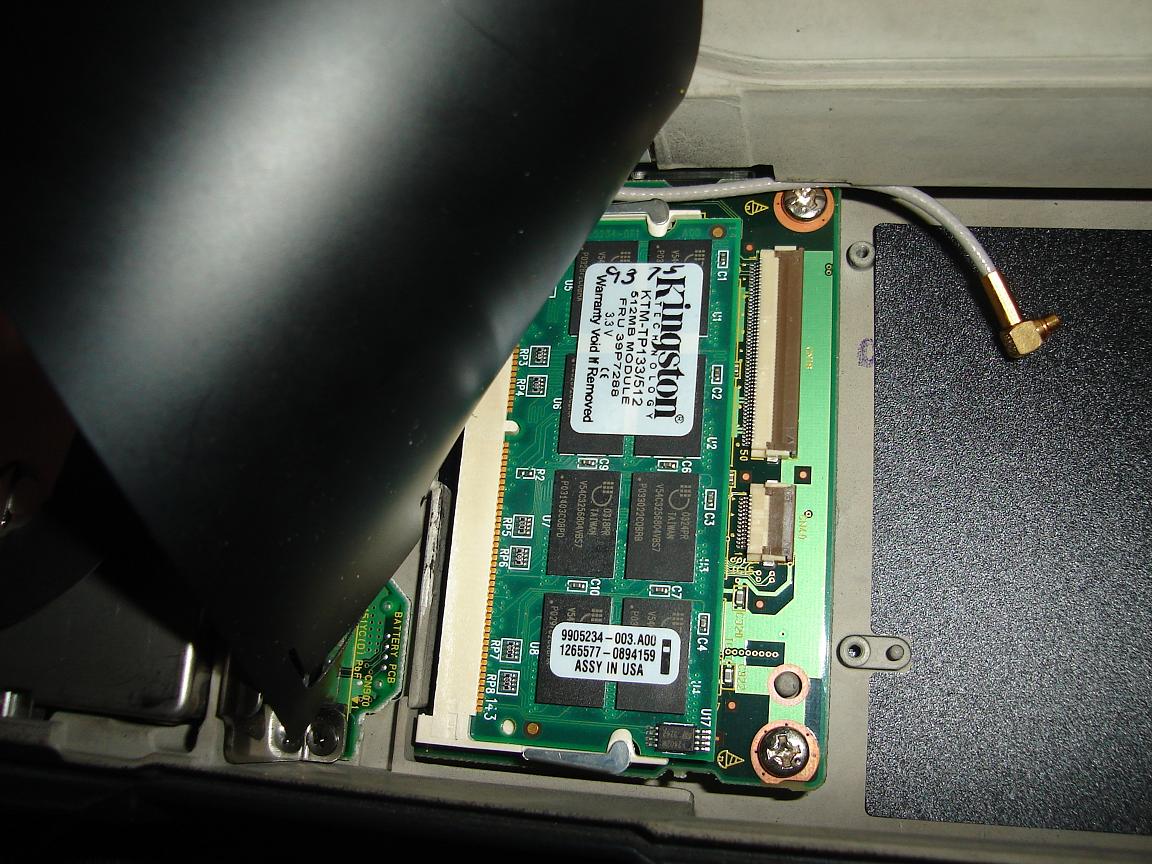

    Is this the one you guys are having trouble with? Shhhh.. don't tell my CF28, it is happy with the one I gave it!


    Attached Files:

    gravitar, May 10, 2008
    #4
  5. junglew

    junglew Notebook Consultant

    Reputations:
    0
    Messages:
    193
    Likes Received:
    3
    Trophy Points:
    31
    ...and ..with 8 chips on each side....... :rolleyes:

    this ram kingston 512( in the photo ) model number reference sight on ebay new.. BUD 4 chips each side....( work 4 and work 8 ???)
    shipped in italia 85 us dollar! 60 +25 ship... is correct GOOD price?

    thanks

    junglew, May 10, 2008
    #5
  6. TB28fan

    TB28fan Notebook Enthusiast

    Reputations:
    11
    Messages:
    44
    Likes Received:
    0
    Trophy Points:
    15
    I was sort of puzzled by this 8 chip thing myself. I can't even tell how many chips there are on mine becuase I have some Elpida pc-133 that has the armored can on it, but looking in from the side it looks like it has 16 chips or so.

    TB28fan, May 10, 2008
    #6
  7. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    Try this item on ebay. item no.190220424190 I just bought recently to this guy and it works to my cf-m34 866mhz with pc133 while other modules not. It is also work on cf-28s.

    ohlip

    ohlip, May 10, 2008
    #7
  8. stiffnecked

    stiffnecked Notebook Consultant

    Reputations:
    72
    Messages:
    211
    Likes Received:
    1
    Trophy Points:
    31
    stiffnecked, May 10, 2008
    #8
  9. junglew

    junglew Notebook Consultant

    Reputations:
    0
    Messages:
    193
    Likes Received:
    3
    Trophy Points:
    31
    hi
    cf-28s and cf-28p (my) ram is not different?? or bios recognize different ?? :cool:
    if work fine in your cf-28s...run and work also my cf-28p??

    I have already bought wrong once...
    but they are among .. "professionals toughbook man" ... now.. :))
    regards

    junglew, May 10, 2008
    #9
