    Seeking advice on installing a WWAN card in a CF19 mk4

    Discussion in 'Panasonic' started by Geraout, Aug 22, 2019.

  1. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41
    I've installed a known working WWAN card from another CF19 mk4 but it is not shown in the BIOS settings. The mk4 has neither the dip switches nor the "optional kit configuration" (toughkit) option in the BIOS settings.

    Wireless switch is enabled and switched on. I've tried the power off degauss.

    BIOS is V4.00L11. Model number is CF-19RHRAX2M.

    How do I "tell" the system that there is a WWAN card installed without any dipswitches or the optional kit configuration?

    Last edited: Aug 22, 2019
    Geraout, Aug 22, 2019
    #1
  2. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    search for spgobi2 on this forum
    you have to patch your BIOS, it's not that difficult

    BaRRmaley, Aug 22, 2019
    #2
    UNCNDL1, steve.steve, Wyoming88! and 1 other person like this.
  3. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    You say it's not in the bios. I know the MK 5 has it. I will check and see what page it is on in the bios .

    Last edited: Aug 22, 2019
    toughasnails, Aug 22, 2019
    #3
  4. BaRRmaley

    BaRRmaley Notebook Deity

    Reputations:
    206
    Messages:
    1,451
    Likes Received:
    489
    Trophy Points:
    101
    MK4 is a special one :))

    BaRRmaley, Aug 22, 2019
    #4
  5. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    It should be on the second page of the bios (Main) close to the bottom left side below "concealed Mode Configuration"

    toughasnails, Aug 22, 2019
    #5
  6. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41

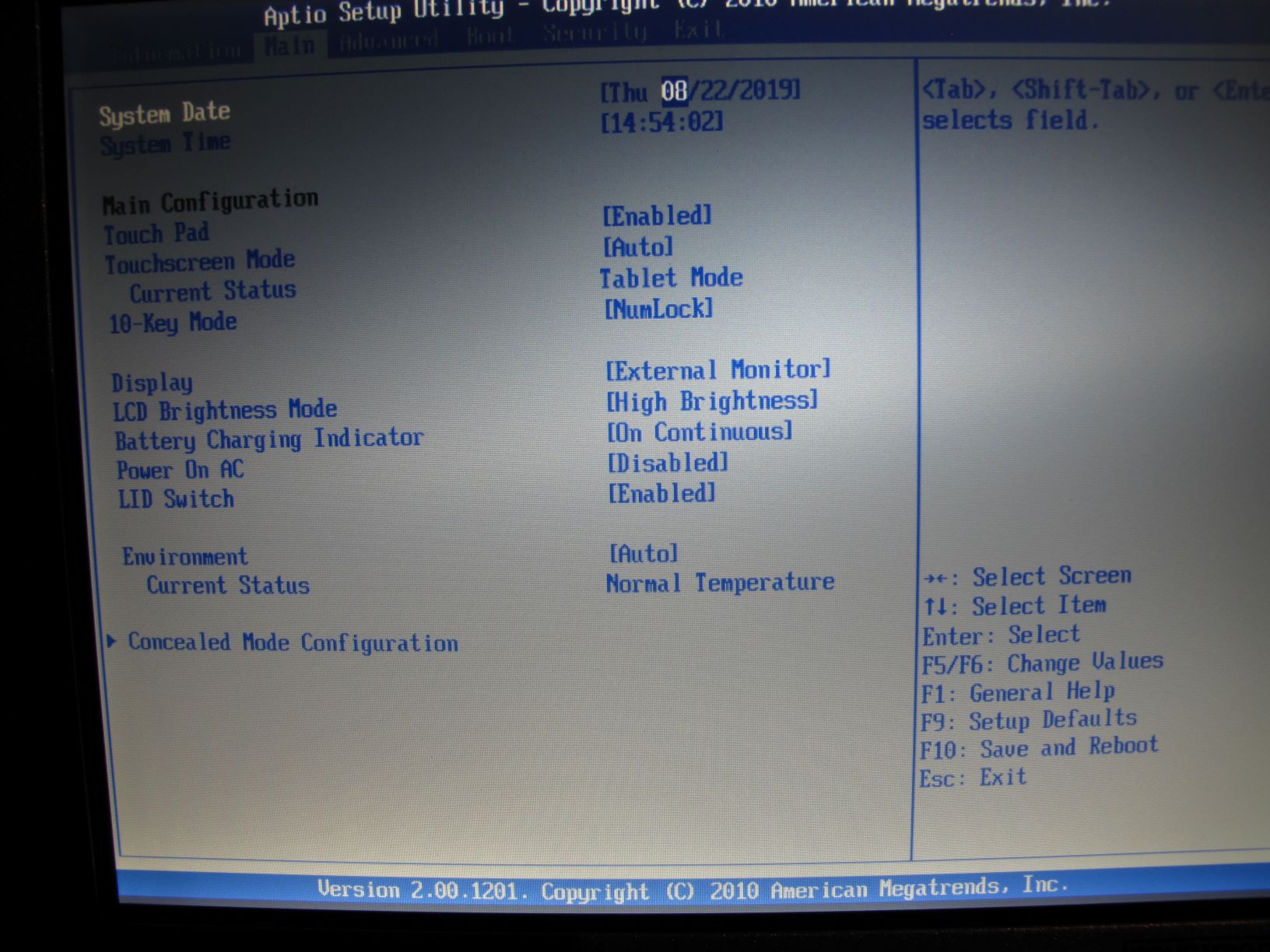

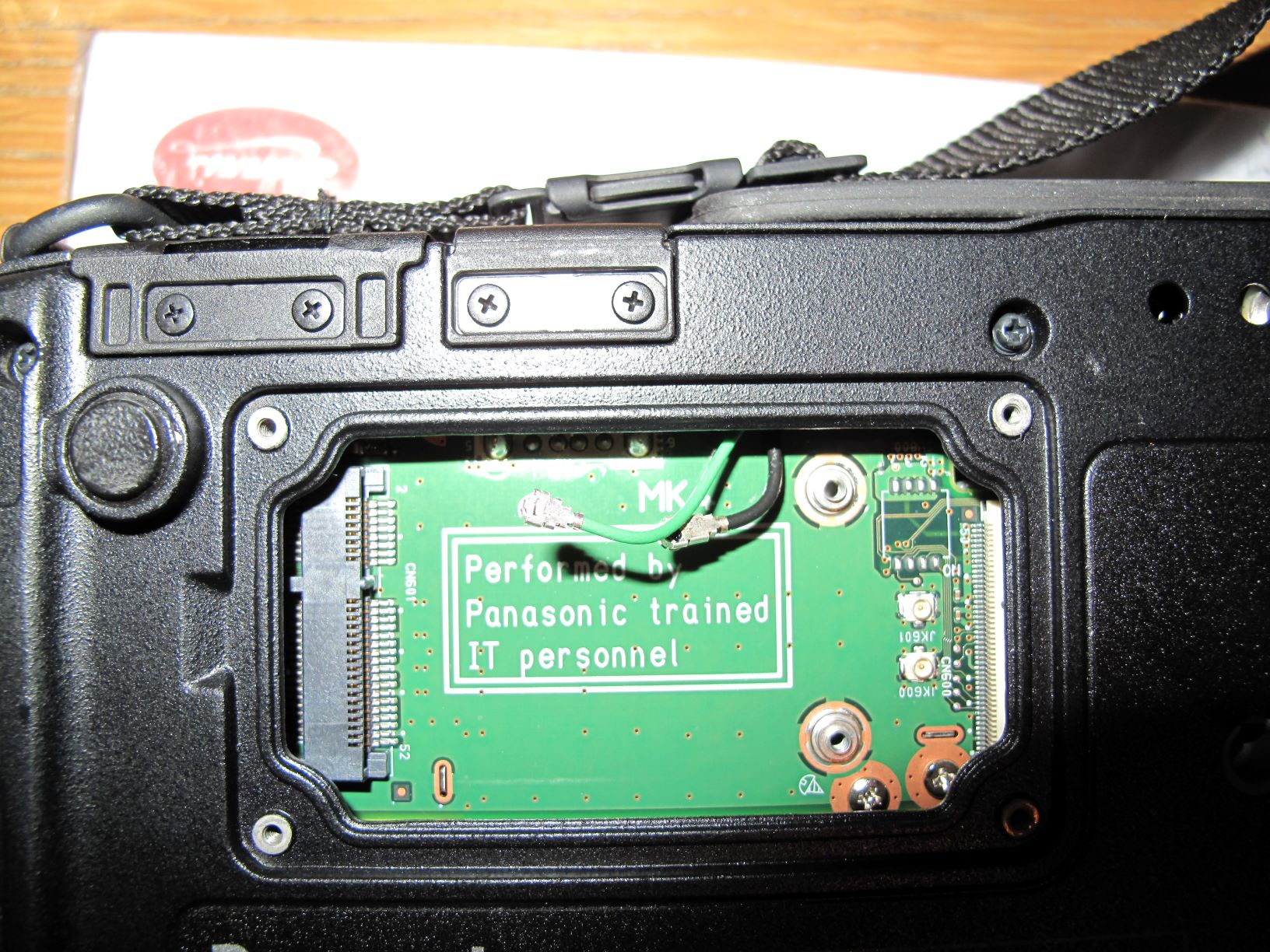

    Not there on a mk4. Pics below:


    Attached Files:

    • 1.JPG
      File size:
      230.2 KB
      Views:
      232
    • 2.JPG
      File size:
      426.2 KB
      Views:
      213
    Last edited: Aug 22, 2019
    Geraout, Aug 22, 2019
    #6
    toughasnails likes this.
  7. UNCNDL1

    UNCNDL1 Notebook Deity

    Reputations:
    225
    Messages:
    795
    Likes Received:
    183
    Trophy Points:
    56
    hmmmmmm. I think that I have a mark 4 in a box....will report back

    UNCNDL1, Aug 22, 2019
    #7
  8. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Well I just checked my MK1 & 2 to be sure it was there and they don't have it either. I must of been thinking of the 30 maybe. Guess I better edit my last post :p

    toughasnails, Aug 22, 2019
    #8
  9. Geraout

    Geraout Notebook Consultant

    Reputations:
    9
    Messages:
    249
    Likes Received:
    56
    Trophy Points:
    41
    Many thanks all.

    Yes it was SPGOBI2 that sorted it. It amends the BIOS to show WWAN Enable/Disable in the Wireless Configuration settings.

    Doesn't add the optional kit option though but seems to work without having to set anythingthere as other mks require.

    Geraout, Aug 23, 2019
    #9
    toughasnails likes this.
