Some CF-20 internal photos

Hello everyone! I scored the most amazing deal on a brand new CF-20C0031KM mk1 and received it yesterday, here is some photos of the internals. I might dig deeper when i replace some cards as i want to confirm if the ram can be upgraded or not. And no removing the back cover will not void the warranty, no screw stickers.

Just noticed that for the first time, it shows a voltage input range on the laptop! 15.6v to 16v! It always seemed to work ok but i was worried about long term reliability. Now i know!

The SSD is a Samsung Sata M.2 drive MZNTY128HDHP

Enjoy!



great photos.



I've dug a bit in the system information and it seems that the onboard memory is soldered chips like the fz-g1. For the CF-20, In the Panasonic PC info it shows form factor ''TSOP'' and device locator ''onboard''. FZ-G1 is almost exactly the same beside specifying it is using ''ddr3'' in memory type. Maybe someone here can share what it says in their CF-31 or CF-19.

I've ordered a dell variant of the em7455 to test in this CF-20, i had some good success with dell cellular cards in the past with toughbooks. My CF-U1 uses a dell MC7355 and my FZ-G1 a generic Sierra MC7700.

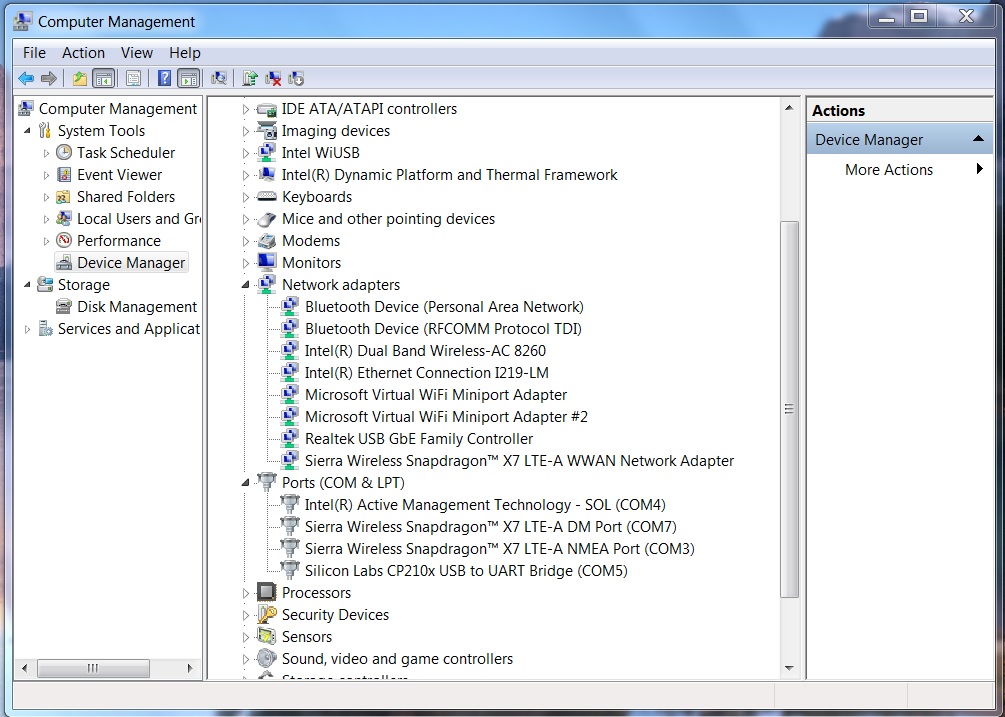

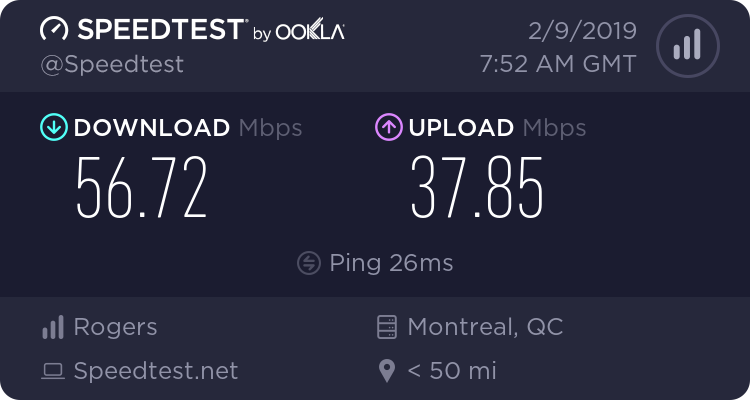

So i replaced my ublox card with a dell dw5811e 3P10Y (em7455), altered the optional kit setting from 1b(ublox gps) to 13(wwan). Then i followed this guide in ubuntu 18.04.1 to flash the dell card to generic and unlock all the features; https://github.com/danielewood/sierra-wireless-modems. It is very important to install the bleeding edge libqmi packages (1.20) otherwise the flash will fail/timeout. (the links fail so you need to manually browse the packages through the links and install them one by one in the right order). Now instead of showing unusable dell devices in task manager(none of the drivers worked), it shows Sierra Wireless Snapdragon X7! Just install generic 7455 drivers/skylight/reboot and it works great! (all from Panasonic website)
