    Some WWAN wins this morning!

    Discussion in 'Panasonic' started by Rob, Oct 28, 2010.

  1. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    So remember my thread ages ago about my mom's CF-52 WWAN not working... And I was asking everyone about the dip switches?

    WELLLLL...... I figured this out today one of my CF-19's I have in inventory when I had to put a Sprint card in a CDBAXVT model... I will try to check and see if the same will work on the CF-52 if she ever brings it home from work... :)

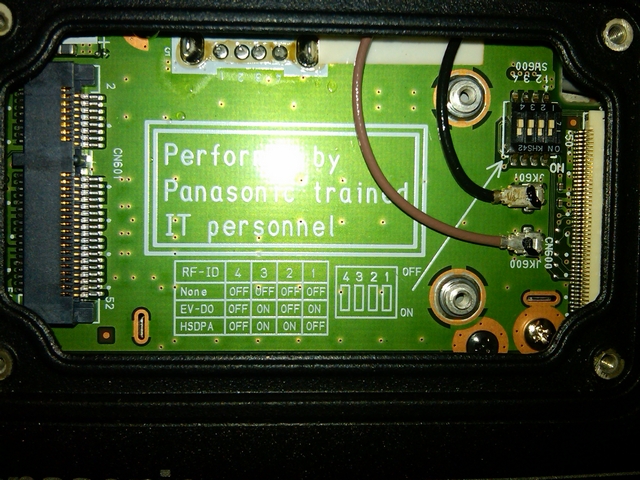

    The picture shows it all but there is one thing that the picture doesn't say: TAKE OUT THE BATTERY OR FLIPPING DIP SWITCHES WON'T DO JACK!!! :eek2:

    Once I put 1/3 on and 2/4 off with the battery OUT... bada bing bada boom! Shows up in BIOS and everything!


    Attached Files:

    Last edited by a moderator: May 8, 2015
    Rob, Oct 28, 2010
    #1
  2. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    Rob, You have, I suppose, heard the one about the Texan "not smart enough to pour pi$$ out of a boot with instructions written on the heel?"
    CAP

    capt.dogfish, Oct 28, 2010
    #2
  3. mnementh

    mnementh Crusty Ol' TinkerDwagon

    Reputations:
    1,116
    Messages:
    3,389
    Likes Received:
    29
    Trophy Points:
    116
    HEY! It's NOT MY FAULT!

    The directions were in ESPANOL!!!

    mnem
    Piso... ;)

    mnementh, Oct 30, 2010
    #3
  4. adamwest436

    adamwest436 Notebook Evangelist

    Reputations:
    37
    Messages:
    454
    Likes Received:
    1
    Trophy Points:
    31
    Sounds like something I would do!

    adamwest436, Oct 30, 2010
    #4
  5. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    I noticed when changing wwan units in cf-29's that there were issues

    Resolution was battery out , hold power switch on for a few seconds
    Replace battery and ac adapter , reset bios to defaults

    Alex, Oct 30, 2010
    #5
  6. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    UPDATE:

    So I donno if you guys remember but my NDIS (that is the auto connect in case you are networking challenged :D) on my sprint card stopped working about a year ago on my CF-30. Anyways, yesterday, I swapped out the WWAN caddy (not the card of coarse) and viola! It works now! The signal is also better as well as the speed!

    Thanks

    Rob, Oct 30, 2010
