    Toughbook CF-53 mk1, SSD possible? Caddy or msata?

    Discussion in 'Panasonic' started by blysk, Apr 21, 2018.

  1. blysk

    blysk Notebook Guru

    Reputations:
    0
    Messages:
    52
    Likes Received:
    2
    Trophy Points:
    16
    Hi all :)

    I have a Toughbook with the number "cf-53aszcgfp", mk1 I think.
    I would like to use a SSD with it, currently it has a 300 GB HDD.

    Is it possible to install a msata SSD in it?

    Alternative: Is it possible to install a DVD caddy in it? Then I would put the HDD into the caddy and a SSD into the normal slot.

    Last edited: Apr 21, 2018
    blysk, Apr 21, 2018
    #1
  2. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331

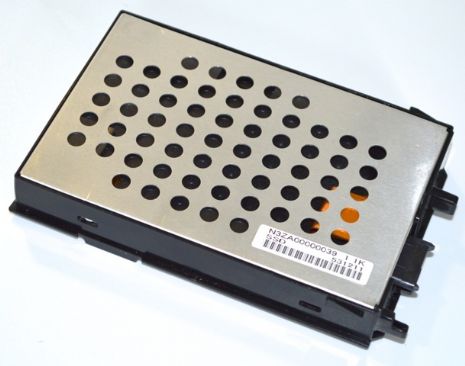

    CF 53 uses 2.5" hard drive
    No factory slot for msata

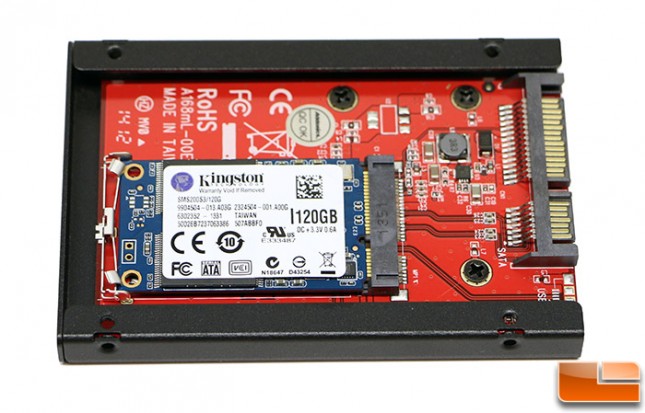

    msata in a 2.5" adapter would be possible.

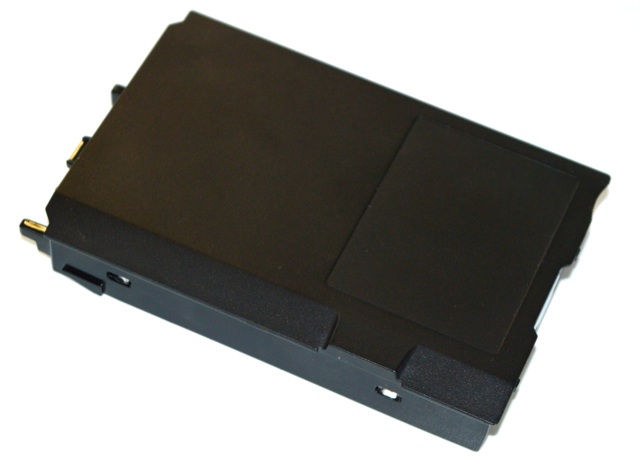

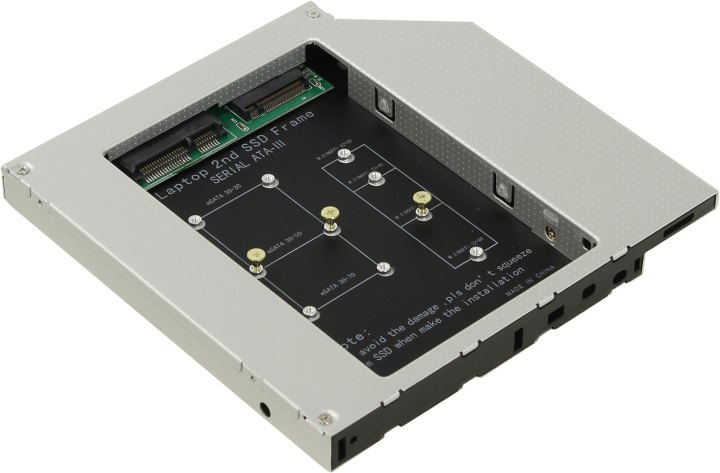

    msata or m.2 in the DVD adapter is also possible.
    See pictures.

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

    Shawn, Apr 21, 2018
    #2
    UNCNDL1 likes this.
  3. blysk

    blysk Notebook Guru

    Reputations:
    0
    Messages:
    52
    Likes Received:
    2
    Trophy Points:
    16
    Thanks :)

    If I would get a SSD and caddy, would you put the SSD in the main port and the HDD in the caddy for best SSD speed and HDD for storing?

    blysk, Apr 21, 2018
    #3
  4. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    yes

    Shawn, Apr 21, 2018
    #4
