    Toughpad CF-D1 mk3 serial port

    Discussion in 'Panasonic' started by Mark Conroy, Dec 23, 2021.

  1. Mark Conroy

    Mark Conroy Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    Hi

    ordered one of these recently and it was listed as having a serial port yet when it arrived it did not have one.
    Looking to order from someone else but wanted to ask did they make the mk 3 with a serial port?
    all the sellers in the uk are all using the same stock images so i am unsure wether to waste my time ordering a mk3 or getting a mk 2.

    Are the mk 2 units any good with the celeron cpu?

    Mark Conroy, Dec 23, 2021
    #1
  2. Mark Conroy

    Mark Conroy Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    Does the mk3 have a soldered serial port to the main board or is it on a ribbon connection?

    Thanks

    Mark Conroy, Dec 27, 2021
    #2
  3. kschewe

    kschewe Notebook Consultant

    Reputations:
    4
    Messages:
    149
    Likes Received:
    63
    Trophy Points:
    41
    kschewe, Dec 28, 2021
    #3
    Mark Conroy likes this.
  4. Mark Conroy

    Mark Conroy Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for your reply, the ones on sale here in the uk all have a wired lan point and usb ports on that side of the unit. i dont suppose you know where i could possibly buy the serial port board from?

    Thanks

    Mark Conroy, Dec 28, 2021
    #4
  5. kschewe

    kschewe Notebook Consultant

    Reputations:
    4
    Messages:
    149
    Likes Received:
    63
    Trophy Points:
    41
    I am in Canada but I know some people here in north America buy https://www.heartlandsi.com
    can you use a usb to serial port adapter?

    kschewe, Dec 28, 2021
    #5
  6. Mark Conroy

    Mark Conroy Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    I could use a serial to usb but it makes it a bit of an eyesore as the application i use a serial port for is really picky and i have only found 1 usb adaptor that will work but its bulky for a handheld tablet.
    I have seen some other guys say they buy parts from www.heartlandsi.com but they also only take orders on the phone i have seen commented and also i would need the part number.
    I have a cf 53 i'm just repairing at the moment but would like a tablet for when i work away and these seem to have a decent spec for there age.

    Thanks for your response, if anyone can confirm what i said regarding ordering on the phone from www.heartlandsi.com and needing part number i would be grateful.

    Thanks

    Mark Conroy, Dec 28, 2021
    #6
  7. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,114
    Messages:
    6,194
    Likes Received:
    2,255
    Trophy Points:
    331
    No you don't need to phone in a order. I've been ordering from them for years all by email and never had a problem but not since covid hit. The problem for you is shipping is very high. At least $100.00 USA funds because it's sent by FedEx or at least in USA it is. There is a place in UK to get parts but I don't have the address

    toughasnails, Jan 3, 2022
    #7
  8. Geraout

    Geraout Notebook Consultant

    Reputations:
    11
    Messages:
    251
    Likes Received:
    56
    Trophy Points:
    41
    Would a serial port from a mk1 or 2 work in a mk3?

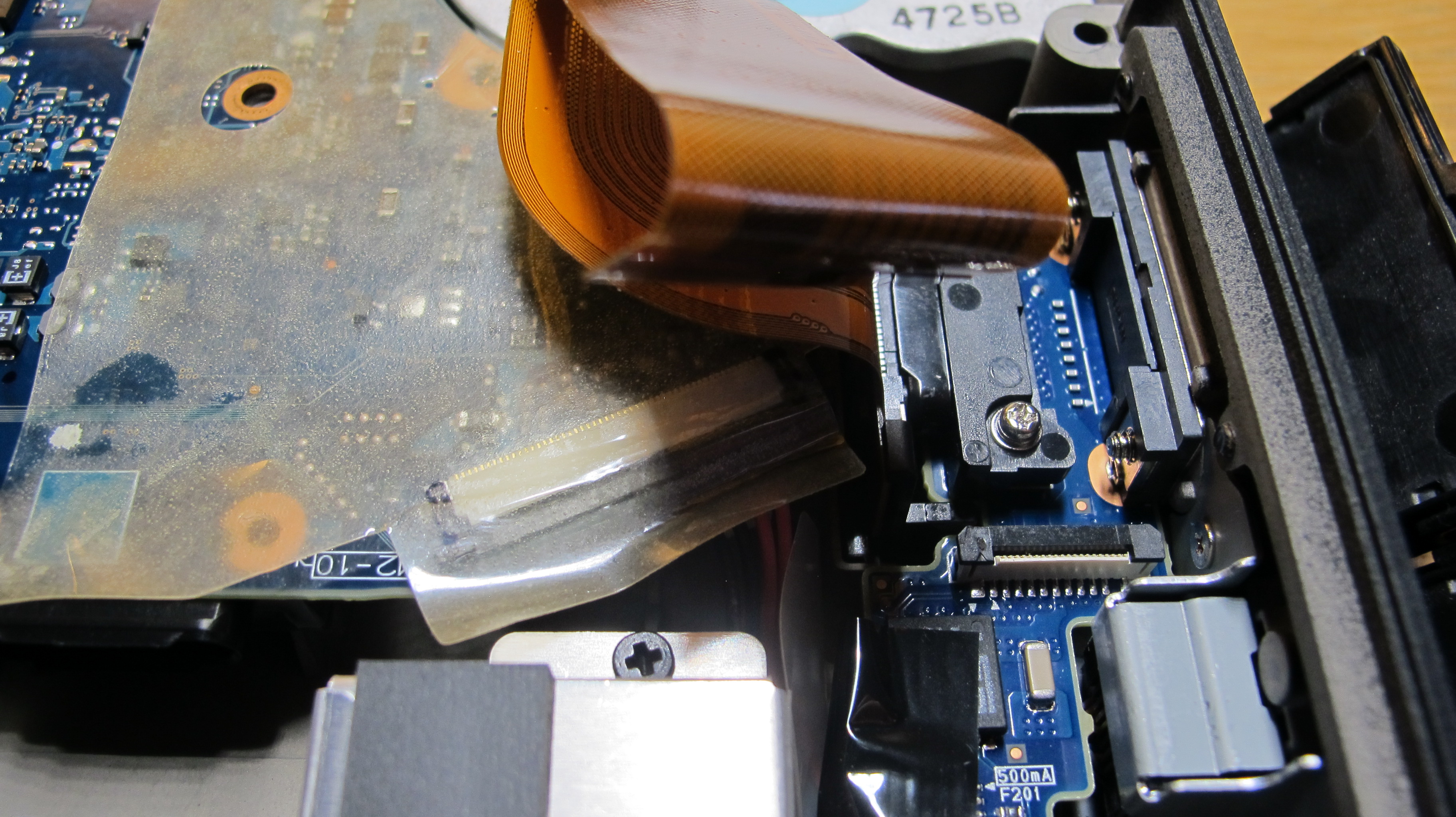

    You may need the bracket too. The pic shows a mk2 so that you can see the slot on the mb.


    Attached Files:

    Last edited: Jan 5, 2022
    Geraout, Jan 5, 2022
    #8
  9. Mark Conroy

    Mark Conroy Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    I think i would need the bracket too. but thanks for the reply.

    Mark Conroy, Jan 27, 2022 at 2:32 PM
    #9
  10. Geraout

    Geraout Notebook Consultant

    Reputations:
    11
    Messages:
    251
    Likes Received:
    56
    Trophy Points:
    41
    What I was getting at was that there was a UK listing of mk2 CF-D1s for parts. They did include the serial ports. They were only £10 so would be worth a punt.

    Long gone now though...

    eBay item number: 254954402826. Might still be worth contacting the seller to see if they have any more.

    Geraout, Jan 28, 2022 at 2:41 AM
