    What does CF-73 hidden button do?

    Discussion in 'Panasonic' started by Springfield, Nov 27, 2012.

  1. Springfield

    Springfield Notebook Deity

    Reputations:
    507
    Messages:
    942
    Likes Received:
    127
    Trophy Points:
    56
    I was dismantling a CF-73 to reach the CMOS battery -- a real pain. After removing the bezel above the keyboard I noticed a small pushbutton on the left, under where the "SD" logo is on the bezel (Mk5). It cannot be pushed or seen with the bezel in place.

    I tried pushing it when power is off, and pushing it when booting up. Didn't see any difference. This CF-73 does not have any OS loaded yet, so can't test it when fully running.

    Anyone know what the CF-73 hidden button does?

    Springfield, Nov 27, 2012
    #1
  2. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    Maybe the best way to find out what it is to check the service manual, find the part number and see what its called...and I don't see it :no: do you.

    toughasnails, Nov 28, 2012
    #2
  3. unclemack

    unclemack Notebook Evangelist

    Reputations:
    99
    Messages:
    332
    Likes Received:
    42
    Trophy Points:
    41
    Self-destruct in 5..4...
    Always secretly wanted a secret button :)

    unclemack, Nov 28, 2012
    #3
  4. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,941
    Likes Received:
    208
    Trophy Points:
    81
    That may be the wwan switch. I will check my wwan model 73 when I get home.

    ADOR, Nov 28, 2012
    #4
  5. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,941
    Likes Received:
    208
    Trophy Points:
    81

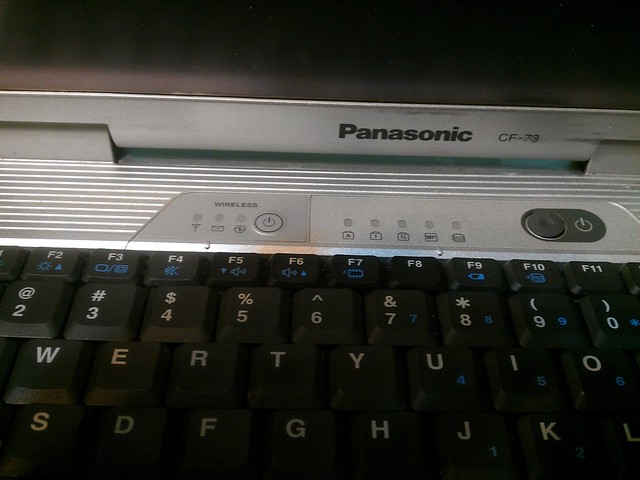

    [​IMG]

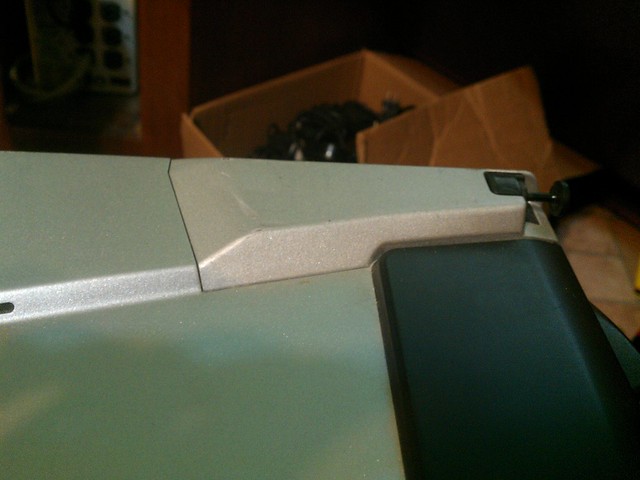

    [​IMG]

    Is that the button in question?

    ADOR, Nov 28, 2012
    #5
  6. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    He said it's under the bezel and not visible until you remove the bezel.

    It's the modern version of the Bat Signal! :swoon:

    Shawn, Nov 28, 2012
    #6
  7. Springfield

    Springfield Notebook Deity

    Reputations:
    507
    Messages:
    942
    Likes Received:
    127
    Trophy Points:
    56
    YES! That's it -- ADOR is a genius! :notworthy:

    Mine does not have WWAN and the bezel is different, covers up that button and all those lights except the left-most LED.

    Springfield, Nov 28, 2012
    #7
  8. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    So it's not the Bat Signal :(

    Drat

    Shawn, Nov 29, 2012
    #8
  9. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,941
    Likes Received:
    208
    Trophy Points:
    81
    I wouldn't really say a genius but I did play with the 73 models for a while. I only have one with SD card adapter, one with WWAN, the rest were just the plain Jane ones. I just sent one of them overseas and working on parting out and getting rid of the rest. I may keep one of them.



    It's ok, you can mod anything!

    ADOR, Nov 29, 2012
