    Why does my magnetic wristband switch off the screen?

    Discussion in 'Panasonic' started by r0tati0n, Jul 4, 2019.

  1. r0tati0n

    r0tati0n Notebook Enthusiast

    Reputations:
    0
    Messages:
    22
    Likes Received:
    4
    Trophy Points:
    6
    I am wearing a friendship wristband. It is made of resin/carbon/metal, it has some wak magnets inside.

    When I place this wristband over the num-roll-scroll-HDD-SD-power indicators in the lower right the screen goes off. Even if I do not touch the laptop, only hovering the wristband and its magnets over it shuts off the screen power.

    Why?

    What sensor is there?


    Panasonic CF-53 MK1, debian

    r0tati0n, Jul 4, 2019
    #1
    gnineorknad likes this.
  2. steve.steve

    steve.steve Company Representative

    Reputations:
    6
    Messages:
    202
    Likes Received:
    92
    Trophy Points:
    41
    There is a magnet in the top right of the screen so when the lid is closed the laptop will hibernate. So your wristband makes the computer think the screen is closed

    steve.steve, Jul 4, 2019
    #2
    Wyoming88!, gnineorknad, toughasnails and 1 other person like this.
  3. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,361
    Likes Received:
    370
    Trophy Points:
    251
    Throwing my iPhone up on the palm-pad of my CF-31 does the same thing. It forces hibernation. If only I could sleep so easily!

    Toughbook, Jul 4, 2019
    #3
    User32, Wyoming88!, Shawn and 1 other person like this.
  4. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    When I throw my 29 at the wall open then it turns off but why?

    sarcazam but still answer because my friend needs to know

    Wyoming88!, Jul 4, 2019
    #4
  5. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    The sensor to turn the screen off when you close the lid.

    Shawn, Jul 4, 2019
    #5
  6. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    Switch the bracelet to your left wrist?
    EDIT: THE LID SWITCH CAN BE DISABLED IN BIOS ....F2 TO BIOS, SCROLL TO LID SWITCH, F6 TO CHANGE, F10 TO SAVE.

    Here's a shot showing the hidden location of the micro-switch on a CF-31 MK4.

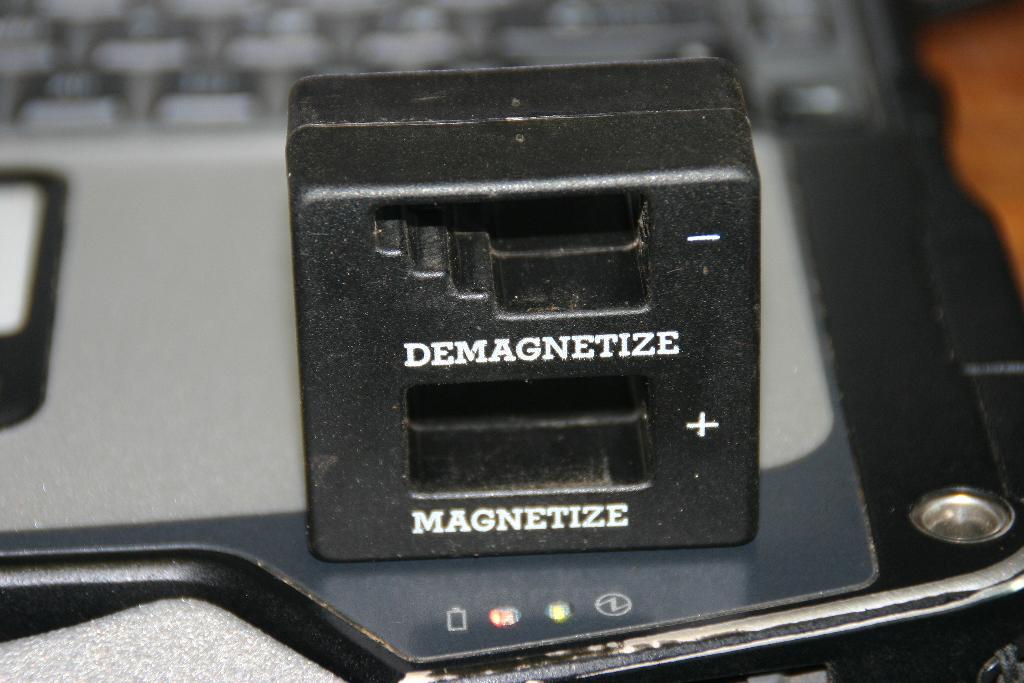

    With this tool it switches off at +- 7/8".


    Attached Files:

    Last edited: Jul 8, 2019
    SHEEPMAN!, Jul 8, 2019
    #6
    UNCNDL1, toughasnails, steve.steve and 2 others like this.
  7. Wyoming88!

    Wyoming88! Notebook Evangelist

    Reputations:
    47
    Messages:
    366
    Likes Received:
    178
    Trophy Points:
    56
    If the cmos is dead then you do it every time you turn it on

    Wyoming88!, Jul 9, 2019
    #7
  8. denrosten

    denrosten Notebook Evangelist

    Reputations:
    149
    Messages:
    477
    Likes Received:
    21
    Trophy Points:
    31
    I have the same on my CF-54 with the magnetic wristband of my Iwatch, toke me a while to figure out. :vbconfused:

    denrosten, Jul 13, 2019
    #8
    Wyoming88! likes this.
