    Wide handles on screens of cf-18/19?

    Discussion in 'Panasonic' started by ADOR, Aug 6, 2011.

  1. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,941
    Likes Received:
    208
    Trophy Points:
    81

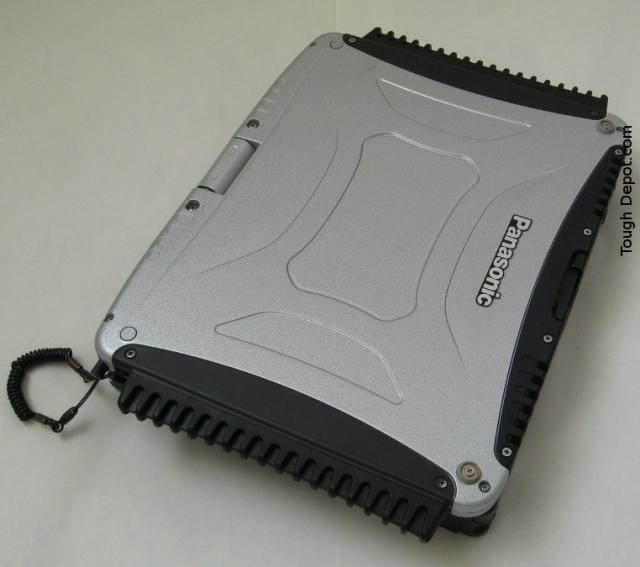

    What are the wings/wide handles on the screens of some cf-18/19's? Do the serve a purpose other than maybe to have a better hand hold. One cf-18 unit I have purchased and is not at home is suppose to have this.

    [​IMG]

    (picture borrowed from the web)

    ADOR, Aug 6, 2011
    #1
  2. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    I think they are the GOBI antenna covers. My 19 had these "wings" too. :)

    toughasnails, Aug 6, 2011
    #2
  3. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    I VOTE FOR
    1. SELF DEFENSE FEATURE.
    2. Keeps fingers off screen.

    Mk5 CF-18 has them.

    SHEEPMAN!, Aug 6, 2011
    #3
  4. TBtech29

    TBtech29 Notebook Evangelist

    Reputations:
    459
    Messages:
    362
    Likes Received:
    0
    Trophy Points:
    30
    they are mandatated by the fcc to be on WWAN fitted units

    TBtech29, Aug 6, 2011
    #4
  5. db04p71

    db04p71 Notebook Deity

    Reputations:
    515
    Messages:
    732
    Likes Received:
    8
    Trophy Points:
    31
    Do you know the reason? Why do the WWAN-ready models not have them? Just curious.

    db04p71, Aug 6, 2011
    #5
  6. TBtech29

    TBtech29 Notebook Evangelist

    Reputations:
    459
    Messages:
    362
    Likes Received:
    0
    Trophy Points:
    30
    do not know the reason, any 18/19 with a wireless modem in it is required to be in on there.

    Maybe they protect some interference but I have never seen them do anything other than break

    TBtech29, Aug 7, 2011
    #6
  7. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    and they look really funky...that is why I sold my 19

    toughasnails, Aug 7, 2011
    #7
  8. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,941
    Likes Received:
    208
    Trophy Points:
    81
    I am not too fond of the look either, that is why I was thinking of swapping them out if they unit shows up like that.

    ADOR, Aug 7, 2011
    #8
  9. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    They also have some (CF-19) that has 1/2 wings :eek:

    toughasnails, Aug 7, 2011
    #9
  10. gijoe4us

    gijoe4us Notebook Consultant

    Reputations:
    47
    Messages:
    208
    Likes Received:
    19
    Trophy Points:
    31
    Everything prior to MK IV's had these big wings..... When I bought my GOBI 2000, they actually provide new panels that are less than 1/2 of the original stuff in the previous MK's. They also include a lot of other stuff that I have never figured out what it is used for. Bummer, I am sure it has purpose, but what, I don't know. Anyway, the smaller ones are actually pretty cool looking and I think they allow for more expansive reception/transmission of 800 mghz signal?

    gijoe4us, Aug 8, 2011
    #10
  11. Rob

    Rob Toughbook Aficionado

    Reputations:
    450
    Messages:
    3,941
    Likes Received:
    61
    Trophy Points:
    116
    According to Panasonic's service center, the only, ONLY reason for these stupid waste of space wings is because of the FCC regulations! GAH!

    Rob, Aug 8, 2011
    #11
  12. gijoe4us

    gijoe4us Notebook Consultant

    Reputations:
    47
    Messages:
    208
    Likes Received:
    19
    Trophy Points:
    31
    I still have my old ones, can I put them back on and hope not to be caught by the FEDS? (LOL) Interesting they put these on for no reason? Thanks..... It does make pulling open the screen easy from different positions though!

    gijoe4us, Aug 8, 2011
    #12
  13. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    I'm sure, as with the infamous mattress and pillow tags, the regs only apply to the manufacturer; not to the End-User. :no:

    Probably to prevent those "evil (radio) rays" from entering your body through your hands, then working their way to your brain and turning you into a Republican ! (or Democrat: pick your party ;)) <snicker> :swoon: :laugh: :tongue:

    Still ugly, though. :wink:

    TopCop1988, Aug 8, 2011
    #13
  14. gijoe4us

    gijoe4us Notebook Consultant

    Reputations:
    47
    Messages:
    208
    Likes Received:
    19
    Trophy Points:
    31
    No doubt!!!!! :) Quite bizarre that they have this "dissipation" device attached to my TB CF 19 MK IV for no reason! It's all plastic, obtrusive, yet quite nice as I said to open the screen.... BTW, the antennae adapter supplied, do tilt them out a tad, would that be a problem going back to OEM, or are there "micro" reflectors built in to the "wings" and I should just leave what I installed alone? Man, GovReg sucks!!!!!

    gijoe4us, Aug 8, 2011
    #14
  15. Pinecone

    Pinecone Notebook Consultant

    Reputations:
    75
    Messages:
    256
    Likes Received:
    0
    Trophy Points:
    30
    We don't have the wings in Europe :)

    Pinecone, Aug 8, 2011
    #15
  16. gijoe4us

    gijoe4us Notebook Consultant

    Reputations:
    47
    Messages:
    208
    Likes Received:
    19
    Trophy Points:
    31
    FCC versus Europa compliance...... How different is that! Are you growing things out of your head, fingers, toes, or elsewhere? LOL :)

    gijoe4us, Aug 8, 2011
    #16
  17. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    That antena is an ergonomic designed to strengthen the signal.


    ohlip

    ohlip, Aug 8, 2011
    #17
  18. ADOR

    ADOR Evil Mad Scientist

    Reputations:
    520
    Messages:
    1,941
    Likes Received:
    208
    Trophy Points:
    81
    ADOR, Aug 9, 2011
    #18
  19. Pinecone

    Pinecone Notebook Consultant

    Reputations:
    75
    Messages:
    256
    Likes Received:
    0
    Trophy Points:
    30
    That's not true. It's just to make sure you don't hold the aerials right against your body, which the FCC fear may irradiate people.

    Obviously if I end up gaining superpowers and joining the X-Men then I'll be a happy guy :)

    Pinecone, Aug 9, 2011
    #19
  20. gijoe4us

    gijoe4us Notebook Consultant

    Reputations:
    47
    Messages:
    208
    Likes Received:
    19
    Trophy Points:
    31
    That makes sense. Lets hold a cell phone right next to your brain and the TB will be 3 feet from your body. Oh well, changed mine back, no signal loss at all.

    gijoe4us, Aug 9, 2011
    #20
  21. eno801

    eno801 Guest

    Reputations:
    0
    I happen to like them makes the toughbook look all HR Gigerish. lol. Yeah but they do break easier. If anyone has any spare ones I'll take them off your hands.

    eno801, Aug 11, 2011
    #21
  22. Kardan

    Kardan Notebook Evangelist

    Reputations:
    140
    Messages:
    304
    Likes Received:
    14
    Trophy Points:
    31
    Is there any difference between the non-wing antenna covers for a CF-18 and one for a Mk 1-2 Cf-19?

    I have a CF-19 Mk4 and am thinking about getting rid of the wings. Seems like new flat covers for the Cf-18 genereally go for less on eBay that those for the Cf-19.

    Kardan, Oct 31, 2011
    #22
  23. toughasnails

    toughasnails Toughbook Moderator Moderator

    Reputations:
    7,107
    Messages:
    6,193
    Likes Received:
    2,254
    Trophy Points:
    331
    This is what one seller says

    or
    If these are new then you will not get them any cheaper than that...even Heartlands will be double after shipping $29.99 and $39.99 free shipping (same seller)

    The covers new from Heartlands are ($11.71) $23.42 for 2...not counting shipping ($25.00-$40.00)

    toughasnails, Oct 31, 2011
    #23
  24. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    I was noticing how the wide handles somewhat protected the GPS.

    SHEEPMAN!, Oct 31, 2011
    #24
