Win 7 Ult CF-30 MK1 Again? Really...

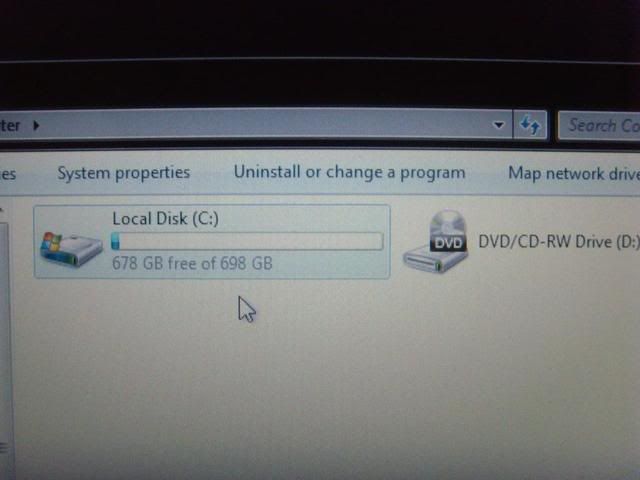

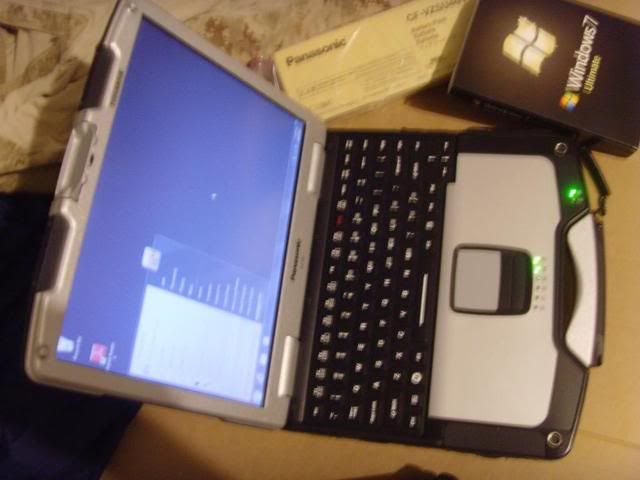

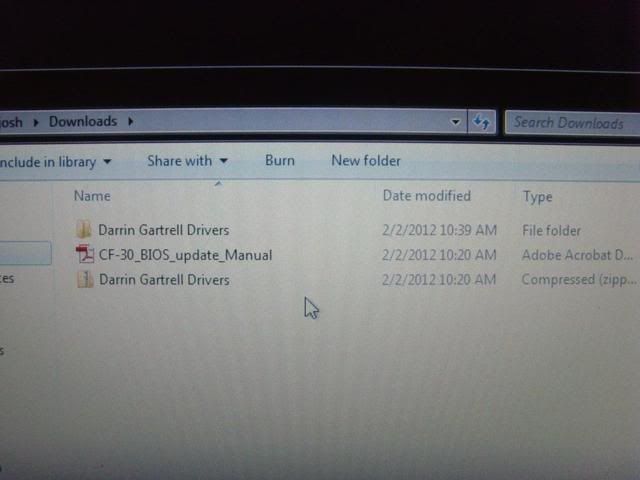

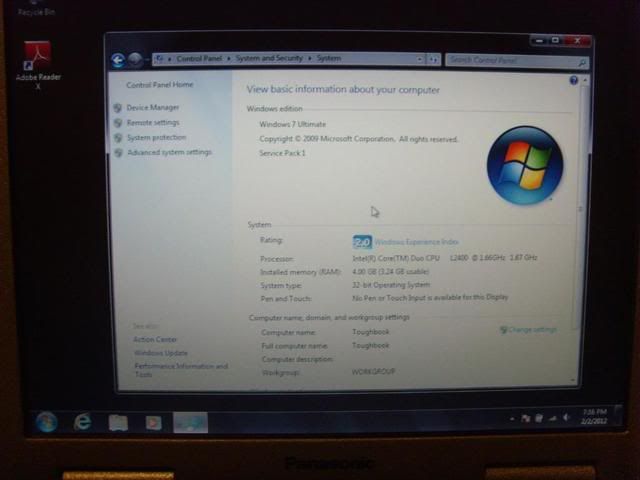

The short of it, Picked up a CF-30CTQAZBM BIOSV1.00L15 EC V1.00L16 MEMORY 4096GB HD 750GB & DVD DRIVE, came with XP pro up & ready to go. Got Win 7 Ultimate in yesterday & its now up & running. Read each & every post on the subject several times but it still leaves a noob like me wondering. I have not tackled the Vista Bois change but think I would need the v110 10? not even sure how to flash it.. downloaded the Darrin drivers compressed also but left it at that for now till I know how to tackle them in the propper manner also. I like win 7 on the cf-30 so far, just want to have the FN keys, touch calibration, battery cal, & other original options back up & running. I can do the fresh install of 7 again if need be - just wanted to ask if anyone can give a quick step by step guide for me that leaves little chance of me screwing up (Thats a tall order I know). Any help on an already beaten to death topic would be greatly appreciated Edit for Pic's -



well, maybe I should start small - which version or vista bios out of the 4 that come up on the panasonic site should I use. I picked the 2nd one down & got an error message that sounded pretty bad...



Here is a pretty good start for ya. This guide was developed through the hard work of several folks around here and is not too hard to follow but I do recommend reading the whole thing before you start. I think the same guide can be found here on NBR site- this one was just easier for me to find.

And yes, you do need to update the BIOS or it will not work right. More on that in the guide.



Thank You, I hate to worry you guy's but also know my limitations I just got a backlit keyboard in but no glow yet - must have to do with the driver's too...



What kind of backlight keyboard? There are a couple different rubber backlight ones and you need the three connector model or it will not work correctly.



Panasonic CF-30 Mk1
Model Number: CF-30CTQAZBM
Status: DISCONTINUED
MSRP: $4,249
Description: Microsoft® Windows® XP Professional, Intel® Core Duo L2400 1.66GHz (Centrino), 13.3" XGA Touch Screen, 80GB HDD, 512MB RAM, Intel® 802.11a/b/g WLAN, TPM1.2 Security Chip, Bluetooth, No Optical Drive

Category: BIOS and EC
Title: BIOS V1.00L20 / EC V1.00L17 (Feb‚ 2008)
Model: CF-30C/D(mk1)
CF-30[B/C/D/E]xxxxBx (For XP Downgrade Model Only)
Windows Vista -> Windows XP
Operating System:
Language:
Release Date: Apr 18, 2008 Index No: 011545
File Name (Size):
[Download Time] bios_30_1_r080014.exe (1.1 mb)

[Download Time 512k: 19.0 sec]

This program is self-expandable and can only be used on applicable model.

CF-30_BIOS_update_Manual.pdf (13.3 kb)

[Download Time 512k: 0.2 sec]

File Description First Release

We will release the "BIOS/EC for Upgrading to Vista" and "BIOS/EC for
Re-Downgrading to XP" for 30mk1 XP Downgrade model.

This is the BIOS update for CF-30(mk1) Windows XP Downgrade Model only.

Before updating‚ please confirm information in the web page of
″CF-30/CF-19 Windows Vista Product Recovery DVD-ROM Provision Program″.

CF-30/CF-19 Windows Vista Product Recovery DVD-ROM Provision Program (First)
Product Recovery DVD-ROM Provision Program | Windows® Vista Support Information | TOUGHBOOK | Panasonic


Category: BIOS and EC

Title: BIOS V1.01L20 / EC V1.10L11 (Feb‚ 2008)
Model: CF-30C/D(mk1)
CF-30[B/C/D/E]xxxxBx (For XP Downgrade Model Only)
Windows XP -> Windows Vista
Operating System:
Language:
Release Date: Apr 18, 2008 Index No: 011544
File Name (Size):
[Download Time] bios_30_1_r070208.exe (1.1 mb)

This program is self-expandable and can only be used on applicable model.

[Download Time 512k: 19.1 sec]

CF-30_BIOS_update_Manual.pdf (13.3 kb)

[Download Time 512k: 0.2 sec]

File Description First Release

We will release the "BIOS/EC for Upgrading to Vista" and "BIOS/EC for
Re-Downgrading to XP" for 30mk1 XP Downgrade model.

This is the BIOS update for CF-30(mk1) Windows XP Downgrade Model only.

Before updating‚ please confirm information in the web page of
″CF-30/CF-19 Windows Vista Product Recovery DVD-ROM Provision Program″.

CF-30/CF-19 Windows Vista Product Recovery DVD-ROM Provision Program (First)
Product Recovery DVD-ROM Provision Program | Windows® Vista Support Information | TOUGHBOOK | Panasonic



Thanks, got it worked out - turns out the 3rd connector had to be upsidedown so to speak (the gold connection facing up toward you) it now works but the FN keys still need the drivers. Im on that now. @TopCop1988 Thanks Sir - may I ask guy's can I do the vista BIOS install while running win 7 ? added some pic's to the first post....



went ahead & downloaded bios_30_1_r070208.exe got a message about it being unsafe - can't get any further... Edit, updated bios to vista - got pen & touch -
now to the drivers Another edit, Done Deal Thanks Guy's



Works some good..yes . Now add a SSD and you will be really flying.



In hind sight an SSD would have been the way to go. Thats a project to look forward too I have a couple small issues to work out today. When I hit f12 to adjust the keyboard brightness it brings up another screen. The battery calibreaion is also on the agenda. when I was adding the drivers I skipped the video because it had a newer version, & I also skipped the modem & wlan. Going to reread the posts today to make sure they wont really need to be added too. Things seem to be going well...



Same thing I did too. After a few days W7 updated the video drivers.



Ok my mistake on the keyboard - holding FN before hitting f12 helps :confused2: Works Great that way... Went to panny's site & downloaded the battery calibration for vista - got the danger message again - saved the driver then opended it. Got the already installed message - so.... with Win 7 you can't get the minute type countdown for how much juice is remaining like in xp or am i barking up the wrong driver tree.... Btw I love the 30 with Win7



There is a program called BatteryBar which will show that and more.



Impressive, Thank you Sir



Get that SSD like someone already mentioned. My oldest has the CF-30 and now my youngest wants one. They are pretty nice and run a loooong time on Battery. I think I'm going to get another CF-19 for myself.

SIN



I'll pick one up then - they seem to be highly recommended. I wonder though, could I then move the 750GB HDD to my cf-28 MK?



Well let's see CF-30 SATA...CF-28 ATA...750GB...NO but it was a good idea
SSD prices have been dropping a lot and many have been coming with great rebates . Just keep an eye on this forum...someone always post deals on SSD's
