    Wwan sled question

    Discussion in 'Panasonic' started by SirJ, Feb 24, 2016.

  1. SirJ

    SirJ Notebook Consultant

    Reputations:
    0
    Messages:
    140
    Likes Received:
    13
    Trophy Points:
    31

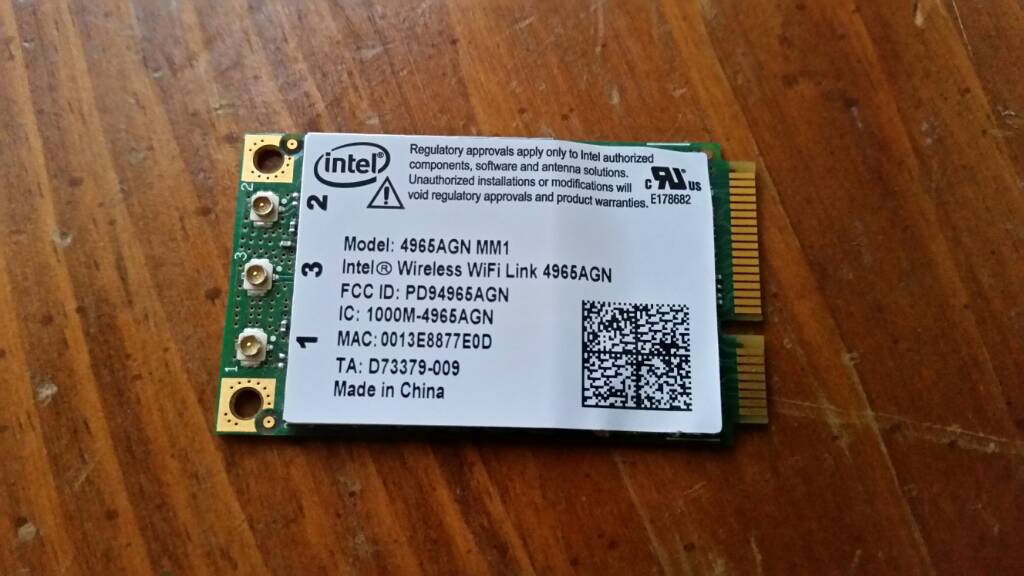

    Can I use this in the wwan sled?
    I took it from my Sony Vaio FZ series (stupid power plug on board BROKE AGAIN)laptop, I am not going to bother fixing... 3Rd time breaking.

    Will this work, and where can I get the drivers lastly the pull out antenna fine for draft N?
    [​IMG]

    SirJ, Feb 24, 2016
    #1
  2. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Try it in your sled and see. Dipswitch settings will be trial and error.
    Drivers are at Intel.com
    Pull out antenna is wrong frequency.

    Shawn, Feb 24, 2016
    #2
  3. SirJ

    SirJ Notebook Consultant

    Reputations:
    0
    Messages:
    140
    Likes Received:
    13
    Trophy Points:
    31
    Hmm, OK to swap out the factory module for this one, Forget about using the wwan Bay?

    Last edited: Feb 24, 2016
    SirJ, Feb 24, 2016
    #3
  4. SirJ

    SirJ Notebook Consultant

    Reputations:
    0
    Messages:
    140
    Likes Received:
    13
    Trophy Points:
    31
    I swapped the interal one for the AGN. According to Windows there is a cable unplugged. Do the wires still go to 1 & 3 do I need a third wire for #2?... When I removed from my Sony Vaio it had only two plugged in even tho there is 3 antenna ports.

    SirJ, Feb 25, 2016
    #4
  5. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    2 antennas should be fine

    Shawn, Feb 25, 2016
    #5
  6. SirJ

    SirJ Notebook Consultant

    Reputations:
    0
    Messages:
    140
    Likes Received:
    13
    Trophy Points:
    31
    Na windows did not like the card. That's OK, I'll just stick with 2.7ghz

    SirJ, Feb 25, 2016
    #6
  7. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    In my limited experience WWAN cards (Like Gobi) may work on the sled. WLAN cards like your 4965 install elsewhere...in place of your WLAN for instance.
    Shawn is correct on frequency.
    The windows error refers to not recognizing the card and little/nothing to do with the third antenna.

    SHEEPMAN!, Feb 26, 2016
    #7
  8. SirJ

    SirJ Notebook Consultant

    Reputations:
    0
    Messages:
    140
    Likes Received:
    13
    Trophy Points:
    31
    Yeah I figured that out, The next step/mod is the sled and changing out the WWAN pull out antenna with a sma terminal so I can use the right antenna.

    Last edited: Feb 26, 2016
    SirJ, Feb 26, 2016
    #8
  9. CWB32

    CWB32 Need parts for my flying saucer.

    Reputations:
    179
    Messages:
    1,563
    Likes Received:
    412
    Trophy Points:
    101
    if memory serves correctly , there is a *network* (L-C) that is used in conjunction with the antenna ...
    i can't remember where it is located .

    CWB32, Feb 26, 2016
    #9
