    cf-18 built in double wifi

    Discussion in 'Panasonic' started by muzza100, Jan 28, 2012.

  1. muzza100

    muzza100 Notebook Enthusiast

    Reputations:
    8
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5

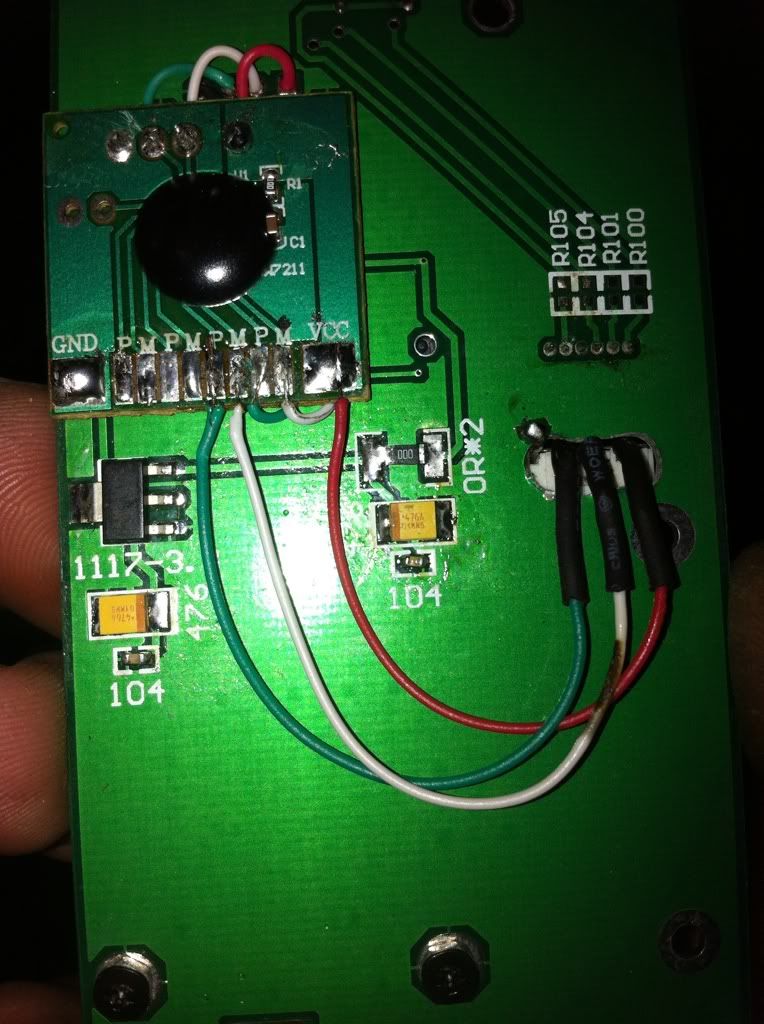

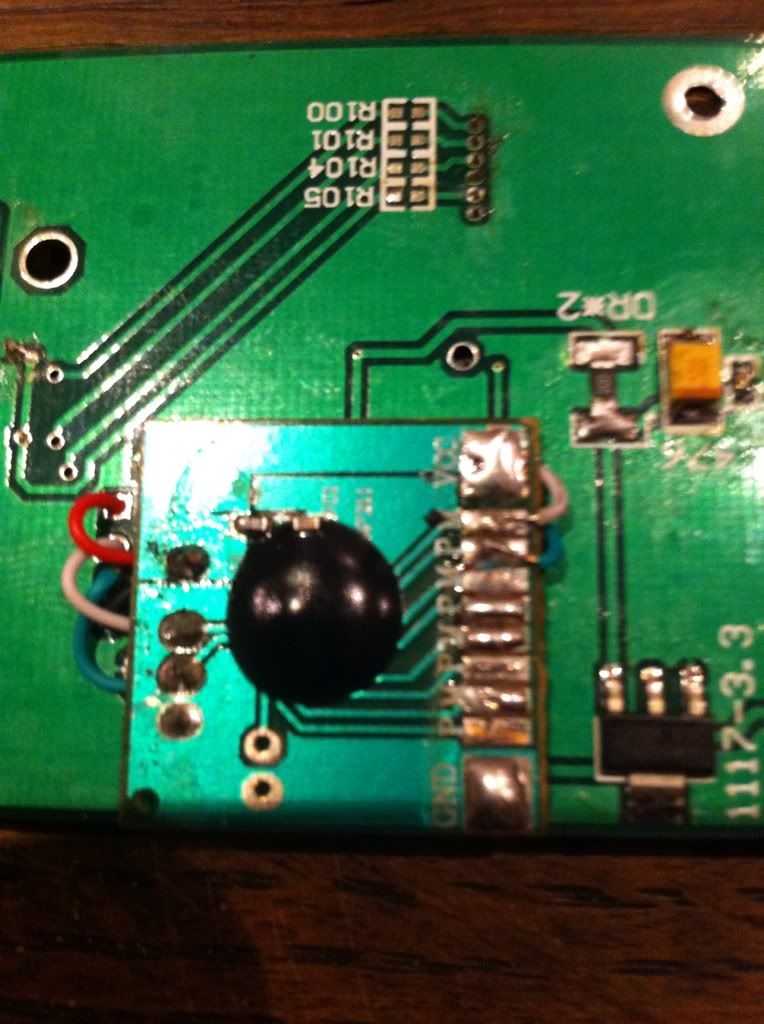

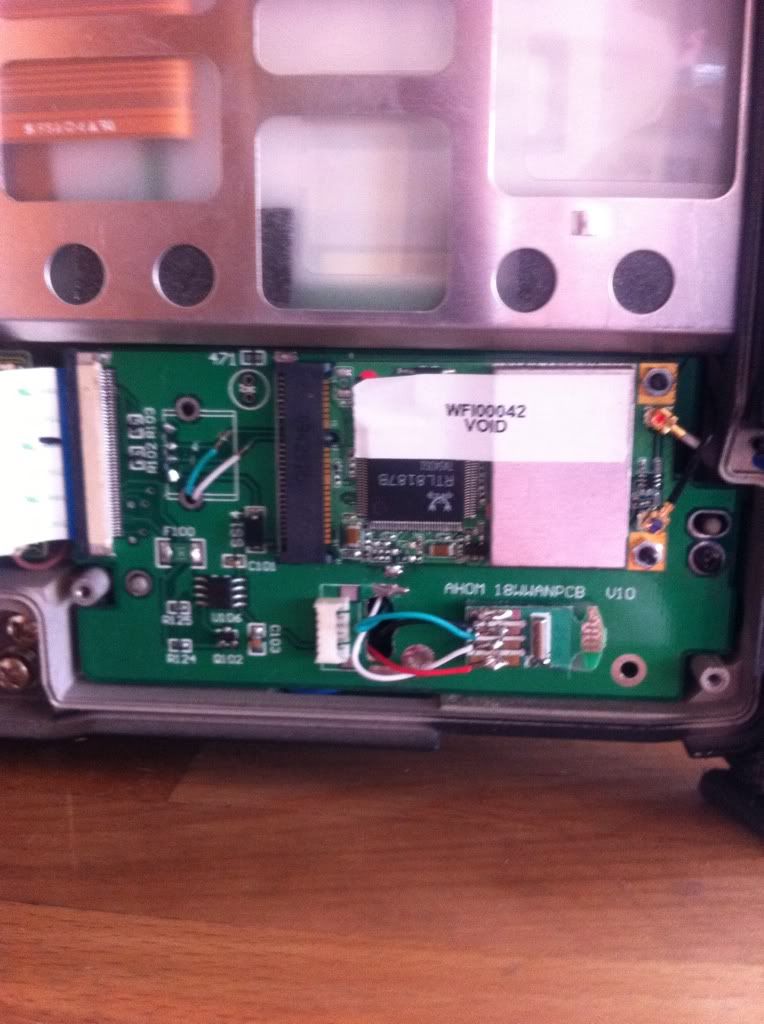

    had a bit of a play and managed to find a usb format pcie wifi card azurewave with the realtek rtl8187b chip also a built in usb hub and bluetooth all works realy well :)

    the software bluetooth switch turns both the bluetooth and secondary wifi very usefull

    [​IMG]

    [​IMG]

    [​IMG]

    muzza100, Jan 28, 2012
    #1
  2. Springfield

    Springfield Notebook Deity

    Reputations:
    507
    Messages:
    942
    Likes Received:
    127
    Trophy Points:
    56
    I like it!

    How much range can you get on the BT?

    Which antenna(s) is the 2nd wifi hooked into?

    Springfield, Jan 28, 2012
    #2
  3. muzza100

    muzza100 Notebook Enthusiast

    Reputations:
    8
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    bout 15 m ive connected the bt to an external antenna now

    ive put two new antennas in the plastic screen surrounds not as good as the normal wifi but good enough

    muzza100, Jan 28, 2012
    #3
  4. interestingfellow

    interestingfellow Notebook Deity

    Reputations:
    280
    Messages:
    995
    Likes Received:
    34
    Trophy Points:
    41
    nice!
    what usb hub did you use?
    (10 char)

    interestingfellow, Jan 28, 2012
    #4
  5. muzza100

    muzza100 Notebook Enthusiast

    Reputations:
    8
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    just a cheap inline jobbie of your favorite auction site

    muzza100, Jan 28, 2012
    #5
  6. mnementh

    mnementh Crusty Ol' TinkerDwagon

    Reputations:
    1,116
    Messages:
    3,389
    Likes Received:
    29
    Trophy Points:
    116
    Just be careful what all you plug into that hub; it's not current-protected, I can see that by the lack of individual B(+) terminals for the output side. This means everything you plug into it is connected directly to the source 5V(+), including the load of the hub itself.

    You'll be safe if you limit it to meeses and flash cards & whatnot; but external drives and wireless devices will add up to the 500ma limit in a hurry.

    mnem
    *Word to the wise-ily*

    mnementh, Jan 29, 2012
    #6
