cf-30 mk3 bios password HELP

hi..
please i look for link with tutorial for remove bios password and administrator password form my cf-30 mk3.
have link ?

regards to alls from italy



The discussion of such information is prohibited by Forum Rules.

Sorry.



sorry.

my pc is regular buy..i have changed pass with small pass ..
but i like no pass for fast boot..only this.
i see this post for password bios .........................

http://forum.notebookreview.com/panasonic/475588-cf30-bios-problems.html

ok no problem thanks..



The option to remove your password is in the bios settings
Look you will see it under one of the tabs
When I travel ,I enable it, at home I remove to speed booting



When I travel ,I enable it, at home I remove to speed booting....

i like this...

ok i go in the bios and cancel password... gate and leave empty space? or flag option ?

is very easy. ok
when i travel i go in the bios and put password....

ok very simple. thanks.



yeah when you change the password just leave it blank and press enter.



i am go in the bios..

makes me just change passw.....
will not let me go ..."DISABLE" ..
now is ebable and is not possible change .to disable

is possible only change password...



Leave the password blank (ie. put in no password and press return).

This is how you clear the password once you have logged in to the BIOS.



in the boot....after panasonic logo i have now....
PASSWORD in page blue color......i put xx and go in xp windows...after i have new pass administrator.....(not like)

if i go in the bios security
i have passage .. actual password..i put xx rteturn
after.... new password.....i put .nathing return
after confirm new password ..i put nating (but.. message not password insert..) i put return
f10 save.

and i have still more the password xx



Make sure you set both the supervisor and "standard" user passwords to blank.



not change... i see also in the bios
INFORMATION ...ACCES LEVEL ... USER but not possible go to this location..

if i put nothing in the change password.. i look this message

user password cannot be deleted in user mode ......ok

??????????

what is user mode?
thanks



User mode is when you are able to look at the BIOS without the rights to change any settings.

If you want to be able to change the passwords/other settings, you need to know the supervisor password.



not possible also user passwords to blank....
I surrender ... I keep my password!

thanks to alls!!
frank



hello from italy
in my cf30 mk1 model CF-30KTPAZNT BIOS V300L20 CONTROL EN. V300L16 is not possible change for boot from cd-rom_dvd.

i like change my 5400 disk xp wit SSD SANDISK 128 , but boot from cd rom for bakup is not possible.
many actions in this bios is not possibles because is alls dull matt gray color..
when i turn on the cf-30 i have logo panasonic and after password . i put my password and go wih xp.

i have put this my password, but i think is not bios password but personal password.(.in the bios is possible change this ok) ..but alls many operations in the bios is not possible because grey matt color options..

thanks for help

i like boot of cd-rom for ghost my 5400 xp disk and put SSD SANDISK 128 DISK..but is not possible i hope this SSD sandisk is compatible ???
now i have this options in the bios FLOPPY ...DISK ....DVDROM....but ALLS GREY COLOR and ipossible to set..

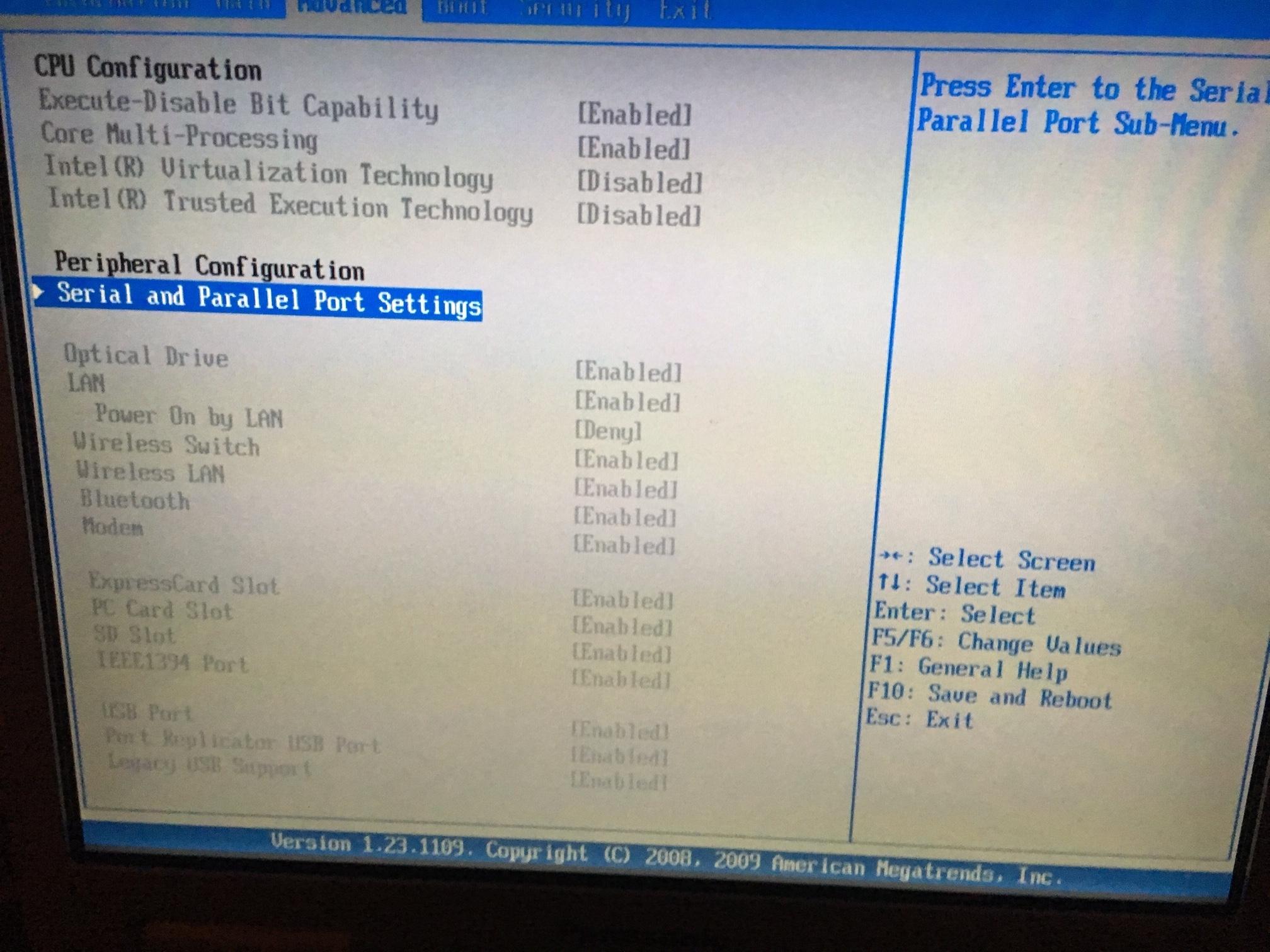

Please post a photo of BIOS pages

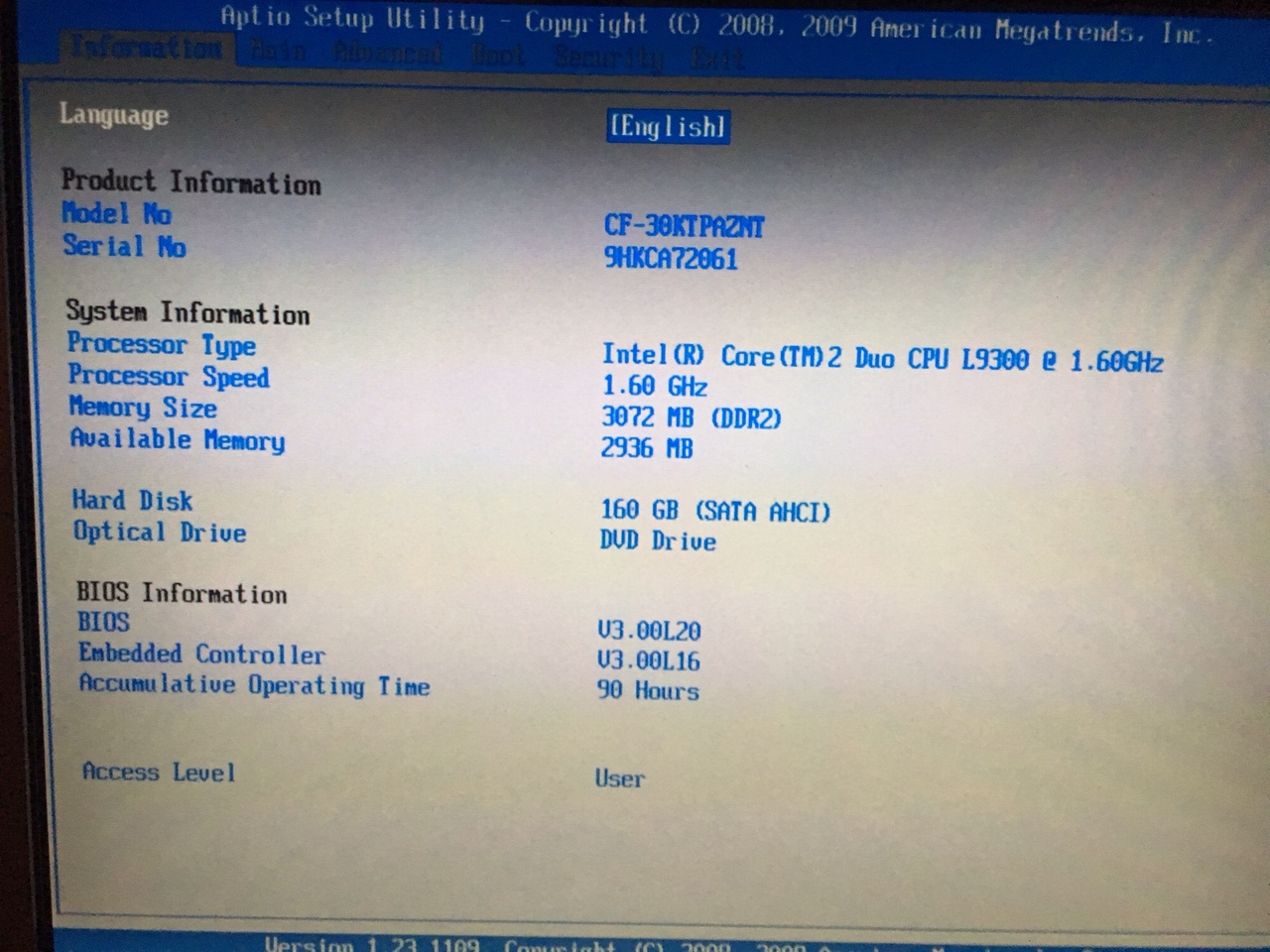

main page

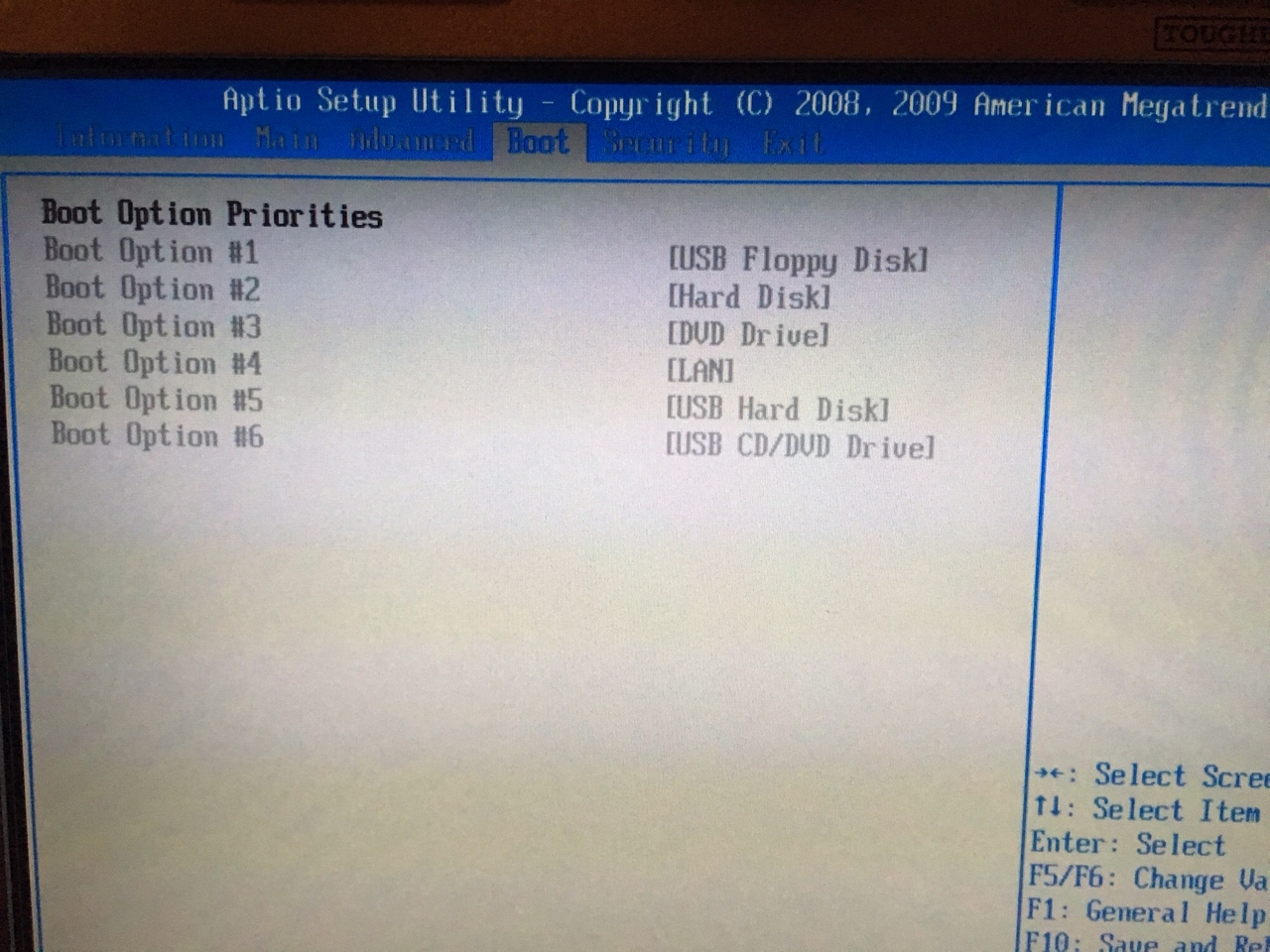

boot options page

Try and disable ALL BIOS and HD boot passwords and see if the option to change boot order returns.



Your CF-30 is also not a MK-1 it is a MK3 (K)



sorry not undestand this.......
Try and disable ALL BIOS ....... ?????
and HD boot passwords ?????

i am not expeet sorry i have only une password is my personal password avant boot xp and i not like this but is possible change not remove... :-( i not unestand disable all bios ?? and disable hd boot passwords..i have only une passwoed..is my personal..or this toughbook have problem of many password ?? i have buy used in the year 2013 with xp and now i like only put SSD SANDISK 128GB..but is not possible use cd rom simantech ghost cd for bakup...is compatible ssd sandisk 128 or is possible this ssd is not compatible with mk3 ?
[ [/ATTACH]



thanks for notice my toughbook is MK3 but have bios stuck? i think this stuck bios is because i have removed disk for change disk with ssd because the first time with original disk bott from cd rom is ok but only une possibility, the first...after stuck bios. ?? is possible ? now with the old 5400 disk xp run but the bios is stuck.



Try removing the Hard drive and hard drive caddy.
Test if it will boot from the CD//DVD drive.

Do you need to enter a password to get into the BIOS?

Try resetting the BIOS to defaults.
Disable all BIOS passwords.



no disk no caddy not charge of cd-rom..

no password for enter in the bios.. F2 TASTE and go to bios but small possibility change options because is alls grey matt, not possible change alls..
wher 'is option RESETTING BIOS TO DEFAULTS ? i not see this in my bios sorry
i have only une passw in the bios , is my passw. in the boot after PANASONIC LOGO for charge xp, but is only une and is not possible disable this , is only possible change this....alls possibility in the security bios page ..is similar boot change page..is alls matt grey not possible go to it...and confirm this ....:-( :-(



in BIOS press f9 then f10 to save. That should reset to defaults.
------------------------------------------------------------------------
That password at boot sounds like a user password.
That may be why you can not change the boot order.
You must have supervisor access to change the boot order.

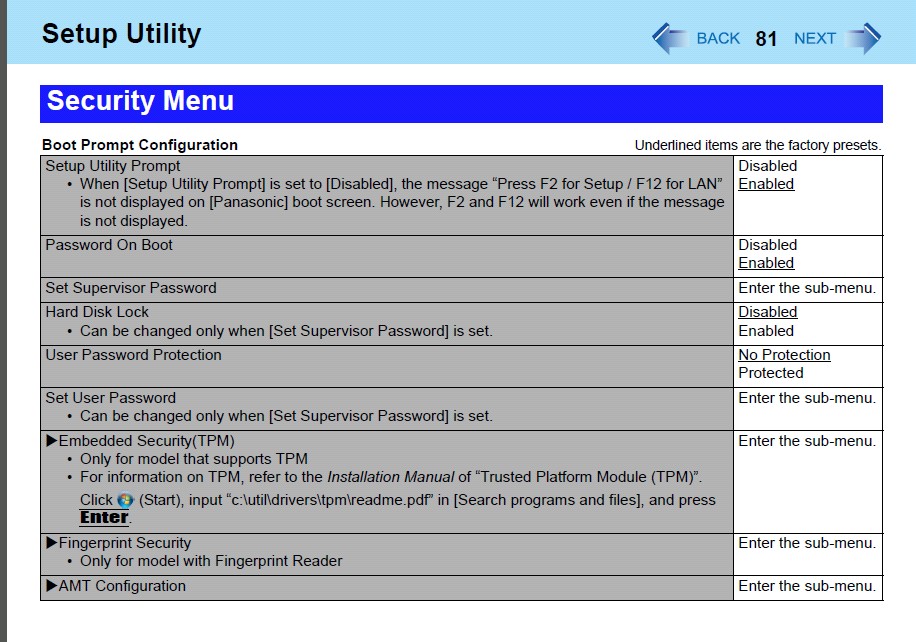

The reference manual will tell you how to disable that user and supervisor password.



This is the translation using Google. I DO NOT speak Italian.

17
Misure di sicurezza
Utilizzare queste funzioni per proteggere i dati.
da
Un'altra misura di sicurezza
• Embedded Security (TPM) (
Î
pagina 81
) Per ulteriori Top informare
zione, fare riferimento alle
Manuale di installazione
di "Trusted Platform
Module (TPM) ".
Impostare la password supervisore prima di impostare la password utente.
1
Avviare Setup Utility (
Î
pagina 73
).
2
Selezionare il [Sicurezza].
3
Selezionare [Password set supervisor]
o [Imposta password utente], e premere
entrare
.
4
Inserire la password in [Cr
EATE Nuova password] e premere
entrare
.
da
Quando la password è stata impostata, è necessario immettere y
la nostra password in [Enter Current Password] e premere
entrare
.
da
E disabilitare la password, lasciare il campo di inserimento vuoto e premere
entrare
.
5
Inserire la password di nuovo a
[Conferma nuova Passw
ord] e premere
entrare
.
6
stampa
F10
, Quindi selezionare [Sì] e premere
entrare
.
ATTENZIONE
da
Non dimenticare la password. Se si
dimenticate la password Supervisore, vi
Non essere in grado di utilizzare il computer. con-
tatto Assistenza tecnica Panasonic.
da
Quando si esegue il programma di installazione,
non lasciare e andare via da
il computer anche per un sh
tempo ort, dal momento che
altra gente
un piccolo insieme o cambiamento
la password.
NOTA
da
La password non viene visualizzata sullo schermo.
da
È possibile utilizzare fino a 32 caratteri alfanumerici (inclusi gli spazi).
• Il caso (superiore / inferiore) viene ignorato.
• Utilizzare solo la riga orizzontale superiore dei tasti numerici per inserire la password.
• Non è possibile utilizzare
spostamento
e
Ctrl
per inserire una password.
da
La disattivazione della password supervisore
disattiva anche la password utente



i love you !

very thanks very very thanks.. thanks..! today groped .... where can I download manual of this page please ? have links for download ? many thanks today to test and report here..
i think for my use not necessity Embedded Security (TPM) ....
now necessity reset bios (NOW IS USER SETTING) and go to setting supervisor
F2 entry bios setup
F9 RESET
F10 SAVE RESET..

thanks for link for this manual download..

but is present also password for hard disk for resetting ?? or with E9 AND F10 I HAVE RESETTED ALLS ? i not like put password....STOP password...

after reset bios for boot from cd-rom---and change disk with ssd disk ---- is possible SET NONE PASSWORD ? not like this password problems thanks for now friend time now today i go for make attempts for this operation....

.

.



NOT WORK :-( F9+ F10 only partial reset. password user is present also after reset...
acces supervisor not present i not have listed supervisor access in security
reset f9 f10 not change security bios page...and is not possible cancel user passwod
i put password i put change password i put EMPITY not write anything i put confirm old user passwor i reboot ...and old password user is present ..in the first page bios i see USER and i not see SUPERVISOR possibility in security page
F9 F10 is only partial reset...boot from cd is not possible and alls bios pages sis matt grey color not possible setting.....help..

in my bios i not have SUPERVISOR possibility setup supervisor not existing

LAST STEP NOW page security i have :USER PASSWORD NOT PROTECTOR...i have canceled this yes ?? but when reboot for entry is present old password...?????? passoword is P only...now i see user passw not protector but have password P old for entry and not have supervisor option.... not undestand this password P on boot what password is if is not user password

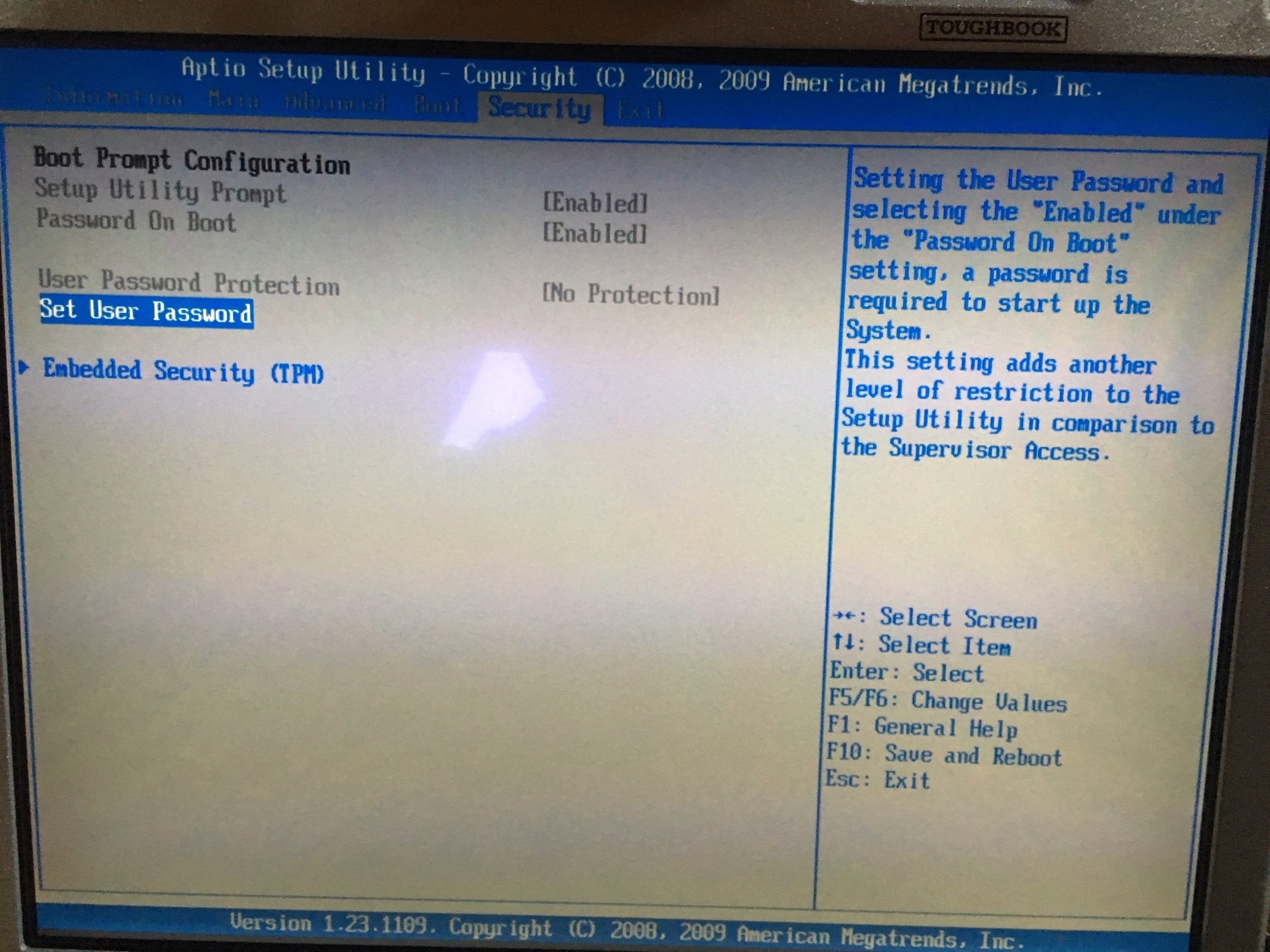

security bios page now

password on boot enabled ( grey mat not possible to change )
user password protection NOT PROTECTION

but supervisor ????????? thanks alls for help my problem is i not have supervisor option


i see many post for ILLEGAL bios password...is my problem ? or bios password is password for no entry in the bios...i entry in my bios cf-30......but not have supervisor option for chnge boot...



Here is the link for the English version Reference manual. They do not have the Italian version listed.

http://pc-dl.panasonic.co.jp/dl/dow.../30mk3-rm-PCE0284AA_7-nonlogo-M-p20090615.pdf



very thanks my problem is only because i not have in my bios supervisor possibility..



I still think supervisor is disabled somehow in your BIOS.
It should be able to be changed. It is not a custom BIOS.

I do not use BIOS passwords. The BIOS passwords cause problems.



this will take a little time to straighten out ... differences of english and italian .
do you know a person that speaks english and can translate for you ? ... it helps if they know computers .
there are fine differences that do not translate by machine .

@ shawn ...
when i cloned my '30 and '31 , i used one of those usb to sata devices .
this might be an easy way around the problem .
i agree though , the bios is not locked ... from what i see .



Larry

BIOS is not "locked" in the normal sense that we usually see.
It is locked into USER mode and it needs to be in SUPERVISOR mode in order to change the boot settings.
Look at the bottom of the main BIOS page in his photo. It says USER. Mine all say SUPERVISOR.
There are 2 levels of BIOS access. USER and SUPERVISOR. I don't have a 30 to experiment with the Security settings
I am sure this can be done on the Security page. I am just not sure what all needs changed. I think there are 2 or 3 settings that all need to be changed.

User mode is when you are able to look at the BIOS without the rights to change any settings.

If you want to be able to change the passwords/other settings, you need to know the supervisor password.



ok is possible open new theatre only for this problem ? i put now in this cf-30 group ?
HELP FOR ACTIVATE SUPERVISOR AND NOT USER ONLY IN THE CF-30 MK3 XP TOUGHBOOK.. see photo security now my cf-30 mk3


is possible bypass problem with installing new bios ? i have xp now in my mk3...and i see in pansosnic download is present bios only for mk1 ?
my bios now v3 00l20 v300l16



Here is your original thread on this very same subject.
Maybe our Moderator Blair will reopen that thread and combine the info from the last few posts into it.

http://forum.notebookreview.com/threads/cf-30-mk3-bios-password-help.561359/#post-7245073

Installing a new BIOS will NOT solve your problem.

You need to know the SUPERVISOR password. Without knowing it, you can not remove it.



ok undestand but wher'is logo.SUPERVISOR in the security ? i not have password supervisor ok but not have also logo SUPERVISOr for put passwor if i have..this i not undestand... password or not passwor i like only change disk in my cf-30 mk3 and put new disk SSD SANDISK ..new is possible only with supervisor ?? i have external disk with Ghost bakup of my xp now, but is not possible boot for cdrom symanteck ghost cd for riprstin ..recharge..xp from 5400 to ssd disk. i like only this...is possible only with boot of cd rom (impossible for me) or have also new possibility for only change disk ...and reinstall bakup xp present now...best reg existing also disk password ?



Put old hard drive back in CF 30.
Can you boot from CD with old hard drive?
Post photos of BIOS Main page and BIOS Boot options page with old hard drive installed.

If you enable the USER password to get into BIOS. Press f2 to show a box on the screen. You enter the SUPERVISOR password into that same box. Then the SUPERVISOR options are shown in the BIOS.



alls my bios photo in this theatre is with old disk ( and boot is impossible from cd rom)
with F2 i entry in the bios with no password and SUPERVISOR IS NOT PRESENT IN THE FIRST PAGE ONLY USER and in security not present Supervisor also.. SUPEVISOR NOT EXISTING in bios pages . i remember this...................yesterday i have did bakup in my external usb disk with simanteck ghost program of my old xp disk . alls ok....after i have changed old 5400 disk with SSD in my cf-30... and i put cdrom for lreload bakup in the ssd new internal cf-30 disk , but cd rom not charge and i see boot cd rom in the bios not possible change.. BUT avant this operation .. cd rom from bios boot is ok....is possible demage is because bios have rileved new SSD disk and block bios ? now i have password on boot and never user password see my photo security.-... but wher'is supervisor ??



the problem is....whait i not have this in the first manual photo in my bios security page but only second photo ? thanks alls friend for patience... i not like have supervisor password . like only put my ssd in my toughbook

i see is present also in the manual security hd lock..... ????



sorry friends..but my problem is bios password ???? ..or different problem ? i go in the bios with F2 with no password..... i disable cmos battery for my supervisor problem for set cd rom boot in security bios page ? not undestand... if i disable cmos battery i see supervisor and hd block in my bios security page ? best reg. i like only change my disck with ssd disk and put over this ssd my back up from cd rom symateck ghos cd boot...



As I said before,
Flashing BIOS will not solve your problem.
Flashing BIOS will NOT remove any password.

Your CF30 does have a SUPERVISOR password. Without removing that password you will NEVER be able to change the boot options.
There is nothing "wrong" with your current BIOS. It is doing what it is supposed to do.
I will explain again how to enable the location where you can type in the SUPERVISOR password.

You must ENABLE "type password to get into BIOS" This is where you enter your current USER password after you hit f2 key. The SUPERVISOR password is typed into the same box that appears after you hit the f2 key. When you enter the SUPERVISOR password instead of the USER password in that box, the SUPERVISOR options WILL show on the BIOS security page.
Without knowing that SUPERVISOR password, you will NEVER get those security page options to show up. It will require a motherboard replacement.



@ shawn ...
ok , the two level access is pretty common .
i agree ... it looks like he is locked out by the *user* mode being set .
he does need the *supervisor* mode (aka : god account) ...
i could experiment with my '30 if/when i have time (busy as 4377 at work) .
i have never set the passwords on the bios .

you don't suppose it is something simple like "1234toughbook" (for example) .
how it got set is a puzzle ... maybe a glitch or a keystroke or two that slipped by unnoticed ?



today i have reset CMOS but supervisor is not present in security page bios..
is not possible set alls pages of bios...not undestand....i entry in the bios no password...press F2 and go in the bios but is not possible alls setting..and not possible boot for cd-rom for installing SSD STA DISK SANDISK :-(



SHAWN
ok now undestand....i not have supervisor password i not have put this i not have logo of supervisor in my security.. stop. avant change disk ssd boot from cd-rom is ok alls setting is ok ..alls in the bios...i have changed disk ... REMOVE 5400 AFTER GOST BACKUP AND PUT SSD....in this moment have the problem....ok thnaks alls for patience..i not change disk i not install w7 ...:-( i go with XP forever :-( very very thanks for patience friends ? best from Italy i love USA... STOP



One last thought.
Changing the hard drive to a SSD did not cause any password or SUPERVISOR problem.
This problem started in 2011 when you first posted about it.



yes ok now my cf-30 see ssd disk new in the bios ...but is not possible upgrade from xp to W7 in this disk because i not have supervisor password..not possible also restore XP BACK UP now in usb external disk, for have xp in the ssd fast disk , for the same problem...i not have supervisor password and i not have also supervisor passwor logo in the bios supervisor passwors is in the matherboard . STOP best reg to alls ..i am not happy but this problem is real very big problem.. :-( :-(



from another thread. WMI BIOS TOOL can be found on the Panasonic downloads site.



ok very thanks .....
today with CLONE Disk i have cloned my 5400 xp in my SSD disk with Dell pc and now in my cf-30mk3 have SSD DISK.. for install w7 not possible for supervisor problem...but i am happy with xp ssd now. thanks alls thanks Shawn and merry christmas from Italy for alls USA people...
