    compatible Toughbook power supplies other than OEM

    Discussion in 'Panasonic' started by metallitera, Nov 2, 2010.

  1. metallitera

    metallitera Notebook Consultant

    Reputations:
    22
    Messages:
    105
    Likes Received:
    4
    Trophy Points:
    31
    Ive looked and havent found a list of interchangeable power supplies for our TBs. found a few threads about "hey this specific supply works" and have found mention of certain IBM PSs but no part numbers. Can we get a list goin for what compatible power supply manufacturer and part numbers work with each toughbook?

    Im looking into getting a docking station that uses CF-28 style power supplies and if i can get one that will work cheap off of e bay that maybe another OEM (IBM?) that will be better quality than some import.

  2. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    My first choice after OEM Panasonic is Lind Electronics:

    Lind AC Power Adapter - Model # AC90-PA

    Lind DC Power Adapter - Model # PA1555-655

    Lind DC Power Adapter - Model # PA15-19-1886:
    DUAL VOLTAGE OUTPUT for Toughbook 18, 19, 28, 29, 30, C1, F8, F9, H1, T8, U1, W8 and the Hewlett-Packard Deskjet 460, 470 printer


    Lind Auto/Air AC Adapter - Model # ACDC9015-PA01:
    Powers electronic devices from a standard auto cigarette lighter, airline seat*, or AC wall outlet.

  3. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    Vehicle docking station or desktop ?

  4. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    For a CF28,CF48 one from a Sony Vaio will work. I have a 16v 4amp version for a CF48 that I have.

  5. metallitera

    metallitera Notebook Consultant

    Reputations:
    22
    Messages:
    105
    Likes Received:
    4
    Trophy Points:
    31
    wanna mount one in my RV and one in my truck.

  6. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
  7. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    I've said this before but it won't hurt to repeat it. Some Sony power supplies are 16v, some are 20v. Both fit, the 20v will do bad things to your machine.
    CAP

  8. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
  9. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    I have a power supply designed for toughbooks in emergency vehicles. 15.6v and 5 amp. It will need an output cable, but the straight end cables are readily available on fleabay for $5 or less. It has a metal housing with screw tabs to secure it. I am am planning on posting it in the buy sell trade forum soon.
    I got side tracked by someone modding the rear of my truck for me. A day later I got hit with a nasty virus on my desktop. Avast completely missed it. Repartition and reformat, then reinstall all ....ugh.......insurance adjusters..junkyards for parts...anti virus...re installs...sleep...no skip that..work for a paycheck...more junkyards.... reinstalling...sleep...no not yet....fix truck enough for now to prevent getting a ticket...work for a living...pass out from insanity.....sleep..sleep..sleep

  10. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    CF-VEB272A2W Desktop port replicator supporting USB 2.0 for the CF-29, CF-30** AC Adaptor NOT included
    CF-WEB2732 CF-29, CF-30 Vehicle Mount Port Replicator with USB 2.0 support** AC Adaptor NOT included
    CF-WEB2732CBL CF-29 Vehicle mount Port Replicator with single high-gain wireless connector built-in (USB2.0 supported)** AC Adaptor NOT included
    CF-WEB2912 CF-29, CF-30 Vehicle mount Port Replicator (supports USB2.0) with dual high-gain wireless (WWAN/WLAN) connectors built-in** AC Adaptor NOT included

  11. mnementh

    mnementh Crusty Ol' TinkerDwagon

    Reputations:
    1,116
    Messages:
    3,389
    Likes Received:
    29
    Trophy Points:
    116
    I use a Sony PCGA-AC16V6 most of the time with my CF-28; it's nice & thin (0.7 in x 2.3 in x 5.9 in) to fit in my laptop bag, plus it uses a 2-wire polarized cord which cuts cord bulk literally in half compared to most of the generic power packs with the 3-wire cord.

    At my bench I have an IBM FRU 02K6669/PN 02K6657 with the correct end hacksoldered on.

    I also have a Panasonic OEM CF-AA1639A that I often use with my CF-VDW07; it's not as wide or as long as my Sony power pack but it's twice as thick.

    If you like a super-compact model, The Targus PA-AC-70W-2 measures .5 in x 2 in x 3.5 in. It's an excellent power pack, but like most universal packs, it uses a modular output cord (plugs at each end with separate plug on the end) which some may not like, but I found to be a blessing with a small child who runs around tripping over my cords. Instead of breaking things, it just unplugs.

    One caveat tho - If yours comes with the "stubby" AC inlet plug, throw it away and use a regular polarized AC cord with it; they had a recall on the stubby plug thing a few years back cuz dummies were twisting the whole thing on the wall and breaking it open, making exposed contacts on the part still stuck in the wall.

    mnem
    ZZZZT!

  12. chingon

    chingon Notebook Guru

    Reputations:
    0
    Messages:
    58
    Likes Received:
    1
    Trophy Points:
    16
    i bought a chinese one that is the exact same one as the ibm other than shorter power cords. Everything down to the casing having an indentation for the thinkpad tag. 4.5 amps 16 volts.

  13. metallitera

    metallitera Notebook Consultant

    Reputations:
    22
    Messages:
    105
    Likes Received:
    4
    Trophy Points:
    31
    those ones u have for sale or just rattlin off part numbers?

  14. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    Since you did not identify which Toughbook you have I posted all the docking units part numbers so that you can determine which one works with your system.

    BTW: Which Toughbook do you have (by complete Model Number)? ;)

  15. metallitera

    metallitera Notebook Consultant

    Reputations:
    22
    Messages:
    105
    Likes Received:
    4
    Trophy Points:
    31


    CF-29ENKNXKM

  16. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    CF-29ENKNXKM DESCRIPTION:
    Pentium M 1.3G LV (Centrino), 13.3" XGA Transmissive Touchscreen, 256MB RAM, 40GB HDD, 802.11b+g WLAN, Win XP Pro, Rubber Backlit Keyboard, Dual Hi-Gain Antenna Connectors, WWAN Ready, Secured HDD/Battery doors


    This unit requires the CF-WEB2912 Vehicle Mount Port Replicator if you want to connect external antenna; the CF-WEB2732 Vehicle Mount Port Replicator if external antenna are not to be utilized.

    HTH :)

  17. metallitera

    metallitera Notebook Consultant

    Reputations:
    22
    Messages:
    105
    Likes Received:
    4
    Trophy Points:
    31
    yea, im looking at a 273, i dont have a WWAN sled and the wifi reception inside my truck is fine. mainly just want the secure holding for the vehicle.

    I will need a CF-28 power supply though, for the 273, correct?

  18. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    Either one of those, or one of the Lind DC Power Adapters that works perfectly with both the CF-29 directly and the CF-28 connector-equipped vehicle docks.

  19. azTony

    azTony Notebook Consultant

    Reputations:
    29
    Messages:
    101
    Likes Received:
    1
    Trophy Points:
    31
    I thought I was on the right track but then a gender change cable was mentioned so I got off track.

    For clarity, which after market AC and DC adapter would work with my CF-18DDAZAMM? I want to run this in my 4x4 and use in the home as well. Then I am going to have to find a decent battery that is not going to break the bank.

  20. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    My choice: Lind Auto/Air AC Adapter - Model # ACDC9015-PA01

  21. dentsmithy

    dentsmithy Notebook Geek

    Reputations:
    3
    Messages:
    90
    Likes Received:
    0
    Trophy Points:
    15
    I notice lots of people are using 3.4Amp chargers and indeed my 29 charges fine from the 18s' 3.4Amp. the Lind specified for the 29 is also 3.5amp.
    My 29 came with a 5amp charger and I think the oem is 5.something - just wondered if there was any reason not to use a lower amperage to charge with/ run off?

    One of my reasons for asking is I did a little red wine induced shopping on ebay and won a new, unused lind car charger for a thinkpad 380/385 which is 3.2amps - was only £1 plus shipping and it had the right plug - some you win :D

  22. Kardan

    Kardan Notebook Evangelist

    Reputations:
    140
    Messages:
    304
    Likes Received:
    14
    Trophy Points:
    31

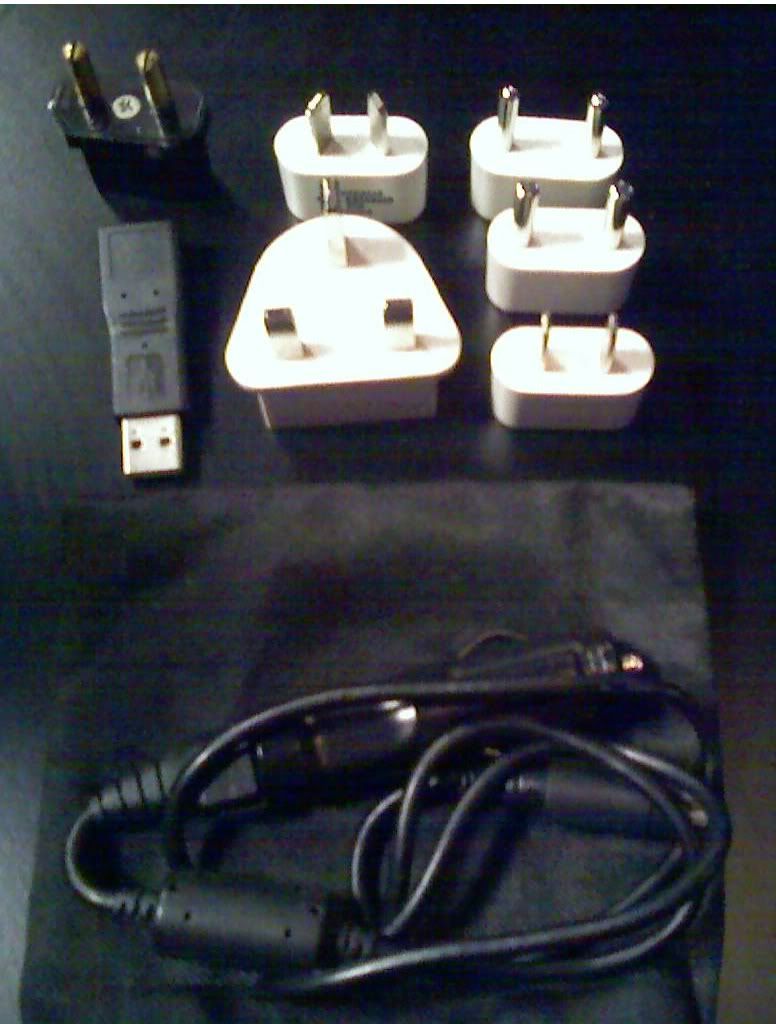

    Me too. All-in-one. Sat next to a Delta Airlines Captain (in transit) on a recent international flight. He really liked my TB (CF-18) and this Lind unit. Said he was going to purchase both upon return to US.

  23. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    Fairly good price, seeing as how the Shipping/Handling is "Free":

    Lind Electronics ACDC9015-PA01 Auto/Airline/AC Adapter

    This unit is "Tri-Powered": AC / DC / Airline seatback power socket.

  24. rusty503

    rusty503 Notebook Evangelist

    Reputations:
    244
    Messages:
    338
    Likes Received:
    8
    Trophy Points:
    31
    You should really have no problems other than extended battery charge times. The main thing to worry about is the output voltage. If the current output was too low, the system wouldn't power up.

  25. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    @ azTony
    Buy a lind dc charger and leave in in your vehicle
    The 5 to 8 amp units are common and will work fine
    Look for the yellow tipped plug type for your cf-18 as the black tipped type are for older Toughbooks

    You can't have enough chargers

  26. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    Such as: Toughbook Lind PA1580-1745 DC Power Adapter car charger

    True; very true. :)

  27. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    Or a 350 watt true sine wave inverter and plug in anything you want(up to max wattage) The 3000 watt inverter is in the old steel Coleman ice-chest with the electric branding irons.

  28. bnemmie

    bnemmie Notebook Enthusiast

    Reputations:
    4
    Messages:
    24
    Likes Received:
    0
    Trophy Points:
    5
    Ive had good luck with Lind products too. I just sent off (today actually) a DC adapter that I got in a package deal when I bought a 28. Even tho I didn't have any proof of purchase they are replacing the adapter for free when some of the plastic that holds the connectors in tightly snapped. Illl be using them for non-oem adapters in the future for sure.

  29. azTony

    azTony Notebook Consultant

    Reputations:
    29
    Messages:
    101
    Likes Received:
    1
    Trophy Points:
    31
  30. Azrial

    Azrial Notebook Deity

    Reputations:
    598
    Messages:
    1,403
    Likes Received:
    87
    Trophy Points:
    66
    I really like the IBM Lenovo AC/DC Combo Adaptor Model 22P9003! It is 72 Watts, with an AC input of 100-240V / 50-60 HZ or DC input of 13-18VDC. The Output is a nice, Toughbook Friendly, 16V 4.5A(Voltage/Current) and is great for when you are running the Toughbook out of the car!

    It will fit the CF-29, CF-50 and others. I really like the idea of just one power brick. I scored a brand new, from the USA, one on eBay for $15 and free shipping. Many are sold without the DC cord, so pay close attention when shopping.

  31. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    @ Azrial
    I bought 8 a few weeks ago as I was running low on the lind dc type and I liked the idea on versatility of having dc as well as ac in one package
    I will not need to stock too many types
    IBM adapters are good quality ,I have never had any fail

    Good point on reading the fine print when shopping for these as many are missing the dc cord

  32. Azrial

    Azrial Notebook Deity

    Reputations:
    598
    Messages:
    1,403
    Likes Received:
    87
    Trophy Points:
    66
    I think that it was you that I go this idea from in the first place! :eek:

  33. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    Cap, has been promoting the regular IBM type all along

    I have received a few used Toughbooks over the years with the IBM adapter and as I said no problems with them

    I had the idea on buying the combo type as I noticed Springfield had bought some recently

    NBR did a review on these here

    And I beleve that Shawn (deere245) was the first here that said that he was using these over a year ago here

  34. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
    Did someone mention my name????

  35. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    I am also using an IBM since but not a combo. The idea of having a combo is something be the best to offer. I never had a chance to see it personally. Headed for shopping those combo, Lol.


    ohlip

  36. azTony

    azTony Notebook Consultant

    Reputations:
    29
    Messages:
    101
    Likes Received:
    1
    Trophy Points:
    31
    When you look at the price for an AC and a DC adapter and then look at the combo price it is a no brainer to me. Mine is on order...

  37. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    There s a lot of no brainer buyer on ebay specially the toughbook . Don't you know that? See the cf-27 with just added a chinese made cheap plug n' play item and will be sold to 400buck. To be fair enough to the forum member. I am not against the use of USB GPS receiver or the bluetooth Gps. It is the simpliest way to have your unit capable if you can't mod it youself and it is cheap too. For 35buck you can have it. What is the stupidity of some buyer on ebay if they here a toughbook with gps. They think it all the same and bought it for high amount of money. I received a few email from those buyer that bought a toughbook from other seller with either USb Gps or bluetooth and told me how stupid they are when they learned how cheap those USB gps, bluetooth gps and those chinese made plug n' play card. Well! I ask them, how about a can of spray paint on the counter? Lol. Some say "there is no cure for stupidity"


    I am now also considering to paint my unit coz there s a lot of stupid buyer on ebay to be fool by this trend. What color do you guys recommend. Pink!..violet!


    ohlip

  38. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,306
    Likes Received:
    2,050
    Trophy Points:
    331
  39. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    Just bought one of those off ebaY for mere $48 ( Brand New w/ Free S/H, no less :)), and it even includes the aircraft seatback power plug. :cool:

    Here's a couple (pre-owned) w/o the air plug:

    IBM-LENOVO GENUINE THINKPAD AC/DC-CAR COMBO ADAPTER

    [Update]

    Per Capt. Dogfish: "DO NOT BUY THAT ADAPTER!!!!"
    And per Rusty 503: "I would NOT recommend those as the output voltage is 20V."

    Good catch, guys!

  40. Azrial

    Azrial Notebook Deity

    Reputations:
    598
    Messages:
    1,403
    Likes Received:
    87
    Trophy Points:
    66
    I am jelious, I have the bag, AC cord and DC cord, but no aircraft seatback power plug. ;)

    Of course, as these units (P/N 02K6661 & 02K6746) take an AC Input Power of 100-240 Volts (1.6 A - 0.8 A, 50/60Hz) I put together a cool little adapter kit that will allow me to use most AC power found in the world with this transformer. :D

  41. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    DO NOT BUY THAT ADAPTER!!!! It is a 20v model (IBM uses both 20v and 16v). Every time I have recommended the Thinkpad power supply I have, I think, included the caveat about the existence of the 20v models. Your Toughbook will not like that unit. The ones previously linked in this thread do not specify what the voltage is so if you bought one check it before you use it!
    CAP

  42. rusty503

    rusty503 Notebook Evangelist

    Reputations:
    244
    Messages:
    338
    Likes Received:
    8
    Trophy Points:
    31
    I would NOT recommend those as the output voltage is 20V. We should only use those around 16V.

  43. azTony

    azTony Notebook Consultant

    Reputations:
    29
    Messages:
    101
    Likes Received:
    1
    Trophy Points:
    31
    I believe you are referring to the IBM adapter and not the Lind that I just ordered (I hope).

  44. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    I just bought 8 and a checked the listing before I bought , firstly to see if the dc cord was included and second
    It states 16V on the ones I bought, I did not go to university for just the parties
    I'm edumacated :p

  45. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    IBM-LENOVO GENUINE THINKPAD AC/DC-CAR COMBO ADAPTER

    No one has bought these yet.

    And as noted earlier: DO NOT BUY these to use with the Toughbooks: excessive voltage (20V vs. 15V for Toughbooks).


  46. capt.dogfish

    capt.dogfish The Curmudgeon

    Reputations:
    903
    Messages:
    2,328
    Likes Received:
    55
    Trophy Points:
    66
    I know that you know better, its the less experienced I'm worried about :eek:
    @azTony, You should be fine, there was another adapter listed, typed out, not a hot link that was for a IBM that didn't specify voltage.
    CAP

  47. Azrial

    Azrial Notebook Deity

    Reputations:
    598
    Messages:
    1,403
    Likes Received:
    87
    Trophy Points:
    66
    My apologies to any I have slighted in giving credit! :eek: Come to think of it, I think that it was Capt who gave me the idea. I think that I have been using mine a year as well, I sold a few of my spares that I accumulated in my fervor. Here is the kit I out together out of an International Plug kit at my local Thrift Shop. I think that I paid $4. The DC Car cable is at the bottom and I also carry a USB extender for that problematic occluded side USB on the CF-29.

    [​IMG]

  48. Pareto Optimal

    Pareto Optimal Notebook Consultant

    Reputations:
    0
    Messages:
    151
    Likes Received:
    0
    Trophy Points:
    30
    What's a good substitute for a CF-AA1683A?
    I have a CF-51 Duo core. I believe it takes 15.6V 8A.
    Thanks

  49. ohlip

    ohlip Toughbook Modder

    Reputations:
    1,110
    Messages:
    2,358
    Likes Received:
    107
    Trophy Points:
    81
    CF-AA1653A, always remember the last letter "A". If it doesn't have an "A" it has different tip. As suggested also, IBM with 16VDC will be fine.


    ohlip

  50. Pareto Optimal

    Pareto Optimal Notebook Consultant

    Reputations:
    0
    Messages:
    151
    Likes Received:
    0
    Trophy Points:
    30
    Really? For the core duo model? Note "83A" not 53A" I got that CF-AA1683A model/part number from a spec sheet that listed core duo and core2duo models I found online. I'm guessing the 1683A is the one for my core duo. I've read that the CF-AA1683AM is interchangeable with the CF-AA1683A.

    CF-AA1653A = 15.6V 5.0A used with Pentium M CF-51 Toughbook

    CF-AA1683A = 15.6V 8.0A used with dual core CF-51 Toughbook
    CF-AA1683AM = 15.6V 8.0A used with Pentium M CF-51 Toughbook

    I have an original power adapter for my Pentium M based CF-51. I also have various power adapters for my IBM/Lenovo TPs. I'm thinking all my power adapters don't have enough amperage for the required 8A of the core duo CF-51.

    The spec sheets for the Pentium and dual core CF-51's are attached.




    Attached Files:

 Next page →
