    how to adding"Touch screen calibration utility"to CF31?

    Discussion in 'Panasonic' started by ammer, Dec 22, 2016.

  1. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6
    hi members
    how to adding"Touch screen calibration utility"to CF31?

    ammer, Dec 22, 2016
    #1
  2. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Shawn, Dec 22, 2016
    #2
    ammer likes this.
  3. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6
    model number: CF-31JAGJQDM
    mk2
    WINDOWS 7 SP1 64
    i tried to download this one from the site" TouchscreenDriver_v1.0.0.9_31J_31K_31M_31N_31P_W764_ss9778.exe"
    but did not work and i got message "system not support"

    ammer, Dec 22, 2016
    #3
  4. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Are you sure it has a touchscreen?

    CF-31JAGJQDM
    CTO CF31 MK2 INTEL I5-2520M 13.1 4G TCH

    Shawn, Dec 22, 2016
    #4
  5. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6

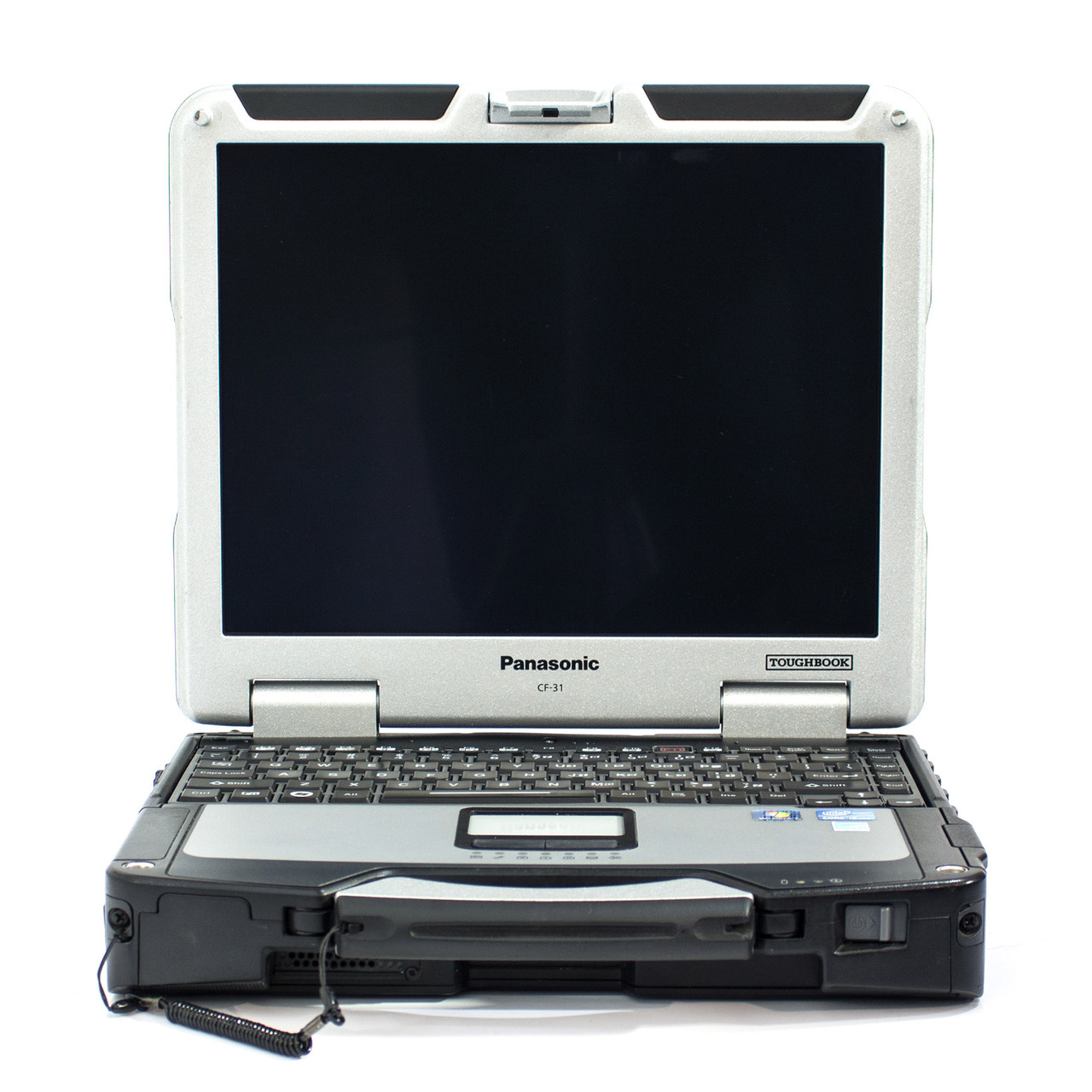

    this my pc specification :
    CF-31JAGJQDM

    Intel Core i5 2520M 2.50GHz

    13.3" LED touch screen
    Hard Drive 320GB
    Memory 8GB RAM
    [​IMG][/url] image posting[/IMG]


    Attached Files:

    ammer, Dec 22, 2016
    #5
  6. CWB32

    CWB32 Need parts for my flying saucer.

    Reputations:
    179
    Messages:
    1,563
    Likes Received:
    412
    Trophy Points:
    101
    post pictures of the BIOS pages

    CWB32, Dec 23, 2016
    #6
  7. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6
    [​IMG]

    ammer, Dec 23, 2016
    #7
  8. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6
    ammer, Dec 23, 2016
    #8
  9. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    THIS


    Shawn, Dec 23, 2016
    #9
  10. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6
    no image found??

    ammer, Dec 23, 2016
    #10
  11. CWB32

    CWB32 Need parts for my flying saucer.

    Reputations:
    179
    Messages:
    1,563
    Likes Received:
    412
    Trophy Points:
    101
    this site is having some issues with loading pictures ...
    try refreshing the page or exit the thread and come back into it .

    basically , shawn asked you to change the "touchscreen mode" portion of the bios to "automatic" .

    CWB32, Dec 24, 2016
    #11
  12. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    [​IMG]

    Shawn, Dec 24, 2016
    #12
    toughasnails likes this.
  13. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6
    hi friends
    i changed this option to auto,but i can't find the a touchscreen calibration from my run or control panel only color calibration found.... :( :(

    ammer, Dec 24, 2016
    #13
  14. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Now that the setting is changed to "AUTO" try installing that driver package again.

    Shawn, Dec 24, 2016
    #14
  15. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6
    dea shawn,
    what are the name of this drive?

    ammer, Dec 24, 2016
    #15
  16. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    Try the same one you already have.

    Shawn, Dec 24, 2016
    #16
  17. ammer

    ammer Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    1
    Trophy Points:
    6
    dear shawn
    many thanks to your efforts with me, i calibrated my touch book pc correctly :) :) :) :) :D :D :D

    ammer, Dec 24, 2016
    #17
    Shawn likes this.
  18. Shawn

    Shawn Crackpot Search Ninja and Options Whore

    Reputations:
    1,541
    Messages:
    8,309
    Likes Received:
    2,050
    Trophy Points:
    331
    You are welcome.
    I am happy to spread my "knowledge"


    Many days it seems all I can do is spread something else..
    [​IMG]

    Shawn, Dec 24, 2016
    #18
    SHEEPMAN! and kode-niner like this.
  19. SHEEPMAN!

    SHEEPMAN! Freelance

    Reputations:
    879
    Messages:
    2,666
    Likes Received:
    517
    Trophy Points:
    131
    Two things,

    1.) Windows 7 and above require a tablet bios. Usually auto will work.

    2.) The image in Shawn's post is a manure spreader and I really need one. Cheap.

    Sheepman

    SHEEPMAN!, Dec 24, 2016
