    looking for cf-30 12 volt power supply

    Discussion in 'Panasonic' started by ROAD HAMMMER, Nov 1, 2011.

  1. ROAD HAMMMER

    ROAD HAMMMER Notebook Consultant

    Reputations:
    17
    Messages:
    126
    Likes Received:
    1
    Trophy Points:
    31
    i have a IBM psu that used with my cf-29 but it can not power my cf-30 mk1 and charge can some one show me the best 12V psu for the cf-30 i had a rocket fish for my asus but my cf-30 did not like it at all and idk what the out put is for the cf-30 120v psu is so i can not mach some thing up + i need to find a psu it will like it is real picky ware it gets it power

    ROAD HAMMMER, Nov 1, 2011
    #1
  2. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    Alex, Nov 1, 2011
    #2
  3. Wyrm73

    Wyrm73 Notebook Consultant

    Reputations:
    98
    Messages:
    215
    Likes Received:
    0
    Trophy Points:
    31
    +1 for Lind. We have used them for years at work with only one failure that I am aware of. And I am really not sure how he literally melted the cigarette lighter plug-in portion. The brick still works fine after the plug was replaced.

    Wyrm73, Nov 1, 2011
    #3
  4. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    TopCop1988, Nov 1, 2011
    #4
  5. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    @ROAD HAMMMER

    What are the specs on the IBM adapter that works on the cf29,but not on the cf30

    I too have a box full of the IBM 22P9003 combo 12v/120v adapters
    I have not tried these 4.55a output units on my cf-30's as these inexpensive adapters my intended use for these was on the pdrc screens and cf-73's

    Alex, Nov 1, 2011
    #5
  6. tango_tough

    tango_tough Notebook Guru

    Reputations:
    133
    Messages:
    66
    Likes Received:
    1
    Trophy Points:
    16
    I use the IBM 22P9004 ,16V 4.55A, which work for all the 29,30,52.

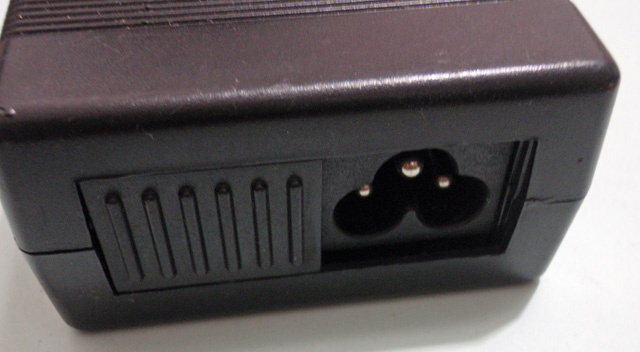

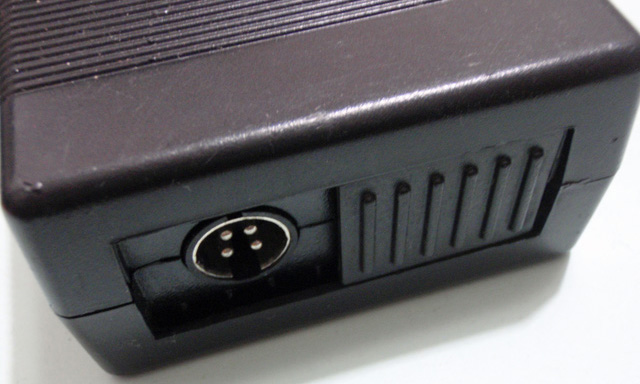

    I love the slide cover :

    [​IMG]

    [​IMG]

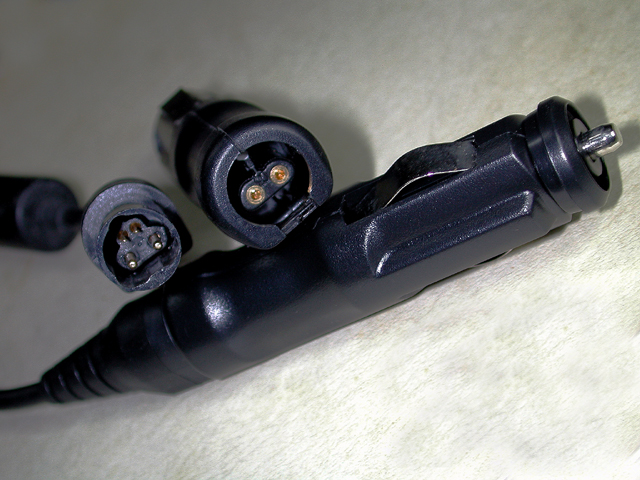

    add pic.

    [​IMG]

    tango_tough, Nov 2, 2011
    #6
  7. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    For those who do not know this particular IBM unit, the slide covers the AC & DC input sockets: the three-pin is the AC input, while the four-pin is for the 12V DC input.

    Mine have all three input plugs; AC, DC and Aircraft Seatback Power (which shares the DC cord & socket).

    TopCop1988, Nov 2, 2011
    #7
  8. Alex

    Alex Super Moderator

    Reputations:
    4,081
    Messages:
    4,293
    Likes Received:
    10
    Trophy Points:
    106
    Another thing on the IBM combo adapters
    If you are buying them used on ebay , around 80% are missing the dc cord
    You have to read the fine print
    TopCop's link has the required cords

    Alex, Nov 2, 2011
    #8
  9. TopCop1988

    TopCop1988 Toughbook Aficionado

    Reputations:
    456
    Messages:
    1,786
    Likes Received:
    3
    Trophy Points:
    56
    Question: What makes you think that the 72W IBM power adapter cannot run the unit and/or charge the internal battery of the CF-30 Toughbook? :confused:

    TopCop1988, Nov 2, 2011
    #9
