    wifi and bluetooth for cf-m34

    Discussion in 'Panasonic' started by mickthomas2009, Jun 15, 2010.

  1. mickthomas2009

    mickthomas2009 Notebook Enthusiast

    Reputations:
    29
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Hi all,

    Have just picked up a couple of cf-m34's , have yet to receive said items so don't have exact model numbers but i know they don't have wifi or bluetooth. Is this mod possible and if so is there any particular card i should look out for......have located some wifi antennas with u.fl connectors which i will mount in the case somewhere......


    cheers in advance

    Mick T

    mickthomas2009, Jun 15, 2010
    #1
  2. Toughbook

    Toughbook Drop and Give Me 20!

    Reputations:
    1,267
    Messages:
    7,361
    Likes Received:
    370
    Trophy Points:
    251
    Mick.... wifi is easy and BT can be added via one of the USB connections on the inside... But you'll need the service manual and schematics....

    Toughbook, Jun 15, 2010
    #2
  3. mickthomas2009

    mickthomas2009 Notebook Enthusiast

    Reputations:
    29
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    Thanks TB,

    will most mini pci wifi cards fit...is there a slot for this.....or do they have to be attached via a ribbon cable......

    cheers

    Mick T

    mickthomas2009, Jun 15, 2010
    #3
  4. mickthomas2009

    mickthomas2009 Notebook Enthusiast

    Reputations:
    29
    Messages:
    37
    Likes Received:
    0
    Trophy Points:
    15
    have downloaded the service manual and schematics.....now just waiting for the machine to arrive.....

    mickthomas2009, Jun 15, 2010
    #4
  5. Silver Trooper

    Silver Trooper Notebook Deity

    Reputations:
    302
    Messages:
    783
    Likes Received:
    3
    Trophy Points:
    30
    You have two choices if you want the wifi internal. You can delete your modem/lan combo card and put in the wifi or you can try and find the board that gives you the second mini pci slot (good luck, as they are rare). You can also keep the modem/lan card and go pcmcia for the wifi.

    Silver Trooper, Jun 16, 2010
    #5
  6. Waterproof

    Waterproof Notebook Enthusiast

    Reputations:
    47
    Messages:
    48
    Likes Received:
    0
    Trophy Points:
    15

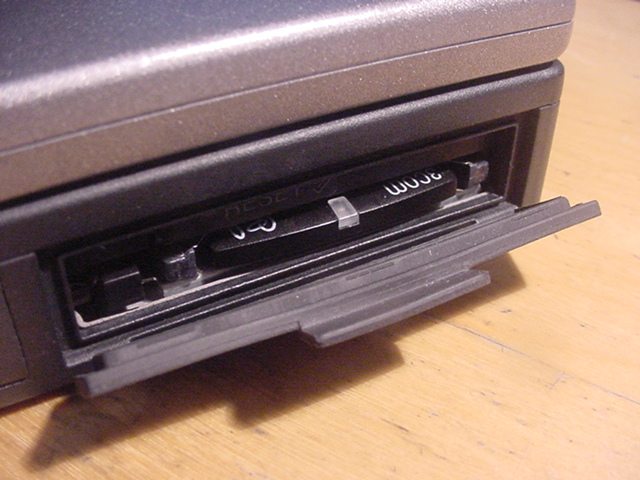

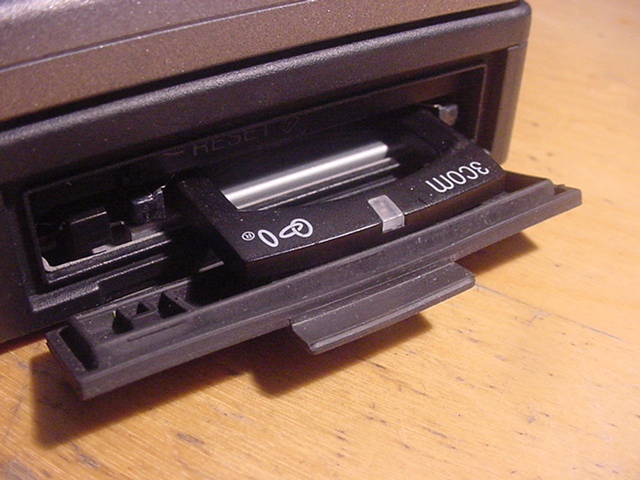

    With a little trimming of the 'ribs' on the inside of the rubber PCMCIA flap, a 3COM wifi card with the retractable Xjack antenna will enable you to close the PCMCIA flap/door with the card in place. The model I use has 802.11 a,b & g capability and the reception is quite good, given the limitations of the tiny retractable antenna.


    Attached Files:

    Waterproof, Jun 16, 2010
    #6
