    Need a Razer Blade Pro 17 2070Max-q vbios

    Discussion in 'Razer' started by HandsomeGhost, Aug 27, 2019.

  1. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Hi, I have a Razer Blade 15 2070Max-q and I’m trying to use the vbios on the Pro 17 for the 100watt it allows on that 2070Max-q instead of my 90watt. Please if any can help and send me there vbios I would very much appreciate it.
    Thanks

    You can follow these guides to do it.

    https://www.trishtech.com/2017/07/how-to-backup-gpu-bios-or-uefi-from-inside-windows/

    https://www.overclockersclub.com/guides/how_to_flash_rtx_bios/

    Here is the Razer Blade Pro 2070Max-q 100watt vbios
    https://mega.nz/#!o4ZX0IjT!bNy2US-O2P6Ncw5coia32pwqIFjVWo7Wcda9HhJOarY

    Update: 12/8/2019
    Having trouble getting the 100watt tdp with the RBP 2070-Maxq vbios as seen in HWINFO,
    Screenshot (18).png
    Not only that my core clock speed keeps fluctuating and am not thermal throttling or hitting 90watt tdp limit.
    I know the pic shows 1,680.0 MHz but it gets lower then that while playing and because of that my fps drops to low 50 sometimes for a bit but should't with the hardware I have. My setup in that pic playing COD MW is high settings rtx off on an ultra wide with liquid metal on both gpu and cpu. Any way to get max performance?
    Screenshot (19).png
    I also took the RBP 2070-Maxq vbios and loaded in Mobile Pascal TDP Tweaker and you can see the Target (mW) is 90000 but the limit Target (mW) is 100000. Could this be the reason why?
    Screenshot (5).png
    I have the early RB 15 with the 8th gen cpu on motherboard bios v1.05 with tweaks from http://forum.notebookreview.com/thr...trol-of-the-i7-8750h-advanced-version.823065/
    Any help or ideas would very much be appreciated.

    Last edited: Jun 16, 2020
    HandsomeGhost, Aug 27, 2019
    #1
    MagillaGorilla likes this.
  2. stranula

    stranula Notebook Consultant

    Reputations:
    45
    Messages:
    140
    Likes Received:
    90
    Trophy Points:
    41
    I can't directly help you, but I can provide some links that you can try if you are interested. I couldn't find any 100W variants, but there are a couple 115W vBIOs available. I think they are all 10DE 1F10, which is the same as RB15 2070, so pretty good chance of working.

    115W - https://www.techpowerup.com/vgabios/212138/212138
    115W - https://www.techpowerup.com/vgabios/211864/211864
    115W - https://www.techpowerup.com/vgabios/211985/211985

    stranula, Sep 4, 2019
    #2
    HandsomeGhost likes this.
  3. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Wow awesome, yeah I will definitely give it a try when I get a chance and post back. Thanks @stranula

    HandsomeGhost, Sep 4, 2019
    #3
  4. bjrebo

    bjrebo Notebook Consultant

    Reputations:
    43
    Messages:
    247
    Likes Received:
    103
    Trophy Points:
    56
    i would like to know if this worked and what your results are? Currently, i have a 2070mq with LM and can run 1500 mhz while gaming with no drops.

    bjrebo, Sep 5, 2019
    #4
  5. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16

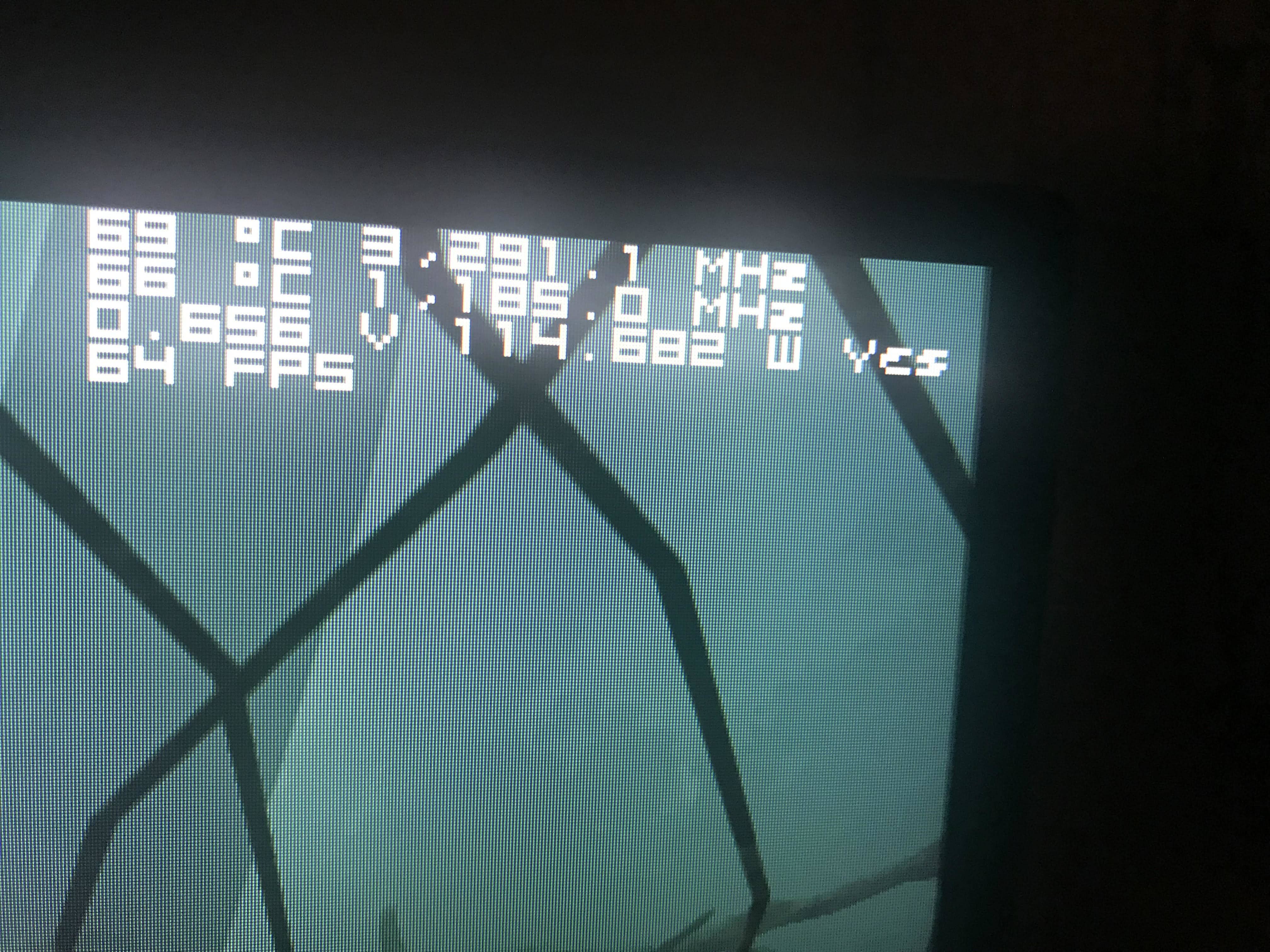

    Here are my results from using the MSI vbios on Shadow of the Tome Raider
    [​IMG]
    Im able to go up to 115 power limit but now the voltage it staying beween .625mV to around .700mV which is resulting in lower clock speeds.
    [​IMG]

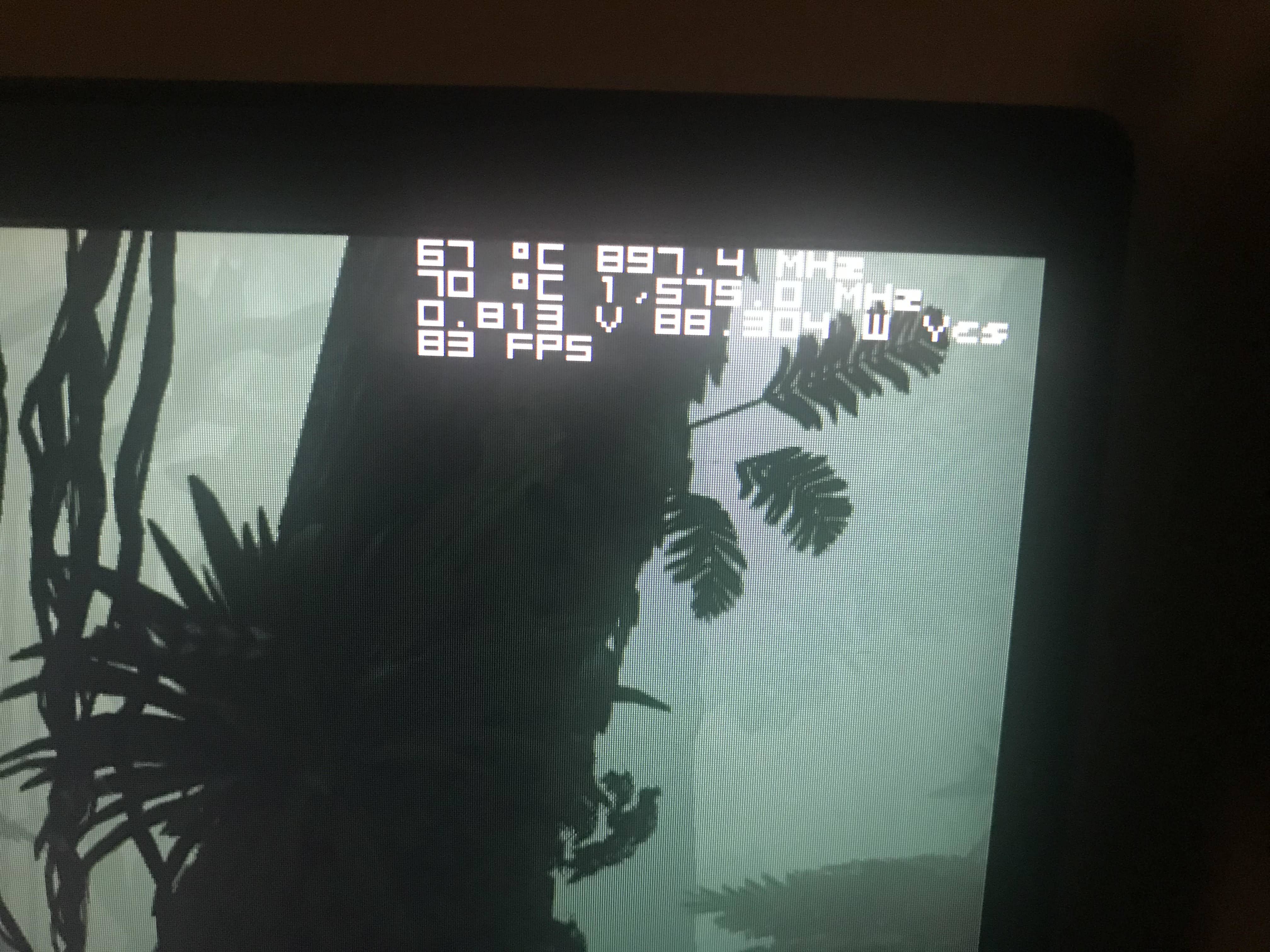

    Here is the same area with the stock vbios. I also tried the Asus vbios same results and the display port didn't work unlike on the MSI vbios. Even tried the power throttle mod but no change. If anyone has any input on what can be done please help.

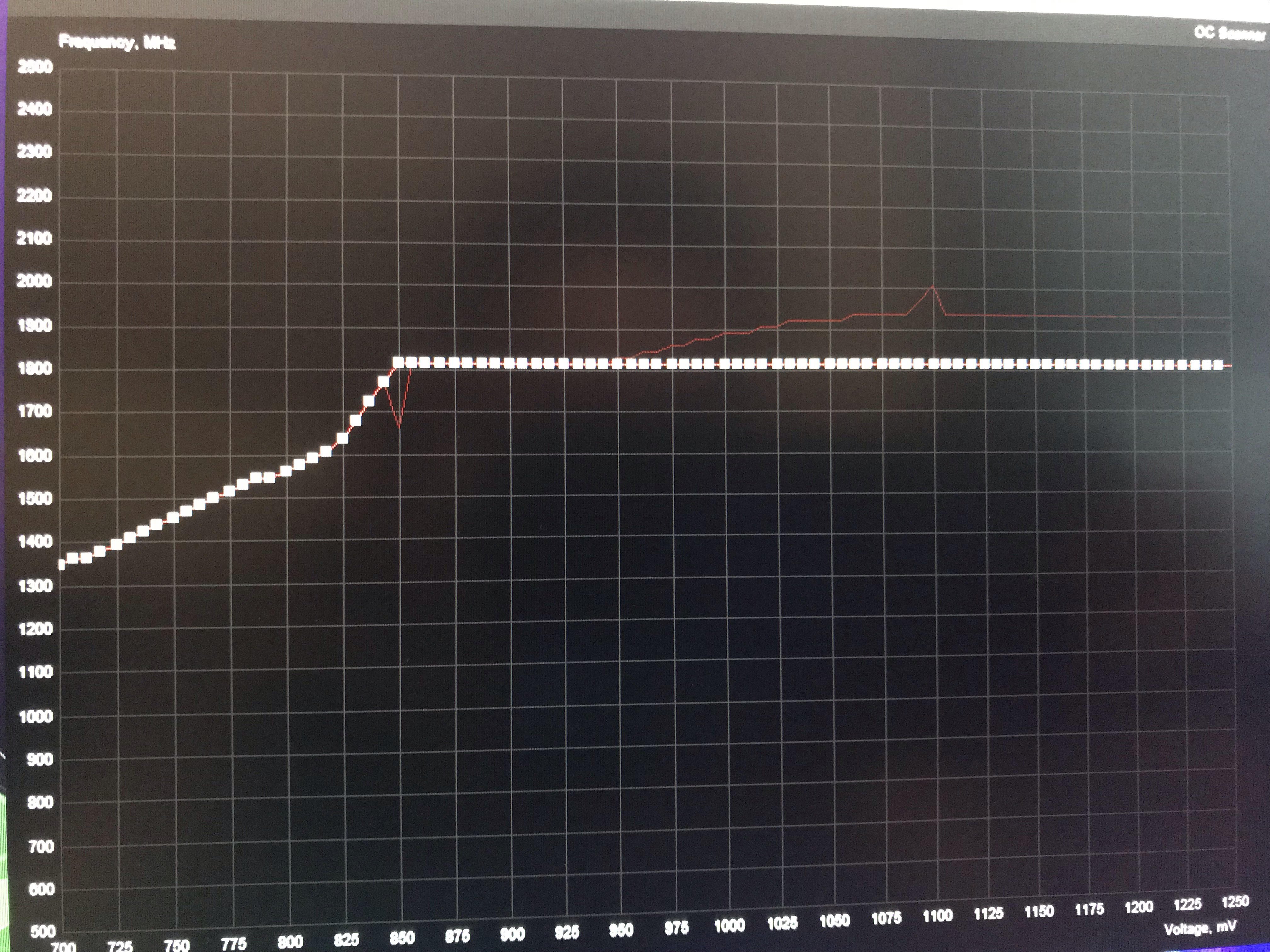

    @bjrebo I also have LM with copper shims and undervolted my gpu. Some games like GTA 5 my clock speed goes up to 1770mhz.
    [​IMG]


    Attached Files:

    HandsomeGhost, Sep 5, 2019
    #5
  6. stranula

    stranula Notebook Consultant

    Reputations:
    45
    Messages:
    140
    Likes Received:
    90
    Trophy Points:
    41
    Good to see it flashed alright. Not so good to see it isn't giving added performance.

    Some thoughts:
    - Did you completely remove the Nvidia drivers using DDU and reinstall?
    - When you look in HWiNFO, is your GPU Power always at ~115W, even if you aren't using the dGPU?
    - Did you try the modded drivers?

    stranula, Sep 5, 2019
    #6
  7. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    No I haven't tried any of that. I'll try and report back, Thanks.

    HandsomeGhost, Sep 5, 2019
    #7
  8. stranula

    stranula Notebook Consultant

    Reputations:
    45
    Messages:
    140
    Likes Received:
    90
    Trophy Points:
    41
    stranula, Sep 5, 2019
    #8
    HandsomeGhost likes this.
  9. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Okay cool if I don’t notice anything different. I’ll flash that and see. Thanks


    Sent from my iPhone using Tapatalk

    HandsomeGhost, Sep 5, 2019
    #9
  10. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    I removed my drivers with DDU and installed the modded drivers. While playing nothing changed voltage still at .650mV and power is at 150.
    I also tried the TongFang vbios same thing.

    HandsomeGhost, Sep 5, 2019
    #10
  11. Hackintoshihope

    Hackintoshihope AlienMeetsApple

    Reputations:
    308
    Messages:
    1,042
    Likes Received:
    227
    Trophy Points:
    81
    You have to use a Razer Max q or other max q 100W vbios if you try the max p it will not clock right as you are seeing. That’s why you need the 100w from the razer blade pro.


    Sent from my iPhone using Tapatalk

    Hackintoshihope, Sep 5, 2019
    #11
    HandsomeGhost likes this.
  12. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Oh okay thanks for clarifying. Now I can stop searching online on why it wasn't working.

    HandsomeGhost, Sep 5, 2019
    #12
  13. Hackintoshihope

    Hackintoshihope AlienMeetsApple

    Reputations:
    308
    Messages:
    1,042
    Likes Received:
    227
    Trophy Points:
    81
    We experienced this trying to flash max p vbios on our 2080 doesn’t work. Something weird with how drivers install and show a false power usage and extremely low clock rate.


    Sent from my iPhone using Tapatalk

    Hackintoshihope, Sep 5, 2019
    #13
    seanwee and HandsomeGhost like this.
  14. seanwee

    seanwee Father of laptop shunt modding

    Reputations:
    666
    Messages:
    1,920
    Likes Received:
    1,110
    Trophy Points:
    181
    I think it has something to do with the drivers still identifying that our gpus are Max-q models.

    I've looked through forums where people have successfully flashed a higher tdp bios and they always report msi afterburner showing the name of the gpu they flashed to.

    seanwee, Sep 7, 2019
    #14
    HandsomeGhost likes this.
  15. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Interesting. That would make sense it does still show as the Max-q variant after. Any ideas on what we can do?


    Sent from my iPhone using Tapatalk

    HandsomeGhost, Sep 7, 2019
    #15
  16. seanwee

    seanwee Father of laptop shunt modding

    Reputations:
    666
    Messages:
    1,920
    Likes Received:
    1,110
    Trophy Points:
    181
    I'm working on trying to spoof the gpu hardware ID.

    seanwee, Sep 7, 2019
    #16
  17. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Awesome hopefully it works.


    Sent from my iPhone using Tapatalk

    HandsomeGhost, Sep 7, 2019
    #17
  18. seanwee

    seanwee Father of laptop shunt modding

    Reputations:
    666
    Messages:
    1,920
    Likes Received:
    1,110
    Trophy Points:
    181
    seanwee, Sep 7, 2019
    #18
  19. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Okay I’ll check it out. Thanks


    Sent from my iPhone using Tapatalk

    HandsomeGhost, Sep 7, 2019
    #19
  20. bjrebo

    bjrebo Notebook Consultant

    Reputations:
    43
    Messages:
    247
    Likes Received:
    103
    Trophy Points:
    56
    sorry i should clarify, i can do 1515 at .700mv and can do 1650 at .750. What i will tell you is there is almost no performance difference between the two. I actually had a timespy run that put me within one point of the razer blade 15 highest score. I think it was close to 7800 GPU score if i remember correctly. did we ever find a 100watt razer bios? I have plenty of thermal left to push. CPU is around 80 and GPU runs around 77-79 in Anthem which is the most demanding game i play.

    bjrebo, Sep 11, 2019
    #20
  21. amihail91

    amihail91 Notebook Evangelist

    Reputations:
    17
    Messages:
    438
    Likes Received:
    60
    Trophy Points:
    41
    Seeing as I know what I'm doing now do yo have a link that that 100w BIOS?

    amihail91, Sep 11, 2019
    #21
  22. bjrebo

    bjrebo Notebook Consultant

    Reputations:
    43
    Messages:
    247
    Likes Received:
    103
    Trophy Points:
    56
    I would like this as well. I will flash immediately. lol

    bjrebo, Sep 12, 2019
    #22
    amihail91 likes this.
  23. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Nobody has yet gotten a link for a 100watt 2070 Max-q vbios. I’ve been messaging people on reddit but yet to get one.


    Sent from my iPhone using Tapatalk

    HandsomeGhost, Sep 12, 2019
    #23
  24. bjrebo

    bjrebo Notebook Consultant

    Reputations:
    43
    Messages:
    247
    Likes Received:
    103
    Trophy Points:
    56
    come on community, please help us out! Someone has to have a blade 17 with 2070mq! :)


    Attached Files:

    Last edited: Sep 14, 2019
    bjrebo, Sep 13, 2019
    #24
  25. stranula

    stranula Notebook Consultant

    Reputations:
    45
    Messages:
    140
    Likes Received:
    90
    Trophy Points:
    41
    stranula, Sep 16, 2019
    #25
  26. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    I
    have one...tell me what to do.

    falkio, Sep 18, 2019
    #26
  27. bjrebo

    bjrebo Notebook Consultant

    Reputations:
    43
    Messages:
    247
    Likes Received:
    103
    Trophy Points:
    56
    download a program called GPUZ. It is like CPUZ for graphics cars. In the main screen there is a little arrow and that will allow you to dump the bios. I think you can zip it and send it to us in a PM! Thanks so much!

    bjrebo, Sep 18, 2019
    #27
  28. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    Sounds easy, will give it a try tomorrow!

    falkio, Sep 18, 2019
    #28
    HandsomeGhost likes this.
  29. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    @falkio there are some links on the first page that shows you how to do it. Thanks


    Sent from my iPhone using Tapatalk

    HandsomeGhost, Sep 18, 2019
    #29
  30. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    falkio, Sep 18, 2019
    #30
    HandsomeGhost likes this.
  31. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    Last edited: Sep 18, 2019
    HandsomeGhost, Sep 18, 2019
    #31
  32. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    Hey guys, yesterday I tired to save the bios with GPU-Z. Here is the screenshot of my card:
    https://imgur.com/a/Mf1WUgS

    But GPU-Z keeps crashing when I try to dump it. Anything else I can try?

    falkio, Sep 19, 2019
    #32
  33. Flonky

    Flonky Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    2
    Trophy Points:
    6
    Hi!

    Getting my Razer Blade 15 soon and also keen on trying the 100w Bios.

    Did you try to run GPU-Z by Right click „run as Administrator“ ?

    Flonky, Sep 19, 2019
    #33
  34. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    No but can give it a try when I am at home.

    falkio, Sep 19, 2019
    #34
  35. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    HandsomeGhost, Sep 19, 2019
    #35
    falkio likes this.
  36. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    Did not work either...

    falkio, Sep 20, 2019
    #36
  37. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    Gave it a try and succeeded:
    [​IMG]
    got the .rom here with around 1MB. Cant upload it here, drop me a PM and I can email it. Please update me if it worked for you and what came out of it, just curious.

    falkio, Sep 20, 2019
    #37
    Flonky likes this.
  38. Flonky

    Flonky Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    2
    Trophy Points:
    6
    Sweet!

    Is there anything i Need to do that PMs are working? Cant Send one. Or Maybe I am just blind...

    Maybe you send one an i answer to that

    Flonky, Sep 20, 2019
    #38
  39. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    Klick my name and then "start conversation"?

    falkio, Sep 20, 2019
    #39
  40. Flonky

    Flonky Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    2
    Trophy Points:
    6
    Haha ok i should have read the rules. I Need to do at least 5 posts till i can pm. All good.

    :rolleyes:

    Flonky, Sep 20, 2019
    #40
    HandsomeGhost likes this.
  41. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    @falkio Whenever I get the vbios I will post back with my findings.

    HandsomeGhost, Sep 20, 2019
    #41
  42. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    Send me your email and I sent it to you.

    falkio, Sep 20, 2019
    #42
  43. Flonky

    Flonky Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    2
    Trophy Points:
    6
    Any news in How the 100w Bios is working?

    I cant Test ist before end of next week.

    Flonky, Sep 21, 2019
    #43
  44. MagillaGorilla

    MagillaGorilla Notebook Consultant

    Reputations:
    20
    Messages:
    134
    Likes Received:
    115
    Trophy Points:
    56
    Hi
    Hey, glad to see somebody’s trying to help out! I’m new to the forum, and just registered so I can’t send a PM... :/

    I would be more than happy to test your Vbios out on my mid-2019 blade 15 with 2070! Since I can’t p.m., can you send me one and I will reply with my email?

    I would be very grateful!!

    MagillaGorilla, Sep 23, 2019
    #44
  45. amihail91

    amihail91 Notebook Evangelist

    Reputations:
    17
    Messages:
    438
    Likes Received:
    60
    Trophy Points:
    41
    You can't just upload it here?

    amihail91, Sep 23, 2019
    #45
  46. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    Not supported file...

    falkio, Sep 23, 2019
    #46
  47. amihail91

    amihail91 Notebook Evangelist

    Reputations:
    17
    Messages:
    438
    Likes Received:
    60
    Trophy Points:
    41
    Use 7zip/WinRAR to zip the file.

    amihail91, Sep 23, 2019
    #47
  48. HandsomeGhost

    HandsomeGhost Notebook Guru

    Reputations:
    0
    Messages:
    56
    Likes Received:
    5
    Trophy Points:
    16
    HandsomeGhost, Sep 23, 2019
    #48
    falkio likes this.
  49. falkio

    falkio Notebook Enthusiast

    Reputations:
    1
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    falkio, Sep 24, 2019
    #49
  50. MagillaGorilla

    MagillaGorilla Notebook Consultant

    Reputations:
    20
    Messages:
    134
    Likes Received:
    115
    Trophy Points:
    56
    Hey, so it's pretty late so here's some quick feedback. I'll provide more info tomorrow.

    For starters I have the mid-2019 i7-9750h with 2070 max q. (stock was 80w)

    I was already running on the vbios from the "2018 i7-8750 2070mq" model - 90w
    Here is my highest score with that rom: https://www.3dmark.com/fs/19973299

    Today, Falkio and Flonky reached out provided the vbios from the RB Pro 2070maxq.

    Flashed it, and here is my highest score: https://www.3dmark.com/fs/20519186


    Definitely jumped up a bit!!!! and I still have more tinkering with Throttlestop and Afterburner.

    I NEED TO CRACK 18,000... Thanks again!!!

    MagillaGorilla, Sep 24, 2019
    #50
 Next page →
