    SSD heat! Simply solution !!

    Discussion in 'Razer' started by sarou, Jul 1, 2018.

  1. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41
    Hi,


    I think all Razer's owners have heat issue on SSD...

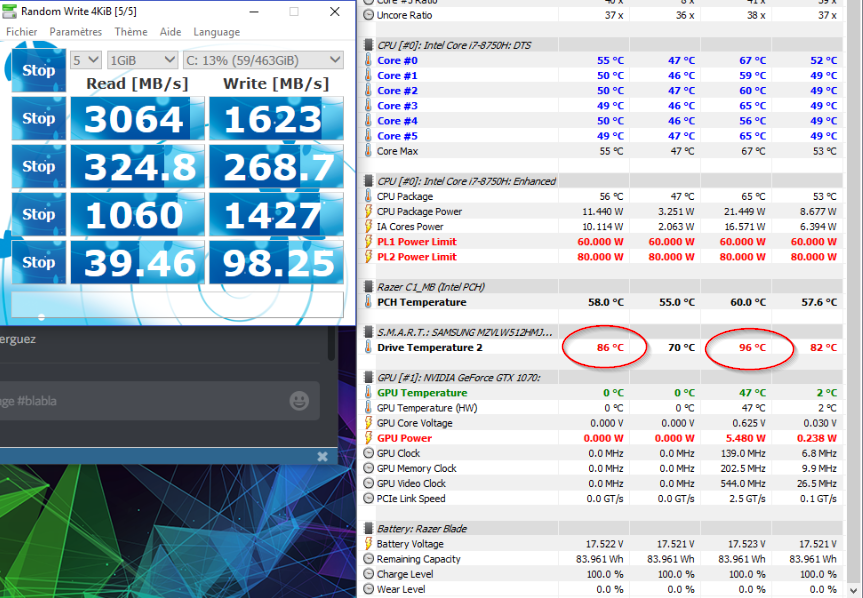

    Like my first bench :
    [​IMG]

    I remoxe sticker on SSD and plade 2 pads of 1mm Gelid 14W/mk on over the other (2mm). This big pad is on contact with the aluminium backplate.

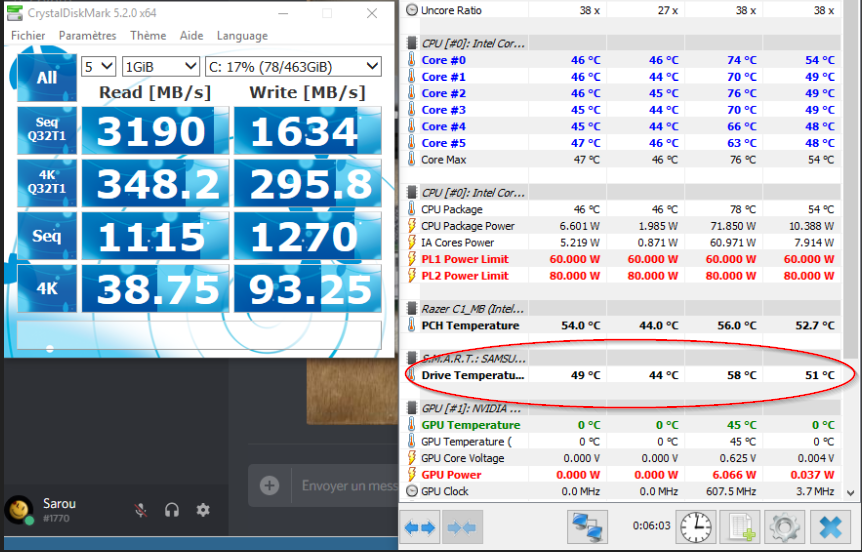

    And the result is......

    [​IMG]

    Not bad... really...

    sarou, Jul 1, 2018
    #1
    hmscott, c69k, Vasudev and 1 other person like this.
  2. hfm

    hfm Notebook Prophet

    Reputations:
    2,264
    Messages:
    5,296
    Likes Received:
    3,046
    Trophy Points:
    431
    There's a lot of discussion about this in the owners lounge thread.

    hfm, Jul 1, 2018
    #2
    hmscott and Vasudev like this.
  3. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41
    Lost in thousands of answers....

    sarou, Jul 1, 2018
    #3
    alaskajoel, hmscott, TCO and 1 other person like this.
  4. c69k

    c69k Notebook Deity

    Reputations:
    1,113
    Messages:
    1,301
    Likes Received:
    1,031
    Trophy Points:
    181
    You have a typo, Gelids are 12W/mk lol

    c69k, Jul 2, 2018
    #4
    Papusan likes this.
  5. TCO

    TCO Notebook Enthusiast

    Reputations:
    0
    Messages:
    27
    Likes Received:
    7
    Trophy Points:
    6
    This thread would be really helpful if you would present a how-to with pictures :)

    TCO, Jul 6, 2018
    #5
  6. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41
    Sorry. Pads are alphacool 14w

    sarou, Jul 6, 2018
    #6
    hmscott likes this.
  7. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41

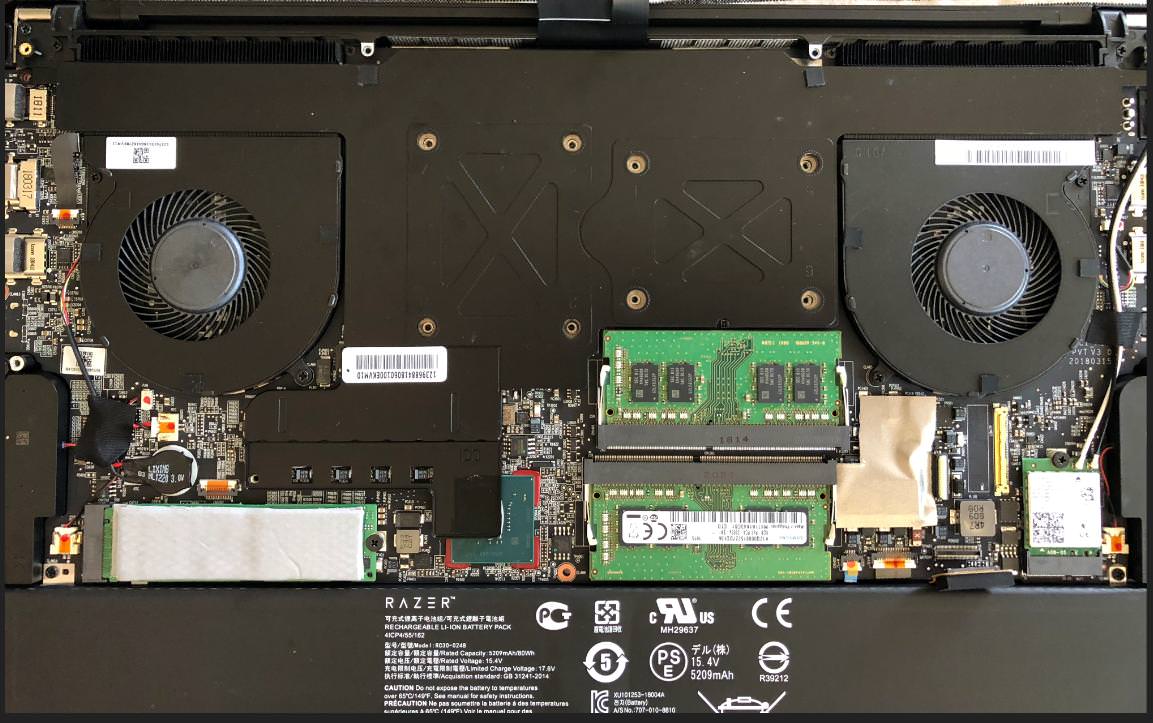

    [​IMG]

    sarou, Jul 6, 2018
    #7
    TCO and hmscott like this.
  8. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41

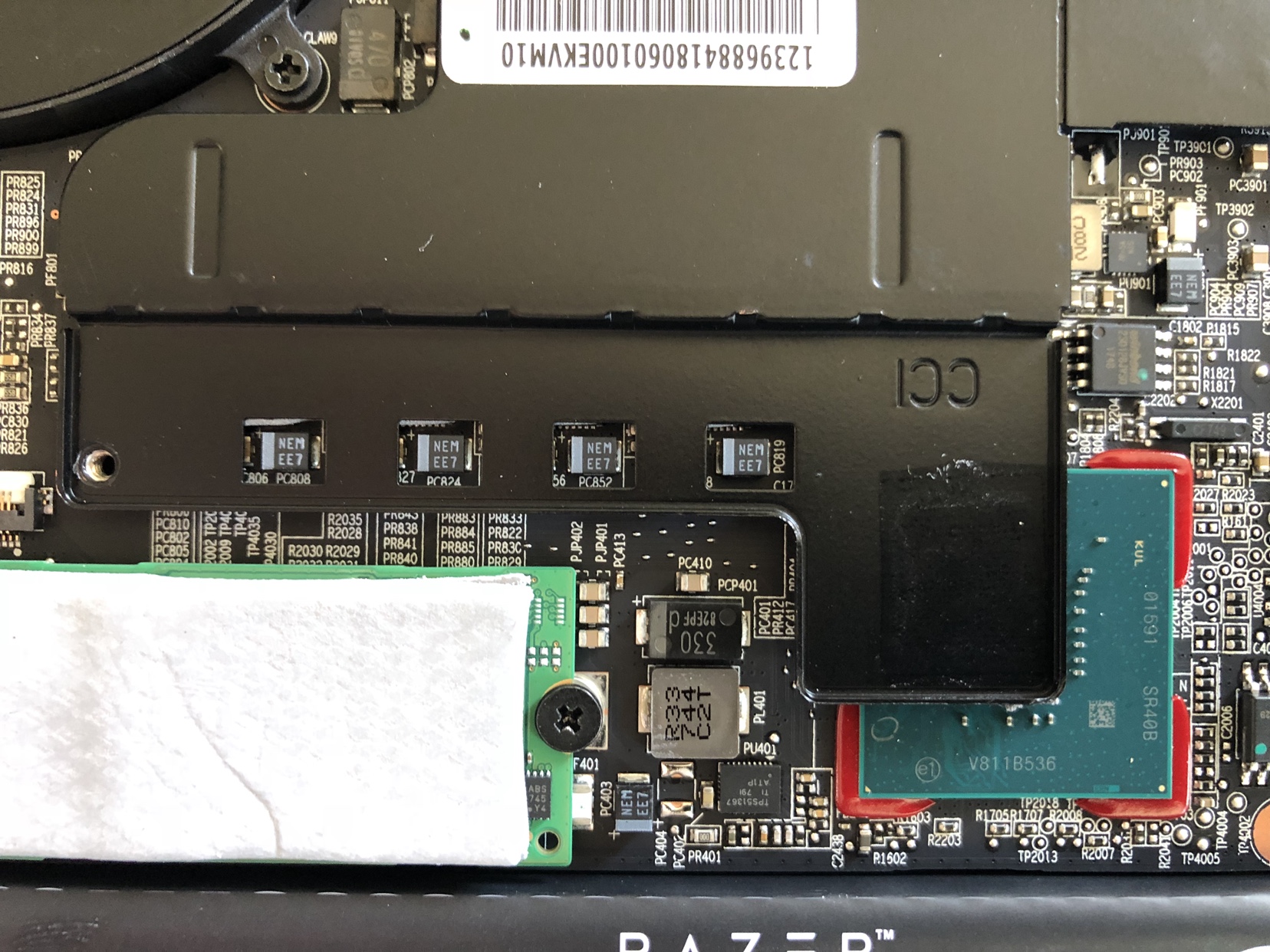

    [​IMG]

    sarou, Jul 6, 2018
    #8
    TCO and hmscott like this.
  9. Papusan

    Papusan Jokebook's Sucks! Dont waste your $$$ on Filthy

    Reputations:
    42,712
    Messages:
    29,843
    Likes Received:
    59,639
    Trophy Points:
    931
    Could you run 5-6 rounds in a row with ATTO Disk Benchmark and post results? Should easily push your ssd harder than what a single run CrystalDiskmark can. Post picture as before. Thanks

    Papusan, Jul 8, 2018
    #9
  10. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41
    I can. With Crystal disk mark i ran 3 tests i took screenshot at the end.

    sarou, Jul 8, 2018
    #10
    Vasudev and Papusan like this.
  11. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41

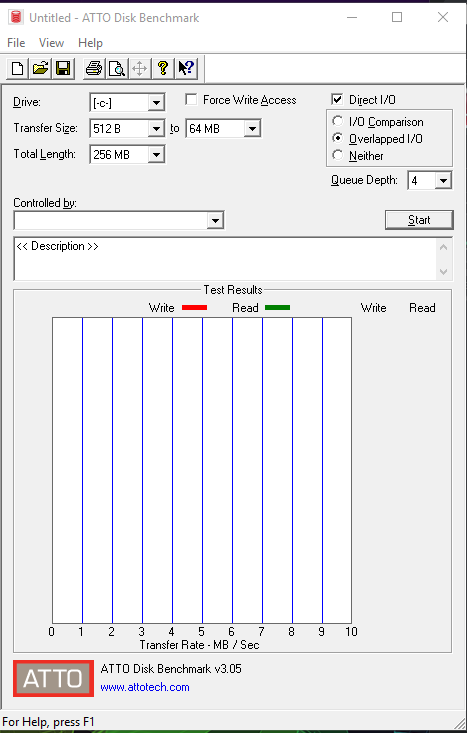

    Which parameters for the test ?

    [​IMG]

    sarou, Jul 11, 2018
    #11
  12. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41

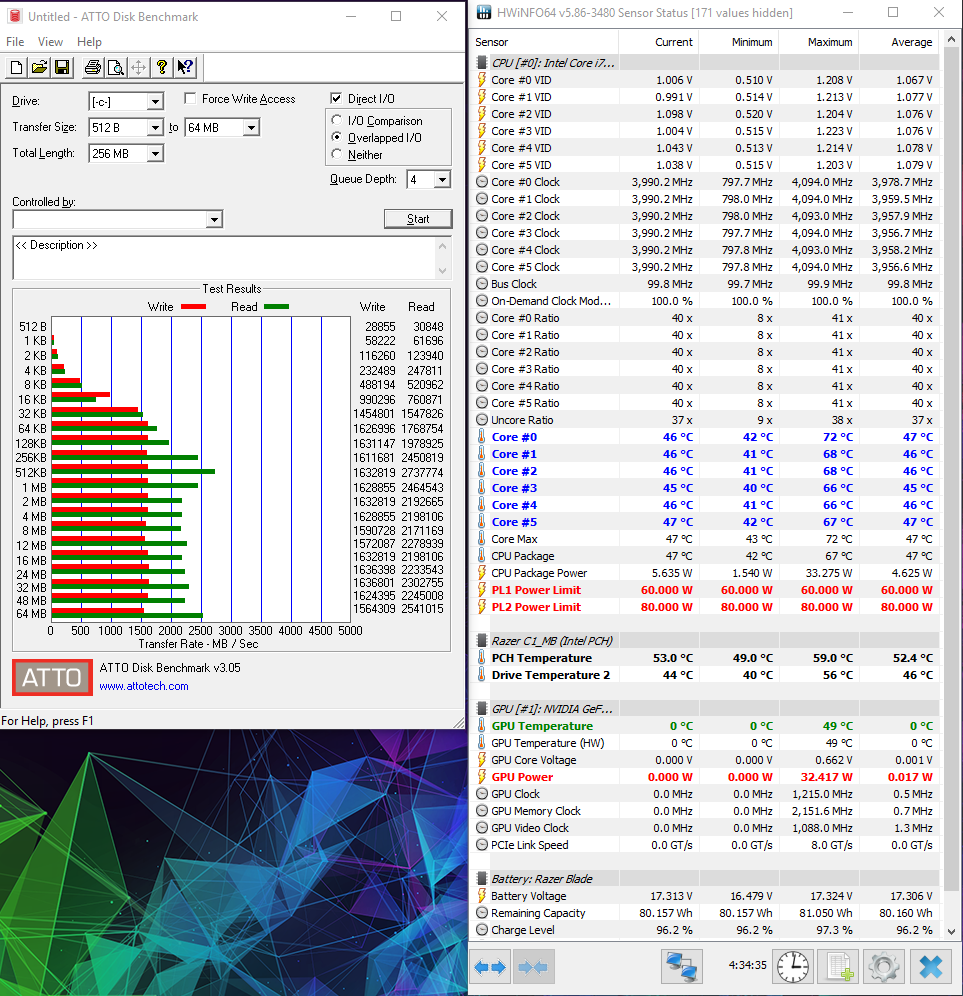

    I just ran 5 tests consecutive with ATTO. Default options : 56c Max

    sarou, Jul 12, 2018
    #12
  13. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41
    [​IMG]

    sarou, Jul 12, 2018
    #13
  14. rinneh

    rinneh Notebook Prophet

    Reputations:
    854
    Messages:
    4,897
    Likes Received:
    2,191
    Trophy Points:
    231
    Becareful though, now you made contact between your SSD and backplate, the backplate flexes a bit so if you press the backplate inwards you are pushing extra stress onto the drive connector which isnt really ideal.... The lifespan isnt too great for these connectors to begin with.

    rinneh, Jul 14, 2018
    #14
  15. sarou

    sarou Notebook Consultant

    Reputations:
    14
    Messages:
    139
    Likes Received:
    73
    Trophy Points:
    41
    The pads touch just a little bit the backplate. With very ligh pressure. Just a simply contact to transfer thermal.
    No pressure on ssd connector.

    sarou, Jul 14, 2018
    #15
