    # hard drive/ssd slots on p170sm-a?

    Discussion in 'Sager and Clevo' started by Grump, Jun 30, 2017.

  1. Grump

    Grump Notebook Consultant

    Reputations:
    0
    Messages:
    261
    Likes Received:
    4
    Trophy Points:
    31
    Hello, how many slots for HDD/SSDs are there on the p170sm-a? The specs aren't entirely clear 1 slot for a regular SATA SSD/HDD and 1 msata slot for an msata ssd, or is there an extra slot that is taken up by the CD drive?

    Last edited: Jun 30, 2017
    Grump, Jun 30, 2017
    #1
  2. t6nn_k

    t6nn_k Notebook Consultant

    Reputations:
    11
    Messages:
    268
    Likes Received:
    59
    Trophy Points:
    41
    t6nn_k, Jul 1, 2017
    #2
  3. poprostujakub

    poprostujakub Notebook Consultant

    Reputations:
    42
    Messages:
    191
    Likes Received:
    95
    Trophy Points:
    41
    2x SATA 2,5" +2x mSATA.
    One mSATA is under 2,5" drive and second 2,5" drive is under CD drive.

    poprostujakub, Jul 1, 2017
    #3
  4. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    This and as @t6nn_k mentioned you can turn the optical bay into a 2.5" bay using a converter (though it only runs at max SATA II speeds).

    Meaker@Sager, Jul 1, 2017
    #4
  5. Grump

    Grump Notebook Consultant

    Reputations:
    0
    Messages:
    261
    Likes Received:
    4
    Trophy Points:
    31

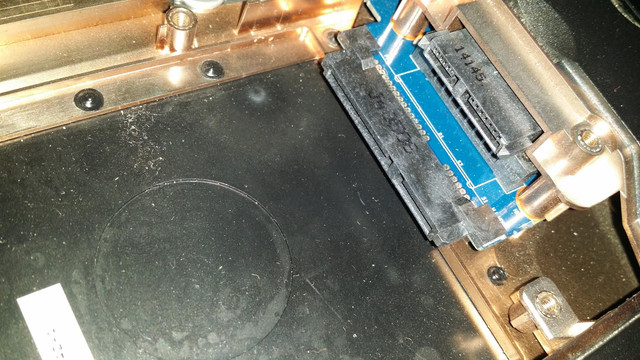

    Hello, in the CD bay the CD drive attaches to a slot that my mSATA initially looks like it can fit but it doesn't seem to. Im not sure what that slot is. If I put the HDD into the bay underneath, the bracket that holds in the CD drive doesn't fit in anymore. The secondary bay seems to just have a regular HDD slot. And there is a dedicated mSata slot near the Vid card fan.

    [​IMG]

    Grump, Jul 1, 2017
    #5
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Download the manual and have a read through and get an overview of everything.

    Meaker@Sager, Jul 1, 2017
    #6
