    [Santa Rosa Refresh -> Montevina] M570RU 1066FSB Hard Mod successful

    Discussion in 'Sager and Clevo' started by kaltmond, Sep 23, 2008.

  1. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Hi all,

    after reaching 4 hours this afternoon i finally found a way to hardware OC my X9000 @266FSB. The mod is directly on PLL clock generator ICS9LPR365DGLF. I tried before to set it in 1066MHz per SetFSB, but after restart the system won´t run, because PCI frequenz is too high, it´s not locked in 33MHz......Now is no problem at all. :D

    The disadvantage of this mod is u must be sure your CPU & RAM can run that high. My Ram runs now @443.4MHz = DDRII 887.... :eek: And in order to get 266x13 stable, i also must do the vcore pin mod to get 1.3875v......

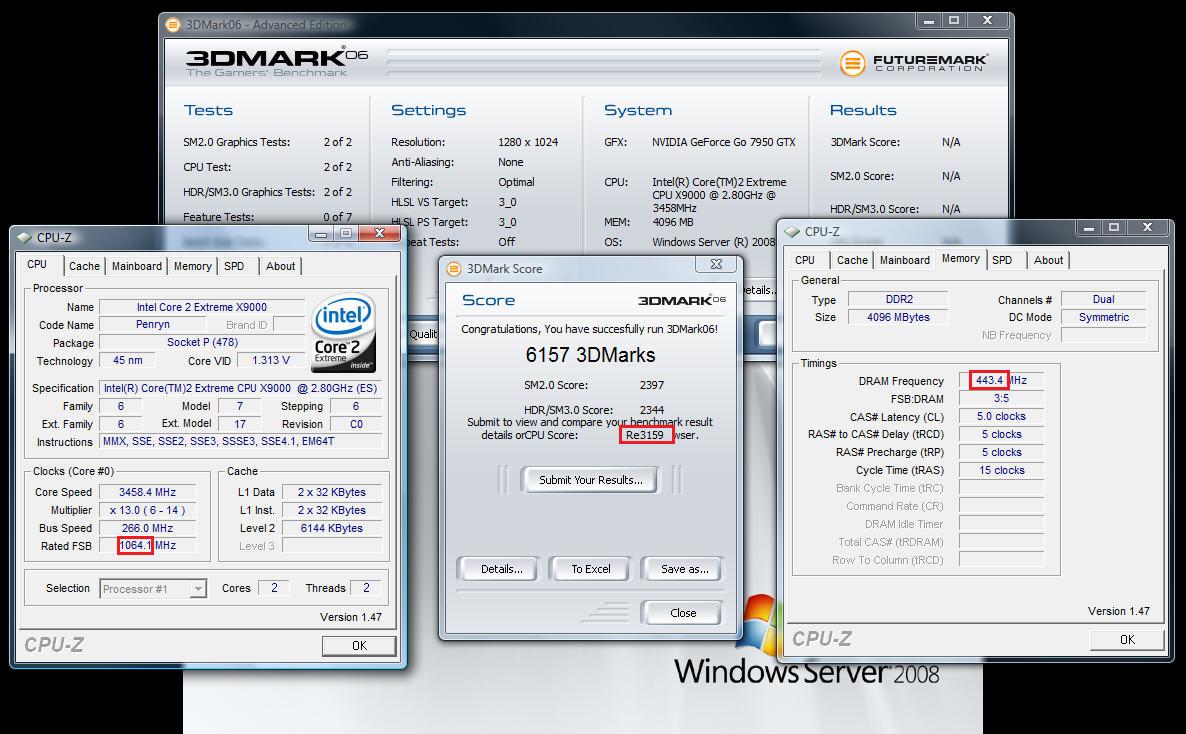

    3DMark results here, overall is not good, still a old 7950GTX. But CPU score is a quite jump compare to stock. :D

    [​IMG]

    kaltmond, Sep 23, 2008
    #1
  2. emike09

    emike09 Overclocking Champion

    Reputations:
    652
    Messages:
    1,840
    Likes Received:
    0
    Trophy Points:
    55
    Well how did you do it?!?!

    emike09, Sep 23, 2008
    #2
  3. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Well, very easy, just reset the BSEL pin of Clock Generator.

    kaltmond, Sep 23, 2008
    #3
  4. Citizen86

    Citizen86 Notebook User Guy

    Reputations:
    203
    Messages:
    1,188
    Likes Received:
    1
    Trophy Points:
    56
    Wow, very nice work!

    Citizen86, Sep 23, 2008
    #4
  5. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    can you post pics/guide please?

    theriko, Sep 23, 2008
    #5
  6. theriko

    theriko Ronin

    Reputations:
    1,303
    Messages:
    2,923
    Likes Received:
    4
    Trophy Points:
    56
    so no water cooling, but what temperature is it actually running at under load?

    theriko, Sep 23, 2008
    #6
  7. kobe_24

    kobe_24 Notebook Deity

    Reputations:
    292
    Messages:
    1,088
    Likes Received:
    5
    Trophy Points:
    56




    Gut gemacht junge...und wie geht's jetzt weiter???? ;)

    kobe_24, Sep 23, 2008
    #7
  8. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    Nice work there... :D

    But be carefull with the PCI-e clocks... above 130mhz data corruption can happen on your HDD because the SATA controler uses the PCI-e bus.

    Remember that the PCI-e frequency it´s not lockable via pin/hard mod, only the PCI bus... ;)

    Audigy, Sep 23, 2008
    #8
  9. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56

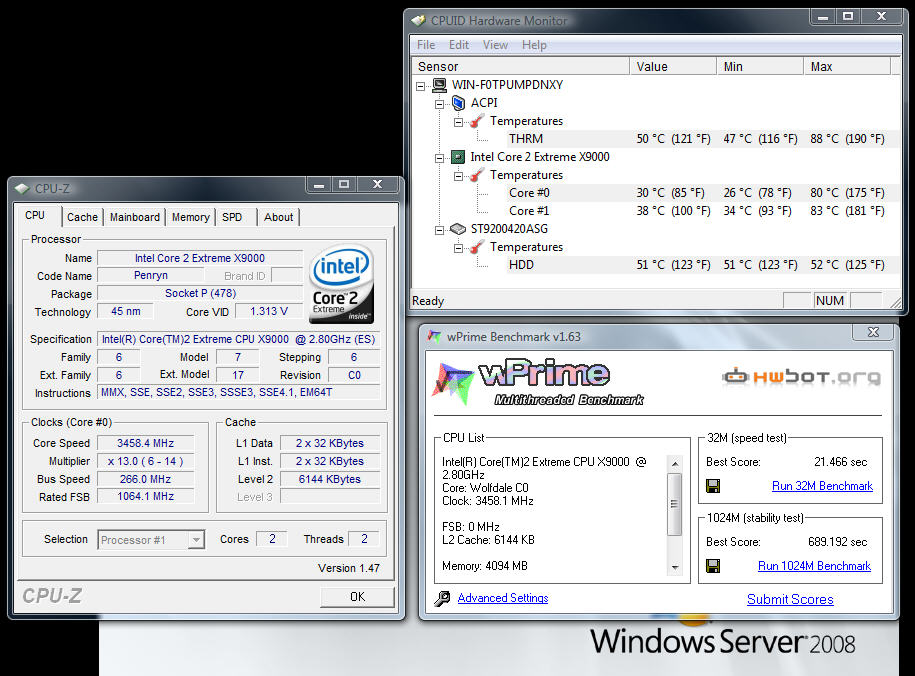

    Just run wprime. Room Temperatur 25°C.

    [​IMG]

    kaltmond, Sep 23, 2008
    #9
  10. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    I didn´t know that. :eek: Until now is everything fine.....

    kaltmond, Sep 23, 2008
    #10
  11. Zenica

    Zenica InterArmaEnimSilentLeges

    Reputations:
    269
    Messages:
    1,009
    Likes Received:
    0
    Trophy Points:
    55
    I'd like to up the juice on my X9100 so I can OC past 3.5GHz
    The $#@! M570TU BIOS doesn't allow it...

    Come on Clevo!

    BTW, Very nice work Kaltmond! Very nice indeed.

    Zenica, Sep 23, 2008
    #11
  12. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    Just be safe on that... if not, some day your OS will not boot because of some corrupted/not found file(s) and you will need to format and reinstall it again. Same thing to any data, games, music, work...

    105Mhz is the safe specified max(5% -/+), so anything above it will stress components linked to that bus. +115Mhz is playing the lucky game. 130Mhz is 30% overclock, wich can cause errors on the data that flow in the bus, insuficient voltage to archieve successful wave switchings on the driver´s IC, de-serialiser problems, wich will cause problems on the SATA controler, network card, wireless card, on-board sound chip, Robson card, VGA card, IDE controler...

    Watch your northbridge temperatures too, if they are to high the chipset can degradate faster, and die sonner.

    ;)

    Audigy, Sep 23, 2008
    #12
  13. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Yeah, so i dig ur post about changing NB cooler again. :D

    PS: Any program allow to check the PCIE/PCI frequency?

    kaltmond, Sep 23, 2008
    #13
  14. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    The stock retention mechanism it´s completely rubish, thermal pad sucks... with a cooper one, and one modded retention it will contact directly with the NB core(AS5 in the midle), without the 3mm gap like the stock one wich required one thermal pad to fill it... much better thermal transfer and dissipation...

    About the PCI-e freq, SetFSB can not read it right/control it on this PLL...

    But you can do some calcs... 266-200=66 66/2.2=30 100+30=130 wich means that at 266(x4 = 1066) your PCI-e freq is at 130Mhz.

    ;)

    Audigy, Sep 23, 2008
    #14
  15. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    I didn´t use that thermal pad for a long time. Managed to make a direct contact of cooler and chip, still the original Al, havn´t tried a Cu one....

    And where do u know that the PCIe is not locked? Havn´t found a datasheet of ICS9LPR363.....

    kaltmond, Sep 23, 2008
    #15
  16. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    In OEM Notebooks BIOSs the PCIe frequency is on auto as it will scale with your OC, and SetFSB has no feature to lock the increase/decrease to the PCIe frequency. Your PCI Express Frequency has a base of 100. Your FSB has a base of 200.

    Andy, Sep 23, 2008
    #16
  17. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    It´s not PLL specific, it´s controled by the nortbridge/southbridge via low level access to the clockgenerator.

    Only boards with PCI-e step freq control in the BIOS can lock it...

    ;)

    Audigy, Sep 23, 2008
    #17
  18. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    That is a very good OC. I had performed a similar one with my D630, which had a custom made BIOS, with a X9000 ES.

    I was able to OC the FSB to 288MHz, overvolted the CPU to 1.524V at multiplier 18x, which gave me a frequency of more than 4.7GHz, and a scorching idle temp of 64*C without a cooler. But unlike you, I was able to adjust the PCIe and Memory frequency manually in the BIOS.

    EDIT:

    D630 CPU-Z.png D630.png

    Andy, Sep 23, 2008
    #18
  19. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    That´s really good. I remember u get that BIOS from UK right? And how about the fullload temp by 4.7G.... :eek:

    kaltmond, Sep 23, 2008
    #19
  20. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    I am in the UK, but I got it from BIOSMAN, and I think he is based in CA, USA.

    I never ran Prime95 without the cooler, and I used to hit 85-87 on both cores, and above 90 shown by the thermal zone.

    BTW, what does the PCIe frequency have to do with the HDD ? :confused:

    Andy, Sep 23, 2008
    #20
  21. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    266x18......that´s crazy.......I tried before 200x18 @ 1.438v, already really really hot....Is the coolingsystem so strong to do this job?

    kaltmond, Sep 23, 2008
    #21
  22. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    Nothing :D

    PCI-e and SATA controler is another thing...

    The SATA controler (located inside Intel´s southbridge) use the PCI-e bus.

    ;)

    Audigy, Sep 23, 2008
    #22
  23. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    You need Dice or Liquid Nitrogen my friend!

    [​IMG]

    :D

    Audigy, Sep 23, 2008
    #23
  24. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Audigy do you know where is the BIOS chip of 570RU? i can´t find it. ...

    kaltmond, Sep 23, 2008
    #24
  25. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    The stock cooling system was pretty useless. I ended up using a heat-sink made by Winstron, and modified it slightly. I don't know for which laptop it was, but it did the job well. Apart from that, I had the NZXT Cryo LX, which was basically for a 15"er, but worked well with my notebook.

    Andy, Sep 23, 2008
    #25
  26. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    Here:

    [​IMG]

    It´s not in a socket, wich is quite bad... if any flash goes wrong you will need a new mobo...

    ;)

    Audigy, Sep 23, 2008
    #26
  27. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    But i think it´s VIA 1394 controller? It says VT6311S

    kaltmond, Sep 23, 2008
    #27
  28. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    Weird, I thought that all boards have SATA controllers off the pci/e bus on their own dedicated bus. I think I'll check out the ICH8 datasheet. :)

    Andy, Sep 23, 2008
    #28
  29. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    Yep its the firewire controller... don´t know where the EPROM may be...

    BTW why do you want to know where it is?

    Audigy, Sep 23, 2008
    #29
  30. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    Andy, Sep 23, 2008
    #30
  31. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    Nothing special, just want to have a look. :D It´s pity it doesn´t use normal chips with socket like desktops, or it will be very easy to backup/flash/mod bios options. :D

    kaltmond, Sep 23, 2008
    #31
  32. Andy

    Andy Notebook Prophet

    Reputations:
    2,133
    Messages:
    6,399
    Likes Received:
    1
    Trophy Points:
    206
    Andy, Sep 23, 2008
    #32
  33. kaltmond

    kaltmond Clepple

    Reputations:
    699
    Messages:
    1,454
    Likes Received:
    1
    Trophy Points:
    56
    A little crazy recently. Did voltage mod again and get 266x14 @1.4375v......really really hot und fullload. Run wprime and get 100°C. :eek: :eek: :eek:

    Lower to 1.4250v but not fully stable, but max temp now is 80°C.

    I found the temp from Core Temp 0.99.3 is always 5-6°C higher than HW Monitor, which one should i trust?

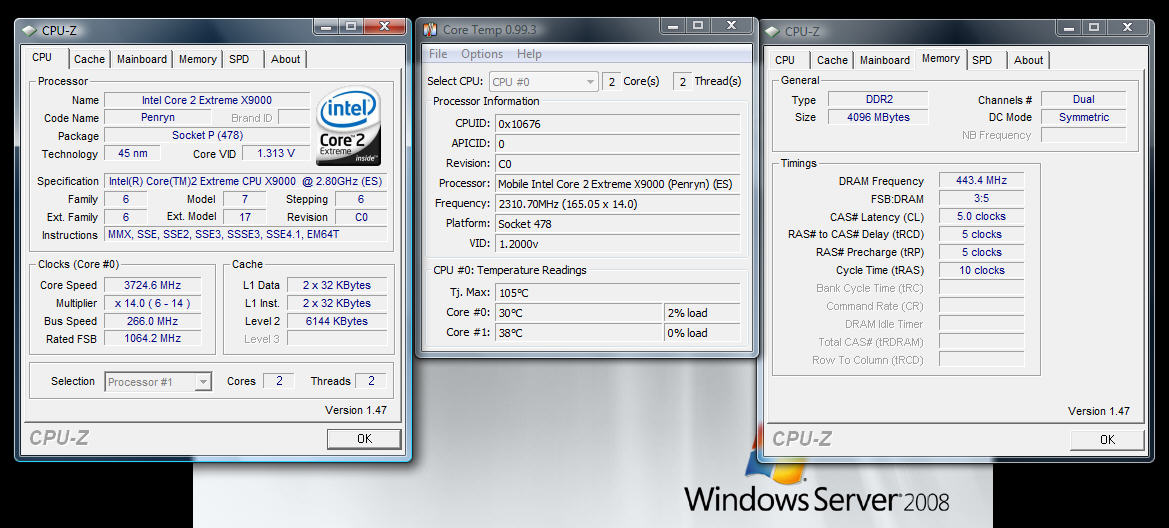

    [​IMG]

    kaltmond, Sep 24, 2008
    #33
  34. kobe_24

    kobe_24 Notebook Deity

    Reputations:
    292
    Messages:
    1,088
    Likes Received:
    5
    Trophy Points:
    56
    You're one bad mofo kaltmond!

    kobe_24, Sep 24, 2008
    #34
  35. Citizen86

    Citizen86 Notebook User Guy

    Reputations:
    203
    Messages:
    1,188
    Likes Received:
    1
    Trophy Points:
    56
    Agreed, you're crazy!! VERY nice overclock though

    Citizen86, Sep 24, 2008
    #35
  36. Audigy

    Audigy Notebook Evangelist

    Reputations:
    734
    Messages:
    650
    Likes Received:
    0
    Trophy Points:
    30
    Nice OC!

    CoreTemp is more precise than HWMonitor because it reads the core temps via the Model Specific Register wich is more reliable...

    ;)

    Audigy, Sep 24, 2008
    #36
  37. Rorschach

    Rorschach Notebook Virtuoso NBR Reviewer

    Reputations:
    1,131
    Messages:
    3,552
    Likes Received:
    17
    Trophy Points:
    106
    O_O' I wanna see someone do this with a montevina cpu, if they can get the fsb up to 333 that should get you a system that could truly match desktop performance.

    Rorschach, Sep 24, 2008
    #37
  38. Spires

    Spires Notebook Geek

    Reputations:
    5
    Messages:
    93
    Likes Received:
    0
    Trophy Points:
    15
    Come on Kalt! Have to show us how to do this mod! Also what memory are you using? I have the stock Adata and some high speed Kingston, but the kingston I just got is useless unless I can change the Cas setting before I boot the machine.. So will have to send it back and find memory capable of higher fsb. I cant get stable fsb higher than 230 with my memory.. My X9000 wont go any higher than 3.45 without more voltage either..

    Spires, Sep 24, 2008
