    ATI 6990M Temps in Clevo Laptops

    Discussion in 'Sager and Clevo' started by .Akronym, Sep 1, 2011.

  1. llynx

    llynx Notebook Consultant

    Reputations:
    36
    Messages:
    176
    Likes Received:
    0
    Trophy Points:
    30
    It actually reports it correctly as 6970M/6990M, you have to change the width of the column to see the rest of the text.

    llynx, Sep 17, 2011
    #51
  2. johnnyman27

    johnnyman27 Notebook Lover

    Reputations:
    354
    Messages:
    1,315
    Likes Received:
    2
    Trophy Points:
    56
    guys the thermal pads only affect the memory temp or all the temps are affected like core and shaders??thx.

    johnnyman27, Sep 17, 2011
    #52
  3. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151

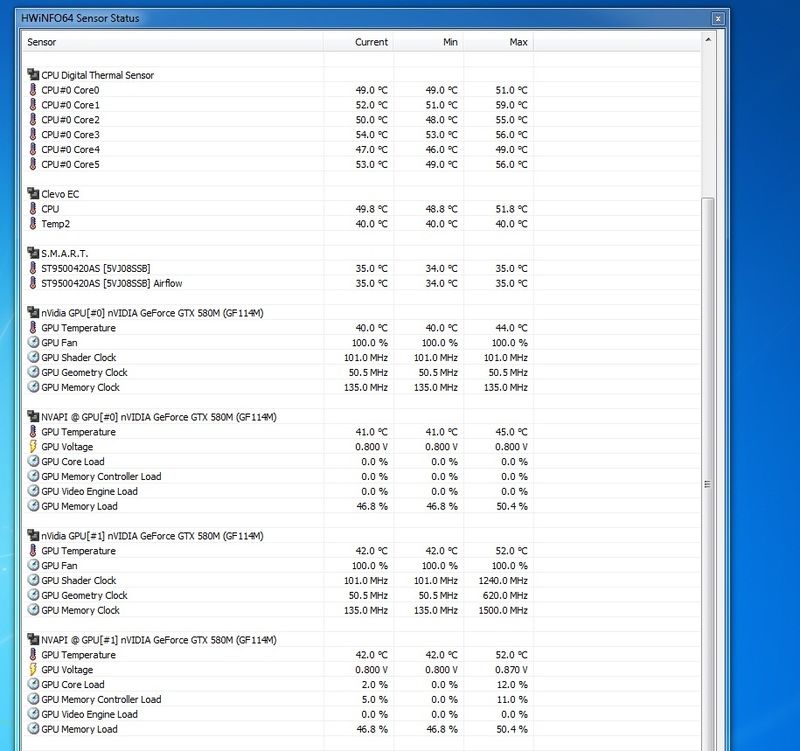

    Yes when posting the HWinfo64 it is good to open it up wider like below. :)

    [​IMG]

    Larry@LPC-Digital, Sep 17, 2011
    #53
  4. swimmer1918

    swimmer1918 Notebook Consultant

    Reputations:
    3
    Messages:
    286
    Likes Received:
    0
    Trophy Points:
    30
    Alright so my room temperature has dropped quite a bit sense the weather has gone back to normal where I live so I thought I'd re-post my temperatures again because they changed quite a bit. My room temperature is about 66-67C and these temperatures are with my NZXT Cyro notebook cooler.

    BF:BC 2: 79-80C this is my high temperature
    3D Mark Vantage: 76-77C
    Oblivion: 62-65C is this even possible?

    You can see my before temperatures a few pages earlier and Oblivion was my biggest change.

    Also on a side note, many people said that you couldn't play games while your laptop isn't plugged. Well I was just playing Oblivion(Yes it's an older game and not the most demanding but still) and forgot to plug my notebook in and didn't even notice that it wasn't performance wise. It probably eats the battery up really fast but still.

    swimmer1918, Sep 18, 2011
    #54
  5. johnnyman27

    johnnyman27 Notebook Lover

    Reputations:
    354
    Messages:
    1,315
    Likes Received:
    2
    Trophy Points:
    56
    guys what mm pads do u use for 6990m???0.5mm or 1mm???

    johnnyman27, Sep 18, 2011
    #55
  6. rpg711

    rpg711 Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    Dear god, do you live in death valley or something?

    your computer would be drawing something like 90wH from the battery during the most intensive gaming without low power modes... which makes it pointless to play intensive games.

    rpg711, Sep 18, 2011
    #56
  7. fonzie

    fonzie Notebook Guru

    Reputations:
    1
    Messages:
    62
    Likes Received:
    3
    Trophy Points:
    16
    Well, My reseller has agreed to do an RMA due to the high temps. Hopefully, the next machine will be without any issues!

    fonzie, Sep 18, 2011
    #57
  8. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    Good to hear. There is NO reason you should have higher than what is considerd the normal range. In Vantage benchiing it should not go over 90C if your room temp is 22 to 24 C. :)
    _

    Larry@LPC-Digital, Sep 18, 2011
    #58
  9. fonzie

    fonzie Notebook Guru

    Reputations:
    1
    Messages:
    62
    Likes Received:
    3
    Trophy Points:
    16
    Are these temps ok on Vantage benchmark with 23C room temp?

    [​IMG]

    fonzie, Sep 18, 2011
    #59
  10. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    I cannot read it too well. Can you make the image bigger? :)
    _

    Larry@LPC-Digital, Sep 18, 2011
    #60
  11. fonzie

    fonzie Notebook Guru

    Reputations:
    1
    Messages:
    62
    Likes Received:
    3
    Trophy Points:
    16
    here you go! :)

    [​IMG]

    fonzie, Sep 18, 2011
    #61
  12. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    Yes those temp are VERY good for doing Vantage... ;)
    _

    Larry@LPC-Digital, Sep 18, 2011
    #62
  13. fonzie

    fonzie Notebook Guru

    Reputations:
    1
    Messages:
    62
    Likes Received:
    3
    Trophy Points:
    16
    This is the same laptop that was giving the 97-102C temps yesterday! You know what the difference is? My friend put the laptop on a table with a rug on it. Since I was logged in remotely, I never saw that!! Now the laptop is placed on top of the box it came in and it has made a difference of about 12-17C!

    fonzie, Sep 18, 2011
    #63
  14. Religion

    Religion Notebook Consultant

    Reputations:
    8
    Messages:
    234
    Likes Received:
    6
    Trophy Points:
    31
    putting any laptop on carpet is dangerous. I would scold your friend!

    Religion, Sep 18, 2011
    #64
  15. fonzie

    fonzie Notebook Guru

    Reputations:
    1
    Messages:
    62
    Likes Received:
    3
    Trophy Points:
    16
    I don't think he would take that very kindly if YOU scold him! :p

    fonzie, Sep 18, 2011
    #65
  16. Religion

    Religion Notebook Consultant

    Reputations:
    8
    Messages:
    234
    Likes Received:
    6
    Trophy Points:
    31
    well why not. Billions of people around the world believe in me!

    Religion, Sep 18, 2011
    #66
  17. Superloaf

    Superloaf Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    Machine: Malibal Satori (Clevo P170HM)
    i7-2760, 16GB RAM, Samsung 256GB SSD + 750GB 7200rpm HD, BD-R. IC Diamond thermal paste.

    Using Cooler Master NotePal U3

    Card settings: 740mhz / 1000mhz (normal max Overdrive setting)

    Temps from HWMonitor

    Idle: 40-42C
    Vantage: 75C
    3DMark 11: 74C
    The Witcher 2: 80C

    The Witcher 2 really pushes the card. Here, I'm running it at 1080p with almost everything except AA and Ubersampling on. I'm really pleased with these temps!

    Superloaf, Oct 23, 2011
    #67
  18. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    ^^^^Yes those are some good temps! Congrats! :)
    _

    Larry@LPC-Digital, Oct 23, 2011
    #68
  19. windelicato

    windelicato Notebook Consultant

    Reputations:
    69
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    How is the heat for you guys in the P150HM chassis? I'm trying to decide between a 6990 and a 580. The heat in my current Dell XPS16 (gross, right?) gets pretty unbearably scary. I don't want to constantly have to worry about GPU heat.

    windelicato, Oct 23, 2011
    #69
  20. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    One thing to keep in mind is these new GPU's, the 6990M and the 580M can handle the high 80C's and even 90C while doing intense gaming and such for long periods.

    If you are planning long periods of such, ICD thermal compound would be a good choice.

    The P150HM/8150 have an excellent cooling system in place for a 15' chassis. :)
    _

    Larry@LPC-Digital, Oct 23, 2011
    #70
  21. Superloaf

    Superloaf Notebook Enthusiast

    Reputations:
    0
    Messages:
    32
    Likes Received:
    0
    Trophy Points:
    15
    Though I'm working with the P170, I'd second the thermal compound recommendation. From the looks of it, my laptop is running a lot cooler than many others', which may be because they did a great job applying the paste. Of course, a cooling pad helps, too!

    For whatever reason, consumer brand laptops just get ungodly hot, even if they're designed for gaming. I honestly don't know what Dell does to those things.

    Superloaf, Oct 23, 2011
    #71
  22. Coxy

    Coxy Notebook Enthusiast

    Reputations:
    22
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    5
    They use them as beer platters, and stuff. That is what they call QCing their computers. They test them... OUTSIDE the box and normal usage.

    Coxy, Oct 24, 2011
    #72
  23. tbert03

    tbert03 Notebook Geek

    Reputations:
    5
    Messages:
    87
    Likes Received:
    0
    Trophy Points:
    15
    I put AS5 on my 6990M. It idles 45-50C. The highest it's reached after 1-2 hours of SCII or BC2 is 81C.

    Side note, what programs have you guys been using to undervolt it? The voltage is always locked in all the programs I've tried, Afterburner, Trixx, ATI Tool, etc. Thanks.

    tbert03, Oct 24, 2011
    #73
  24. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    ^^^ Very nice temps! AS5 does a good job for sure. :)
    _

    Larry@LPC-Digital, Oct 24, 2011
    #74
  25. windelicato

    windelicato Notebook Consultant

    Reputations:
    69
    Messages:
    112
    Likes Received:
    0
    Trophy Points:
    30
    Thanks larry! Does the chassis make your hands a bit sweaty when it's hitting those high temps?

    Now I just gotta wait a couple more months to get my hands dirty with one of these bad boys.

    windelicato, Oct 24, 2011
    #75
  26. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    It doesn't with me (that is having sweaty hands). Maybe others can chime in on this. ;)
    _

    Larry@LPC-Digital, Oct 24, 2011
    #76
  27. Ryan

    Ryan NBR Moderator

    Reputations:
    2,320
    Messages:
    2,512
    Likes Received:
    17
    Trophy Points:
    56
    Nope.

    I can't feel the heat anywhere around where I touch.

    The heat mostly resides in the back of the screen and in the underside near the vents.

    It's crisp cool to the touch on the keyboard, palmrest, etc.

    Ryan, Oct 24, 2011
    #77
  28. b0b1man

    b0b1man Notebook Deity

    Reputations:
    597
    Messages:
    1,092
    Likes Received:
    29
    Trophy Points:
    66
    ARCTIC MX-2 over here on my 6990M. After playing SC2 for hours on Extreme, 1080p, Im gettin 68-70C maximum. Average is 66C.

    b0b1man, Oct 25, 2011
    #78
  29. hyrule4927

    hyrule4927 Notebook Consultant

    Reputations:
    57
    Messages:
    167
    Likes Received:
    0
    Trophy Points:
    30
    If I were to order an NP8170 from XoticPC, would there be any warranty issues if I repaste the card myself if the need arises?

    hyrule4927, Nov 5, 2011
    #79
  30. Religion

    Religion Notebook Consultant

    Reputations:
    8
    Messages:
    234
    Likes Received:
    6
    Trophy Points:
    31
    Of course not. Go watch a few xoticpc reviews on youtube they talk about that.

    My temps with ICD24 are 42C and max of 86C@820/950

    Religion, Nov 5, 2011
    #80
  31. b0b1man

    b0b1man Notebook Deity

    Reputations:
    597
    Messages:
    1,092
    Likes Received:
    29
    Trophy Points:
    66
    Im very happy with my temps now that I read what people have been getting.

    Idle: 38-41 (depends on room temp)
    Starcraft 2: 70-76 (depends on room temp)

    Im guessing my Arctic MX-2 is responsible for these perfect temps. The highest I've ever seen after hours of Marine Arena, Desert Strike (all on Extreme, 1080p) is 78'C. Its cooler than my previous Acer with GT-540M where I was getting 82'C on medium settings!!! :eek:

    b0b1man, Nov 5, 2011
    #81
  32. tbert03

    tbert03 Notebook Geek

    Reputations:
    5
    Messages:
    87
    Likes Received:
    0
    Trophy Points:
    15
    It seems like a healthy max temp is your idle temp + 40C.

    tbert03, Nov 5, 2011
    #82
  33. Religion

    Religion Notebook Consultant

    Reputations:
    8
    Messages:
    234
    Likes Received:
    6
    Trophy Points:
    31
    I would attribute it to SC2 not being a true stress test ;)

    Religion, Nov 5, 2011
    #83
  34. Phronnos

    Phronnos Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    How easy is it to remove the 6990M to reapply your own thermal paste? I'm planning to get a 5180 with a 6990M, and I have my own AS5 lying around, but if it's a lot of work, I'm considering having ICD7 added to my configuration.

    I also read in an older post that some users were adding copper shims to close the space between their GPU and their heatsink, but it may have been for older clevo models... Is that still an issue, or was than an isolated issue?

    Phronnos, Nov 5, 2011
    #84
  35. Religion

    Religion Notebook Consultant

    Reputations:
    8
    Messages:
    234
    Likes Received:
    6
    Trophy Points:
    31
    No need to remove just take the heatsinks off. And doing that required a normal and a tiny philips screwdriver.

    Religion, Nov 6, 2011
    #85
  36. Phronnos

    Phronnos Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5

    That's quite reassuring, thanks! With that said, hopefully I'll be able to order my np8150 tomorrow! =]

    Phronnos, Nov 6, 2011
    #86
  37. retsnom

    retsnom Notebook Enthusiast

    Reputations:
    0
    Messages:
    48
    Likes Received:
    0
    Trophy Points:
    15
    Are these laptops easy to take apart? I remember it was a bit of a hassle for my old Dell.

    retsnom, Nov 6, 2011
    #87
  38. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    Yes these Clevo / Sager machines are much easier to work on than the Dell machines.

    In fact they may be the most user upgradeable machines on the market today! :)
    _

    Larry@LPC-Digital, Nov 6, 2011
    #88
  39. olivierica

    olivierica Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    System
    Reseller: Eurocom (Canada)
    Model: P150HM
    room temp: 20C
    4 gig Ram

    Stock Paste / Clock
    Idle: 46-51 C

    AFTER 3D mark Vantage
    GPU score: 13521
    CPU score: 19084
    total: P14595


    [​IMG]

    My 3Dmark 2006 score is: 17623

    far from :
    Standard 1280x1024
    XMG P701 PRO 2760QM 16384 MB 715 / 900MHz 2048MB Clevo 8.850.0.0 20744

    The only difference is my RAM, I have 4gig

    olivierica, Nov 6, 2011
    #89
  40. newfiejudd

    newfiejudd Notebook Deity

    Reputations:
    305
    Messages:
    1,139
    Likes Received:
    3
    Trophy Points:
    56
    Hi guys, I have seen as high as 92c with my new system running world of tanks. I did reapply some AS5 and my temps are down to 84-87 max. I didn notice my fans don't seem to stay constant. They are more or less oscilating even though I am using the FN+1 command. Any thoughts?

    newfiejudd, Nov 8, 2011
    #90
  41. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    The first thing that comes to mind is do you have the latest Bios / EC update for your machine?

    If not this may very well address your fan issue. :)
    _

    Larry@LPC-Digital, Nov 8, 2011
    #91
  42. newfiejudd

    newfiejudd Notebook Deity

    Reputations:
    305
    Messages:
    1,139
    Likes Received:
    3
    Trophy Points:
    56
    I will double check the BIOS in the morning. Do these have the standard update through windows or VIA USB flash drive.

    newfiejudd, Nov 8, 2011
    #92
  43. Anthony@MALIBAL

    Anthony@MALIBAL Company Representative

    Reputations:
    616
    Messages:
    2,771
    Likes Received:
    3
    Trophy Points:
    56
    You'll have to update through a bootable dos flash drive or burned CD. It depends on your retailer and how the files are provided.

    Anthony@MALIBAL, Nov 8, 2011
    #93
  44. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151
    USB drive will be fine. I usually burn the image files to a CD and boot to it.

    Many that have a Sager branded machine do it the CD way. :)

    -

    Larry@LPC-Digital, Nov 8, 2011
    #94
  45. newfiejudd

    newfiejudd Notebook Deity

    Reputations:
    305
    Messages:
    1,139
    Likes Received:
    3
    Trophy Points:
    56
    Well updated to teh latest BIOS.. And still the smae micro stuttering on the fans. It's wierd. They just don't stay and full speed by the sound it's making.

    newfiejudd, Nov 9, 2011
    #95
  46. Anthony@MALIBAL

    Anthony@MALIBAL Company Representative

    Reputations:
    616
    Messages:
    2,771
    Likes Received:
    3
    Trophy Points:
    56
    This is normal to an extent. Most people report the stuttering to be less pronounced with FN+1 and the machine under full load compared to at idle.

    Anthony@MALIBAL, Nov 9, 2011
    #96
  47. newfiejudd

    newfiejudd Notebook Deity

    Reputations:
    305
    Messages:
    1,139
    Likes Received:
    3
    Trophy Points:
    56
    Thanks for the info.. I was wondering about it.

    newfiejudd, Nov 9, 2011
    #97
  48. Wadi

    Wadi Notebook Enthusiast

    Reputations:
    0
    Messages:
    12
    Likes Received:
    0
    Trophy Points:
    5
    I thought I heard elsewhere the 580m ran hotter than the 6990m? Any truth to this?

    Wadi, Nov 9, 2011
    #98
  49. Seosaidh

    Seosaidh Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Hey guys I have had a CLevo with a 6990m card for 2 months now and I get worried when I see my temperatures in idle as well as when I play Skyrim.

    My current temp in idle is:

    72C

    In skyrim:

    89-102C

    Should I send it back to the retailer and ask them to fix this? I'm going to try and clean the outtakes to see if that helps.

    Also where can I download the latest bios and how do I install it? A link or something would be really nice.

    Thanks in advance!

    Seosaidh, Nov 23, 2011
    #99
  50. Anthony@MALIBAL

    Anthony@MALIBAL Company Representative

    Reputations:
    616
    Messages:
    2,771
    Likes Received:
    3
    Trophy Points:
    56
    The idle temps don't seem particularly high, but if you're going above 100C under load, that's definitely something to worry about. Are you using stock paste or an upgraded kind? Are you gaming on a hard level surface? You can raise the back end of the laptop and/or try repasting yourself before you send it in if you want.

    For the bios, if you have a Clevo branded model (NOT a Sager), you can use the link below for updates:

    http://forum.notebookreview.com/sager-clevo/416916-clevo-bios-thread.html

    Anthony@MALIBAL, Nov 23, 2011
    #100
← Previous pageNext page →
