Are there any internal pics of the clevo P751TM or P775TM?

Of the clevo P751TM or P775TM? The links in the appropriate threads are dead now. I've googled and the pics I came up with look just like my P770ZM. Curious how this deviation from standard MXM will play out in future. I'm not due for an upgrade for another 2 years at least. Just had MB replaced so I will likely go a full 5 years with my setup but the newer models do have appeal with the extra USB ports and thunderbolt and slightly better DAC setup.

But yeah? Anybody with links or have some personal pics of their setup opened? Would be much appreciated.

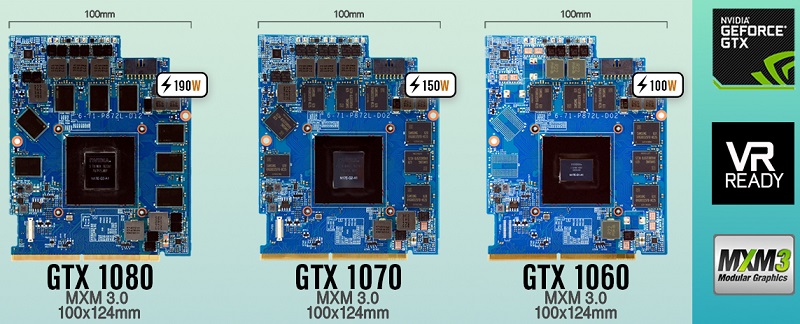

are you talking about gpus?



or motherboards

P750TM


P775TM



P751TM:





P775TM:



Mostly the differences are down to heatsink arrangements (and CMOS battery being moved) and as you pointed out some port differences.



Do you know if the heatsinks are interchangeable, as in can you use the P775TM heatsinks on the P751TM? I know the motherboard is the same (it says P775TM on my board).



Note the 17 inch flairs out the back and the heatsinks are longer.



Hard to tell from the pics. So it wouldn't work?

Edit: Oh I see what you mean. The main difference is the size of the rads.



Yes, they extend past the 3 heatpipe width.

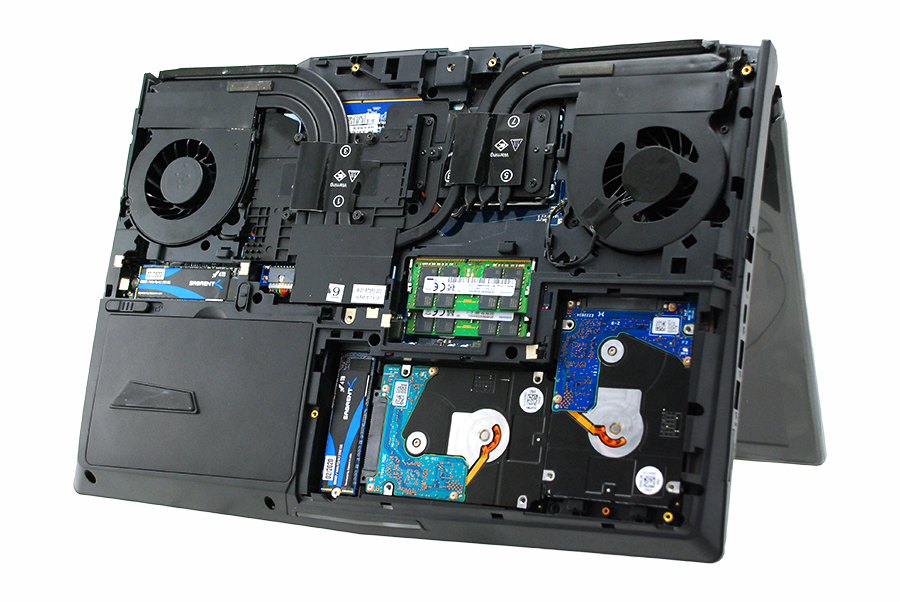

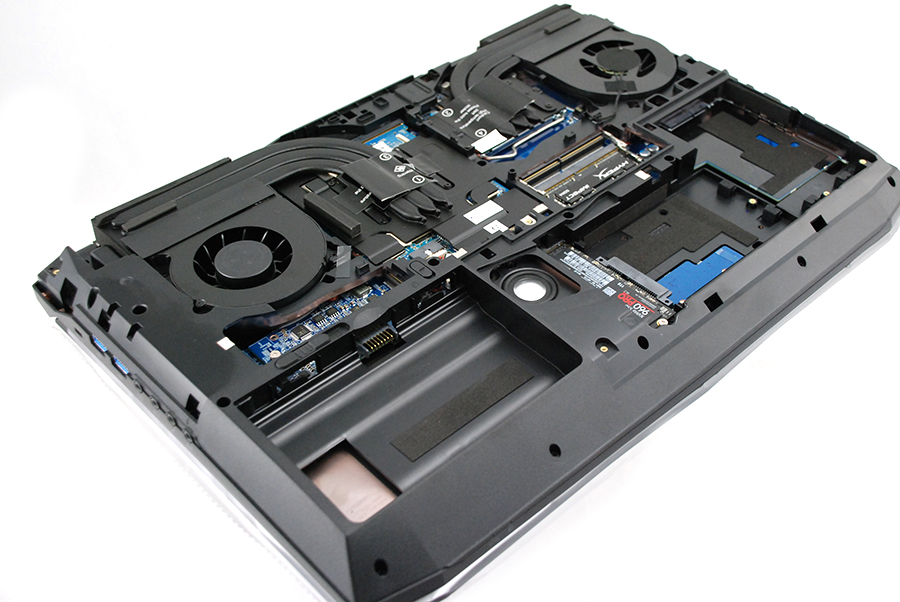

appreciate the picture but i meant the laptop upside down with the covers off. but from those pics already looks similar. just curious. seems clevo has been rehashing but slightly updating the design for the last 3 years or so. looking to see what kind of wiggle room there is for possible mods. and do 980m's work in these new updates by chance?



cool. this is what i wanted. didn't load up the first couple of refreshes. thanks.
