Avell B155 titanium max (Clevo W65x67sj) Express cache?

Hello guys how are you? i just bough an used Avell B155 titanium max!

Intel i7 4810mq 850m ddr3 2gb

Intel HM86 Chipset.
I just installed premamod bios into it because its the same as clevo W65x67sj and i cant make raid work! Im trying to enable raid mode to use my 32gb ssd as cache but i could not!

intel rst wont enable me to set it as cache if i dont have raid mode enable via biosmode...anyone knows how to do it?

And the only workaround i was able to do was to install primocache and set the ssd to full cache but its an paid software and i would like to try expresscache, how to use it?

I followed lots of tutorials but it says that its not allowed to run on this machine at the end, any tips? would be awesome any suggestions or alternative softwares or even a way to make raid or expresscache to work on this clevo machine!

Any tips? thank you



Intel ( http://ark.intel.com/compare/75531,75528) seems to say that the HM86 chipset doesn't support Intel SRT.



Get a smaller SSD for your main (128-250GB) and forget about caching.



thanks for all the replies, here in brazil ssd is too expensive i cant buy it, i do want to use the 32gb ssd that came with the laptop.

On bios it does have intel rst enable or disable keys and its enabled by default.

Any tips?

obs: What about the nveo Dataplex software? back in the days wasnt it compatible with any ssd ? shouldnt i be able to use it ?

The ssd model is
MZMPC032HBCD-000L1 32gb!

Whats the brand of this ssd model? any tips or anyway to find out if this manufacturer have any software?



And by the way what about Nv Dataplex software? wasnt it compatible with all ssd models back in the days? shouldnt it work?

How do i find out whos the manufacturer of my ssd model}?

its:
MZMPC032HBCD-000L1 32gb ! Maybe i could find some software if i do find the brand that uses it or something like this?

this looks like its made by Samsung isnt? http://www.samsung.com/us/business/oem-solutions/pdfs/PM830_mSATA SSD_32_64_128_256GB_Spec_1.0.pdf



Could you post up a couple of screenshots of the Intel RST application? I'm just a bit curious. Make sure to erase all files and partitions on the SSD before you try anything.

Did you install the tiny SSD yourself or did it come with the laptop? Can you ask the previous owner about it?



Yeah for sure my friend!


There it its !

Thats my motherboard information:
SiSoftware Sandra

Computer
Manufacturer : Notebook
Model : W65_67SJ
Family : Not Applicable
Version : Not Applicable
Serial Number : Not App*******
ID : 035BFA80-0000EC60******************
SKU Number : Not Applicable

Chassis
Manufacturer : Notebook
Type : Laptop
Can be locked : No
Power Cord(s) : 1
Serial Number : No**
Asset Tag : No Asset Tag
Boot-up State : Safe
Power State : Safe
Thermal State : Safe
Security State : External Interface Locked-out

Mainboard
Manufacturer : Notebook
Multi-Processor (MP) Support : No
Multi-Processing (MPS) Version : 1.40
Model : W65_67SJ
Type : Mainboard
Version : Not Applicable
Serial Number : Not App*******
Asset Tag : Tag 12345
Location in Chassis : Not Applicable
BIOS : 63-0100-000001-00101111-121412-Chipset

Mainboard Properties
Removable : No
Replaceable : Yes
Hot Swap : No

On-board Devices
To Be Filled By O.E.M. : Video Adapter (Enabled)
To Be Filled By O.E.M. : Ethernet Adapter (Enabled)

Chipset
Model : Clevo Core (Haswell) DRAM Controller
OEM Device Name : Intel Core (Haswell) DRAM Controller
Revision : A7
Bus : CSI (Quick Path)
Front Side Bus Speed : 100MHz
Width : 20-bit / 20-bit
HTT - Hyper-Threading Technology : Yes
Maximum Bus Bandwidth : 400MB/s
Maximum Power : 3.400W

Features
VT-d - Virtualisation Technology : Yes

Chipset 1 Hub Interface
Type : DMI (Direct Media Interface)
No. Ports : 172

Logical/Chipset Memory Banks
Bank 0 : 4GB DDR3 SO-DIMM 9-9-9-27 5-36-12-8 1T
Bank 2 : 4GB DDR3 SO-DIMM 9-9-9-27 5-36-12-8 1T
Shared Memory : 66MB
Maximum Memory : 32GB
Supported Memory Types : DDR3 SO-DIMM
Channels : 2
Width : 128-bit
Bank Interleave : 4-Way
Memory Bus Speed : 2x 800MHz (1.6GHz)
Maximum Speed : 1.6GHz
Multiplier : 8x
Integrated in Processor : Yes
Maximum Memory Bus Bandwidth : 25GB/s

APIC 1
Version : 2.00
Multiplier : 1/2x
Maximum Interrupts : 24
IRQ Handler Engaged : Yes
Enhanced Support : Yes

Memory Module
Manufacturer : Kingston
Model : KHX1600C9S3L4G
Serial Number : 5B2C****
Type : 4GB DDR3 SO-DIMM
Technology : 8x(4096Mx8)
Speed : PC3-12800SO DDR3-1600
Standard Timings : 9-9-9-27 5-39-12-6
Interface : 1.01
Date of Manufacture : quarta-feira, 12 de agosto de 2020
Memory DC Line : 1.350V
Temperature Sensor(s) : No
Timing @ 978MHz : 11-11-11-33 6-47-15-7
Timing @ 889MHz : 10-10-10-30 5-43-13-7
Timing @ 800MHz : 9-9-9-27 5-39-12-6
Timing @ 711MHz : 8-8-8-24 4-34-11-5
Timing @ 622MHz : 7-7-7-21 4-30-9-5
Timing @ 533MHz : 6-6-6-18 3-26-8-4
Timing @ 444MHz : 5-5-5-15 3-21-7-3

Memory Module
Manufacturer : Kingston
Model : KHX1600C9S3L4G
Serial Number : 5D2C****
Type : 4GB DDR3 SO-DIMM
Technology : 8x(4096Mx8)
Speed : PC3-12800SO DDR3-1600
Standard Timings : 9-9-9-27 5-39-12-6
Interface : 1.01
Date of Manufacture : quarta-feira, 12 de agosto de 2020
Memory DC Line : 1.350V
Temperature Sensor(s) : No
Timing @ 978MHz : 11-11-11-33 6-47-15-7
Timing @ 889MHz : 10-10-10-30 5-43-13-7
Timing @ 800MHz : 9-9-9-27 5-39-12-6
Timing @ 711MHz : 8-8-8-24 4-34-11-5
Timing @ 622MHz : 7-7-7-21 4-30-9-5
Timing @ 533MHz : 6-6-6-18 3-26-8-4
Timing @ 444MHz : 5-5-5-15 3-21-7-3

Sensor
Model : Notebook BAT BAT
Mainboard Specific Support : No

Sensor
Model : Intel Core CPU [P1, C4, T7]
Version : 60.03
Mainboard Specific Support : No

Sensor
Model : Intel HSW IMC
Version : 0.06
Mainboard Specific Support : No

Temperature Sensor(s)
CPU Temperature : 46.00°C

Voltage Sensor(s)
CPU DC Line : 0.676V
Battery DC Line : 12.769V

Capacity Sensor(s)
UPS/Battery Capacity : 46.83Wh

System Bus(es) on Hub 1
Version : 2.30
System Bus 0 : PCI
System Bus 1 : PCIe 3.00 x8 2.5Gbps
System Bus 2 : PCIe 2.00 x1 2.5Gbps
System Bus 3 : PCIe 2.00 x1 2.5Gbps
System Bus 4 : PCIe 2.00 x1 2.5Gbps

LPC Hub Controller 1
Model : Clevo Lynx Point LPC Controller
OEM Device Name : Intel Lynx Point LPC Controller
Revision : A6
ACPI Power Management : Yes, Enabled
Advanced TCO Mode Support : Yes, Disabled
RNG - Random Number Generator : No
High Precision Timer Support : Yes, Enabled
No. Precision Timers : 8
System Timer : 14.32MHz
Delayed Transaction Enabled : Yes

Disk Controller
Model : Clevo Lynx Point 6-Port SATA AHCI Controller
OEM Device Name : Intel Lynx Point 6-Port SATA AHCI Controller
Interface : SATA
Revision : A6
Specification : 1.10
Maximum SATA Mode : G3 / SATA600
Channels : 2
In Use Channels : 1, 50%
Port : G1 / SATA150

Audio Device
Model : Clevo Lynx Point HD Audio Controller
OEM Device Name : Intel Lynx Point HD Audio Controller
Revision : A6
Type : HD (High-Definition) Audio
Version : 1.00
No. In / Out / Bi-Directional Streams : 4 / 4 / 0
No. Serial Data Streams : 1

Audio Codec
Model : VIA 8446
Revision : A1
Version : 1.00
Audio Channels : 6

USB Controller 1
Model : Clevo Lynx Point USB xHCI Host Controller
OEM Device Name : Intel Lynx Point USB xHCI Host Controller
Revision : A6
Version : 3.00
Specification : 1.00
Interface : XHCI
Channels : 19
Companion Controllers : 32
Supported Speed(s) : Full (12Mbps) High (480Mbps) Super (5Gbps)
Addressing Support : 64-bit
Legacy Emulation Enabled : No

USB Controller 2
Model : Clevo Lynx Point USB Enhanced Host Controller #2
OEM Device Name : Intel Lynx Point USB Enhanced Host Controller #2
Revision : A6
Version : 2.00
Specification : 0.20
Interface : EHCI
Channels : 2
Supported Speed(s) : Low (1.5Mbps) Full (12Mbps) High (480Mbps)
Addressing Support : 64-bit
Legacy Emulation Enabled : No

USB Controller 3
Model : Clevo Lynx Point USB Enhanced Host Controller #1
OEM Device Name : Intel Lynx Point USB Enhanced Host Controller #1
Revision : A6
Version : 2.00
Specification : 0.20
Interface : EHCI
Channels : 2
Supported Speed(s) : Low (1.5Mbps) Full (12Mbps) High (480Mbps)
Addressing Support : 64-bit
Legacy Emulation Enabled : No

SMBus/i2c Controller 1
Model : Intel ICH SMBus
Version : 0.05
Specification : 2.00
Advanced TCO Mode Support : Yes, Disabled
Slave Device Enabled : Yes
PEC Support : Yes
Speed : 100kHz

Expansion Slot(s)
J6B2 : PCIe x16 +3.3V Shared PME Full Used

Port Connector(s)
J1A1 - PS2Mouse : Mouse / PS/2
J1A1 - Keyboard : Keyboard / PS/2
J2A1 - TV Out : Mini-Centronics Type-14
J2A2A - COM A : Serial Port 16550A / DB-9 pin male
J2A2B - Video : Video / DB-15 pin female
J3A1 - USB1 : USB / USB
J3A1 - USB2 : USB / USB
J3A1 - USB3 : USB / USB
J5A1 - LAN : Network / RJ-45
J5A1 - USB4 : USB / USB

Performance Enhancing Tips
Warning 2513 : TPM not detected. Some security features are unavailable.
Tip 2 : Double-click tip or press Enter while a tip is selected for more information about the tip.

__________________________________________

Thats the ssd details:
SiSoftware Sandra

SCSI General Properties
Controller : 0
Bus : 4
Target ID : 0
Logical Unit No. : 0

General Capabilities
Model : MZMPC032HBCD-000L1
Revision : CXM13L1Q
Serial Number : BS2R1003********

General Capabilities
Channel : Slave
Type : ATA
Interface : SATA
Removable : Yes
Model : MZMPC032HBCD-000L1
Revision : CXM13L1Q
Serial Number : SBR2013092**********
ATA/ATAPI Version : 8.57
SSD : Yes

Drive Geometry
CHS Geometry : 16383 x 16 x 63
CHS Total Sectors : 16514064
LBA Total Sectors : 62533296
Capacity : 29.82GB

Properties
NCQ - Native Command Queuing : Yes
NQP - NCQ Priority : No
NQS - NCQ Streaming : No
NQM - NCQ Queue Management : No
PEC - Physical Event Counters : Yes
HIPM - Host Initiated Power Management : Yes
DIPM - Device Initiated Power Management : Yes, Enabled
TRIM - Erase Deleted Data Blocks : Yes
DevSlp - Ultra Low Power Device Sleep : No
LBA Support : Yes

Features
S.M.A.R.T Support : Yes, Enabled
Security Support : Yes, Disabled
Power Management Support : Yes, Enabled
ACPI Power Management : No
Power-up in Standby : No
Packet Command Interface : No
Removable Media : No
Look-Ahead Buffer : Yes, Enabled
Write-Back Cache : Yes, Enabled
Host Protect Area : Yes, Enabled
Microcode Update : Yes
Acoustic Management : No
48-bit LBA : Yes
Device Config Overlay : Yes

Transfer Modes Support
I/O Queue Depth : 32
Block Size : 16
Maximum SATA Mode : G3 / SATA600

Transfer Modes Active
Current Block Transfer : 16
Current SATA Mode : G3 / SATA600

Security
Security Support : Yes, Disabled
Security Locking : Yes, Disabled
EHE - Enhanced Erase Support : Yes
IEEE1667/eDrive - Secure Authentication Support : No
TZ - Zero Data after TRIM : No
TD - Deterministic Data after TRIM : No
SED - All User Data Encrypted : No
ZAC - Host Aware Zones Features : No
DZD - Device-managed Zoned Device : No
TCG - Trusted Computing Features : No

S.M.A.R.T Information
Version : 1.01
ATA Commands Support : Yes
ATAPI Commands Support : Yes
S.M.A.R.T Commands Support : Yes

S.M.A.R.T Data
Power-On Time (09) : 99 (0 - 99) [00000A2D]
Power Cycles (0C) : 99 (0 - 99) [00000378]
Program Failures/Unaligned Accesses (AF) : 100 (10 - 100) [00000000]
Re-Allocated Data/Erase Failures (B0) : 100 (10 - 100) [00000000]
Wear Leveling Cycles (B1) : 93 (17 - 93) [000000E4]
Reserved Blocks (B2) : 87 (10 - 87) [00000032]
Used Spare Blocks (B3) : 89 (10 - 89) [00000058]
Available Spare Blocks (B4) : 89 (10 - 89) [000002D8]
Program Failures/Unaligned Accesses (B5) : 100 (10 - 100) [00000000]
Erase Failures (B6) : 100 (10 - 100) [00000000]
Interface Link Changes (B7) : 100 (10 - 100) [00000000]
Bad Block/End2End Errors (B8) : 100 (97 - 100) [00000000]
Uncorrectable Errors (BB) : 100 (0 - 100) [00000000]
TBE : 56 (0 - 31) [0000002C]
ECC Corrected/Program Failures (C3) : 200 (0 - 200) [00000000]
Un-Correctable/Read Sectors (C6) : 100 (0 - 100) [00000000]
CRC Fail/Write Sectors (C7) : 253 (0 - 253) [00000000]
Wear Indicator (E9) : 198 (0 - 198) [00000012]
TEA : 100 (0 - 100) [00000000]
TEB : 99 (0 - 99) [00000041]
TEC : 99 (0 - 99) [0000001F]
TED : 99 (0 - 99) [000000E4]
TEE : 99 (0 - 99) [00000058]

Sensors
Power-On Time : 108 day(s), 13 hour(s)
Health Indicator : 198%
Estimated Life Time
Disk Enclosure Temperature : 44.00°C

Translation Mode Disk Geometry
CHS Geometry : 3892 x 255 x 63
Bytes Per Sector : 512bytes
Capacity : 29.81GB

Cache Information
Read Cache : Yes
Write Cache : Yes
Prefetch Buffer : No

Partitions Information

Logical Drives

Performance Enhancing Tips
Warning 3111 : DevSleep does not appear to be supported. Idle/sleep power could be lower.
Notice 3113 : Disk security Frozen. Security state has been set and locked.
Tip 2 : Double-click tip or press Enter while a tip is selected for more information about the tip.
____________________________________________________________________________

Thats the sata disc where the os is installed:
SiSoftware Sandra

SCSI General Properties
Controller : 0
Bus : 5
Target ID : 0
Logical Unit No. : 0

General Capabilities
Model : ST1000LM014-1EJ164
Manufacturer : Seagate
Height : 2.5"
Revision : SM25
Serial Number : 7W07****

General Capabilities
Channel : Slave
Type : ATA
Interface : SATA
Removable : No
Manufacturer : Seagate Technology
MAC Address : 00:50:00:C5************
Model : ST1000LM014-1EJ164
Revision : SM25
Serial Number : **********
ATA/ATAPI Version : 9.31
Rotational Speed : 5400rpm
Page Size : 4kB

Drive Geometry
CHS Geometry : 16383 x 16 x 63
CHS Total Sectors : 16514064
LBA Total Sectors : 1953525168
No. ECC Bytes : 4bytes
Capacity : 931.51GB

Properties
NCQ - Native Command Queuing : Yes
NQP - NCQ Priority : No
NQS - NCQ Streaming : No
NQM - NCQ Queue Management : No
PEC - Physical Event Counters : Yes
HIPM - Host Initiated Power Management : Yes
DIPM - Device Initiated Power Management : Yes, Enabled
LBA Support : Yes

Features
S.M.A.R.T Support : Yes, Enabled
Security Support : Yes, Disabled
Power Management Support : Yes, Enabled
ACPI Power Management : Yes, Enabled
Power-up in Standby : No
Packet Command Interface : No
Removable Media : No
Look-Ahead Buffer : Yes, Enabled
Write-Back Cache : Yes, Enabled
Host Protect Area : Yes, Enabled
Microcode Update : Yes
Acoustic Management : No
48-bit LBA : Yes
Device Config Overlay : Yes

Transfer Modes Support
I/O Queue Depth : 32
Block Size : 16
Maximum SATA Mode : G3 / SATA600

Transfer Modes Active
Current Block Transfer : 16
Current SATA Mode : G3 / SATA600

Security
Security Support : Yes, Disabled
Security Locking : Yes, Disabled
EHE - Enhanced Erase Support : Yes
TCG - Trusted Computing Features : No

S.M.A.R.T Information
Version : 1.01
ATA Commands Support : Yes
ATAPI Commands Support : Yes
S.M.A.R.T Commands Support : Yes

S.M.A.R.T Data
Raw Read Error Rate (01) : 118 (6 - 99) [0A8A4158]
Spin-up Time (03) : 98 (0 - 98) [00000000]
Start/Stop Cycles (04) : 68 (20 - 68) [000081E8]
Re-Allocated/Retired Sectors (05) : 100 (10 - 100) [00000000]
Seek Error Rate (07) : 74 (30 - 60) [1077FA32]
Power-On Time (09) : 91 (0 - 91) [00002088]
Spin Retries (0A) : 100 (97 - 100) [00000000]
Power Cycles (0C) : 98 (20 - 98) [00000ADC]
Bad Block/End2End Errors (B8) : 100 (99 - 100) [00000000]
Uncorrectable Errors (BB) : 83 (0 - 83) [00000011]
Command Timeouts (BC) : 100 (0 - 99) [00030004]
Factory Bad Blocks (BD) : 100 (0 - 100) [00000000]
TBE : 60 (45 - 47) [2C240028]
Mechanical Shocks (BF) : 100 (0 - 100) [00000000]
Unsafe Shutdowns (C0) : 100 (0 - 100) [00000077]
Load/Unload Cycles (C1) : 82 (0 - 82) [00008F21]
Drive Temperature (C2) : 40 (0 - 53) [00000028]
Pending Sector/Read Failures (C5) : 100 (0 - 100) [00000000]
Un-Correctable/Read Sectors (C6) : 100 (0 - 100) [00000000]
CRC Fail/Write Sectors (C7) : 200 (0 - 200) [00000000]
TFE : 100 (0 - 100) [00000000]

Sensors
Power-On Time : 347 day(s)
Start/Stop Cycles : 33256
Disk Enclosure Temperature : 40.00°C

Translation Mode Disk Geometry
CHS Geometry : 121601 x 255 x 63
Bytes Per Sector : 512bytes
Capacity : 931.51GB
Page Size : 4kB

Cache Information
Read Cache : Yes
Write Cache : Yes
Prefetch Buffer : No

Partitions Information
Partition 1 : MBR Boot IFS-NTFS 500MB (1MB-501MB)
Partition 2 : MBR IFS-NTFS 931GB (501MB-931.51GB)

Logical Drives
Logical Drive : C:

Performance Enhancing Tips
Notice 3109 : Advanced Format (AF) disk; ensure partitions and transfers are page size aligned.
Notice 3113 : Disk security Frozen. Security state has been set and locked.
Tip 2 : Double-click tip or press Enter while a tip is selected for more information about the tip.



And here the pics you asked for!

Any nice tips to solve my problem?



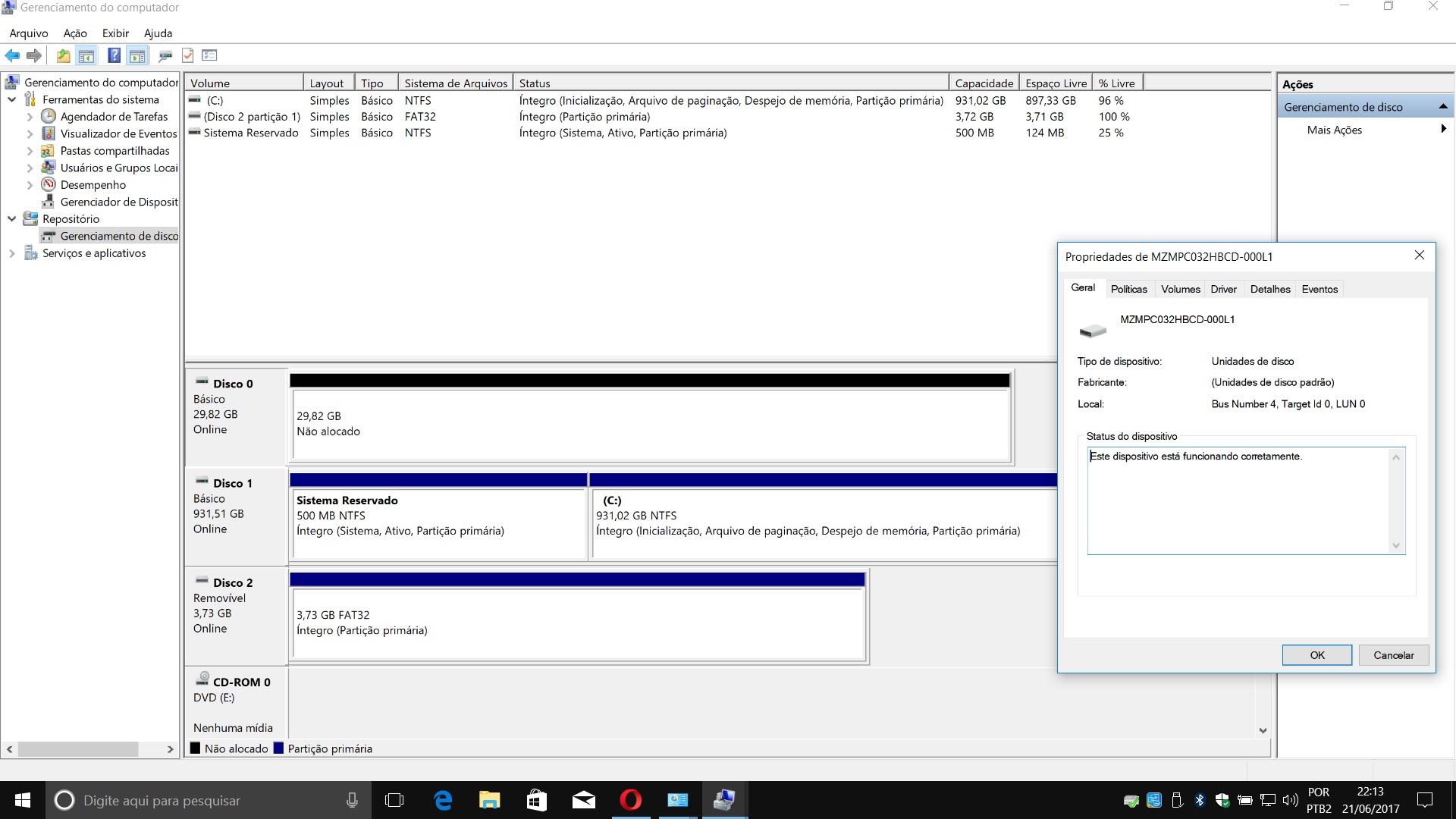

And finally here my bios screenshots!

What do you think? View attachment 146724



It seems the SSD there is for Intel Rapid Start technology which is so the computer can start faster and I would guess is effective in Windows 8 and newer. There is a separate driver for that on the Intel website somewhere.

So, you can try install a driver for that if you would like or if you are still all for the SSD caching then you will have to stick with a third party application.

I have checked again and the HM86 simply does not support RAID nor Intel Smart Response: https://www.intel.com/content/www/us/en/chipsets/8-series-chipset-pch-datasheet.html



Humm okey so Thats why express cash and intel smart response dont work!

So my only option is primocache? is there any other software capable of doing this?



You could possibly try disable the page file if you have enough RAM, or partition the SSD and install some programs that take a long time to load there and maaaybe put the page file on the SSD only so the HDD doesn't have to deal with that.

Primocache seems to have a good enough reputation though. Have you tried the trial?



Yeah! primocache works fine!! im just wondering if i could find any free solutions...

By the way i have also read somewhere that i can install stablebit drivepool and use ssd as cache but i could not find anything about the real process to do it!

I think an drivepool may do the trick! have u ever tried it? or do you kn ow something about it? =DD



Sorry, I have not tried it. My laptop has an SSD boot drive. I'd highly recommend one if you can get something at least 250GB or larger at a good price. Or at least something that you think has enough space for you to work comfortably. You can keep the 1TB spinner as extra storage.



Thats sad! i cant buy SSD, i do live in brazil and this place is a hell.

Anyways ill try to research a little more for a workaround, intel smartresponse was an must have feature for me and i didnt knew that this mobo didnt supported it hehehe......Primocache will be the way to go by now, thank you.



Also be a little careful that those caching drives did have a tendency to fail as they were not hugely durable. They did vary a lot in quality.



Allright! thank you so much !
