    Bad Samsung 960 EVO perofrmance!?

    Discussion in 'Sager and Clevo' started by stefan063, Apr 23, 2017.

  1. stefan063

    stefan063 Notebook Consultant

    Reputations:
    0
    Messages:
    243
    Likes Received:
    11
    Trophy Points:
    31

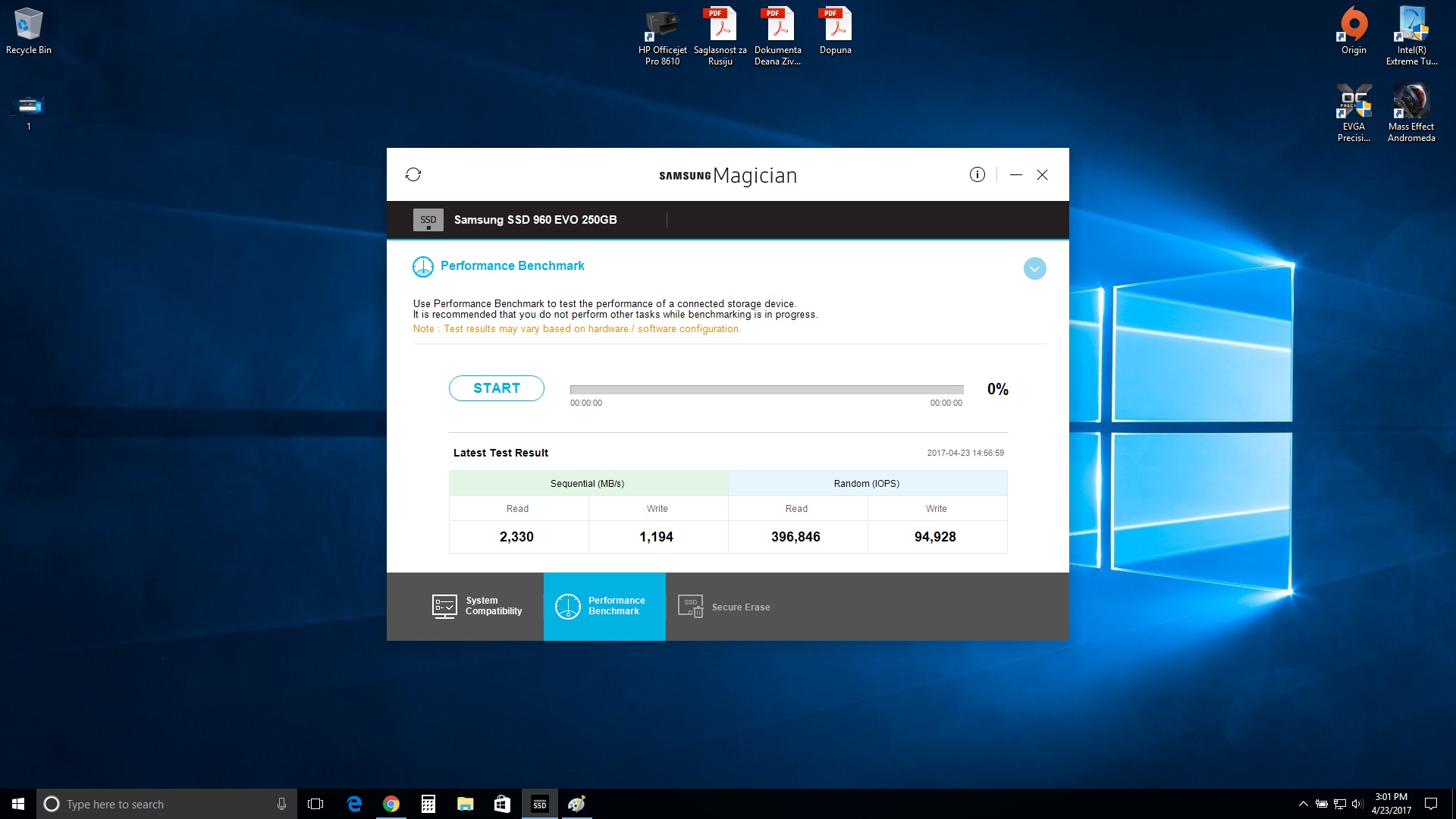

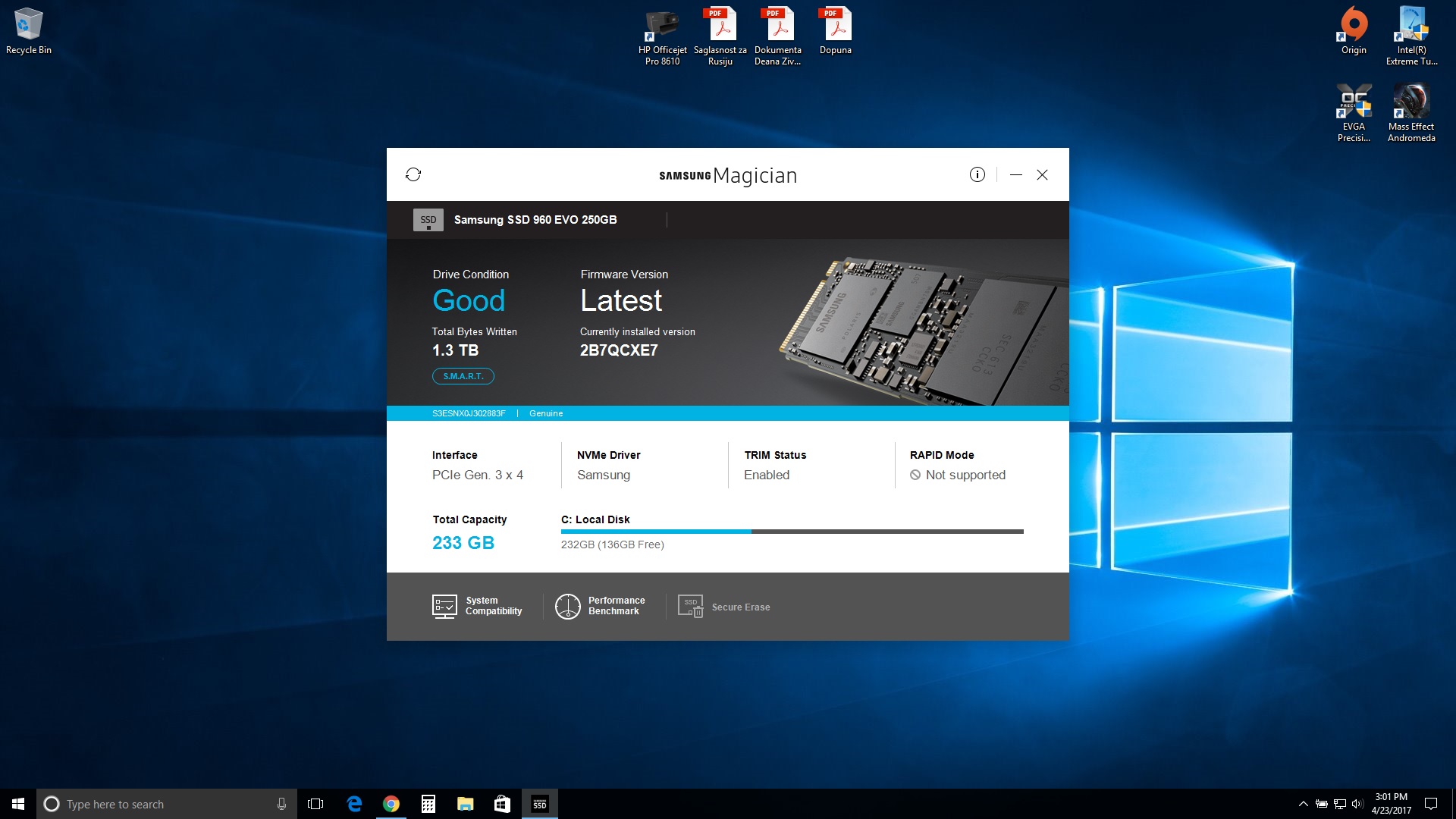

    I have noticed slow down in Samsung Magician speed benchmark today. I run test when I installed fresh new Windows 10 Creator update few weeks ago and it was 99% factory speeds. But after a certain period of time (today) I have run again test and now it is a lot slower.

    What I am missing here? No essential chipset/ime drivers updated. Same setting from day 1....

    ???


    Attached Files:

    • 1.jpg
      File size:
      246.1 KB
      Views:
      254
    • 2.jpg
      File size:
      234.9 KB
      Views:
      251
    stefan063, Apr 23, 2017
    #1
  2. don_svetlio

    don_svetlio In the Pipe, Five by Five.

    Reputations:
    351
    Messages:
    3,616
    Likes Received:
    1,825
    Trophy Points:
    231
    Check temps. Depending on the laptop. the SSD may be overheating

    don_svetlio, Apr 23, 2017
    #2
  3. Thousandmagister

    Thousandmagister Notebook Consultant

    Reputations:
    10
    Messages:
    102
    Likes Received:
    65
    Trophy Points:
    41
    M.2 SSDs run hot (75~90 degree Celsius at full load) and these drives will throttle if you don't add some copper heatsinks & thermal pad on it .
    960 EVO has been tested on desktop , it can reach 76C
    http://www.guru3d.com/articles-pages/samsung-960-evo-m-2-1tb-nvme-ssd-review,7.html
    Laptop doesn't have many fans like desktop... So I don't think it will run better on a laptop
    Thermal limit of a SSD is 70C .
    Normal size SSD should run much cooler than M.2 SSD

    Thousandmagister, Apr 23, 2017
    #3
  4. stefan063

    stefan063 Notebook Consultant

    Reputations:
    0
    Messages:
    243
    Likes Received:
    11
    Trophy Points:
    31
    Temp is low at idle and at load never pass 60 degree Celsius. I have EUROCOM X6W and 960 EVO is behind GPU cooler. I found that place much better then in HDD compartment bay. 10 degrees difference. I don't have any heat-sink nor thermal pad on it. But how after installing fresh copy of Windows and running tests 960 EVO was running at 99% of Samsung speed claims?! I also have Cooler Master Notepal XL.


    Attached Files:

    stefan063, Apr 23, 2017
    #4
  5. stefan063

    stefan063 Notebook Consultant

    Reputations:
    0
    Messages:
    243
    Likes Received:
    11
    Trophy Points:
    31

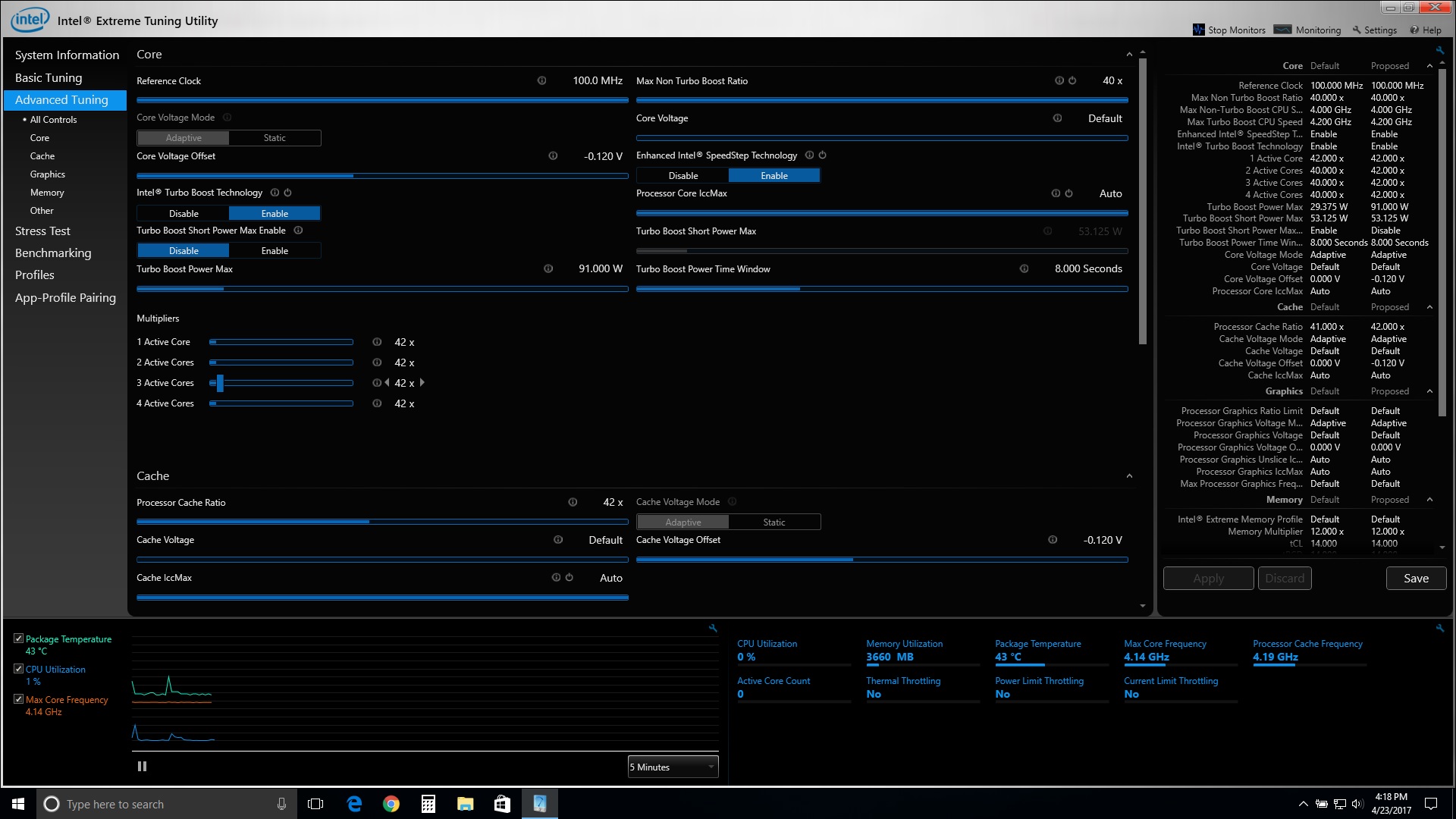

    My system is overall very colder than average. I under-voltage CPU also -0.120V.


    Attached Files:

    stefan063, Apr 23, 2017
    #5
  6. Caas

    Caas Notebook Guru

    Reputations:
    34
    Messages:
    50
    Likes Received:
    31
    Trophy Points:
    26
    I opened Samsung magician to check my ssd performance after seeing your post, and it is listing all my drives as not supported. This is weird...It was working fine when I just got my laptop.

    Caas, Apr 23, 2017
    #6
  7. stefan063

    stefan063 Notebook Consultant

    Reputations:
    0
    Messages:
    243
    Likes Received:
    11
    Trophy Points:
    31
    Hahaha... Weird hey :) I think we are haveing some kind of firmware issue, depending on system configuration and use... Everything was fine when you checked 1st time?

    stefan063, Apr 23, 2017
    #7
  8. Caas

    Caas Notebook Guru

    Reputations:
    34
    Messages:
    50
    Likes Received:
    31
    Trophy Points:
    26
    Yes, it was working fine the first few times I checked. Even now, performance benchmarks are up to par, just that all the drives are listed as not supported.

    Caas, Apr 23, 2017
    #8
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    The drive is unlikely to ever run at full load so should never throttle under a single quick benchmark run.

    What do other programs show?

    Meaker@Sager, Apr 23, 2017
    #9
  10. Stooj

    Stooj Notebook Deity

    Reputations:
    187
    Messages:
    841
    Likes Received:
    664
    Trophy Points:
    106
    Have you installed the Creator Update recently? It might interfere and/or replace the NVME drivers with the stock MS ones again. I found it replaced some drivers on my GPD when I updated it.

    Stooj, Apr 23, 2017
    #10
  11. stefan063

    stefan063 Notebook Consultant

    Reputations:
    0
    Messages:
    243
    Likes Received:
    11
    Trophy Points:
    31

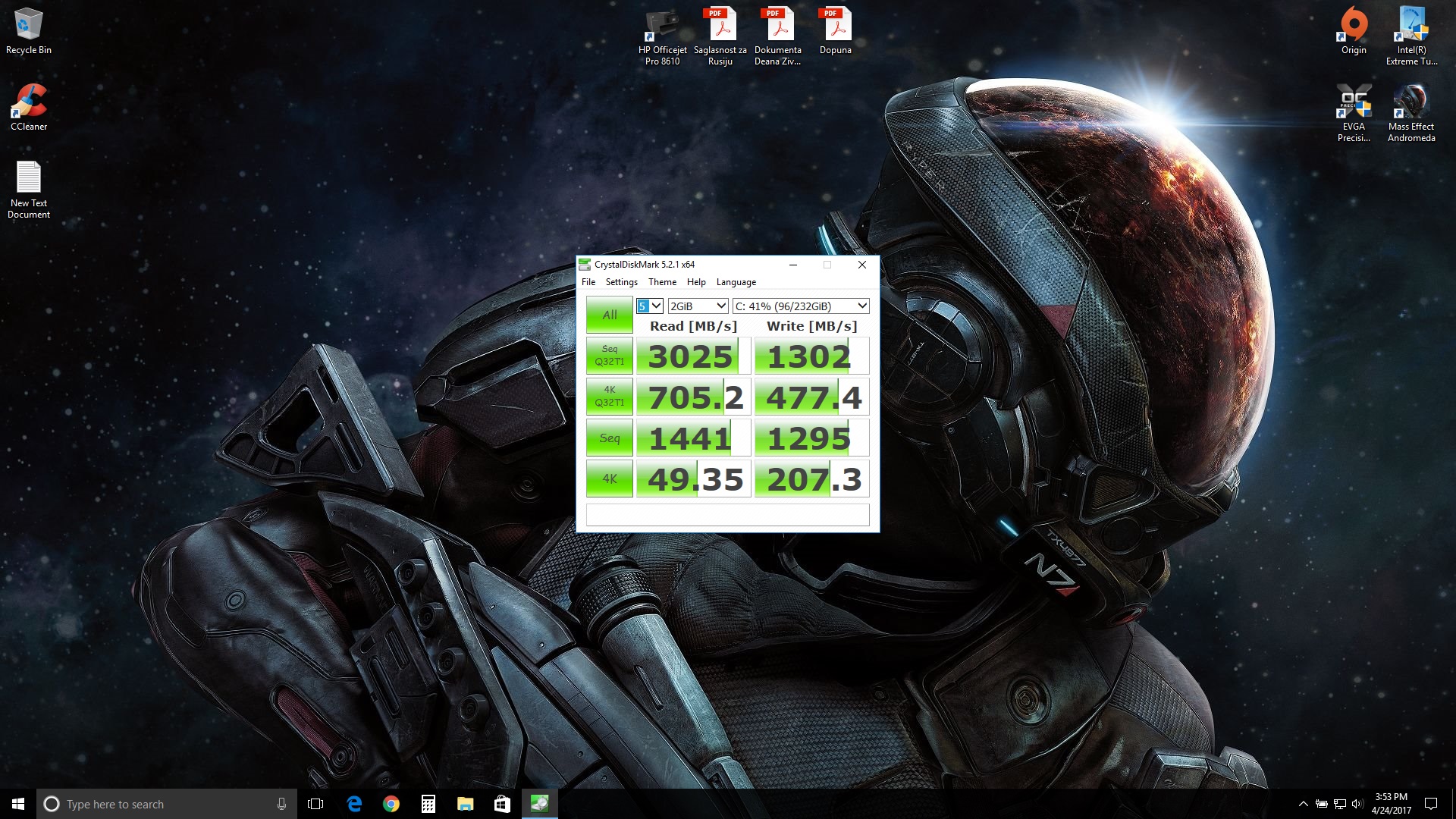

    Well,other programs show pretty much how it should be... Check picture. Don't know how Samsung Magician sees other way...?!


    Attached Files:

    stefan063, Apr 24, 2017
    #11
  12. stefan063

    stefan063 Notebook Consultant

    Reputations:
    0
    Messages:
    243
    Likes Received:
    11
    Trophy Points:
    31
    No. I installed fresh Creator version. Didn't updated. NVMe drivers are Samsung....

    stefan063, Apr 24, 2017
    #12
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I would discard the outlier, is it performing slower than it should day to day?

    Meaker@Sager, Apr 24, 2017
    #13
  14. stefan063

    stefan063 Notebook Consultant

    Reputations:
    0
    Messages:
    243
    Likes Received:
    11
    Trophy Points:
    31
    What is outlier? Well, it is performing slower than when installed fresh Windows. As you can see I haven't got much on SSD. System was booting in arround 10sec fresh (Fast startup disabled). Now 15-20sec. Nearly double as from fresh install.

    stefan063, Apr 24, 2017
    #14
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    What other startup programs are running? Have you tried disabling a few?

    Meaker@Sager, Apr 24, 2017
    #15
  16. Caas

    Caas Notebook Guru

    Reputations:
    34
    Messages:
    50
    Likes Received:
    31
    Trophy Points:
    26
    Nope. Nothing changed. I think it might be caused by some tweaks I did to the OS though. Not sure.

    Caas, Apr 25, 2017
    #16
