    Clevo M570RU Uknow Device

    Discussion in 'Sager and Clevo' started by Mesies, Oct 9, 2007.

  1. Mesies

    Mesies Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello there guys and ladies too. Please do forgive me about my English, it is not my native language.
    I have read some posts about the unknown device that appears in Clevo branded notebooks and i did not manage to find a solution. I still have that unknown device no matter what. I have download for both XP and Vista OS the drivers from Clevo site and did a fresh install for both XP and Vista but in both OS i still get the same unknown device and i have everything working.
    The unknow device is:
    Intel(R) ICH8M LPC Interface Controller - 2815
    ACPI\ITE8709\4&2FFE84EA&0

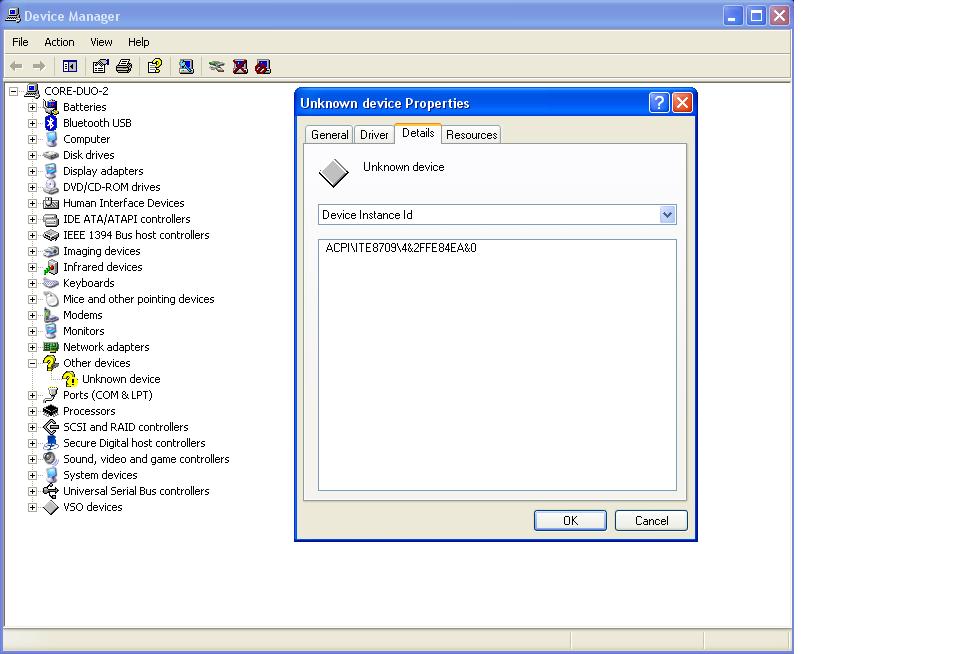

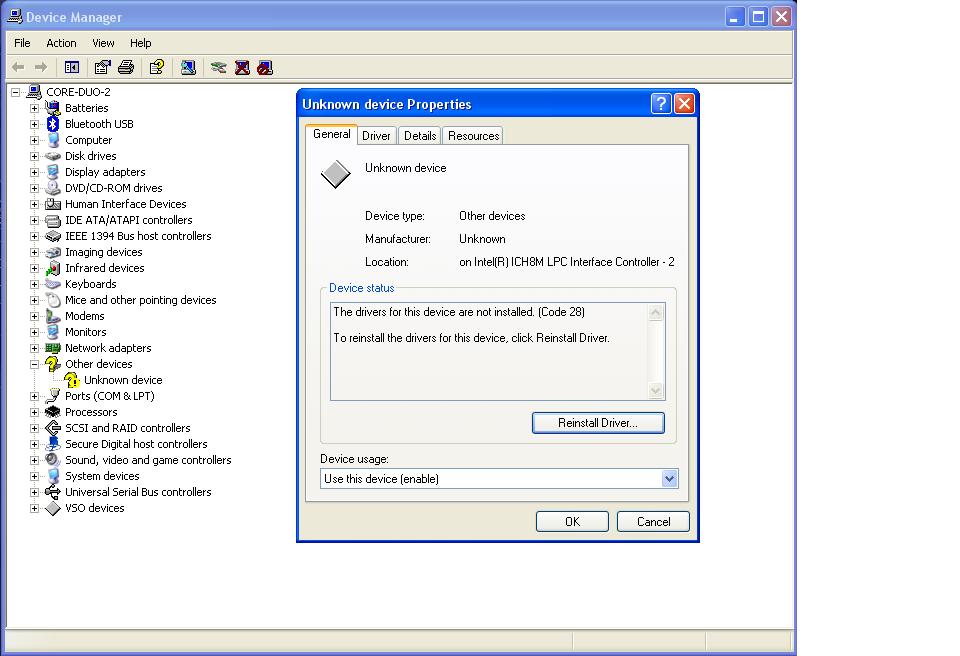

    I have attached also 2 images that you can see these all i have written here.
    Thank you in advance for your help :)


    Attached Files:

    Mesies, Oct 9, 2007
    #1
  2. Kwakkel

    Kwakkel Weirdo

    Reputations:
    222
    Messages:
    791
    Likes Received:
    0
    Trophy Points:
    30
    looks like it's the SATA controller
    maybe you can let Windows find the driver for you?
    or try downloading and installing the drivers again :)

    Kwakkel, Oct 9, 2007
    #2
  3. Mesies

    Mesies Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello there Kwakkel,
    Thank you for your reply i did tried to to let windows find the drivers for me but it didn't work. i Did again driver instalation but that didn't worked also. The second instalation was from the cd drivers. I did that both in Vista and Xp. I tried uninstallign the device and again installing it but nothing happend the problem still insists.

    Mesies, Oct 9, 2007
    #3
  4. sbussinger

    sbussinger Notebook Guru

    Reputations:
    43
    Messages:
    57
    Likes Received:
    0
    Trophy Points:
    15
    I'm pretty sure that device is the the consumer infrared receiver (CIR). If you install the drivers for the CIR device from either the supplied drivers disk from from the Clevo website, that unknown device will go away and several "real" devices will take it's place.

    After I'd loaded the driver, I took the remote control and wireless keyboard from my Windows XP Media Center PC, pointed them at the front of the laptop and they worked fine. Kind of spooky in a way :)

    sbussinger, Oct 9, 2007
    #4
  5. zfactor

    zfactor Mastershake

    Reputations:
    2,894
    Messages:
    11,134
    Likes Received:
    3
    Trophy Points:
    455
    good info there...

    zfactor, Oct 9, 2007
    #5
  6. Kwakkel

    Kwakkel Weirdo

    Reputations:
    222
    Messages:
    791
    Likes Received:
    0
    Trophy Points:
    30
    Kwakkel, Oct 10, 2007
    #6
  7. sbussinger

    sbussinger Notebook Guru

    Reputations:
    43
    Messages:
    57
    Likes Received:
    0
    Trophy Points:
    15
    We'll see when he tries it, but on my M570RU that was the driver that made the difference. Note that the ICH8M information in the message is referring to the interface the unknown device is connected to, and not the unknown device itself.

    As I recall when I ran into this myself, the ITE8709 part of the message is the manufacturer and part number of an IR interface chip.

    sbussinger, Oct 10, 2007
    #7
  8. Mesies

    Mesies Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello there guys!
    Thank you all for your help. It was the CIR device, But the problem is that installing it using the Clevo drivers from their website did not solve the problem. You had to go to the installed directory in program files and run the DPInst file to install the driver correctly so the system can recognize the unknown device.
    Hope that info will also help other people trying to manage that minor issue :)
    Thank you again all for your kind help!

    Mesies, Oct 12, 2007
    #8
  9. coolboy

    coolboy Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hi!

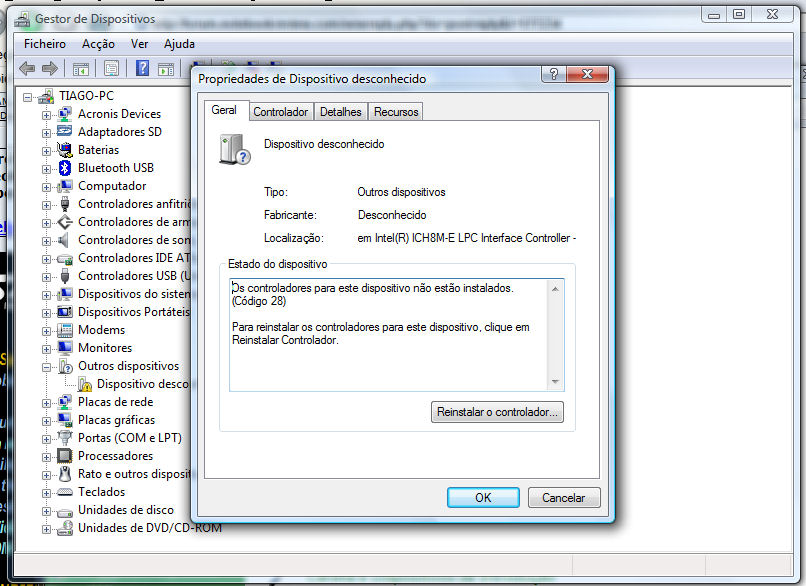

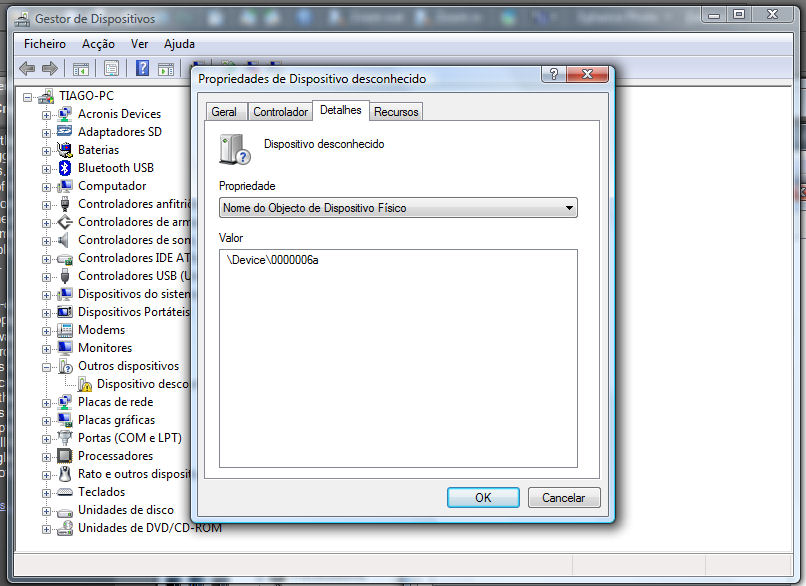

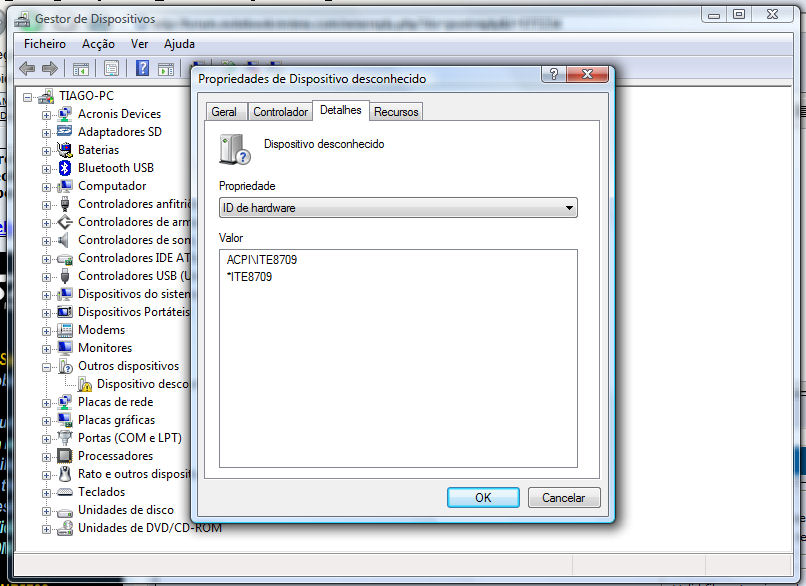

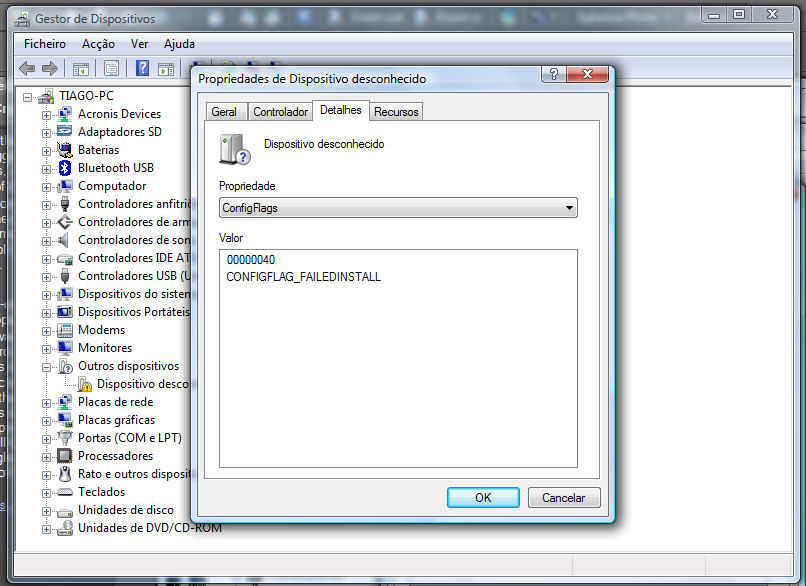

    I have an unknown device on windows vista 64bits. I've reinstalled the drivers and no luck. I've generated an everest report (.zip file attached - please download) and took 4 screenshots of the windows displayed info.


    Every info is wellcome


    Happy New Year ;)
    coolboy


    Attached Files:

    coolboy, Jan 2, 2008
    #9
  10. zfactor

    zfactor Mastershake

    Reputations:
    2,894
    Messages:
    11,134
    Likes Received:
    3
    Trophy Points:
    455
    you need to get them from sagers web site

    zfactor, Jan 3, 2008
    #10
  11. zfactor

    zfactor Mastershake

    Reputations:
    2,894
    Messages:
    11,134
    Likes Received:
    3
    Trophy Points:
    455
    zfactor, Jan 3, 2008
    #11
  12. coolboy

    coolboy Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Thanks a lot guys - it´s working

    coolboy, Jan 3, 2008
