    Clevo P370em ES with 7970m CF - High Temperatures !

    Discussion in 'Sager and Clevo' started by Bytales, Oct 20, 2012.

  1. VSSS

    VSSS Notebook Consultant

    Reputations:
    133
    Messages:
    245
    Likes Received:
    17
    Trophy Points:
    31

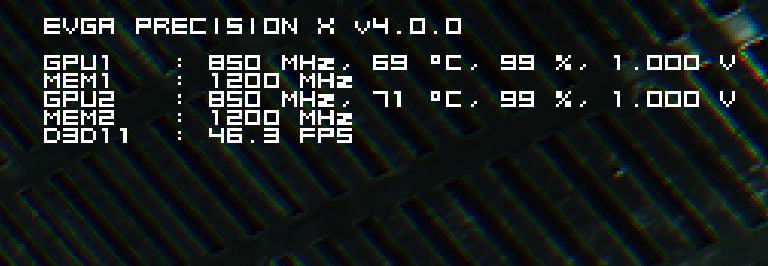

    GPU1 and GPU2 OEM 3D Voltage Max 1.000V
    Screen On Crysis 3
    [​IMG]

    VSSS, Mar 10, 2013
    #51
  2. b0b1man

    b0b1man Notebook Deity

    Reputations:
    597
    Messages:
    1,092
    Likes Received:
    29
    Trophy Points:
    66
    Guys, why are you digging up old threads like this one?
    The issue is solved (as far as I know)?

    b0b1man, Mar 10, 2013
    #52
  3. kopap

    kopap Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Do you know how i can change the voltage down to 1.000v?

    kopap, Mar 10, 2013
    #53
  4. VSSS

    VSSS Notebook Consultant

    Reputations:
    133
    Messages:
    245
    Likes Received:
    17
    Trophy Points:
    31

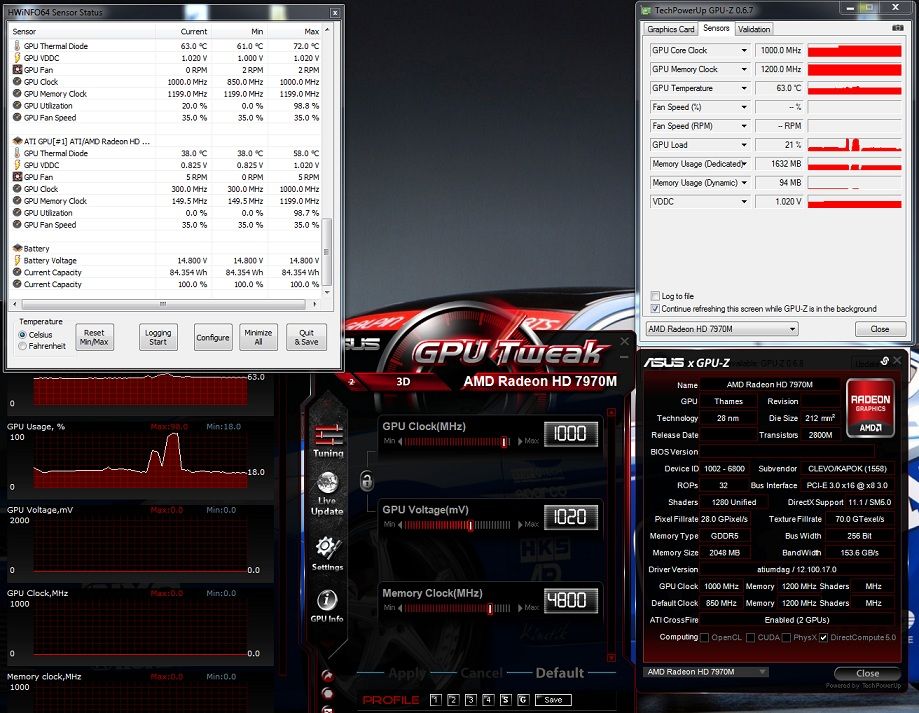

    I think it is not possible that two different graphics cards were to Vcore,
    possible that the program reads wrong voltage, please check the voltage via GPUz or EVGA Precizion.
    if it is unlocked VBIOS voltage can be changed via the ASUS GPU Tool.
    [​IMG]

    VSSS, Mar 10, 2013
    #54
  5. kopap

    kopap Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Thanks VSSS. I start a game and left HWinfo64 running in the back GPU[#0] VDDC 1.050v GPU[#1] 1.000v strange VBIOS is locked. i check vbios with atifllash

    Adapter 0 (BN=01, DN=00, PCIID=68001002, SSID=03711558)
    Asic Family : Pitcairn
    Flash Type : M25P10/c (128 KB)
    Product Name : Clevo P370EM Wimbledon XT A1 MXM GDDR5 300e/150m 0.9V OPM
    Bios Config File : BR42768.008
    Bios P/N : P/N Not Available
    Bios Version : 015.021.000.002.042768
    Bios Date : 06/05/12 22:36

    Adapter 1 (BN=02, DN=00, PCIID=68001002, SSID=03711558)
    Asic Family : Pitcairn
    Flash Type : M25P10/c (128 KB)
    Product Name : Clevo P370EM Wimbledon XT A1 MXM GDDR5 300e/150m 0.9V OPM
    Bios Config File : BR42768.008
    Bios P/N : P/N Not Available
    Bios Version : 015.021.000.002.042768
    Bios Date : 06/05/12 22:36

    kopap, Mar 10, 2013
    #55
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,907
    Trophy Points:
    931
    I think it is just a reporting issue, but what error do you get that makes you think they are locked?

    Meaker@Sager, Mar 11, 2013
    #56
  7. kopap

    kopap Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Well there is no option in any program(asus msi) to lower the volt or do any overclocking so i guess the vbios is locked.. i thought that maybe the heat is coming from the higher voltage as the 2 cads have a 14-18C in difference

    kopap, Mar 11, 2013
    #57
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,907
    Trophy Points:
    931
    Voltages have to be adjusted by coding it into a bios and flashing it, there is no software control.

    Meaker@Sager, Mar 11, 2013
    #58
  9. kopap

    kopap Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    Thanks Meaker. Just have to find why there is a huge difference on temperatures between the cards

    kopap, Mar 11, 2013
    #59
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,907
    Trophy Points:
    931
    It's due to the heatsink design, the primary has it's own heatsink while the secondary shares its heatsink with the CPU.

    Meaker@Sager, Mar 11, 2013
    #60
  11. kopap

    kopap Notebook Enthusiast

    Reputations:
    0
    Messages:
    33
    Likes Received:
    0
    Trophy Points:
    15
    You are right. just if i could take it another 5c down will be ideal. No need to oc it i play with no problems very good frames.

    kopap, Mar 11, 2013
    #61
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,907
    Trophy Points:
    931
    You could look into undervolting it a bit or trying your own repaste.

    Meaker@Sager, Mar 11, 2013
    #62
  13. Vlastimil91

    Vlastimil91 Notebook Enthusiast

    Reputations:
    5
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Do you have a tip to reduce noise?
    How do I make insulation at strategic points?
    +25% Air flow is it possible?
    EXTRAS
    Thank you :)

    Vlastimil91, May 4, 2013
    #63
  14. VSSS

    VSSS Notebook Consultant

    Reputations:
    133
    Messages:
    245
    Likes Received:
    17
    Trophy Points:
    31
    the tests are written only if someone has checked checked?
    example

    Last edited by a moderator: May 12, 2015
    VSSS, May 5, 2013
    #64
  15. Vlastimil91

    Vlastimil91 Notebook Enthusiast

    Reputations:
    5
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    What 85C for GPU2? This is not possible. And on the 1000/1200MHz. WOW :)
    How do I do that? I want it too.
    THX

    Vlastimil91, May 5, 2013
    #65
  16. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,907
    Trophy Points:
    931
    Custom design and build your own cooler by the looks of things.... :p

    Meaker@Sager, May 5, 2013
    #66
  17. Vlastimil91

    Vlastimil91 Notebook Enthusiast

    Reputations:
    5
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    Well I would like to see a picture :)

    Vlastimil91, May 5, 2013
    #67
  18. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,907
    Trophy Points:
    931
    He has a thread on the project.

    Meaker@Sager, May 5, 2013
    #68
  19. Vlastimil91

    Vlastimil91 Notebook Enthusiast

    Reputations:
    5
    Messages:
    40
    Likes Received:
    2
    Trophy Points:
    16
    On what project?

    Vlastimil91, May 5, 2013
    #69
  20. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,907
    Trophy Points:
    931
    Look at his 5th last post ;)

    Meaker@Sager, May 5, 2013
