    Clevo P775TM1 - upgrading to RTX 3080

    Discussion in 'Sager and Clevo' started by TehGM, Mar 17, 2021.

  1. TehGM

    TehGM Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    So, my reseller should have MXM RTX 3080 on hand soon. I want to buy one for my Clevo P775TM1.

    I currently have GTX 1080 150W+, and I know that RTX 2080 also works with this Clevo, so technically RTX 3080 should be compatible as well.

    But I wanted to ask here to be sure - I heard some people having to use custom BIOS and Heatsink with some other Clevo laptop. Does anyone know how that'd look with Clevo P775TM1? Last thing I want to do is spend money on GPU that I'll have trouble getting to work.

    Last edited: Mar 17, 2021
    TehGM, Mar 17, 2021
    #1
  2. thewizzard1

    thewizzard1 Notebook Consultant

    Reputations:
    49
    Messages:
    122
    Likes Received:
    82
    Trophy Points:
    41
    From what I saw, the 30xx cards will need a different heatsink - The X-spreader is significantly larger, and won't fit the 10xx/20xx heatsinks.

    But I'm sure AliExpress will have aftermarket heatsinks soon enough.

    thewizzard1, Mar 17, 2021
    #2
    Papusan and jc_denton like this.
  3. TehGM

    TehGM Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    Interesting. I might also ask my reseller whether they can also send me the heatsink if it's different - they should have it, and maybe selling one won't be a big deal for them (since they sell GPU anyway).
    As long as the heatsink fits P775TM1, it shouldn't be an issue, I think. But definitely worth knowing that either way.

    Last edited: Mar 17, 2021
    TehGM, Mar 17, 2021
    #3
  4. BrightSmith

    BrightSmith Notebook Evangelist

    Reputations:
    143
    Messages:
    640
    Likes Received:
    383
    Trophy Points:
    76
    If/when there'll be un/official BIOS support.

    BrightSmith, Mar 17, 2021
    #4
  5. 1610ftw

    1610ftw Notebook Evangelist

    Reputations:
    266
    Messages:
    462
    Likes Received:
    517
    Trophy Points:
    106
    It is almost certain that there will be no heatsink from Clevo that fits, it will have to be some kind of modification to the existing heatsink or an aftermarket solution.

    And please let us know the price that your reseller asks for the 3070 and the 3080 if that's possible.

    1610ftw, Mar 17, 2021
    #5
    Papusan, jc_denton and BrightSmith like this.
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    The only chance would be if someone made an adaptor system.

    Meaker@Sager, Mar 17, 2021
    #6
    Papusan and thewizzard1 like this.
  7. thewizzard1

    thewizzard1 Notebook Consultant

    Reputations:
    49
    Messages:
    122
    Likes Received:
    82
    Trophy Points:
    41
    @Meaker@Sager A universal MXM-capable heatsink would only exist in my dreams, and nothing for the laptop space, but for true desktop replacement.

    thewizzard1, Mar 18, 2021
    #7
    luisxd and Papusan like this.
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    More for this specific case, laptops really don't universal heatsinks, not without them all being limited in some way.

    Meaker@Sager, Mar 18, 2021
    #8
  9. Xguarded

    Xguarded Notebook Guru

    Reputations:
    1
    Messages:
    53
    Likes Received:
    5
    Trophy Points:
    16
    any news for the 30*0 rtx series being out for sale ? im looking to upgrade my clevo p775tm1-g aswell. either a 2080(s) or a 30 series

    Xguarded, Apr 26, 2021
    #9
  10. TehGM

    TehGM Notebook Enthusiast

    Reputations:
    0
    Messages:
    16
    Likes Received:
    0
    Trophy Points:
    5
    My reseller said 30xx series won't be officially available for this Clevo, which is actually no surprise now.
    What is a surprise is the price they offered me for upgrade to RTX 2080 instead. It's over 1k GBP. With that price in mind, it is better to just get a new Clevo that supports RTX 3080 natively (and better CPU and displays while at it, too). And this is what I'm considering doing soon-ish.

    TehGM, Apr 26, 2021
    #10
  11. BrightSmith

    BrightSmith Notebook Evangelist

    Reputations:
    143
    Messages:
    640
    Likes Received:
    383
    Trophy Points:
    76
    Yes, this has been the issue with mxm upgradeability: very good in theory, too costly in practice.

    BrightSmith, Apr 26, 2021
    #11
  12. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Yeah the 2xxx series was always expensive even for MXM.

    Meaker@Sager, Apr 26, 2021
    #12
  13. Brown bear

    Brown bear Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    6
    Trophy Points:
    16
    rtx 3080 is on sale in russia, only the price is $ 1930. Under the order RTX3080 16gb video card for Clevo laptops, the quantity is limited. Works in p775DM2-3 \ TM and p870DM \ KM \ TM laptops with a radiator modification and a modified driver.

    Brown bear, May 5, 2021
    #13
    Papusan and Clamibot like this.
  14. Brown bear

    Brown bear Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    6
    Trophy Points:
    16

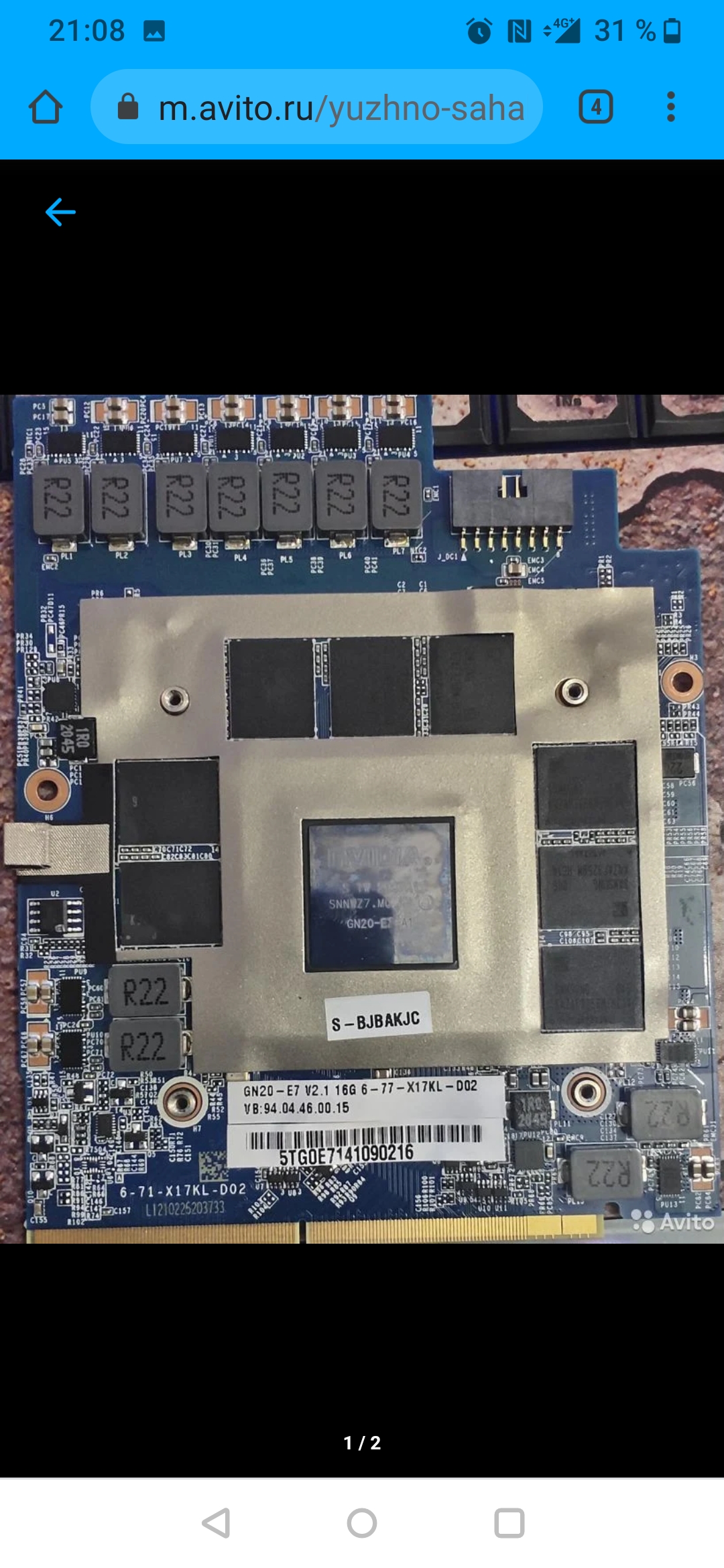

    as far as I can see, the location of the bracket has changed, the attachment to the chassis remains the same.


    Attached Files:

    Brown bear, May 5, 2021
    #14
    Papusan and Clamibot like this.
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    That's the big issue, changing the heatsink mount location.

    Meaker@Sager, May 5, 2021
    #15
    Papusan likes this.
  16. ole!!!

    ole!!! Notebook Prophet

    Reputations:
    2,879
    Messages:
    5,952
    Likes Received:
    3,983
    Trophy Points:
    431
    wow damn, $1930 is the price on sale? I remember with m18x days dual AMD graphics in xfire are $600 from dell and its actually of the better pricing even compare to 3rd party/ebay. then dual nvidia cards are around $1200-$1300 from Dell.

    now we have only price gauge.

    ole!!!, Jun 2, 2021
    #16
    jc_denton likes this.
  17. Brown bear

    Brown bear Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    6
    Trophy Points:
    16
    I didn’t ask for a discount, this is not a store. I wanted to update several of my laptops, I’ll wait for the price drop.

    Brown bear, Jun 2, 2021
    #17
  18. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Then you have the desktop 3080ti reaching over £3000 in the UK at retailers lol.

    Meaker@Sager, Jun 3, 2021
    #18
  19. Zex4

    Zex4 Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    1
    Trophy Points:
    6
    Any updates because of this cards guys ?
    Also wanted to upgrade my tm with 1070 after getting minimal artefacts...

    Gesendet von meinem SM-G955F mit Tapatalk

    Zex4, Oct 24, 2021
    #19
  20. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Well my p870 heatsink is on the way. Bit you'll need a heatsink to go to 30xx series.

    Meaker@Sager, Oct 26, 2021
    #20
  21. Brown bear

    Brown bear Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    6
    Trophy Points:
    16
    this seller has video cards rtx 20xx-30xx and radiators for them - ViktorV

    Brown bear, Oct 27, 2021
    #21
  22. Brown bear

    Brown bear Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    6
    Trophy Points:
    16
    Brown bear, Oct 27, 2021
    #22
  23. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I'll be able to review mine once I get it.

    Meaker@Sager, Oct 27, 2021
    #23
  24. Zex4

    Zex4 Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    1
    Trophy Points:
    6
    Good luck let's see how it goes buddy hope that i can buy somewhere in future...

    Gesendet von meinem SM-G955F mit Tapatalk

    Zex4, Oct 29, 2021
    #24
  25. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It can be hard to get custom parts like this later on.

    Meaker@Sager, Oct 29, 2021
    #25
  26. G.O.D.

    G.O.D. Notebook Enthusiast

    Reputations:
    0
    Messages:
    14
    Likes Received:
    3
    Trophy Points:
    6
    Does anyone have proof that the RTX 30 will run on this laptop?

    G.O.D., Dec 29, 2021
    #26
  27. Brown bear

    Brown bear Notebook Enthusiast

    Reputations:
    0
    Messages:
    34
    Likes Received:
    6
    Trophy Points:
    16
    if you want to buy 775tm1 with rtx3080 video card, you can contact the seller I indicated above !!!

    Brown bear, Dec 29, 2021
    #27
  28. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It does in the p870 series with the right bios for sure.

    Meaker@Sager, Dec 29, 2021
    #28
