    Clevo P870DM easy bios access mod

    Discussion in 'Sager and Clevo' started by runix18, Oct 2, 2021.

  1. runix18

    runix18 Notebook Consultant

    Reputations:
    42
    Messages:
    279
    Likes Received:
    117
    Trophy Points:
    56
    Hi guys,
    Do you know how frustrating it is that every time you want to try a new bios or rewrite a corupted one you need to disassemble all laptop to access the bios chip? I figured out a method to circumvent that.
    So lets begin:
    1. Disassemble laptop.
    You have plenty tutorials posted here about that so I will not cover that again.

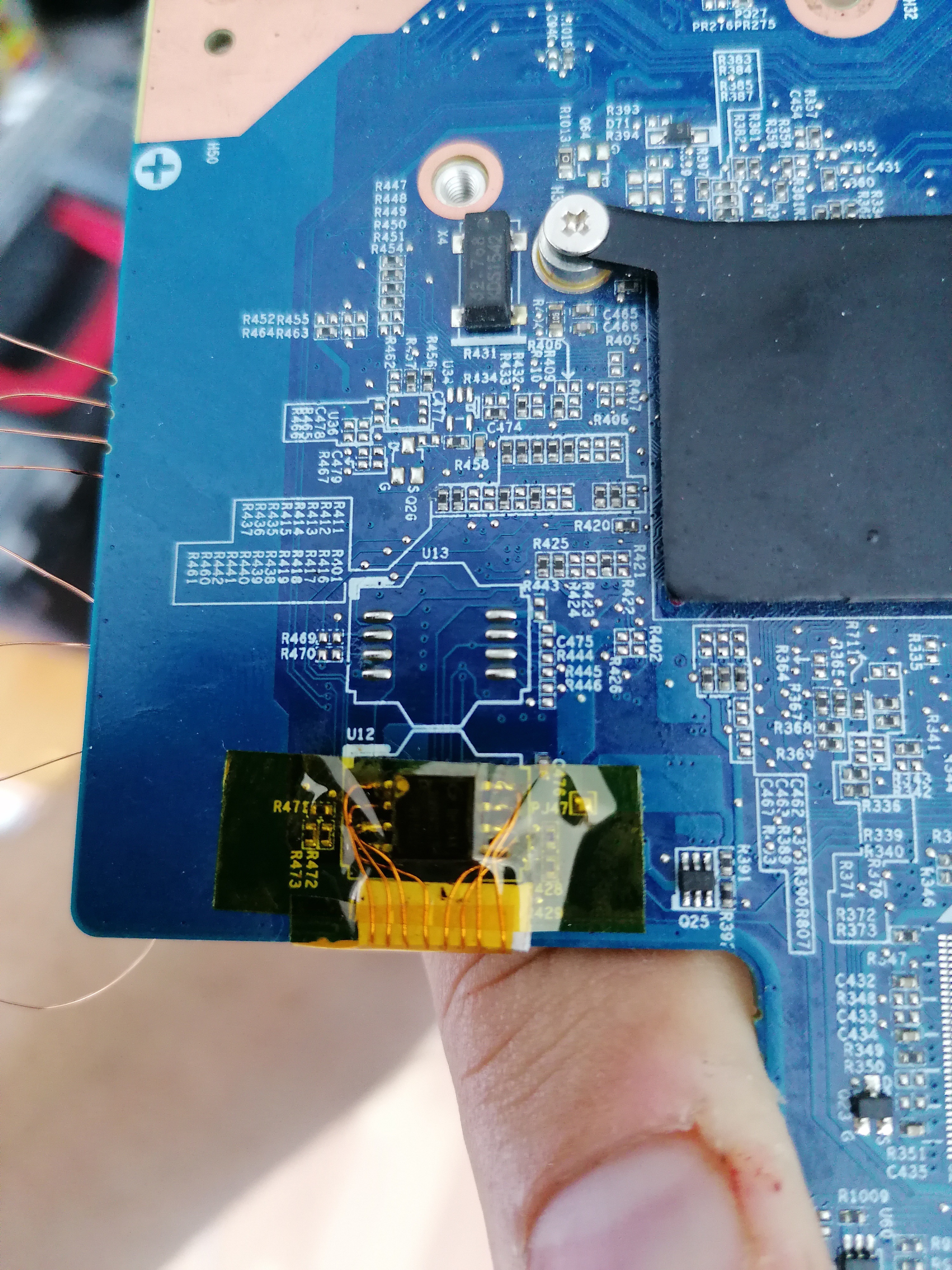

    2. Solder jumper wire to bios chip, and after isolate with kapton tape.
    [​IMG]

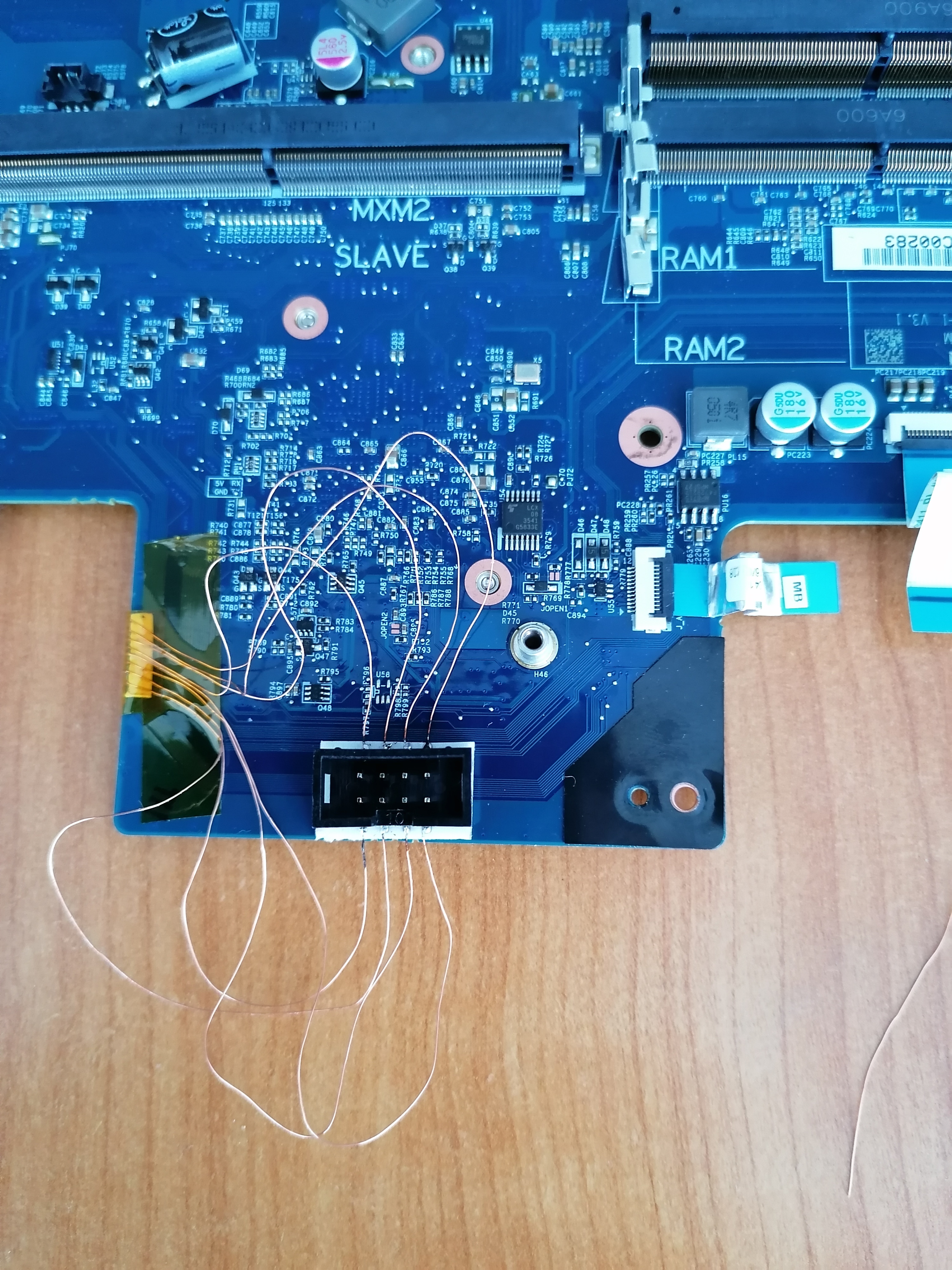

    3. Solder jumper wires to JTAG 8 pin connector and secure it with double sided adhesive tape.
    [​IMG]

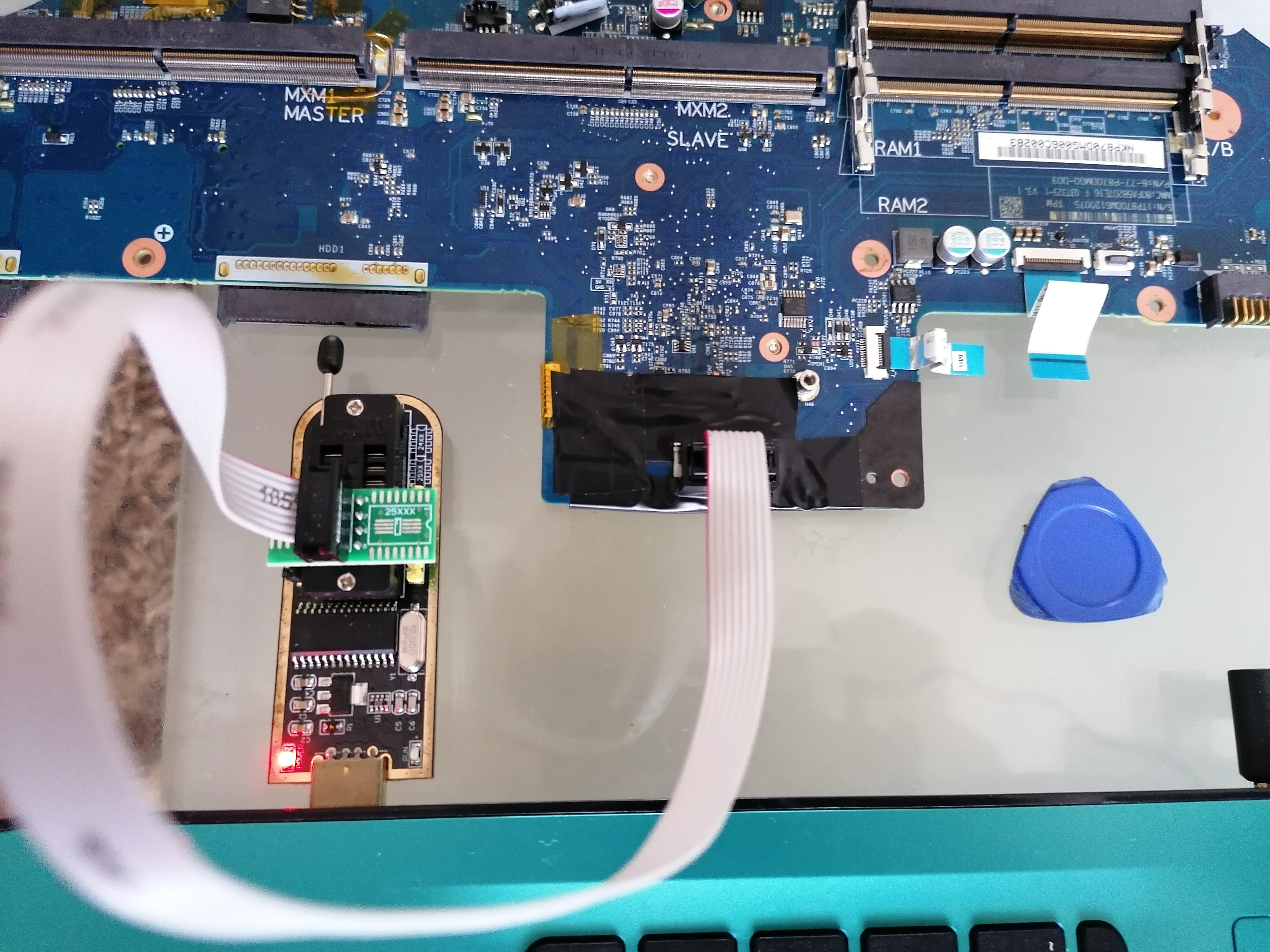

    4. Secure everything with tape.
    [​IMG]

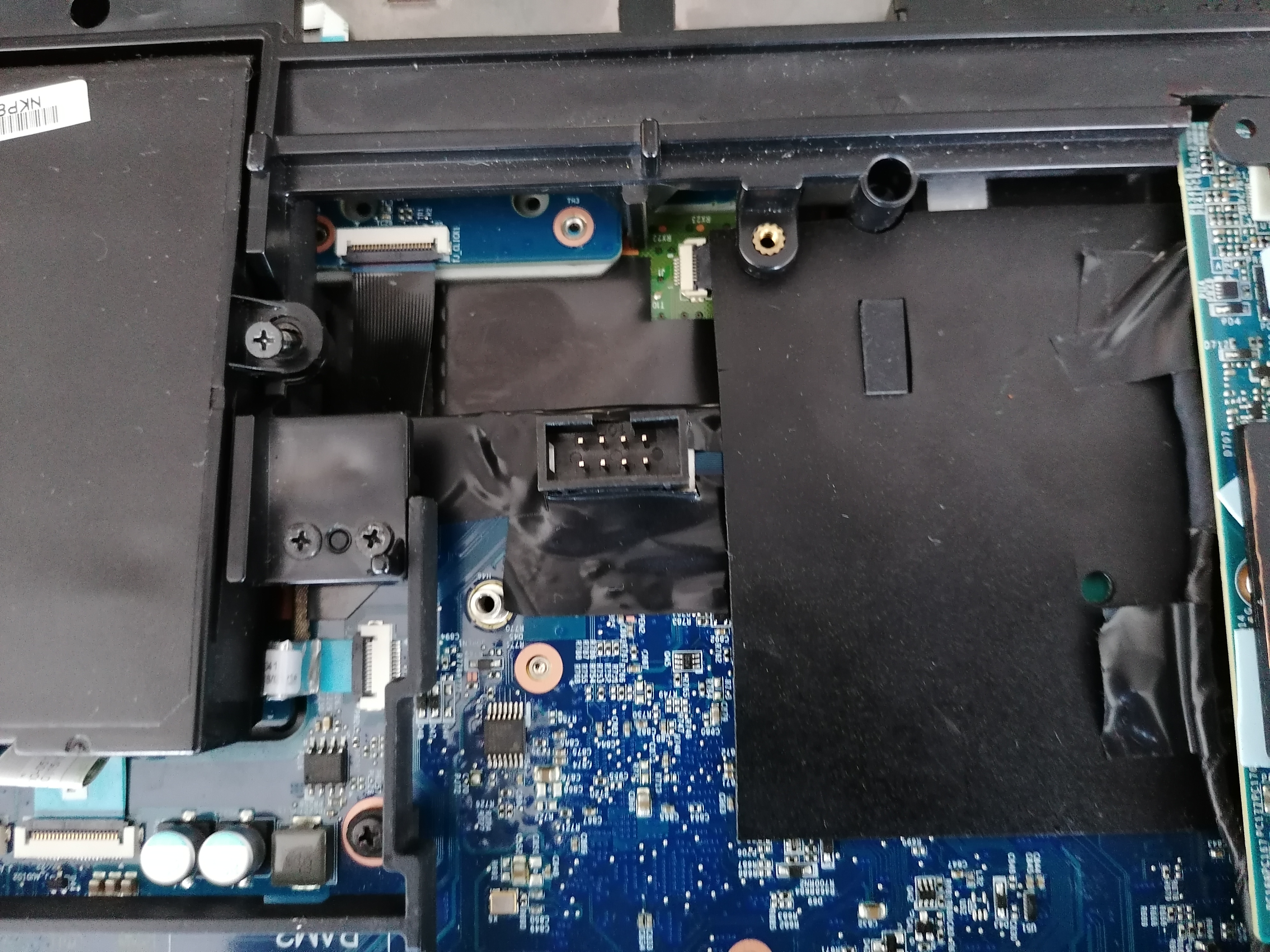

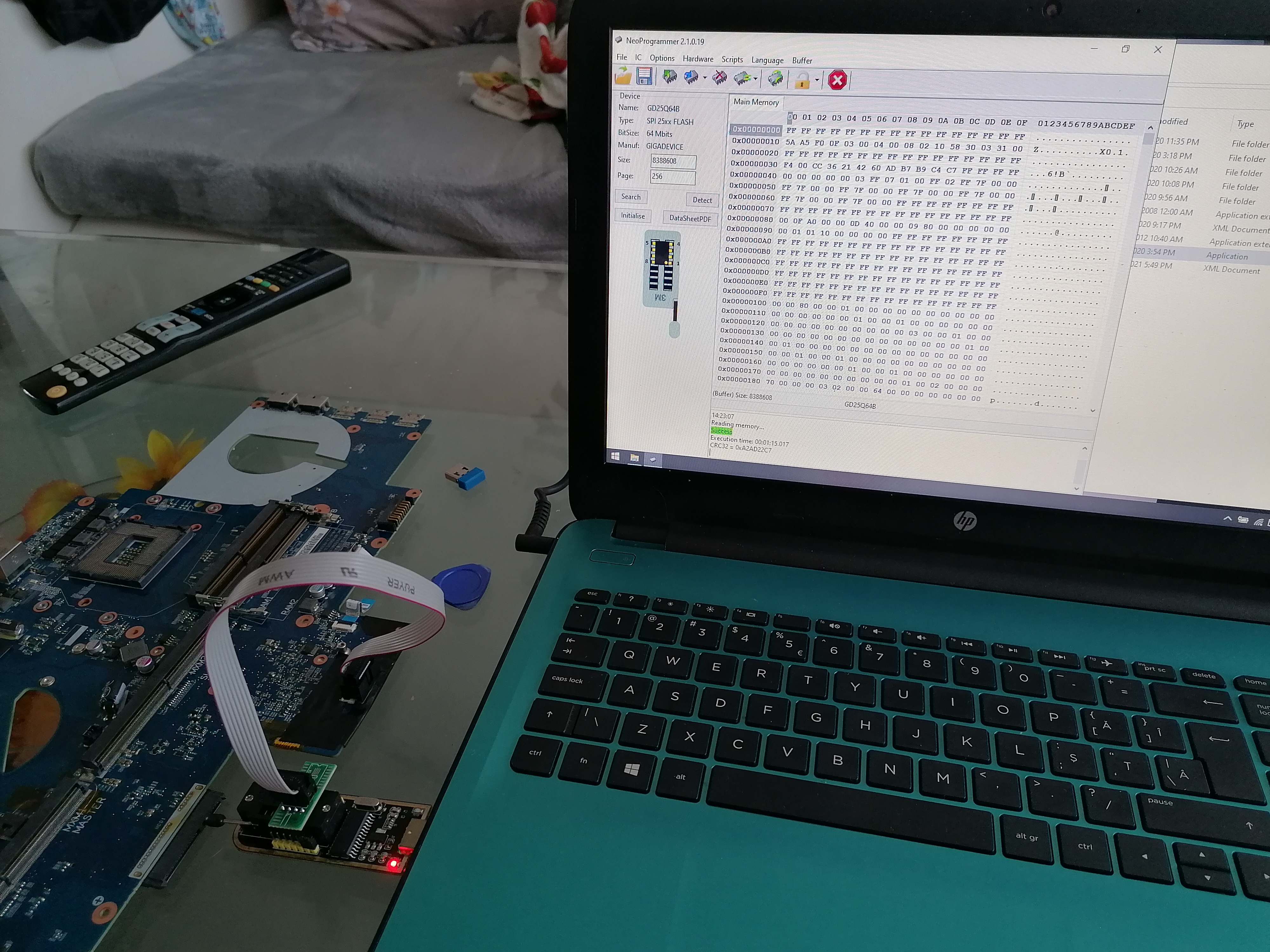

    5. Success.
    [​IMG] [​IMG]

    Last edited: Oct 2, 2021
    runix18, Oct 2, 2021
    #1
    joluke, SierraFan07, hacktrix2006 and 1 other person like this.
  2. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Oh that's what it was (I asked in the other thread).

    Back on my old GS30 I had a socketable connector added in.

    Meaker@Sager, Oct 2, 2021
    #2
    joluke likes this.
