    Clevo P870KM GPU Upgrade

    Discussion in 'Sager and Clevo' started by Dennis_Hannover, Feb 3, 2021.

  1. Dennis_Hannover

    Dennis_Hannover Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Hello.


    my english is not good so i use a translator. sorry for that. i have a clevo p870km and want to install a rtx 2070. my question is, is my notebook compatible with the gpu? i know that my notebook was with clevo and got a bios update so that i could use my i7 9700k, and clevo told me the notebook is now also compatible with rtx gpu. A GTX 1070 is currently installed, with the T cooler, i.e. the better one. does the cooler also fit the rtx 2070? or does the cooler have to be adjusted? Thank you for your answers.

    greetings Dennis

    Dennis_Hannover, Feb 3, 2021
    #1
  2. rzrwolf

    rzrwolf Notebook Consultant

    Reputations:
    41
    Messages:
    101
    Likes Received:
    79
    Trophy Points:
    41
    I will require modded bios flash (dsanke bios) and gpu heatsink modification as i posted here.

    *** Official Clevo P870TM-R Owner's Lounge - Phoenix 5 ***

    rzrwolf, Feb 3, 2021
    #2
  3. Dennis_Hannover

    Dennis_Hannover Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    does the bios have to be flashed? I wrote that my notebook was with clevo, a new bios was installed, and clevo told me that my notebook now also supports rtx cards.

    Dennis_Hannover, Feb 3, 2021
    #3
  4. rzrwolf

    rzrwolf Notebook Consultant

    Reputations:
    41
    Messages:
    101
    Likes Received:
    79
    Trophy Points:
    41
    What bios version do you have?

    rzrwolf, Feb 3, 2021
    #4
  5. Dennis_Hannover

    Dennis_Hannover Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    can you do something with it?

    BIOS Vendor 5.12
    Build Date 05/12/2019
    Version 2.18.1263

    Dennis_Hannover, Feb 3, 2021
    #5
  6. rzrwolf

    rzrwolf Notebook Consultant

    Reputations:
    41
    Messages:
    101
    Likes Received:
    79
    Trophy Points:
    41
    You need 1.07.15 dsanke bios to run RTX cards

    rzrwolf, Feb 3, 2021
    #6
  7. Dennis_Hannover

    Dennis_Hannover Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    So didn't Clevo say the truth? i am able to change a gpu, but i don't dare to use a bios flash

    Dennis_Hannover, Feb 3, 2021
    #7
  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    With nod it has been working, up to you if you feel up to it.

    Meaker@Sager, Feb 3, 2021
    #8
  9. 1610ftw

    1610ftw Notebook Evangelist

    Reputations:
    266
    Messages:
    462
    Likes Received:
    517
    Trophy Points:
    106
    The performance increase from a 1070 to a regular 2070 is rather modest and not worth it imo, I would at least go for the 2070 super or a 2080.

    Or why not wait and see what the latest generation of mxm card brings to the table unless for some reason it is already known that these will never work in your model? An RTX 3070 with up to 140 Watt should give you a very nice performance boost especially at QHD or higher resolutions.

    1610ftw, Feb 4, 2021
    #9
  10. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I'd agree and wait and see a bit.

    Meaker@Sager, Feb 4, 2021
    #10
  11. Dennis_Hannover

    Dennis_Hannover Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Thank you for your answers. I had now got a GTX 1080 cheaply. this runs without problems and I am very satisfied with the performance.

    Dennis_Hannover, Feb 24, 2021
    #11
  12. ERROR_404

    ERROR_404 Notebook Enthusiast

    Reputations:
    11
    Messages:
    30
    Likes Received:
    7
    Trophy Points:
    16
    i held off for now from upgrading to a gtx 1080. staying on a gtx 1070 right now.

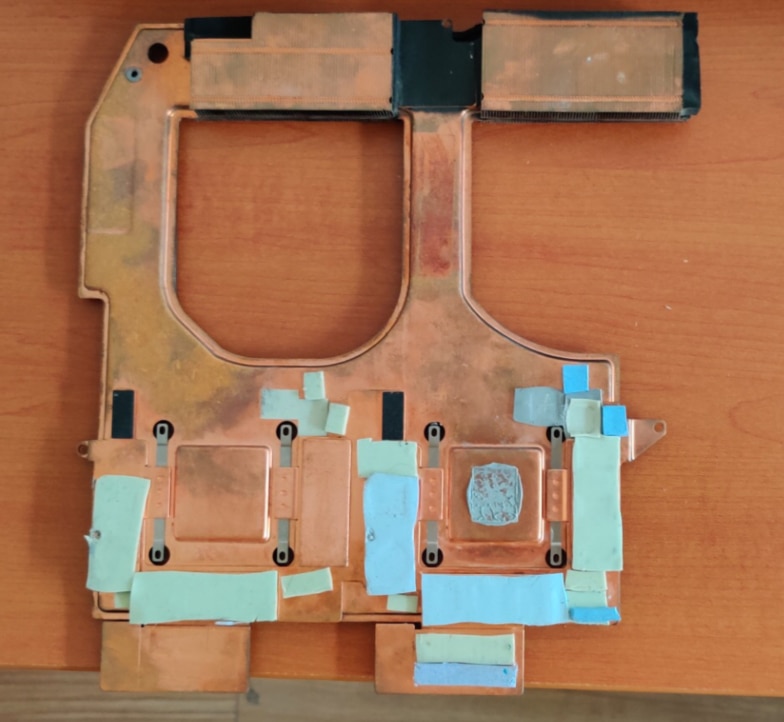

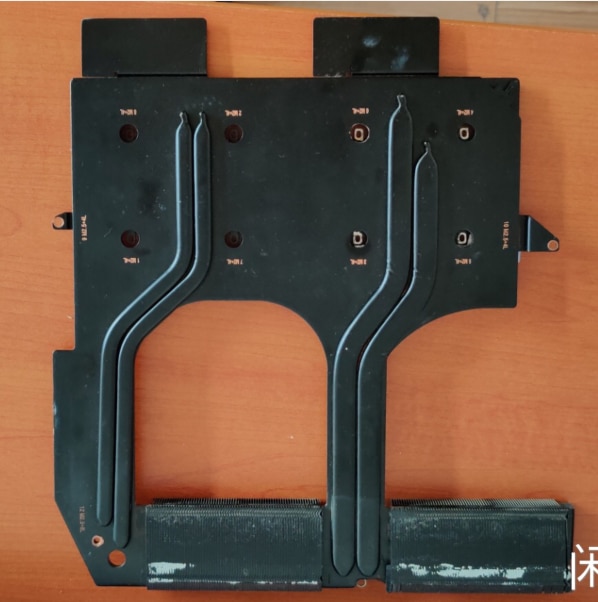

    What i did do however is order a proper Heatsink albeit used from china. :)
    [​IMG] [​IMG]

    I Just hope that the new Clevo Cards with RTX will at least have high Wattage to actually perform better than a Gtx1080 Cuz as it stands what we have been seeing right now is chopped up 3070 and 3080 mobile gpus that perform rather close to the 2080 / 1080 high wattage mxm variants.


    ERROR_404, Feb 24, 2021
    #12
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    The increased cooling alone matters.

    Meaker@Sager, Feb 24, 2021
    #13
