    Clevo W860CU with ATi HD 5870M - Wrong Heatsink?

    Discussion in 'Sager and Clevo' started by Fireflyer, Aug 2, 2010.

  1. Fireflyer

    Fireflyer Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Hi everybody,

    I have a serious problem with my ATi HD 5870M graphics card and it's heatsink and need your help!

    It started with some shutdowns while gaming due to overheating of my graphics card. I measured over 100°C (212° F) with GPU-Z. After heaving read a lot about the heating problems of the 5870 I decided to change the thermal paste (bought AC5). :cool:
    To cut a very long story short it ended up in a disaster. My reseller used a thermal pad instead of paste to fill the gap (!) between gpu die and heatsink. I sliced the pads of the RAM, I removed them...still no good contact (there was no imprint on the heatsink except on one edge). Then I noticed that the heatsink seems to rest on something of the graphics card (those three grey somethings next to the RAM) so heatsink and gpu die can't fit at all! :confused:

    I searched for some pictures of other heatsinks and found this thread: http://forum.notebookreview.com/com...tsinks-designed-ati-mobility-hd-5870-new.html

    My heatsink looks different! What the...? I have to add that I got my notebook with a wrong graphics card in the first place. I've got a Nvidia GTX 285M instead of my ATi. So is it possible that they changed the graphics card but didn't change the heatsink? (I assume that there are different ones?!)

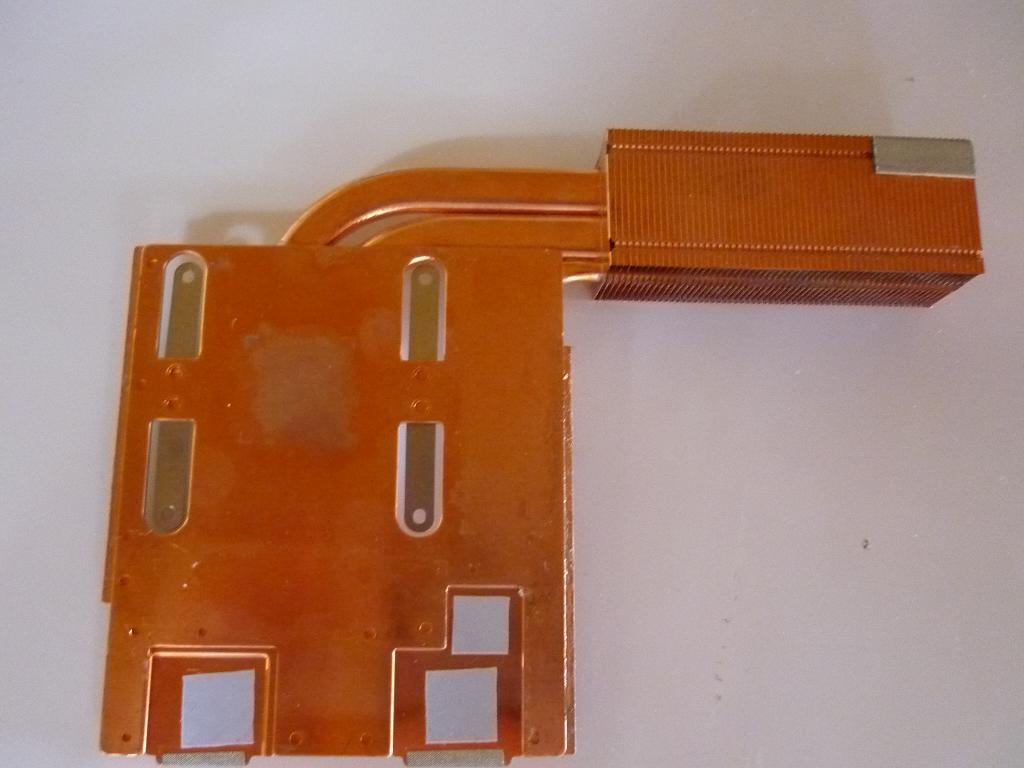

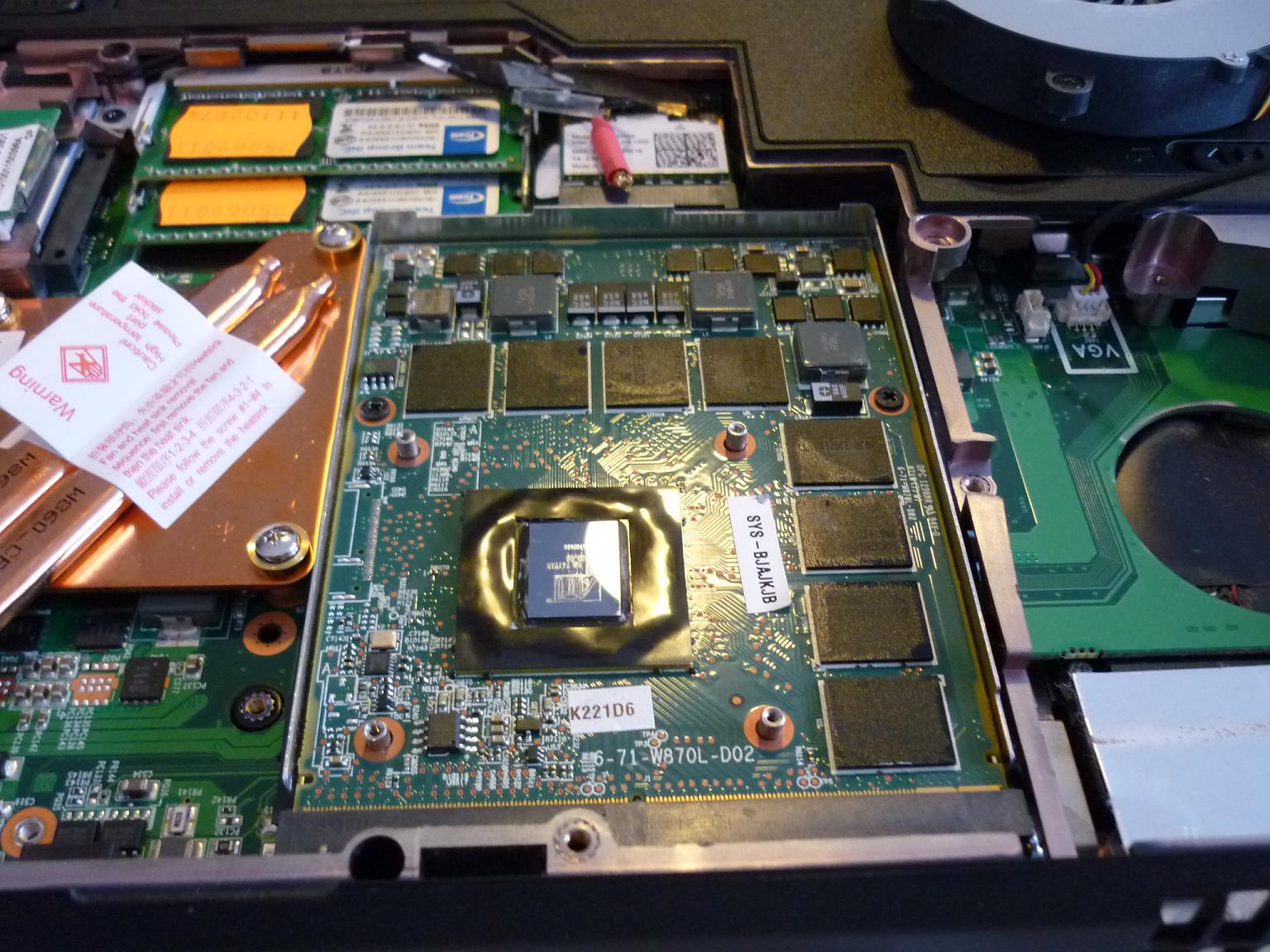

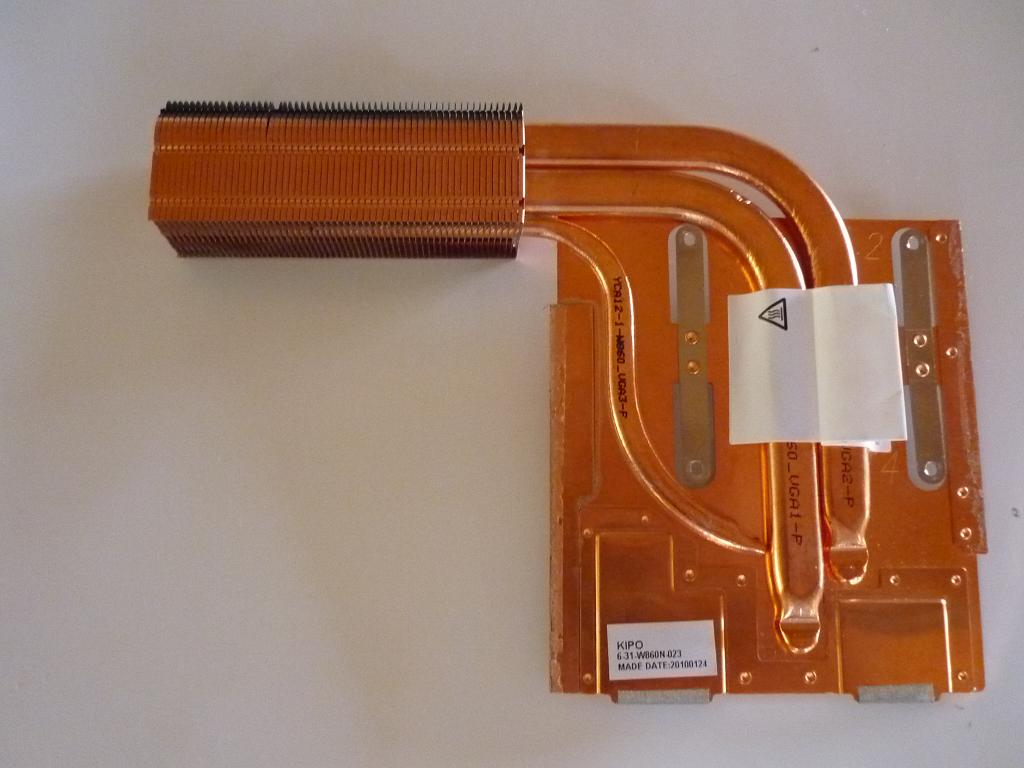

    I attach some photos of my heatsink.
    Has anyone seen this heatsink in combination with an ATi HD 5870M?
    Can anyone confirm that this is a Nvidia GTX285M's heatsink?


    Thanks in advance, guys!


    PS: I can't get through to my reseller. Perhaps he's on vacation or something. :mad:

    PPS: At first I didn't notice the whole problem and ran my notebook. I made it to GPU-Z and saw some nice 175°C. The graphics card still runs but do you think this could made some major damage to it?


    Attached Files:

  2. Koolg223

    Koolg223 Notebook Consultant

    Reputations:
    17
    Messages:
    147
    Likes Received:
    1
    Trophy Points:
    31
    The heatsink in the picture you posted is definitely the one meant for the 5870, if yours is different, you should get it replaced. I don't know what the max temperature for the 5870 is, but I don't think it's going to damage the card to run it into the low or mid 90s.

  3. 5482741

    5482741 5482741

    Reputations:
    712
    Messages:
    1,530
    Likes Received:
    17
    Trophy Points:
    56
    Just looked up a pic of the 285M, looks like it'd fit the heatsink you posted perfectly.

    Example from this eBay auction:
    Nvidia GTX 285M mobile graphic card
    [​IMG]

    You have the wrong heatsink.

  4. Fireflyer

    Fireflyer Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Oh lord! I've got an HD5870M with a GTX285M heatsink... :eek: :mad: No wonder things went totally wrong.

    At least I reached my reseller eventually. The notebook will be send back to clevo and they'll check it. I hope they don't blame me since I modified the heatsink and it's thermal pads. To be honest I'd like the graphics card to be replaced... I almost fried it and changed the heatsink way too often.

    Thanks for you answers!

  5. Koolg223

    Koolg223 Notebook Consultant

    Reputations:
    17
    Messages:
    147
    Likes Received:
    1
    Trophy Points:
    31
    I'm not sure it has to be replaced. The automatic shutdown should prevent damage.

  6. mangbhoy

    mangbhoy Notebook Consultant

    Reputations:
    15
    Messages:
    257
    Likes Received:
    0
    Trophy Points:
    30
    True enough. But I think he deserves the correct heatsink for his purchase :)

  7. Fireflyer

    Fireflyer Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    Another reseller told me that I probably have a wrong graphics card, too. It says 6-71-W870L-D02 on it which would indicate that it's the W870CU version of the ATi HD5870M. I didn't know that there are different versions anyway?!
    There's only one version I could find to buy e.g. here in the forum, so what do you think about that?

    The NB will be picked up tomorrow, then we'll see...


    Attached Files:
