    Clevo W870CU - What is this supposed to be?

    Discussion in 'Sager and Clevo' started by Bester, Oct 16, 2020.

  1. Bester

    Bester Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    So I am still tinkering with my Clevo W870CU.

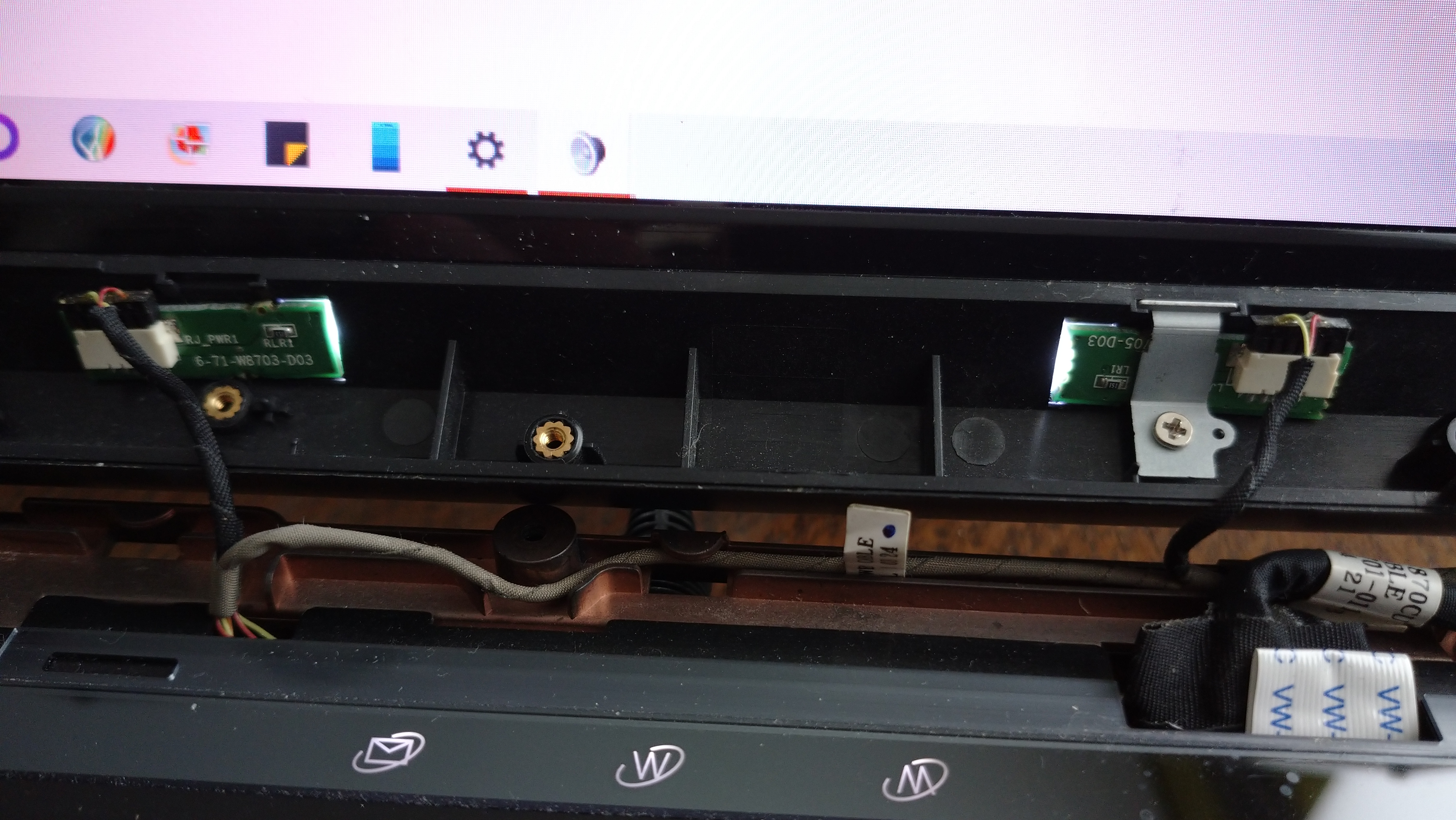

    I replaced a dead speaker and powered it up with the top cover off when I noticed a light source:

    [​IMG]
    Visible Markings: RJ_PWR1, RLR1, 6-71-W8703-D03

    I always thought this was something to do with the centre speaker option but I guess not, what on earth are these two lights for? You cannot see any light source from the outside.

    Regards,
    Bester

    Last edited: Oct 16, 2020
    Bester, Oct 16, 2020
    #1
  2. Vaardu

    Vaardu Notebook Evangelist

    Reputations:
    140
    Messages:
    308
    Likes Received:
    283
    Trophy Points:
    76
    That might be the backlight.

    Vaardu, Oct 16, 2020
    #2
  3. Bester

    Bester Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16
    It does not appear to back light anything however. The plastic it is pressed against is hard and thick so no light can get through.

    Bester, Oct 16, 2020
    #3
  4. Vaardu

    Vaardu Notebook Evangelist

    Reputations:
    140
    Messages:
    308
    Likes Received:
    283
    Trophy Points:
    76
    Now that you mention it:

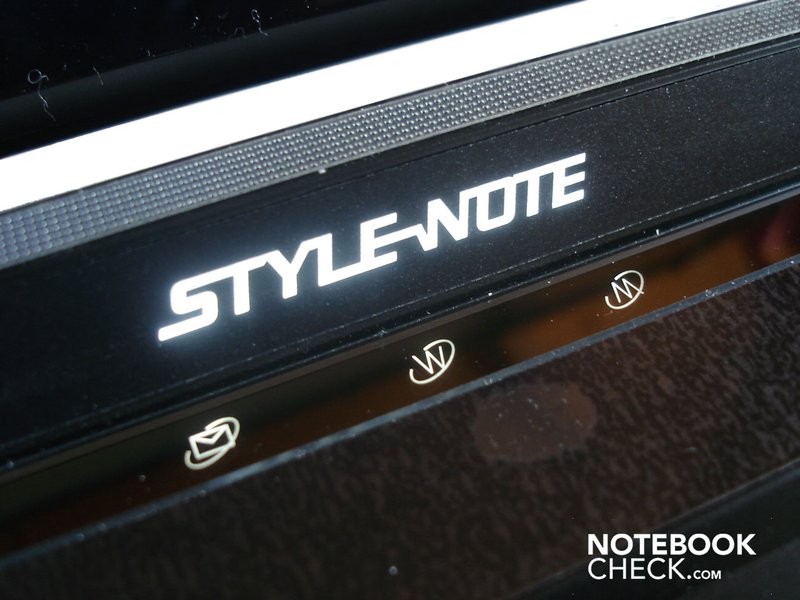

    [​IMG]
    Looked up your model and saw this on Notebookcheck.

    There's nothing on the front of yours like this?

    Vaardu, Oct 16, 2020
    #4
    Bester likes this.
  5. Bester

    Bester Notebook Enthusiast

    Reputations:
    0
    Messages:
    36
    Likes Received:
    6
    Trophy Points:
    16

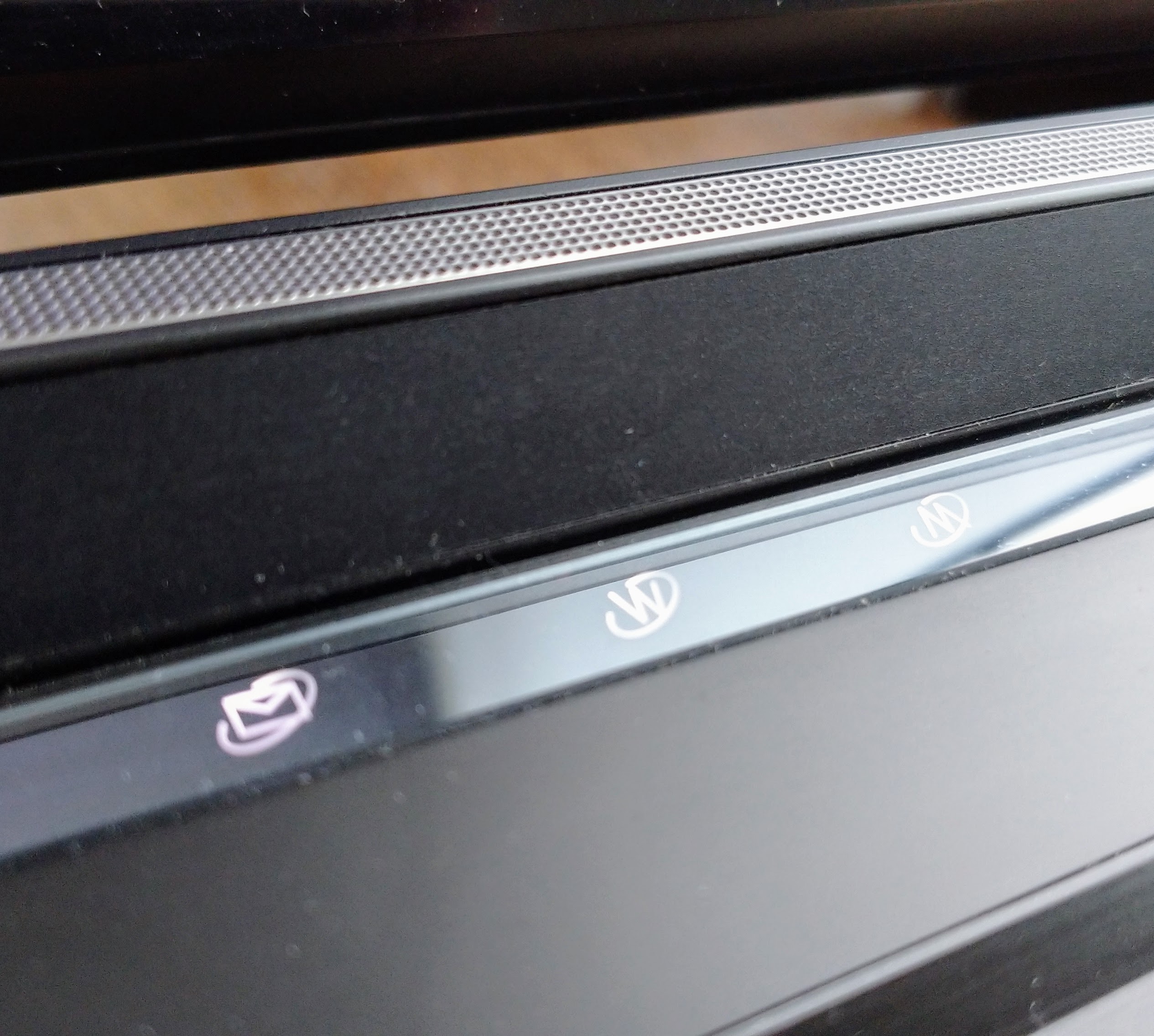

    Ha! No it is blank but that is mystery solved, look:

    [​IMG]

    So for 10 years that back light has been shining but never been seen! Kinda sad really...

    Good spot though.

    Bester, Oct 17, 2020
    #5
    t456 and Vaardu like this.
  6. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Yep, they would ship them all that way as it's cheaper than different SKUs.

    Meaker@Sager, Oct 17, 2020
    #6
    Papusan and Bester like this.
