Clevo p950hp6/p957hp6 and clevo p950hp3/p957hp3

there are these p950hp6/p957hp6/p950hp3/p957hp3 on clevo site download area


http://www.clevo.com/en/e-services/Download/default.asp

http://forum.notebookreview.com/thr...e-recently-are-new-models-coming-soon.804692/

http://tieba.baidu.com/p/5107148196

P950HP6 Specification
Processor •Intel® Core™ i7-7700HQ processor (14nm, 2.8GHz, DDR4 2400MHz, 6MB Smart cache, TDP: 45W)
Core Logic •Mobile Intel® HM175 Express Chipset
Display •15.6” (39.62cm) UHD (3840x2160) / FHD (1920x1080) 16:9 panel, 3.2mm
Memory
•Dual channel DDR4
•Two 260 pins SODIMM sockets, support DDR4 2400 MHz (Real operation frequency depends on processor)
•Expandable memory from 8GB to 32GB, depends on 4GB/8GB/16GB SODIMM module
Video Controller
•Intel® HD Graphics 630
- Dynamic frequency
- Intel Dynamic Video Memory Technology
- Microsoft DirectX® 12 compatible
•NVIDIA® GeForce GTX 1060 (N17E-G1)
- 6GB GDDR5 Video RAM
- Support PCIe x16
- Microsoft DirectX® 12 compatible
- NVIDIA® PhysX®
- GeForce CUDA™ technology
•Microsoft Hybrid Graphics mode
•Support 4 active displays
•Support NVIDIA® Surround View via HDMI x1 and miniDP x2
Storage
•One changeable 2.5” 7mm(H) HDD/SSD, SATA interface
•(Factory Option) One M.2 2280 SSD, SATA/PCIe Gen3x4 interface
Audio
• High Definition Audio
•S/PDIF digital output
•Built in array microphone
•Built in two speakers
• SOUND BLASTER® X-FI® MB5 or SoundBlasterX® Pro-Gaming 360˚(TBC)
•ANSPTM 3D sound technology on headphone output
Keyboard and
Pointing Device
•Multi languages full color illuminated full size keyboard with numeric pad
•(Factory Option) Built in Secure pad or Touch pad with Microsoft PTP multi-gesture and scrolling function
•W/A/S/D gaming key
I/O ports
•2 x USB 3.1 Gen 2 port (Type-C)
•3 x USB 3.0 ports (USB3.1 Gen1, 1 x powered USB port, AC/DC)
•2 x Mini Display port 1.3
•1 x HDMITM output port (with HDCP)
•1 x 2-in-1 Audio jack (Headphone / S/PDIF Optical output)
•1 x Microphone jack
•1 x RJ-45 LAN port
•1 x DC-in jack
Card Reader
•6-in-1 Push-Push Card reader
- MMC / RSMMC
- SD / mini SD / SDHC / SDXC up to UHS-ll
Slot
•Two or Three M.2 card slots
-1st for WLAN Combo M.2 2230 Card with PCIe and USB interface (A key)
-2nd for SSD M.2 2280 Card with SATA / PCIe Gen3x4 interface (M key)
-(Factory Option) 3rd for LTE/UMTS/HSPA+ M.2 3042 Card with USB interface (B key)
Communication
•Built in 10/100/1000Mb Base-TX Ethernet LAN
•(Factory Option) Intel® Dual Band Wireless-AC 8265, 2x2 AC +BT M.2 2230 (Windstorm Peak)
•(Factory Option) Intel® Dual Band Wireless-AC 3168, 1x1 AC +BT M.2 2230 (Sandy Peak)
•(Factory Option) Qualcomm® Atheros Killer™ Wireless-AC 1535 Dual Band 2x2 AC +BT M.2 2230
•(Factory Option) UMTS/HSPA+ M.2 3042 Card module
•(Factory Option) LTE M.2 3042 Card module
•2.0M FHD video camera
Power Supply
•Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19.5V, 7.7A , 150W
•Embedded 4 cells Polymer battery pack, 55WH
•Battery life: 300 minutes (with UMA mode, 55WH Battery) (TBC)
Security
•Kensington® Lock
•Intel® PTT for system without Hardware TPM
• (Factory Option) Area finger print
•(Factory Option) TPM 2.0
Others Design
•Shipping Mode
•FlexiCharger
•Virtual Reality ready
•Support Windows®10 Cortana with Voice
•(Factory Option) USB drive
OS Support •Windows®10 (64-bit)
Certificate
•Windows®10 (64-bit) Logo
•HDMITM Logo
Dimension •380(W) x 249(D) x 18.6(H)mm (TBC)
Weight •1.9Kg, Including Barebone and 55WH Battery (TBC)


p950hp3 could have a gtx1060 3gb? are there differences with p957? heat pipes?



Looks interesting. Standout is the height and weight which are significantly under the P600 series. Really competing with the new Aero15 and GS63 on that front.

Clevo have usually reserved the 3rd digit for chassis variations. ie, the P655 is a plastic version of the P650.

The N857 uses the same digit and just has a LED "gamer" logo on the lid so that's probably what that is.



I always like the smell of fresh models in the morning

Interesting suggested spec there with support for Nvidia surround, that would show you how the outputs are arranged



Looking forward to this model. It looks like a solid option to consider among the P65x and the N85x offerings (and a nice competitor to similarly spec'ed systems).

I don't know about smelling it in the morning, though...



This seems more like a gaming-business hybrid. Fingerprint, TPM etc. PTP is precision touchpad? In the other thread John, I think, mentioned Thunderbolt, but it isn't mentioned in the specs, are these specs official, if it had Thunderbolt they wouldn't forget to mention it clearly, right? Does this come in 17.3 inches too?



https://dreammachines.pl/index.php?page=laptop_details&laptop_id=3460

G1060-15PL28

Model

G1060
Price

6499 PLN (1674 USD or 1540 EUR)
screen

The 15.6" FHD (1920x1080) 16:9 panel Matte, IPS inch LED display, that handles FHD/QHD 16:9 resolution. The screen is matte, and by not reflecting the light, it lets you work anywhere you want.
G-Sync

Thanks to NVIDIA G-Sync™ technology you will get extremely smooth display during your gameplay. Even with the low FPS you'll be amazed with what you see. You won't care about frames per second anymore.
GPU

NVIDIA GeForce GTX 1060 6 GB
CPU

Quad-core Octa-threads Intel Core i7-7700HQ (7 generation "Kaby Lake")
Chipset

Intel® HM170 Express.
RAM


16GB DDR4 2133MHz CL15
SSD


M.2 500 GB SSD

Keyboard

Full color Illuminated full size keyboard with numeric pad and anti-ghost keys
Sound

Hi-Def - Sound Blaster X-FI MB5
LAN / WLAN

Gigabit Lan
INTEL WLAN + BT

Ports

3 x USB 3.0 ports (1 x powered USB port, AC/DC) / 2x USB 3.1 Type C
1 x HDMI output port (with HDCP)
1 x Headphone jack
1 x Microphone jack
1 x S/PDIF output jack
6-in-1 Card reader

Based on

Clevo P950HP6
Size and weight

380(W) x 249(D) x 18.6(H)mm, ~1.9Kg
More info

Kensington Lock
2.0M FHD video camera
OS

No OS
Warranty

2 years - Door to Door
(Free pickup)



Now that looks really interesting(drooling)
15" in a thin, low key ~2kg package

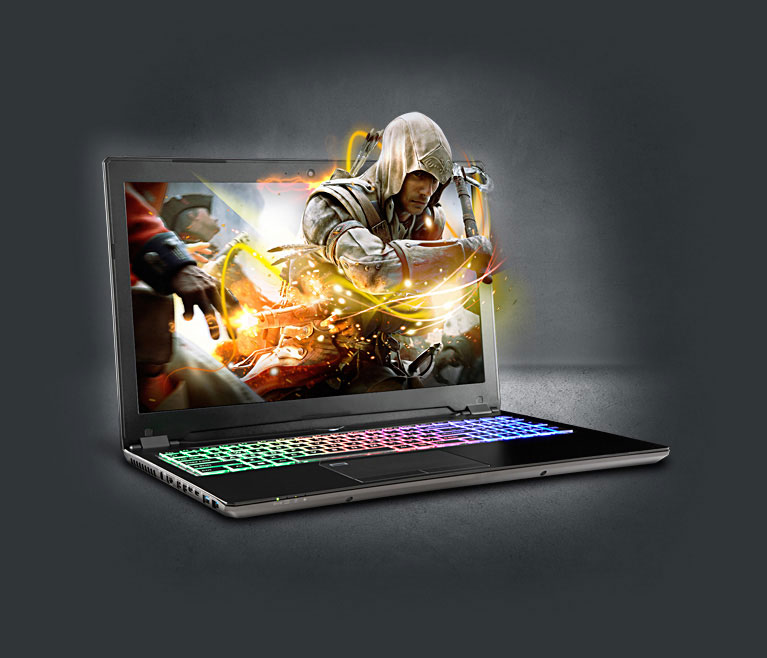

EVOC High Performance Systems P950HP6 15.6" Custom Built Gaming Laptop w/ nVIDIA GTX 1060
http://www.hidevolution.com/evoc-p950hp6-custom-built-gaming-laptop-w-nvidia-gtx-1060.html

http://forum.notebookreview.com/threads/official-clevo-p950hp6-owners-lounge.804747/







Display


15.6" Full HD (1920x1080) IPS FHD LED Antiglare Matte Type Display

Video Graphics & Memory

nVIDIA® GeForce™ GTX 1060 w/ 6.0GB GDDR5

Intel® HD Graphics 630 (Integrated on Intel Core i7-7700HQ)
Intel Dynamic Video Memory Technology
Microsoft ® DirectX® 12 compatible
4K Support

Processor Support and
Heat Management

7th Generation Intel® Core™ Core i7-7700HQ Quad Core Processor, 2.8 GHz (Max Turbo Frequency 3.8GHz), 6MB Smart Cache w/ IC Diamond Advanced Thermal Compound

Coollaboratory Liquid Ultra 100% Metal Thermal Interface - BEST PERFORMANCE

Operating System
No Operating System Installed

Optional:

Genuine Windows 10 Home or Professional, 64 bit

Chipset Intel® Mobile HM175 Express
System Memory (RAM)
8GB Dual Channel DDR4 at 2400MHz (1 x 8GB)

Expandable to 32GB, up to 2666MHz

Hard Drive
1TB 7200 RPM SATA 6Gb/s Hard Drive

Optional:

Up to One M.2 2280 PCIe 3.0 x4 NVMe SSD

Up to One changeable 2.5" 7mm (H) SATA HDDs or SSDs

Optical Drive
None, external optical drive available

Card Reader 6-in-1 Card Reader (MMC/RSMMC/SD/Mini-SD/SDHC/SDXC)
Video Camera Built-in 2.0M FHD (1080p) Web Camera
LAN/WLAN
Gigabit LAN
Intel® Wireless-AC 8265 802.11 ac/a/b/g/n 2x2 NGFF + Bluetooth 4.2

Optional:
Killer™ Wireless-AC N1535 ac/a/g/n 2x2 NGFF + Bluetooth 4.1

Input/Output
1x HDMI™ output Port (with HDCP)
2x Mini Display port 1.3
3x USB 3.0 Ports (1 x powered USB port, AC/DC)
2x USB 3.1 Ports (Type C)
1x 2-in-1 Audio Jack (Headphone / S/PDIF Optical output)
1x Microphone Jack 1 RJ-45 LAN (10/100/1000Mbps)

Audio
High Definition audio interface
S/PDIF digital output
Built-in Array Microphone
Built-in two speakers
SoundBlasterX® Pro-Gaming 360°
ANSP™ 3D sound technology on headphone output

Keyboard and Touchpad
Multi languages full color illuminated full size keyboard with numeric pad
Programmable macro capability – customize individual key as hot key, multiple keystrokes in one key
W/A/S/D gaming key
Integrated touchpad with Microsoft PTP multi-gesture and scrolling function
Integrated Fingerprint Reader

Optional:

Alternate language keyboards

Battery Embedded 4 cells Polymer battery pack 55WH
AC Adapter
Full Range 150W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 19.5V, 7.7A

Dimension & Weight / Standard Features
14.96"(W) x 9.80"(D) x 0.73"(H) - 380mm (W) x 249mm (D) x 18.5mm (H)
4.19 lbs - 1.9kg (with 4 cell battery)

Al-alloy
Built-in 2.0M FHD Video Camera
FlexiCharger
Virtual Reality Ready
Support Windows® 10 Cortana with Voice

Warranty
1 Year Standard Limited U.S. Warranty with LIFETIME HIDevolution Technical Support

Optional:

Up to 3 Years Limited U.S. Warranty

Up to 3 Years Limited Global Warranty*
*Global warranties cover 2 instances per year of 2 way international shipping (by FedEx, DHL, or USPS/EMS - at HIDevolution's discretion) should the system and/or parts need to be sent back to the US for warranty related repair or replacement.

Included Accessories Optional:
Unbranded Chassis (no logo) Optional



thanks to @Ionising_Radiation
http://forum.notebookreview.com/threads/official-clevo-p950hp6-owners-lounge.804747/
https://www.aftershockpc.com/welcome/Productinner/prime15

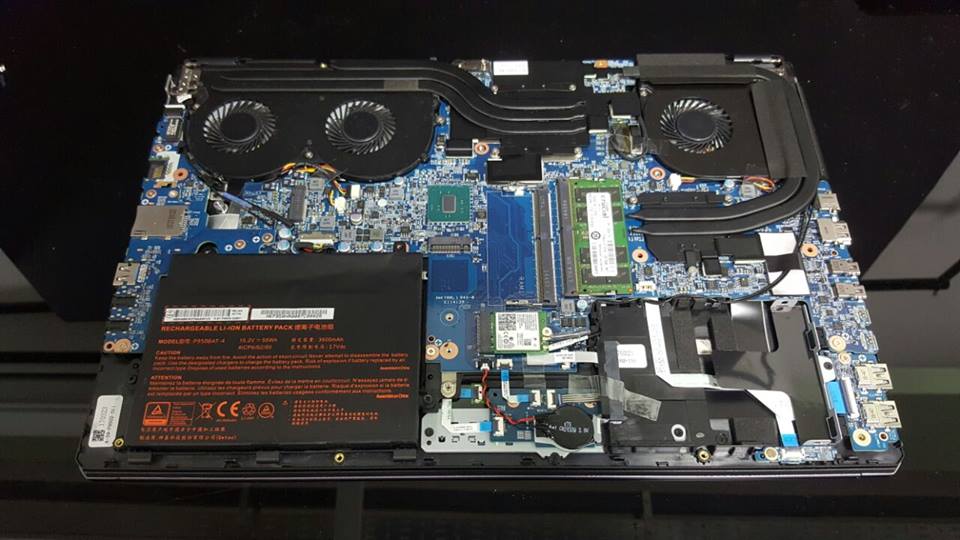

https://www.facebook.com/AfterShock...8349674296172/995108407286957/?type=3&theater
P950hp6

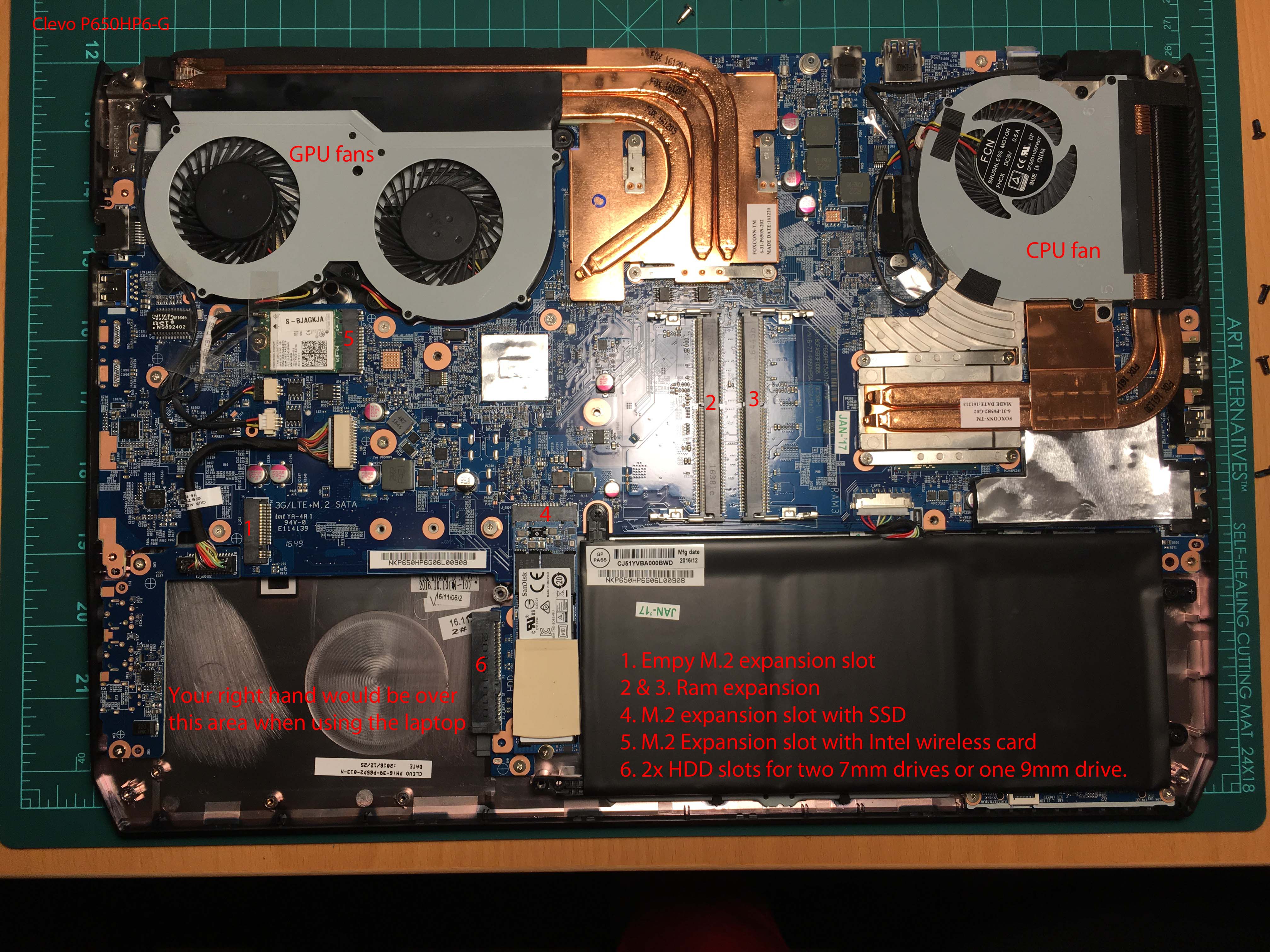

p650hp6



CPU fansink area doubled
We could expect somewhat better thermal than p650 series?
The latter's keyboard do get hot under sustained CPU load...concern for CPU intense game/application



P640hk1 ------> msi gs43vr 7re
P650hp3-------> msi ge62vr 7rf 3gb
P670hp3-------> msi ge72vr 7rf 3gb
P650hp6-------> msi ge62vr 7rf 6gb
P670hp6-------> msi ge72vr 7rf 6gb
P650hs-------> msi ge62vr 7rg
P670hs-------> msi ge72vr 7rg
P750dm2 -------> msi gt62vr 7rd/7re
P775dm3 -------> msi gt72vr 7rd/7re/7rf
p870km1 -------> msi gt73 vr
P950hp3 -------> msi gs63 7re
P950hp6 -------> msi gs63vr 7rf
P970?? why not clevo?? -----> msi gs73

here an msi gs63vr. not good upgradability


http://www.ultrabookreview.com/12757-upgrade-ram-ssd-msi-gs73/



@sicily428... It'd be good if you credited the source



You are right! thanks
i edited that post



Sager NP8950
https://www.sagernotebook.com/Notebook-NP8950.html



Prostar p950hp6
http://www.pro-star.com/index.php?r=product/detail&model=P950HP6


Ava direct
http://www.avadirect.com/Clevo-P950...060-Graphics-Gaming-Laptop/Configure/11319744



If you thin the chassis you loose some fin area hence the extended piece but the area should be more over all still.



Don't worry, the 17" P-Series 'BGA slim' variants will have a different naming scheme and feature set and follow a bit later...



when p950hp6/hp3 could be released in europe?



Also I wonder why clevo won't opt for higher efficiency fans with more blade as Acer/Asus/MSi all did?



Most fan tech is marketing, there is always a balance in terms of pressure and flow along with noise.



https://www.ceg-hardcorecustom.com/category/clevo-p950hp6



There are official owners threads for most chassis, it would perhaps be better to collate all the information there rather than in the main section of the forum ;-)



That is very good internal design! Well done Clevo.



Yes I like the look of the design too



Humh so the black color heatsink is HP6 and bron color is HP3 right?



See the name tags above the pictures.



P957hp6



I wonder when we'll see them out in the wild. Looks like it's gonna be an exciting summer.



Beautiful!



https://kongamers.com/home/article.591.html



Not in love with the AC port being on the side, but otherwise it's a nice looking system.
