    Coffee Lake BIOS updates P775DM3-G

    Discussion in 'Sager and Clevo' started by 52571abc, Mar 12, 2018.

  1. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    HI guys here's a hacked p775dm3-g bios now you can run coffee lake (i3 only) with your laptop
    make sure you already flash P7xxDM3G_B11.zip on your laptop [​IMG]
    ======================the way to flash original bios======================

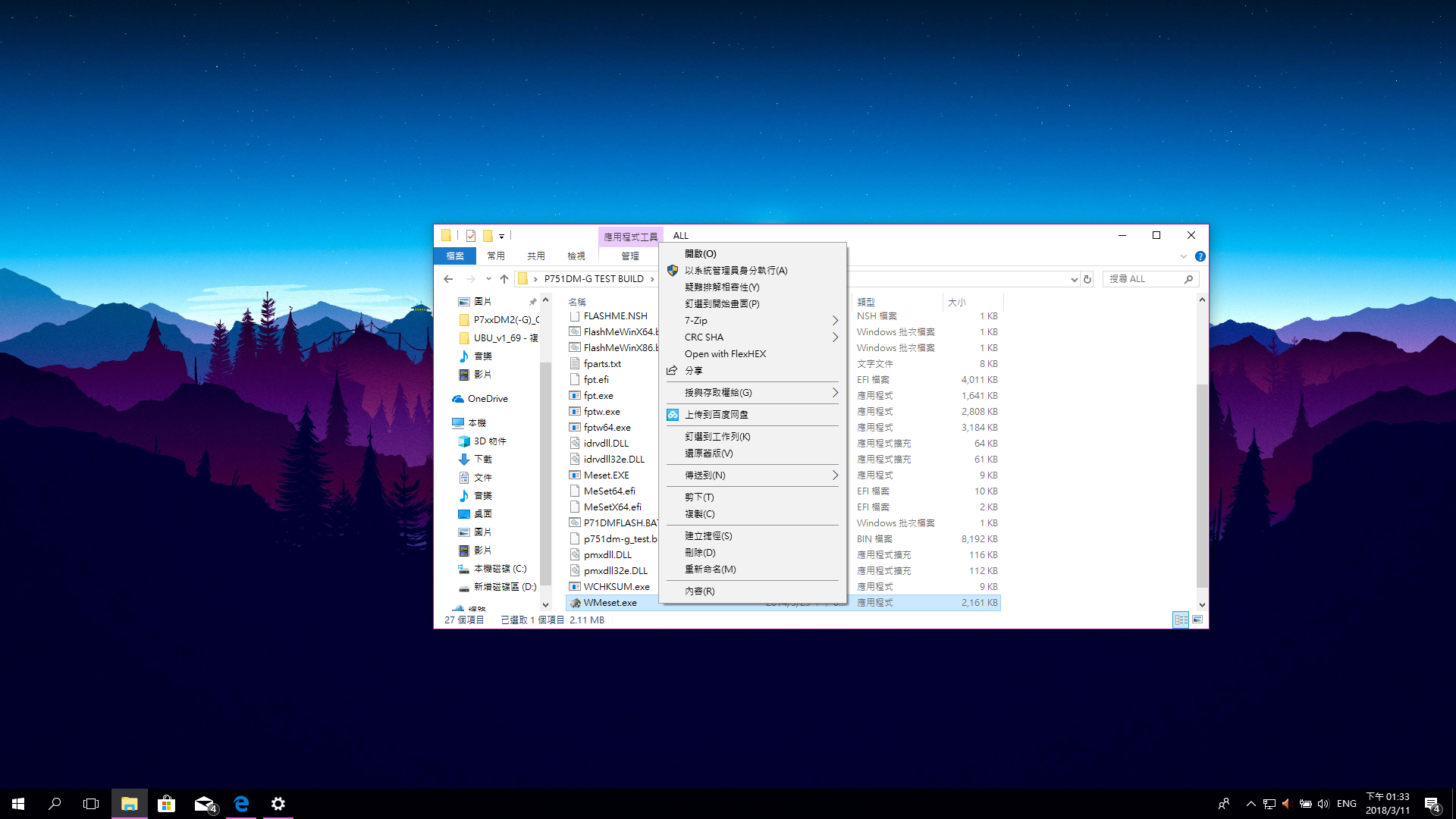

    right click WMeset.exe then run with administrator
    ======================cuz newest me region require ======================
    and then flash customize bios
    support skaylake/coffeelake i3 only
    the way to flash basically same as p751dm2-g

    ver1.0:https://drive.google.com/file/d/10oozeWpExnSehq0stwa5i_kpFSsn9HYC/view?usp=sharing

    take your own risk AND MAKE SURE YOU DO THIS WITH A SKYLAKE PROCESSOR
    =======================================================================

    ver2.0: https://cdn.discordapp.com/attachments/420430350666432513/426203270348800030/775dm3hack.zip
    ver2.0:WIN FLASH
    https://drive.google.com/file/d/1-nHwQjYWzn4KkYQGSlF0CIPd072zyidv/view?usp=sharing
    support kabylake and coffeelake6core only
    =======================================================================
    ver6.5B: https://drive.google.com/file/d/1SYP0EVf78BPtrOnkMVLu0zZK6J1zIGKQ/view?usp=sharing
    support 6c12t porcessor

    [​IMG]

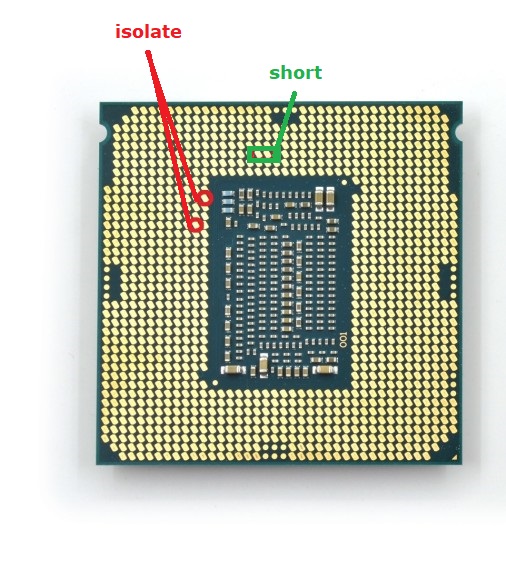

    plz follow the step in picture
    plz flash it with programmer
    =======================================================================
    join us: https://dihttps://cdn.discordapp.com/attachments/420430350666432513/426203270348800030/775dm3hack.zipscord.gg/5HeXGdw
    [​IMG]
    ==52571abc==


    THANKS { ==movax== ==Pro IIIu3Hb== ==dsanke==} IN DISCORD

    IF YOU WANT TO POST THIS TO OTHERFORUM PLZ SHOW WHERE IT FROM

    Chat me on Google hangout:[email protected]
    CLEVO LAPTOP SUPPORT LIST
    https://drive.google.com/file/d/1pOs72NjQ-hy0Ihyy9ylTsLdDf5f_HNQz/view?usp=sharing

    Last edited: May 6, 2018
    FTW_260 likes this.
  2. DuongTHVN

    DuongTHVN Notebook Geek

    Reputations:
    9
    Messages:
    77
    Likes Received:
    38
    Trophy Points:
    26
    i have a question! is i3 coffee lake better than i7 7700K, Please!

  3. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    IT IS CHEAPER\AND I WILL TRY TO MAKE IT SUPPORT 6 CROE PORCESSOR

    Last edited: Mar 14, 2018
    sicily428, FTW_260 and DuongTHVN like this.
  4. DuongTHVN

    DuongTHVN Notebook Geek

    Reputations:
    9
    Messages:
    77
    Likes Received:
    38
    Trophy Points:
    26
    Thank you!
    i'm waiting for that!

  5. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It's very similar to the i5s due to not hyperthreading.

  6. DuongTHVN

    DuongTHVN Notebook Geek

    Reputations:
    9
    Messages:
    77
    Likes Received:
    38
    Trophy Points:
    26
    i have a new question.
    any way to enable IntelHD (no need display connect, no need any display connector on it), i need intel QuickSync for some application.
    Thank you very much!

  7. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    So you lose some kind of intel function after you flash this bios??

  8. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    No, the IGP is not supported fully power wise on the PCB IIRC.

  9. matyee

    matyee Notebook Deity

    Reputations:
    254
    Messages:
    861
    Likes Received:
    430
    Trophy Points:
    76
    ATM I do not see the point of this to be honest... we all have a pretty expensive laptop with i7 6700k or 7700k... why the hell we would change to a cpu which is slower, and cost like 50 bucks less... with an i5 (real 6 cores) it would be different story, if it could work with z170... is there any hope for coffee i5 / i7?

  10. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    sir that is possible and I am doing for that I patched p751dm2 and 870dm2/dm3 (for 6core) now I am patching p870dm-g (6core)and fix the bug of the bios and our group is trying to overclock coffee lake processor
    Hope your guys wil enjoin that
    And the next (9th gen ) will be 10nm(i3 i5) 1151 sokets . And the 9th gen still unknown

    Last edited: Mar 21, 2018
    Dr. AMK and FTW_260 like this.
  11. DuongTHVN

    DuongTHVN Notebook Geek

    Reputations:
    9
    Messages:
    77
    Likes Received:
    38
    Trophy Points:
    26
    Sir!
    "with ver 2, we can use 6 core Coffeelake CPU" is that right ?
    @@ you are awesome

  12. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    YES MY FRIEND but it is beta version recommend flash with programmer

  13. raiden87

    raiden87 Notebook Evangelist

    Reputations:
    46
    Messages:
    341
    Likes Received:
    123
    Trophy Points:
    56
    As u mentioned in another thread there are some bugs like Ethernet or ht Not working.
    How can we help u fixing those problems?
    I got a programmer and i am willing to try and Report for u.

  14. rockman1216

    rockman1216 Notebook Geek

    Reputations:
    5
    Messages:
    76
    Likes Received:
    12
    Trophy Points:
    16
    Just a quick question ok I bought a Clevo P870DM barebone just wondering if I can put a Celeron Skylake in it to Flash the BIOS and replace it with a i5-8600K or i7-8700

  15. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    can you join the test project

  16. rockman1216

    rockman1216 Notebook Geek

    Reputations:
    5
    Messages:
    76
    Likes Received:
    12
    Trophy Points:
    16
    Potentially I have to pick up the laptop first it came in

  17. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    sounds good

  18. raiden87

    raiden87 Notebook Evangelist

    Reputations:
    46
    Messages:
    341
    Likes Received:
    123
    Trophy Points:
    56
    any news on this?

  19. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    Нет

  20. 52571abc

    52571abc Notebook Consultant

    Reputations:
    34
    Messages:
    138
    Likes Received:
    101
    Trophy Points:
    56
    if you have ch341a we can make this different story if you want make every body can run with 6c12t processor

    Dr. AMK likes this.
  21. raiden87

    raiden87 Notebook Evangelist

    Reputations:
    46
    Messages:
    341
    Likes Received:
    123
    Trophy Points:
    56
    yes i got a ch341a programmer :) i mentioned this already :p

    FTW_260 likes this.
  22. rockman1216

    rockman1216 Notebook Geek

    Reputations:
    5
    Messages:
    76
    Likes Received:
    12
    Trophy Points:
    16
    So you got this bios working on the Clevo P870DM-G

    I jut want instructions from anyone who knows how to do this

    I got a Clevo p870DM-G with an i3-6100(stopgap CPU), and a GTX 1060 really want to try and run a i5-8600K in there
