    Dead GTX 1080 From Heatsink Removal

    Discussion in 'Sager and Clevo' started by TheDantee, Mar 29, 2019.

  1. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76

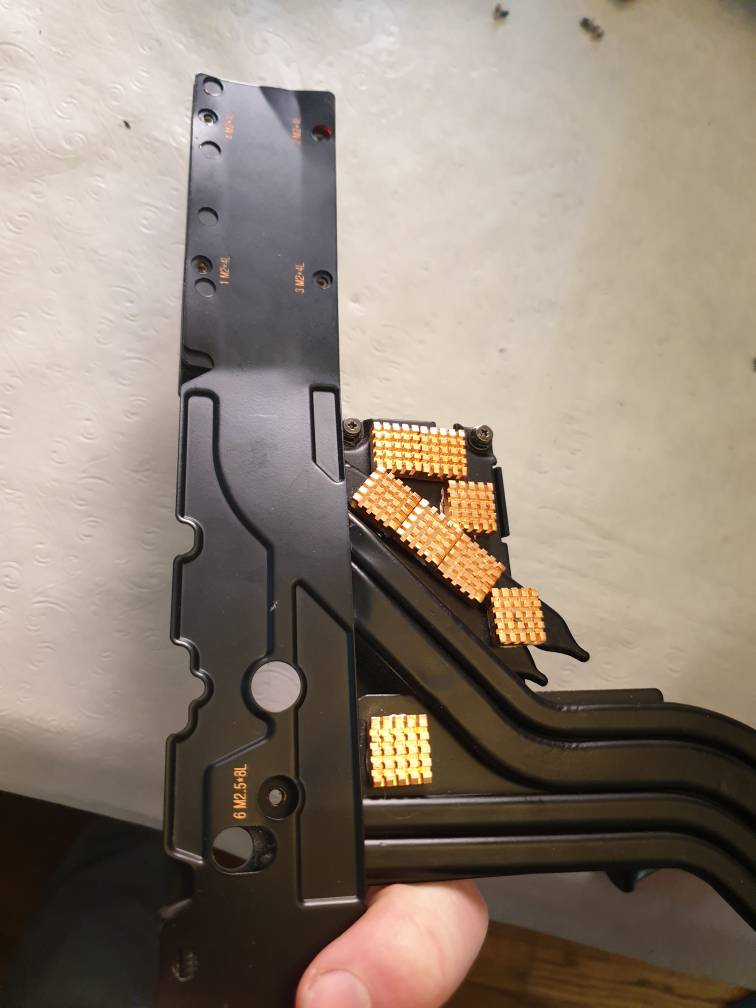

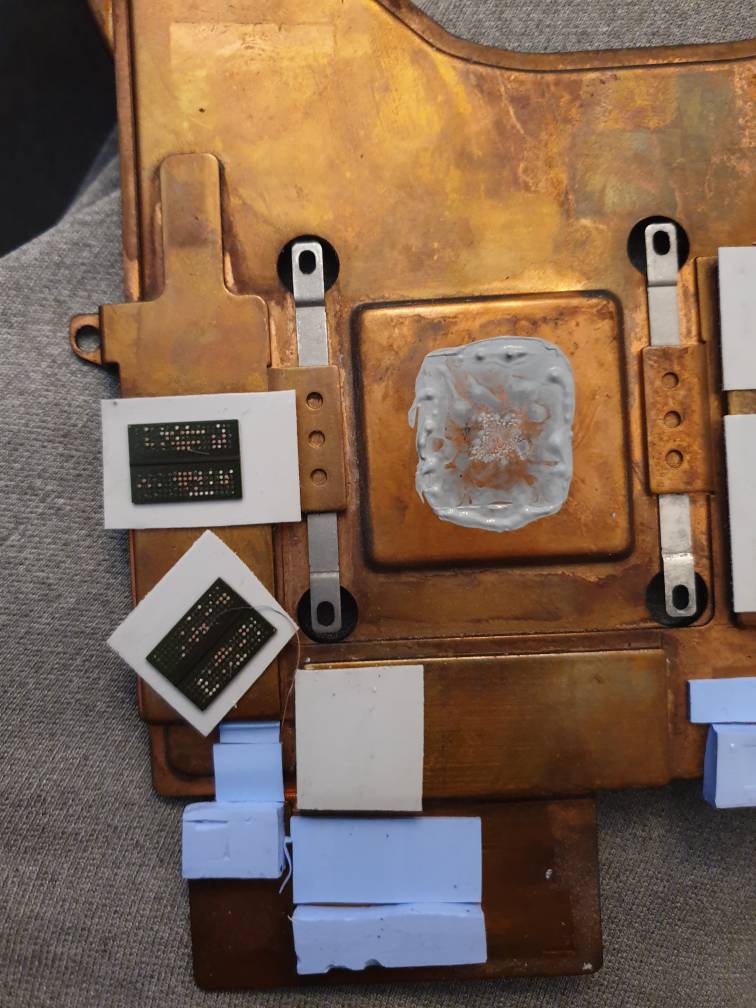

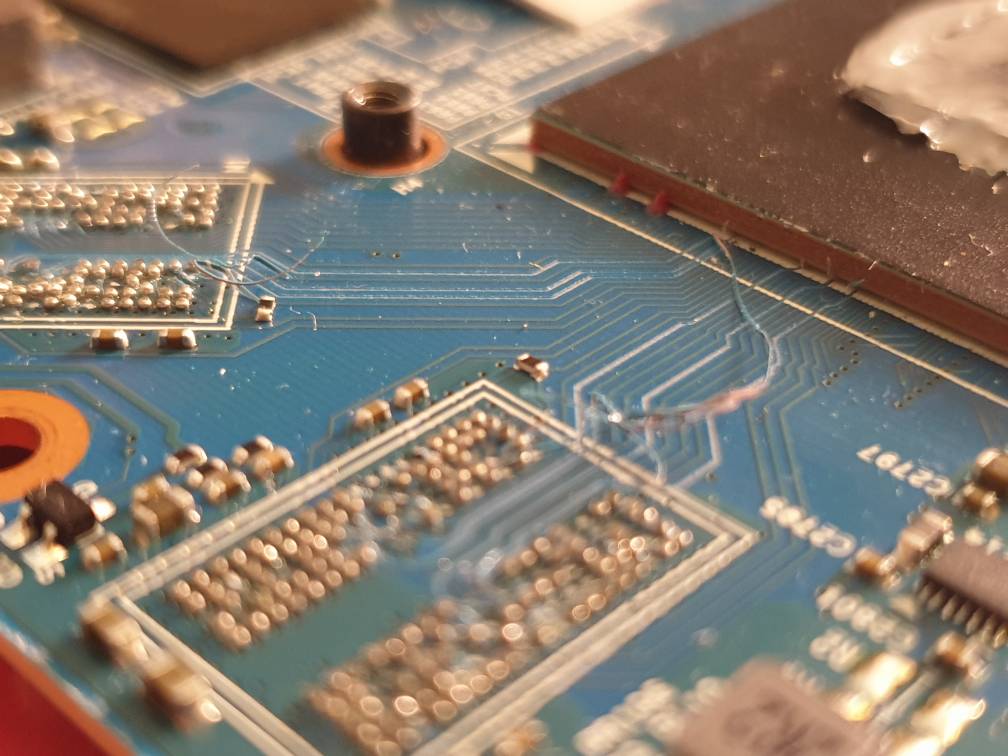

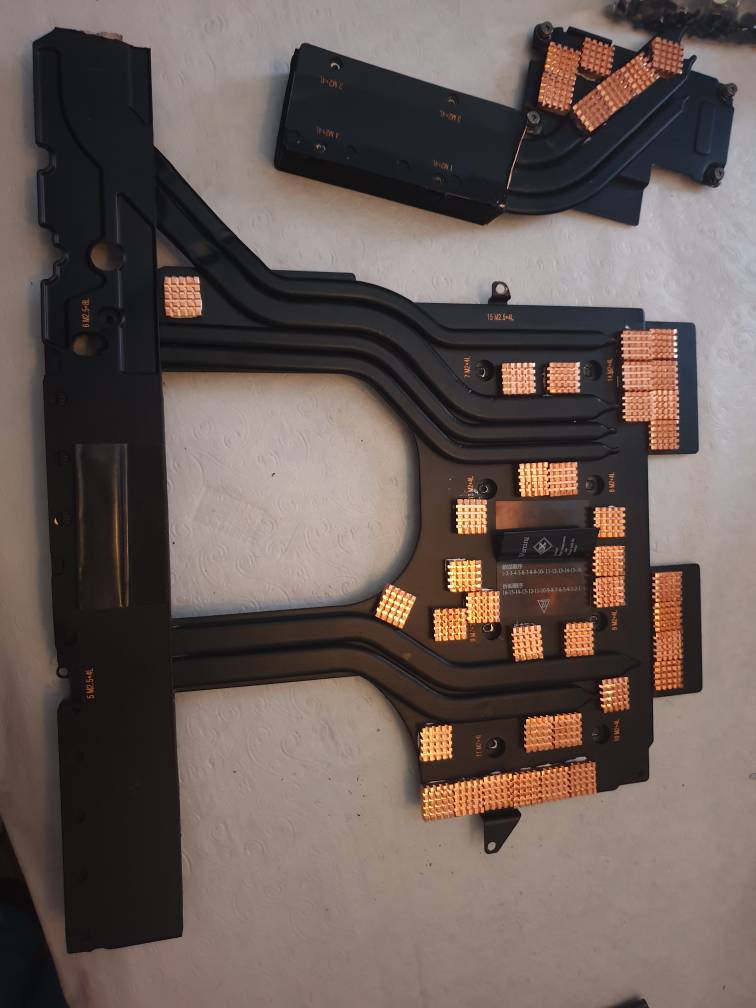

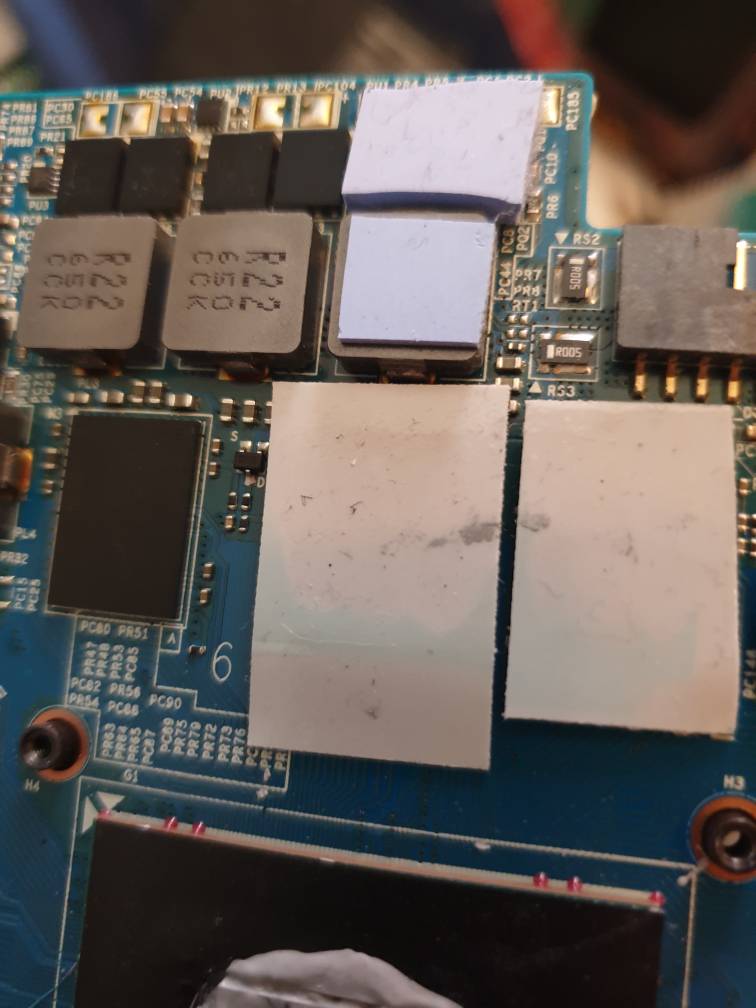

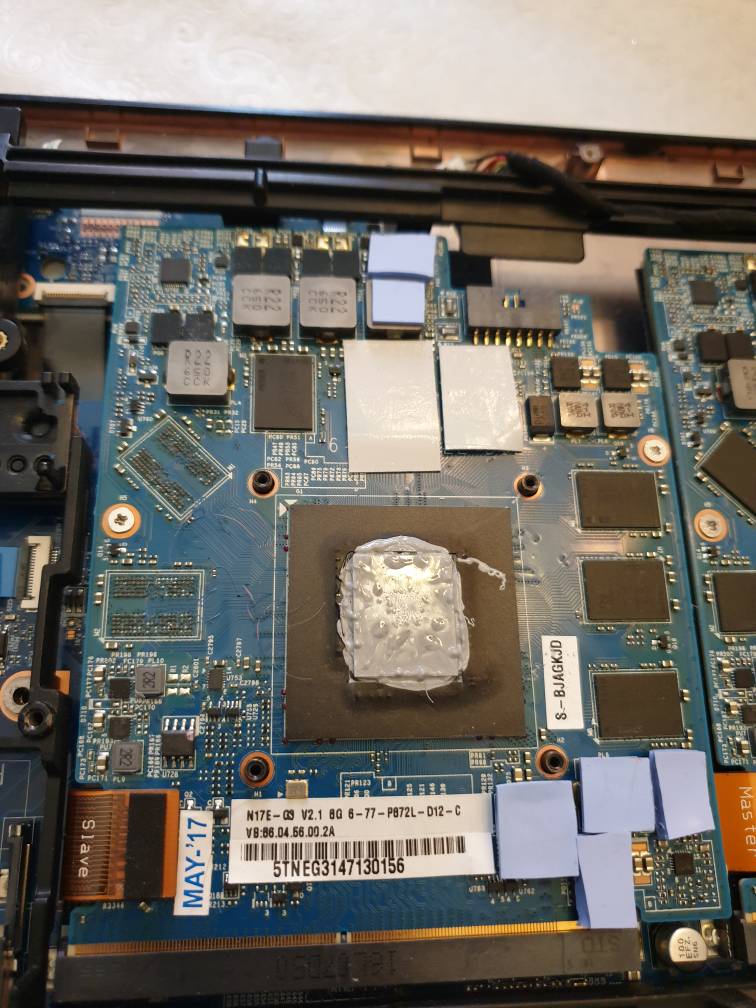

    So I was taking apart my P870KM and removed the vapor chamber (Hard to take off still is stuck to the CPU heatsink its so caked...) and the thermals were so caked to the Gpu is ripped off 2 Memory Modules and the Connections leading from the die to them. There looks to be GLUE possibly on the pads? Or so used up they are turning white from green.. The White Spots are a lot more sticky than the Green Parts off the Pads. If it is Glue the question is who would do something like that!? The previous user or the reseller? The pads are so stuck to the heatsink I have to scrape them off... Bought the system used a week ago obviously not well taken care off... This is an XoticPC BTW.. For anyone curious... Never seen anything like this so thought I would Share it... Pretty Pathetic... So I guess I'm looking for a 2nd 1080 then... [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 29, 2019
    #1
  2. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    TheDantee, Mar 29, 2019
    #2
  3. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    More images.... [​IMG] [​IMG] [​IMG]

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 29, 2019
    #3
  4. kothletino

    kothletino Notebook Evangelist

    Reputations:
    65
    Messages:
    311
    Likes Received:
    110
    Trophy Points:
    56
    [​IMG]

    kothletino, Mar 29, 2019
    #4
    Arrrrbol, Papusan, CedricFP and 1 other person like this.
  5. DARCODER

    DARCODER Notebook Deity

    Reputations:
    252
    Messages:
    779
    Likes Received:
    232
    Trophy Points:
    56
    Never seen that, who would glue pads and even if it was glue from both side of thermal pads, i dont understand why your pad didnt broke in two parts while you removed it. Then i dont know if it is the quality of your pictures, but your slave gpu has sign of beeing "cooked"

    DARCODER, Mar 29, 2019
    #5
  6. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    I was gonna say you could probably get those chips soldered back on with a hot air station but then I looked closer and saw the tears in the pcb as the layers were pulled apart :eek:

    Reminder why not to use adhesive

    bennyg, Mar 29, 2019
    #6
    TheDantee likes this.
  7. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Same thought as mine

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 29, 2019
    #7
  8. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Also looks cooked to me

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 29, 2019
    #8
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Memory chip pads should be 0.5mm, what thickness are they?

    Also no, while it should perhaps adhere slightly (the pad can stick so they stay with the heatsink or the card) bit maybe with 1/10th that adhesion?

    Those are not factory pads for sure.

    Meaker@Sager, Mar 30, 2019
    #9
  10. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    They were thin like document paper or printer paper. Not 0.5mm

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 30, 2019
    #10
  11. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76

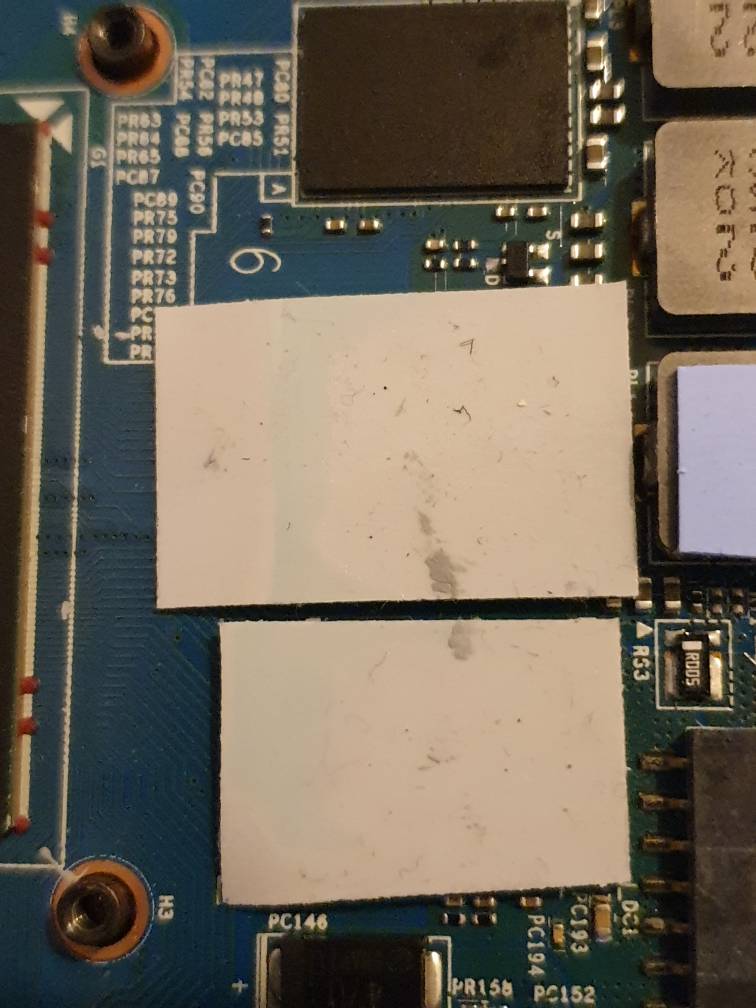

    Seems like it's crazy glue it's a clear adhesive under the pad but on top exposed to air where it would be touching the heatsink is white which is quite odd not to mention the are poorly cut

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 30, 2019
    #11
  12. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    I assume the same glue is used between the vapor chamber and cpu heatsink which is why I can't seem to get it off not even a little...

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 30, 2019
    #12
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931

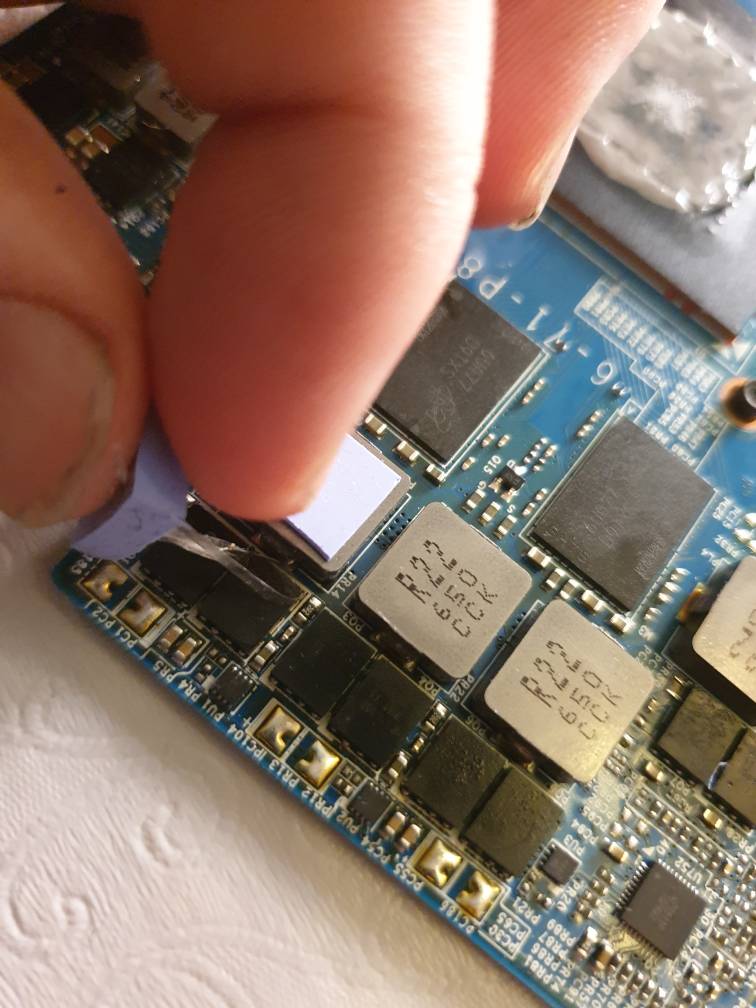

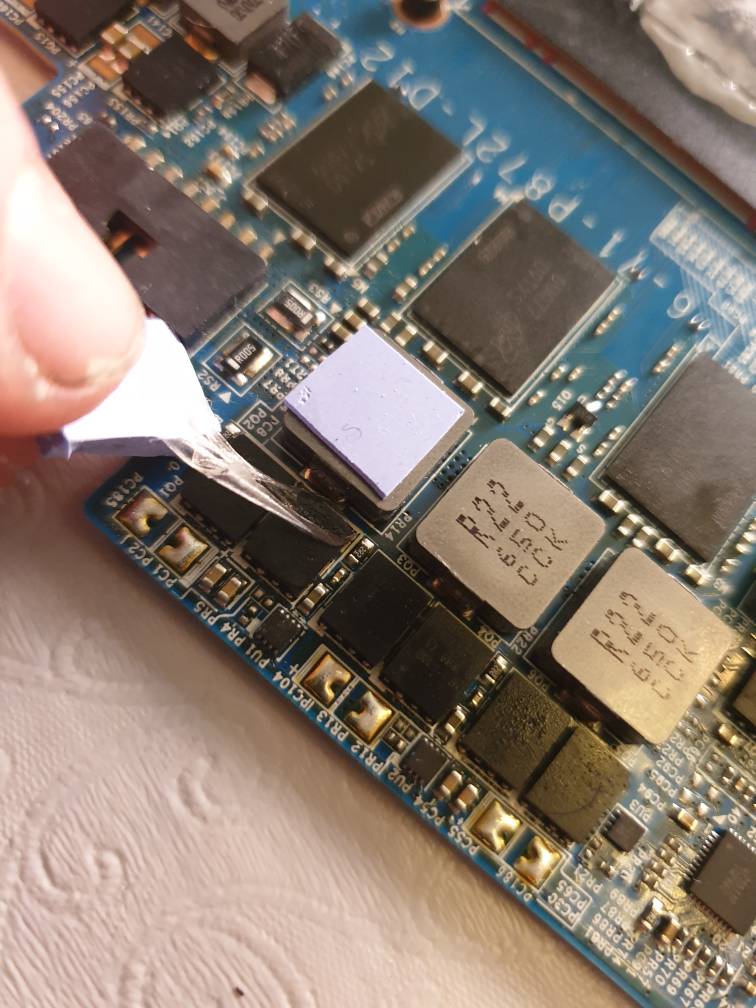

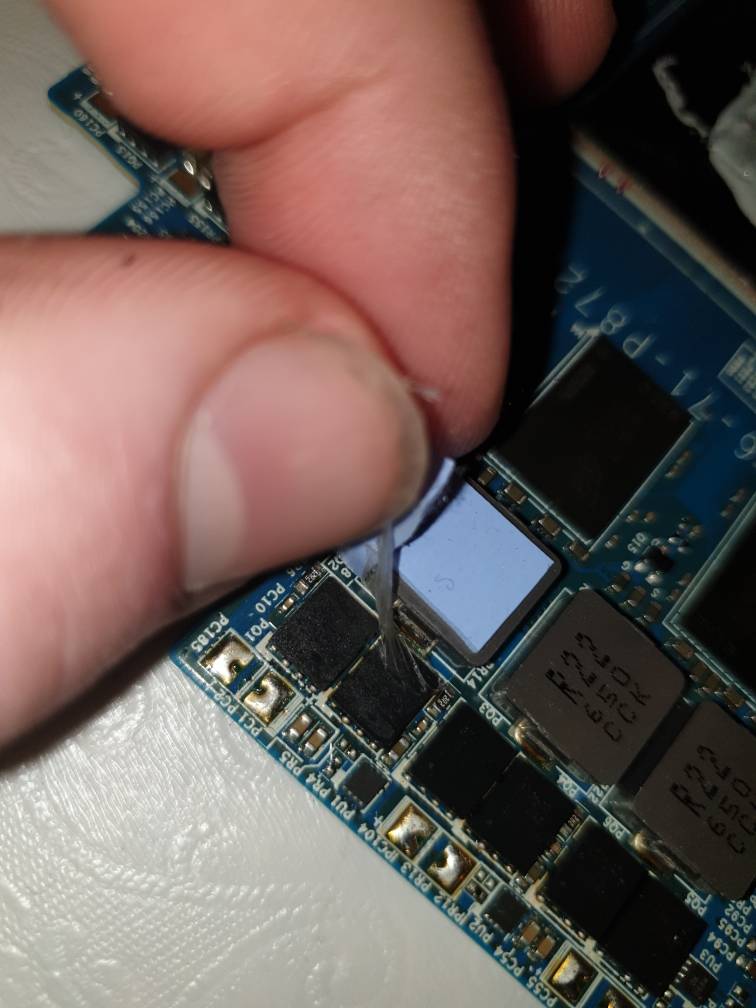

    I wonder if the person before you forgot to remove the protective plastic.

    Meaker@Sager, Mar 30, 2019
    #13
    TheDantee and jaybee83 like this.
  14. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    That could be it to... Crazy that it's so strong it ripped off 2 Vram Chips... And you can't even remove them from the heatsink by hand they need to be scrapped off

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 30, 2019
    #14
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Melted plastic would do that.

    Meaker@Sager, Mar 30, 2019
    #15
  16. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Doesn't explain why The CPU heatsink is stuck to the vapor chamber tho... I did message who I bought it from and he said he never opened it so maybe he bought it from someone also or stock from manufacturer? Cause when I bought it only had 32GB of ram in it the other 2 sticks he didn't feel comfortable putting in but he did have them. So kind of believable story.

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 30, 2019
    #16
  17. jc_denton

    jc_denton BGA? What a shame.

    Reputations:
    10,923
    Messages:
    3,036
    Likes Received:
    5,781
    Trophy Points:
    581
    Oh man that sucks :(

    jc_denton, Mar 30, 2019
    #17
    TheDantee likes this.
  18. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    A thermal pad sits between the part that makes contact between the two heatsinks.

    Quite frankly I suspect the original owner is lying.

    Meaker@Sager, Mar 30, 2019
    #18
    TheDantee likes this.
  19. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76
    Nothing I can really do if he is tho... You know Cash Deal so kinda screwed there...

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 30, 2019
    #19
  20. TheDantee

    TheDantee Notebook Evangelist

    Reputations:
    80
    Messages:
    504
    Likes Received:
    293
    Trophy Points:
    76

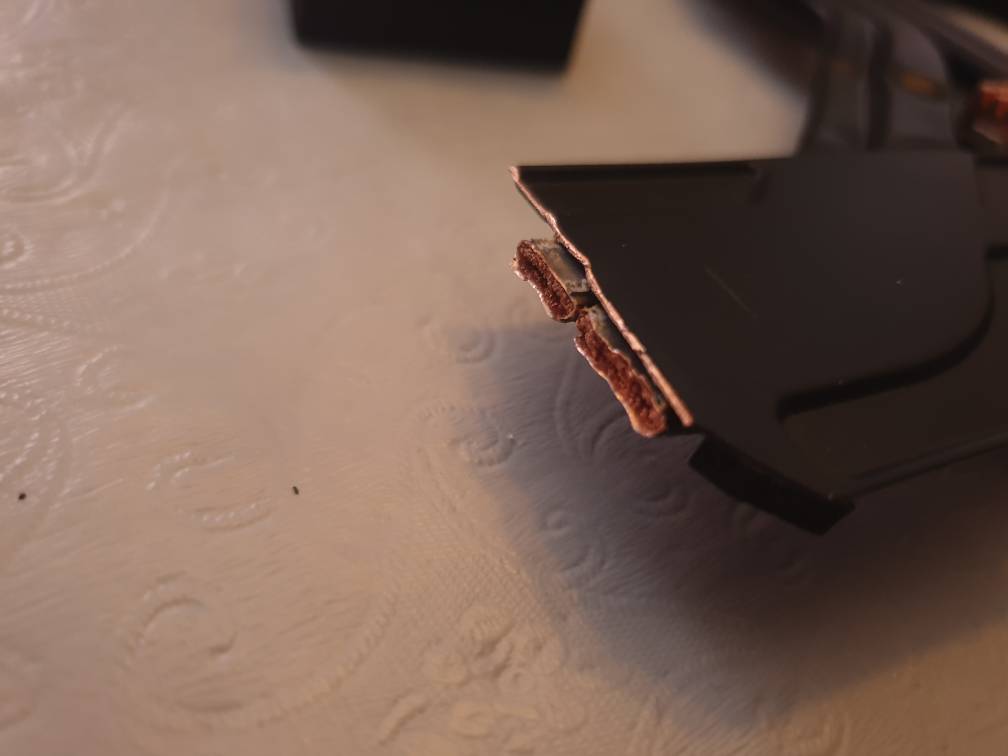

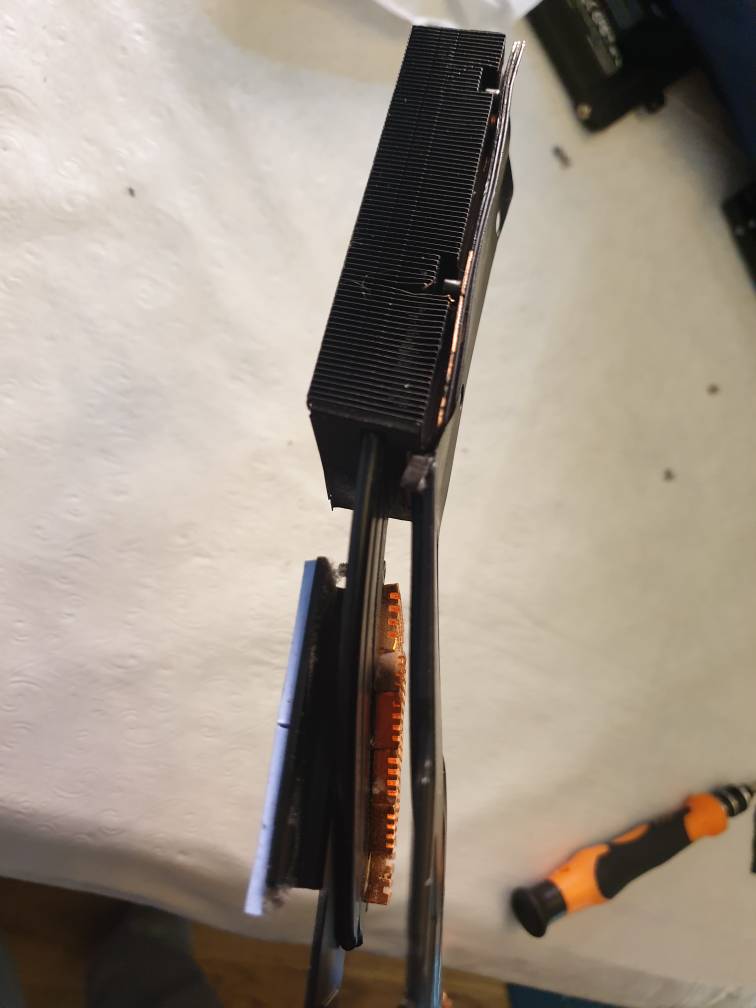

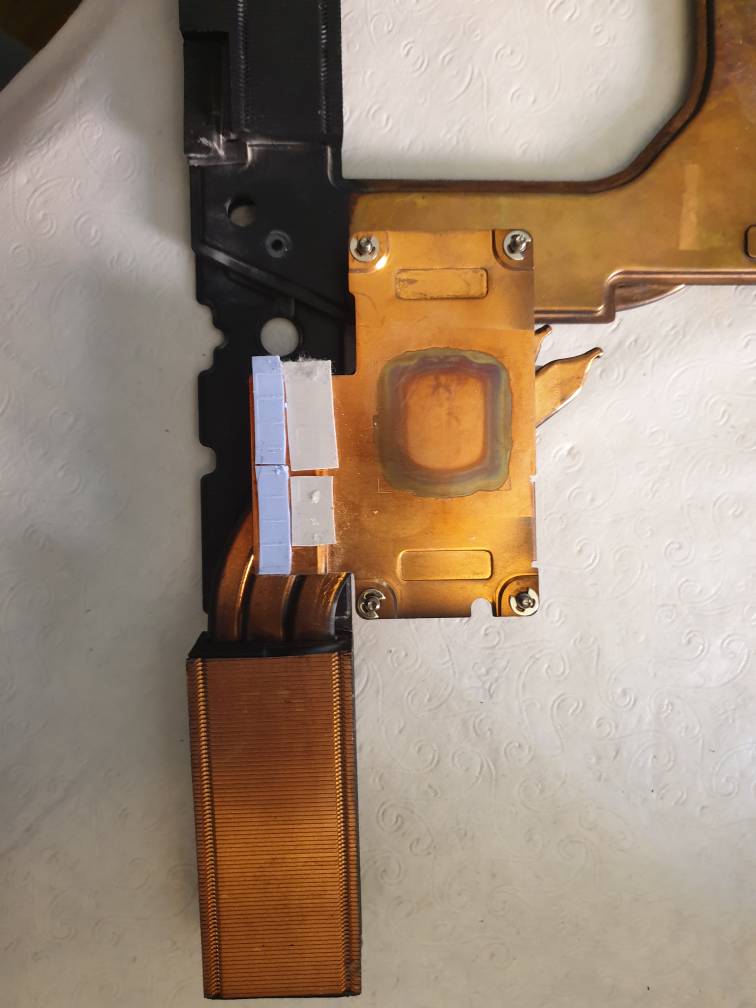

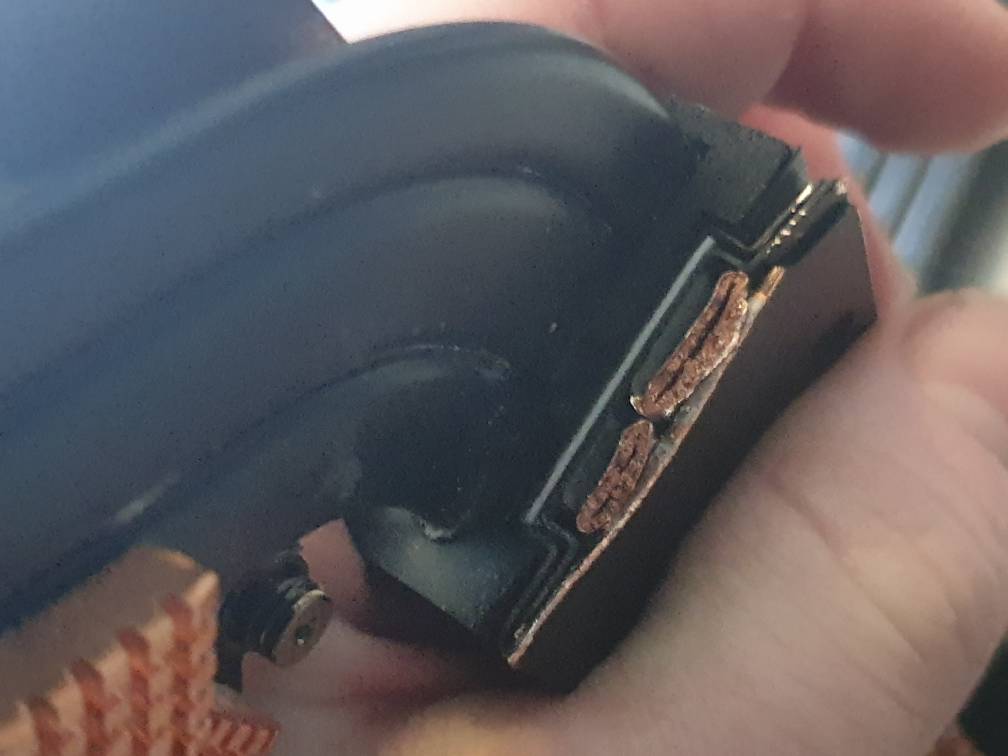

    Had 0 luck removing the vapor chamber from the CPU heatsink so had to end up snapping it off... It was completely stuck not even budging lifting with a flathead screwdriver [​IMG] [​IMG] [​IMG]

    Sent from my SM-N960F using Tapatalk

    TheDantee, Mar 31, 2019
    #20
  21. bennyg

    bennyg Notebook Virtuoso

    Reputations:
    1,567
    Messages:
    2,370
    Likes Received:
    2,375
    Trophy Points:
    181
    That white pad stuff is a double sided adhesive thermal tape isn't it?

    Man I feel so sorry for you but you should have asked for some tips on how to get that **** apart before... literally... tearing into it

    A heat gun may have softened the adhesive or you could have tried to soak isopropyl/metho/acetone in there to weaken the glue

    You should inspect the CPU socket closely as all that force being applied to the 4 screws might have ruined or warped the mainboard there too. If you get the bios chip soldered properly that may also produce the same symptom of short detected 1 second off/no post.

    bennyg, Apr 1, 2019
    #21
    jaybee83 and TheDantee like this.
  22. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I dont think anyone expects thermal tape taking a heatsink off and it would be hard to tell unless you have taken that heatsink off many times and know by feel what it's like coming off.

    Meaker@Sager, Apr 1, 2019
    #22
    Arrrrbol and jaybee83 like this.
  23. woodzstack

    woodzstack Alezka Computers , Official Clevo reseller.

    Reputations:
    1,201
    Messages:
    3,495
    Likes Received:
    2,593
    Trophy Points:
    231
    Ive never seen anything ever like this before, who the heck did this ?
    Superglue and epoxy or glue gun rubber/glue is not conducive to keeping things cool.

    This is insane, to see the memory come off like that. I'm just speachless...

    woodzstack, Apr 1, 2019
    #23
    Arrrrbol, jaybee83, Papusan and 2 others like this.
  24. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Not sure why benny thought the OP could have done anything.

    Meaker@Sager, Apr 1, 2019
    #24
    TheDantee, jaybee83 and woodzstack like this.
