    Dell 680m in a P150HM - No Post

    Discussion in 'Sager and Clevo' started by Grechie, Aug 7, 2018.

  1. Grechie

    Grechie Notebook Geek

    Reputations:
    20
    Messages:
    82
    Likes Received:
    3
    Trophy Points:
    16
    Hi All,

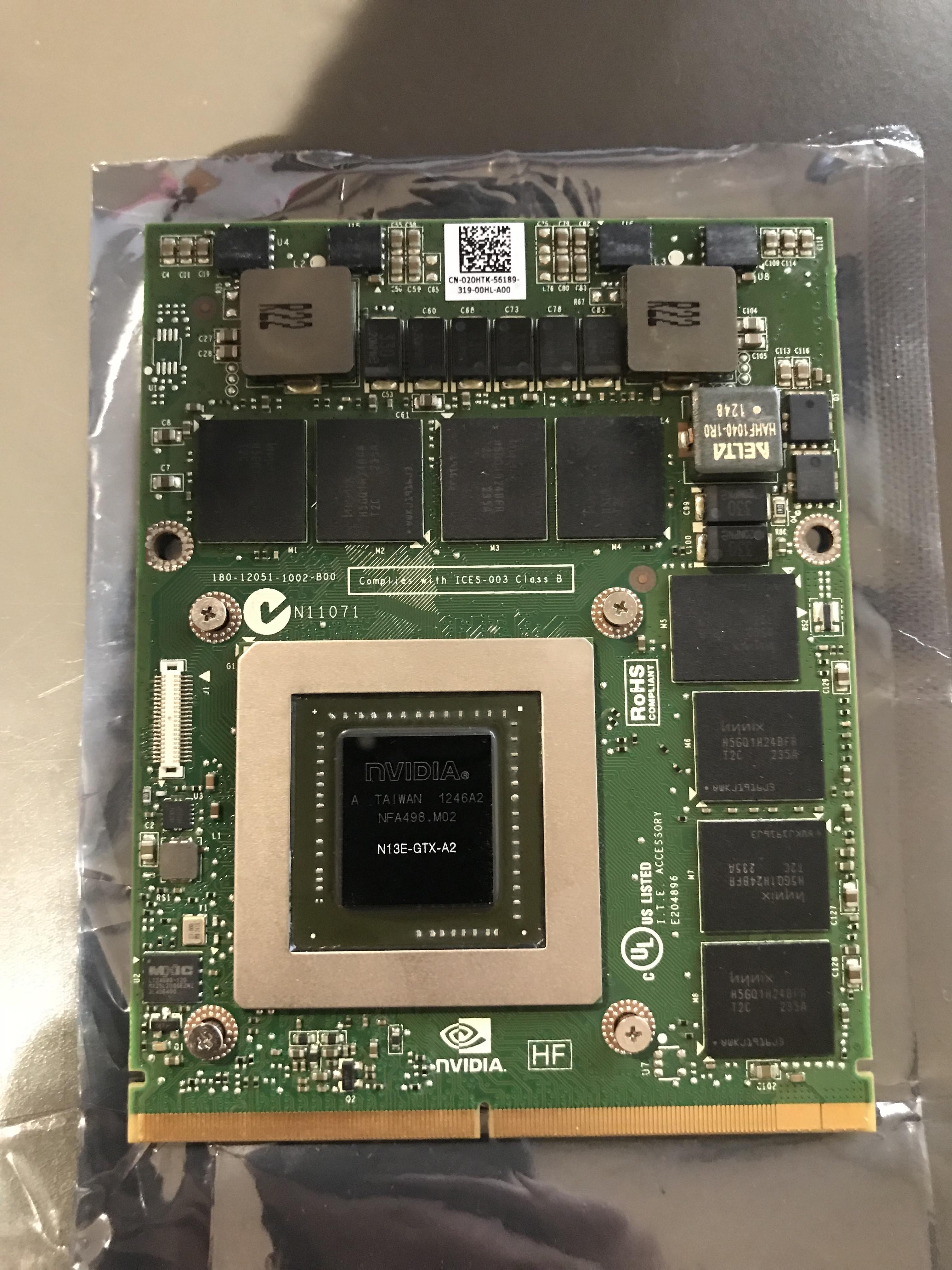

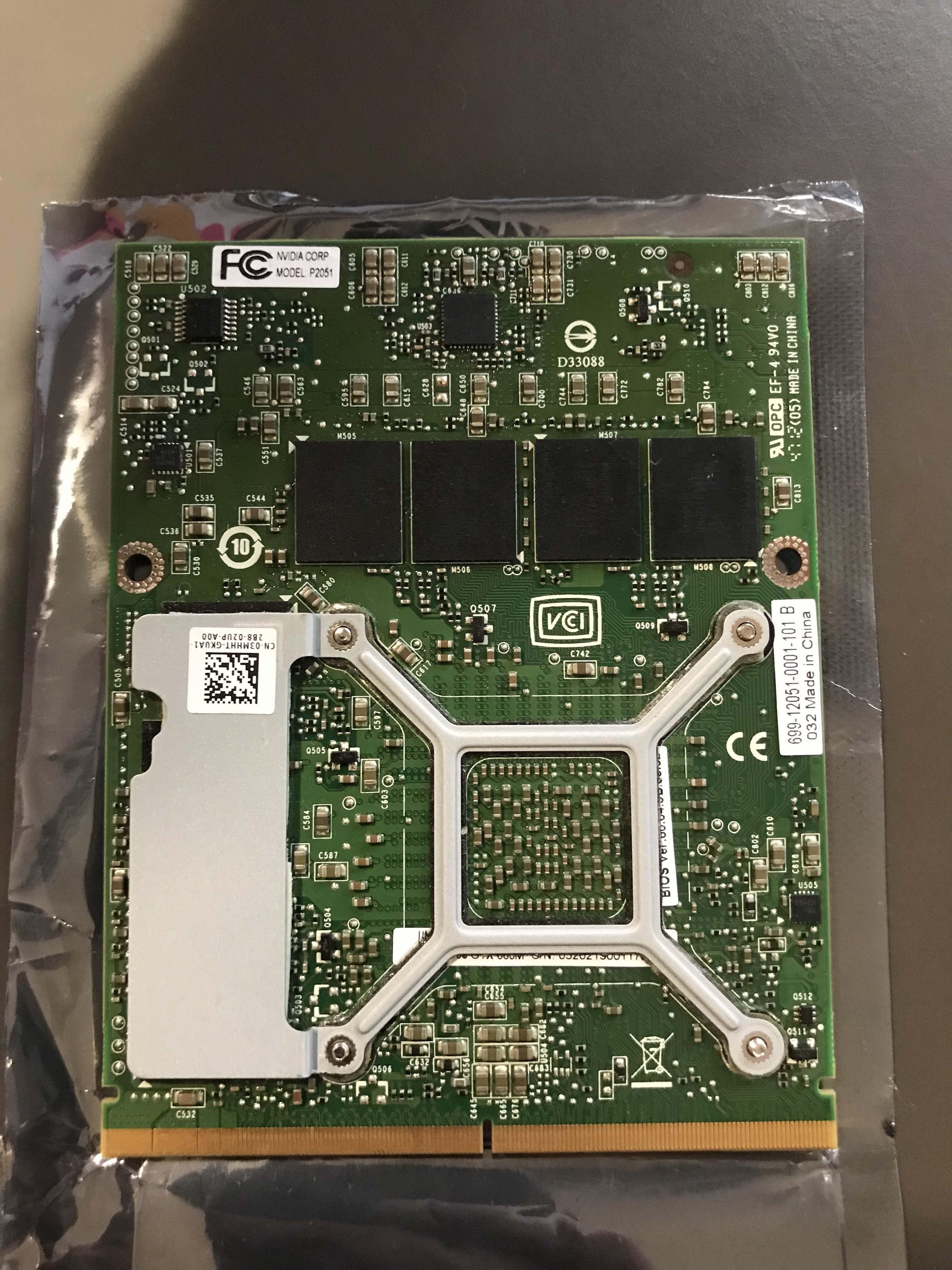

    I picked up a Dell 680m vBIOS 80.04.5B.00.02 (supposedly 4GB version but can't tell)

    After doing some research I fitted it into my Clevo P150HM hoping it would work, but and I get no POST, the LCD screen is blank, the HDD light does show activity but after ~ 15 seconds or so, 3 blinking lights appear on the left (power light, caps and insert buttons?) and the computer beeps about 4 times before it completely powers off.

    I'm guessing that I'm going to need to flash it to a clevo bios since the clevo bios doesn't recognise the dell vBIOS?

    I am running the latest 1.01.14 bios and 1.00.13 EC firmware for my P150hm.

    Does anyone have any ideas on what I can do? I thought i would at least get a POST but then struggle with the driver installation but i cant even get it to POST...

    Thanks!


    Attached Files:

    Grechie, Aug 7, 2018
    #1
  2. Arrrrbol

    Arrrrbol Notebook Deity

    Reputations:
    3,235
    Messages:
    707
    Likes Received:
    1,054
    Trophy Points:
    156
    Dell GPUs (with very rare exceptions) do not work in Clevos. Its not the vBIOS, its hardware (the EC) which causes the incompatibility. You would need the Clevo 680M to have it work (the blue one).

    Arrrrbol, Aug 8, 2018
    #2
  3. Grechie

    Grechie Notebook Geek

    Reputations:
    20
    Messages:
    82
    Likes Received:
    3
    Trophy Points:
    16
    Bummer!

    Grechie, Aug 8, 2018
    #3
    Arrrrbol likes this.
  4. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    I have a P150HM running a Dell GTX680M 2GB . With a OC VBios

    I think I modified the .inf in the nvidia drivers

    This morning I just put a HARD DRIVE in the laptop to check if I had done this before ( i have to many clevo laptops ) 20180809_081935.jpg 20180809_081923.jpg Screenshot_20180809-082257_Gallery.jpg

    Damin, Aug 9, 2018
    #4
    Arrrrbol likes this.
  5. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    PS!
    Do not flash a 4GB GPU with a 2GB VBios you will kill your card !!!!

    I just posted this to show you Dell can work in Clevo for NVIDIA

    Damin, Aug 9, 2018
    #5
    Arrrrbol likes this.
  6. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    Lucky for you that seems to be the 2GB Dell card you have there .... just Google the VBios

    https://www.techpowerup.com/vgabios/143671/143671

    Damin, Aug 9, 2018
    #6
    Arrrrbol likes this.
  7. MatheusJuste

    MatheusJuste Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hello, my friend could give me the site where to fix the latest bios version of the note, I'm sorry that English is not my native language

    MatheusJuste, Sep 13, 2018
    #7
  8. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    the vbios for your card ?

    take a look hear but make sure the numbers match up !! otherwise you might kill your GPU !

    https://www.techpowerup.com/vgabios/143671/143671

    Damin, Sep 13, 2018
    #8
  9. MatheusJuste

    MatheusJuste Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    [QUOTE = "Damin, post: 10794387, membro: 687325"] o vbios para o seu cartão?

    Dê uma olhada ouça, mas certifique-se de que os números combinam !! caso contrário, você pode matar sua GPU!

    https://www.techpowerup.com/vgabios/143671/143671 [/ QUOTE]


    Eu atualmente uso um gtx 260m, porque meu 580m parou de dar vídeo, eu gostaria que o BIOS fizesse o meu Clevo p150hm.

    MatheusJuste, Sep 13, 2018
    #9
  10. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    Probably

    Damin, Sep 13, 2018
    #10
  11. MatheusJuste

    MatheusJuste Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    I would have a bios update tutorial for clevo, I am trying to find two weeks to update bios revision and KBC / EC, could you help me?

    MatheusJuste, Sep 13, 2018
    #11
  12. Damin

    Damin Notebook Consultant

    Reputations:
    15
    Messages:
    219
    Likes Received:
    48
    Trophy Points:
    41
    Damin, Sep 13, 2018
    #12
  13. MatheusJuste

    MatheusJuste Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Muito obrigado, vou entrar em contato :)

    MatheusJuste, Sep 13, 2018
    #13
