    Extreme GTX580M Overclocking

    Discussion in 'Sager and Clevo' started by DGDXGDG, Jul 19, 2011.

  1. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31

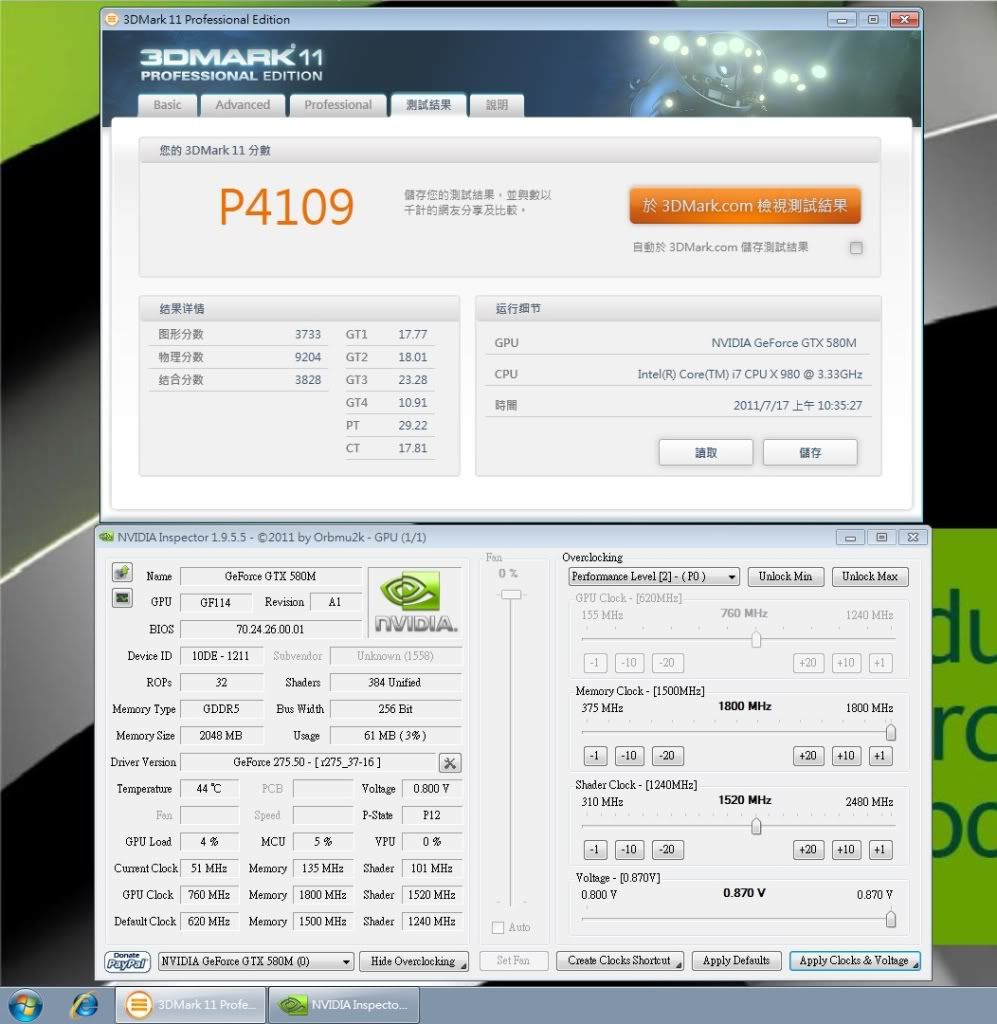

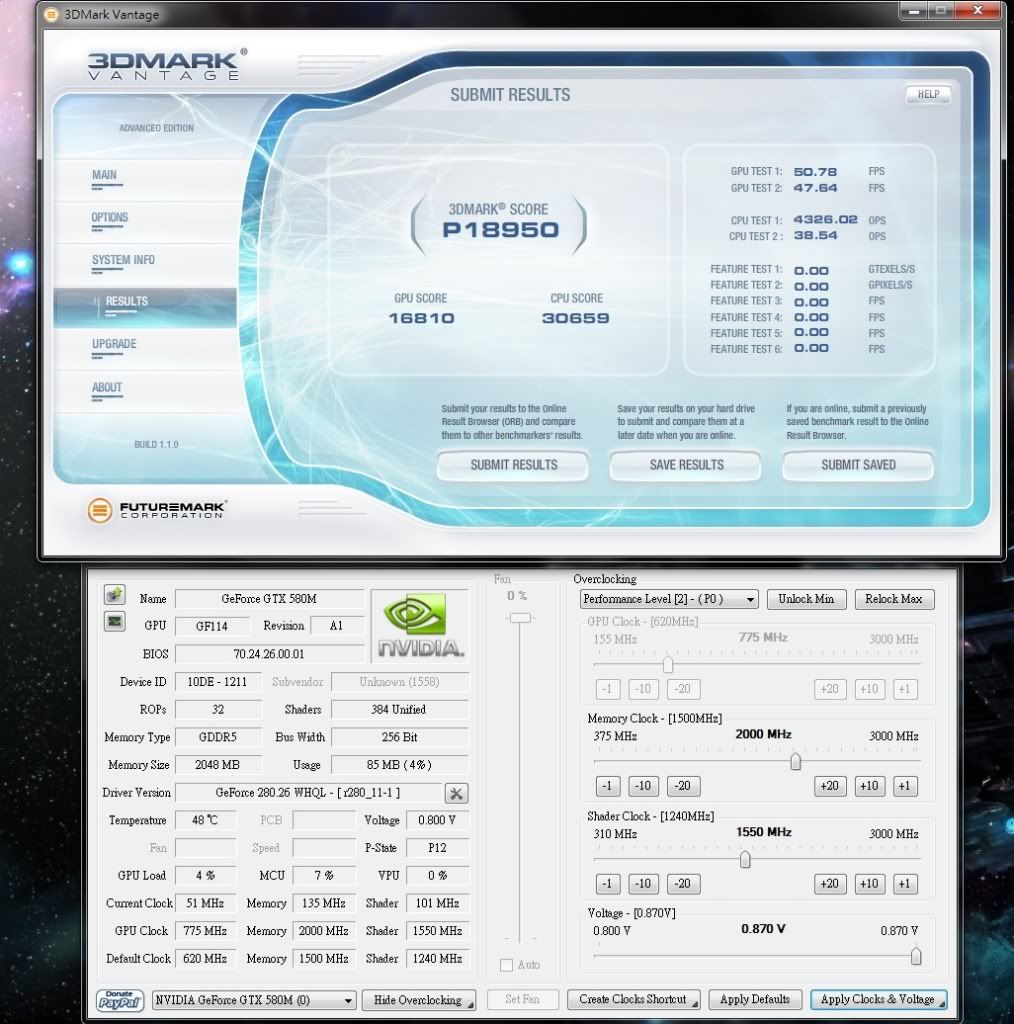

    275.50 beta, stock 0.87v can do 760/1800, 30mhz more than [email protected]
    [​IMG]
    [​IMG]

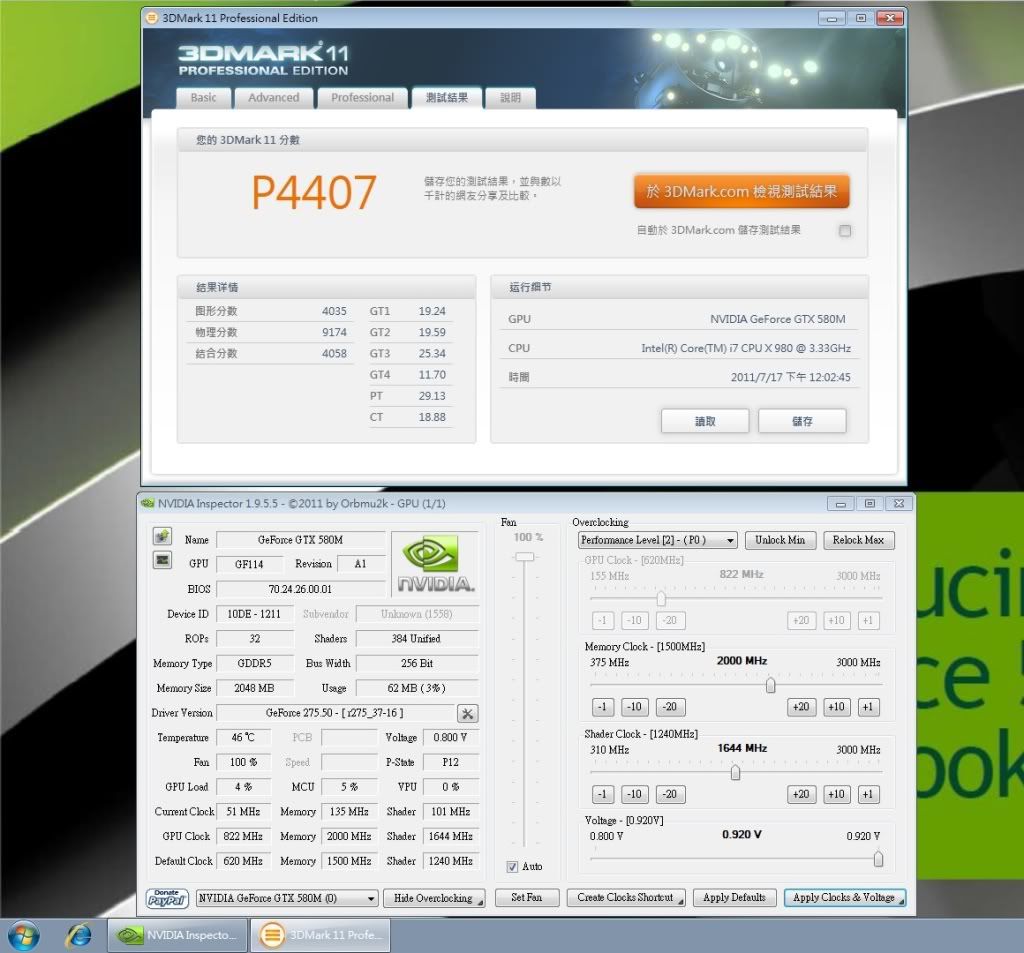

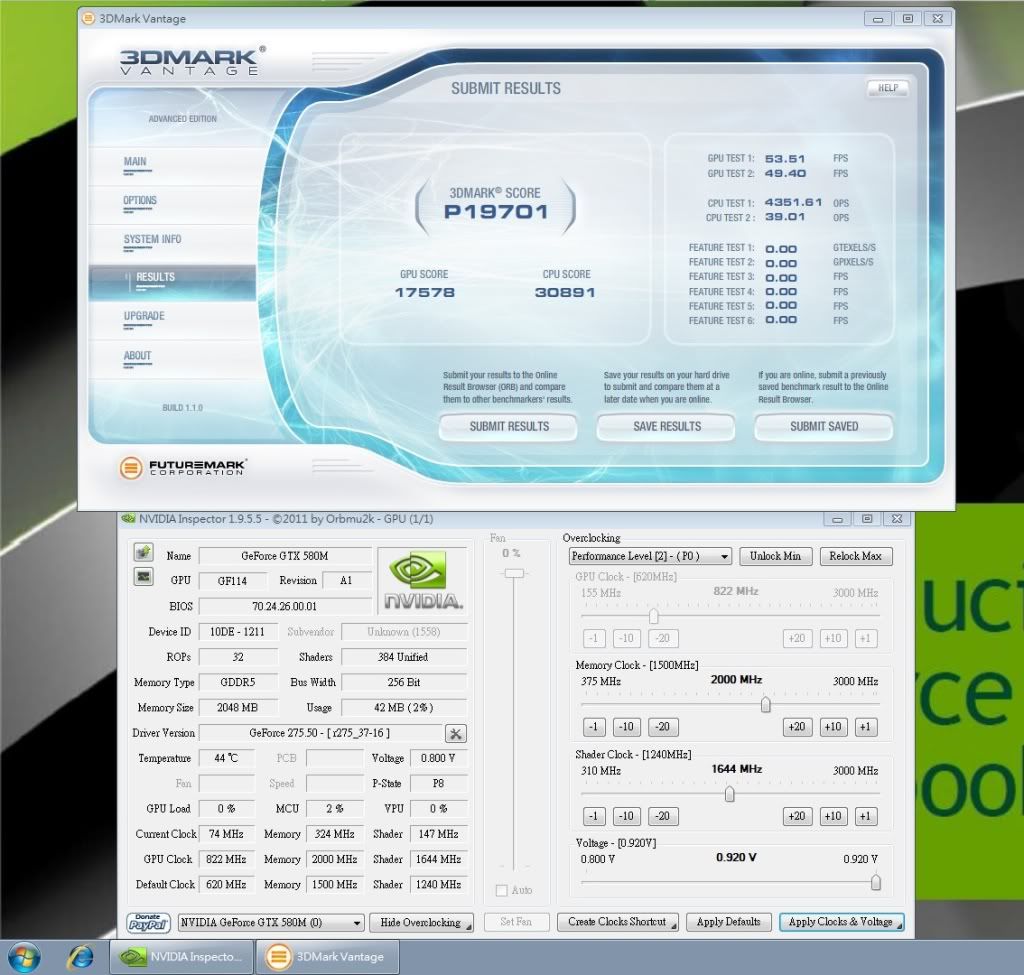

    flash to unlocked 0.92v bios catch up stock gtx560ti :D
    [​IMG]
    [​IMG]

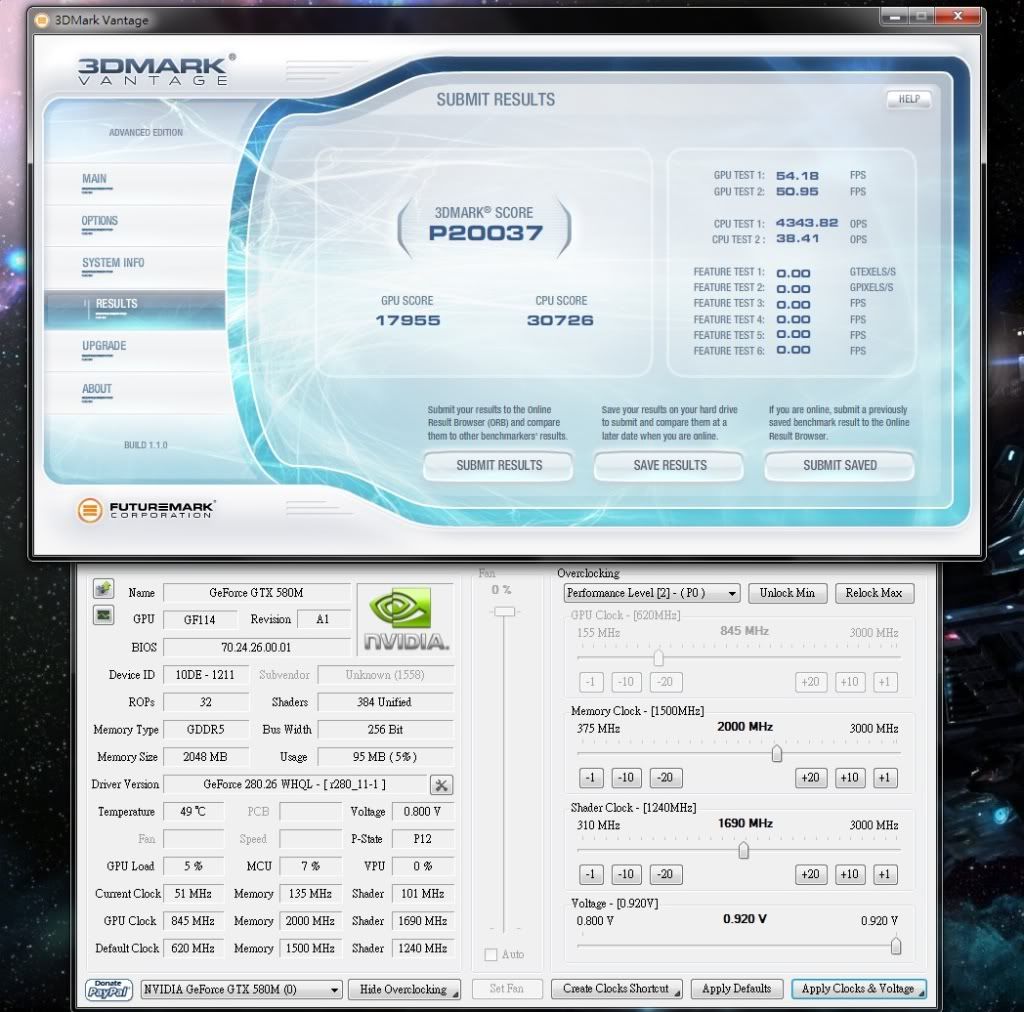

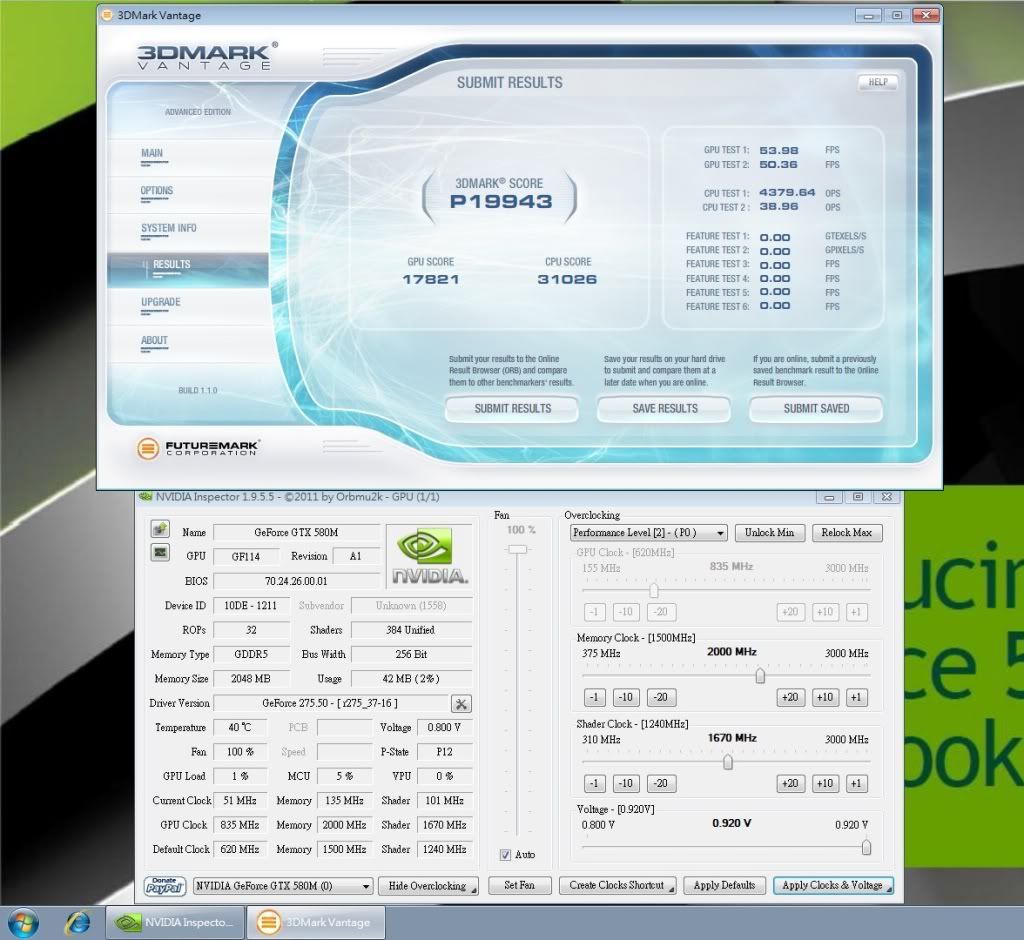

    continue rise to 835/2000 :eek: ,hd6990m have to manage to break 1000mhz defeating it :D
    [​IMG]

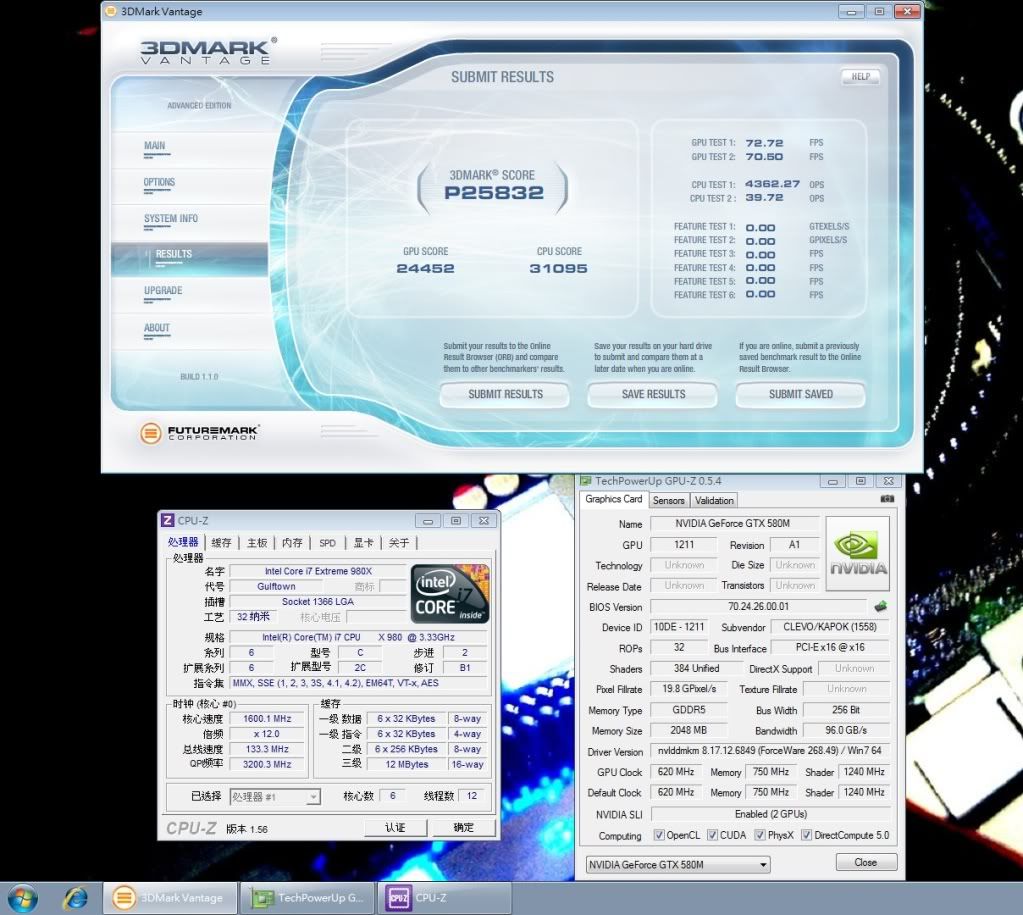

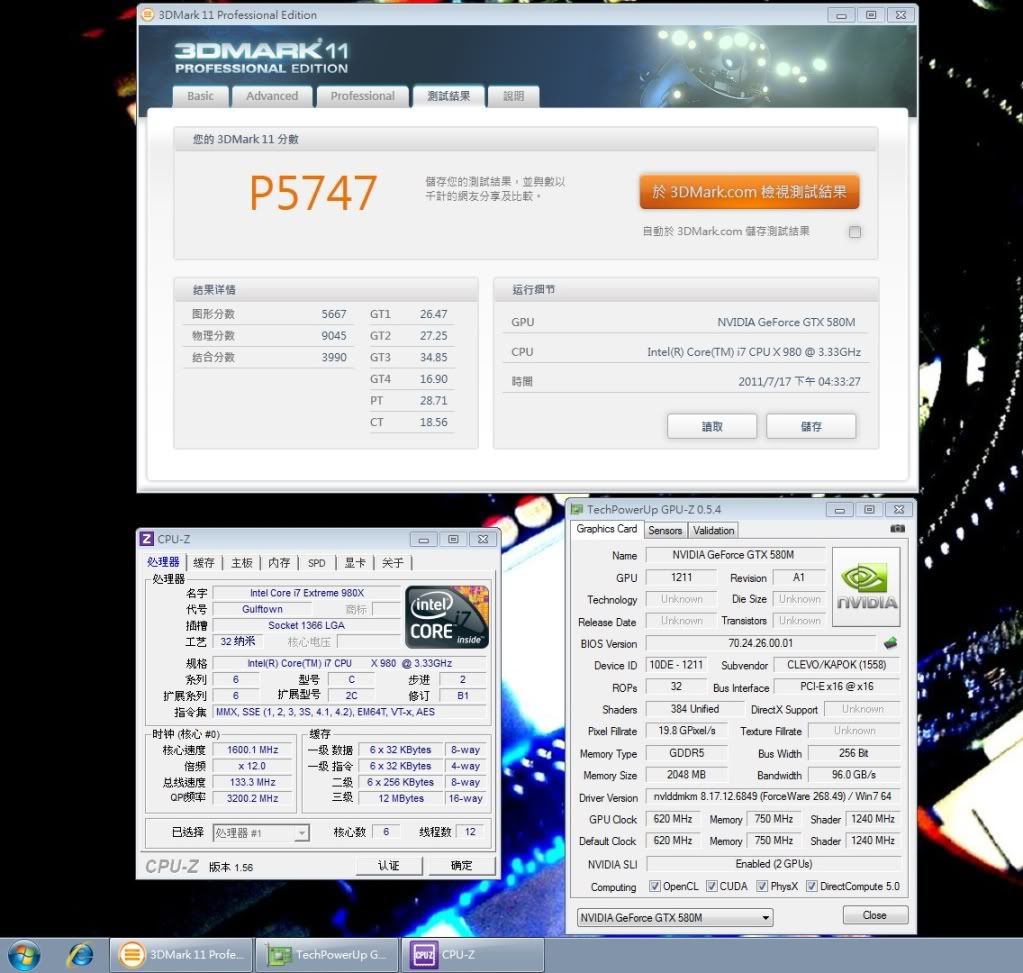

    275.50 cant enable sli, so change to clevo 268.49, vantage as good as 280.07, but 11 score the same as [email protected] :mad:
    [​IMG]
    [​IMG]

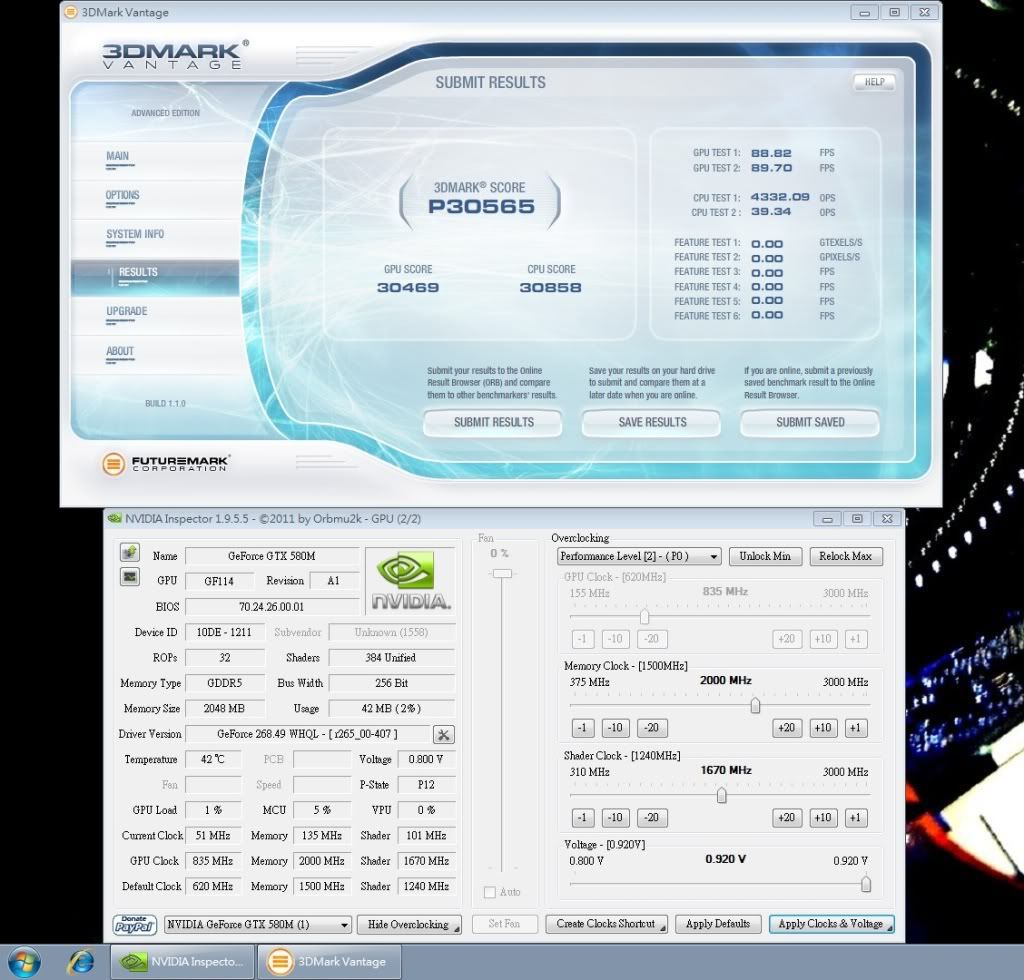

    oc to 835/2000 breakthrough 30k gpu :D
    [​IMG]

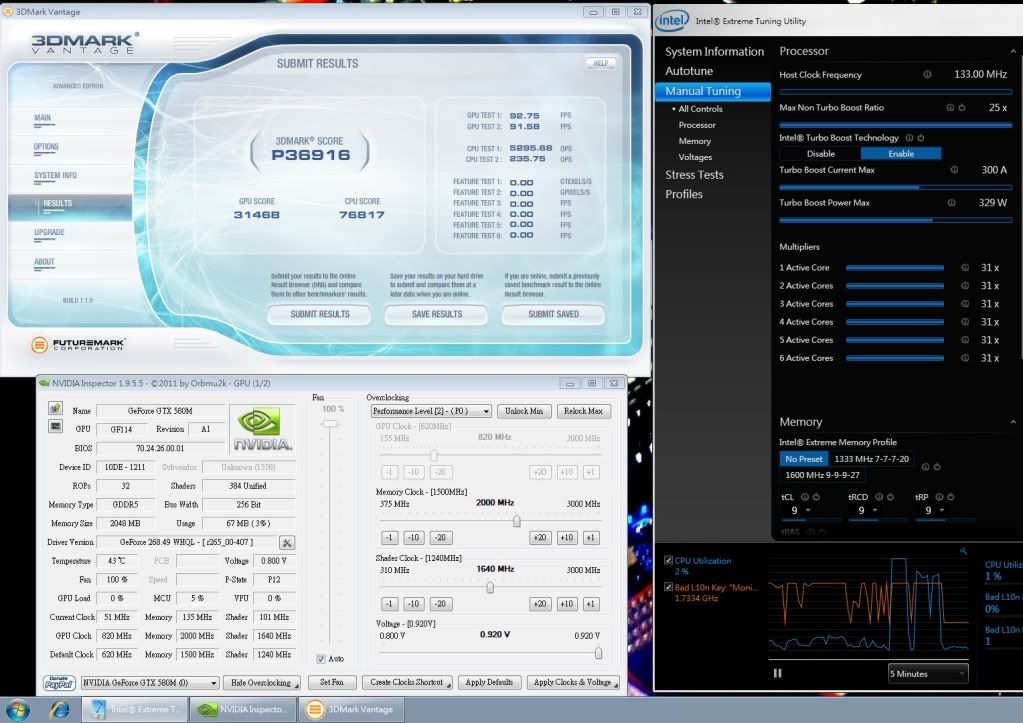

    [email protected] 580m@820/2000 dual oc (clevo driver not stable when cpu oc, stop responde&quit to desktop.......so down to 820)
    [​IMG]
    physx on lol :p
    [​IMG]

    DGDXGDG, Jul 19, 2011
    #1
  2. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31

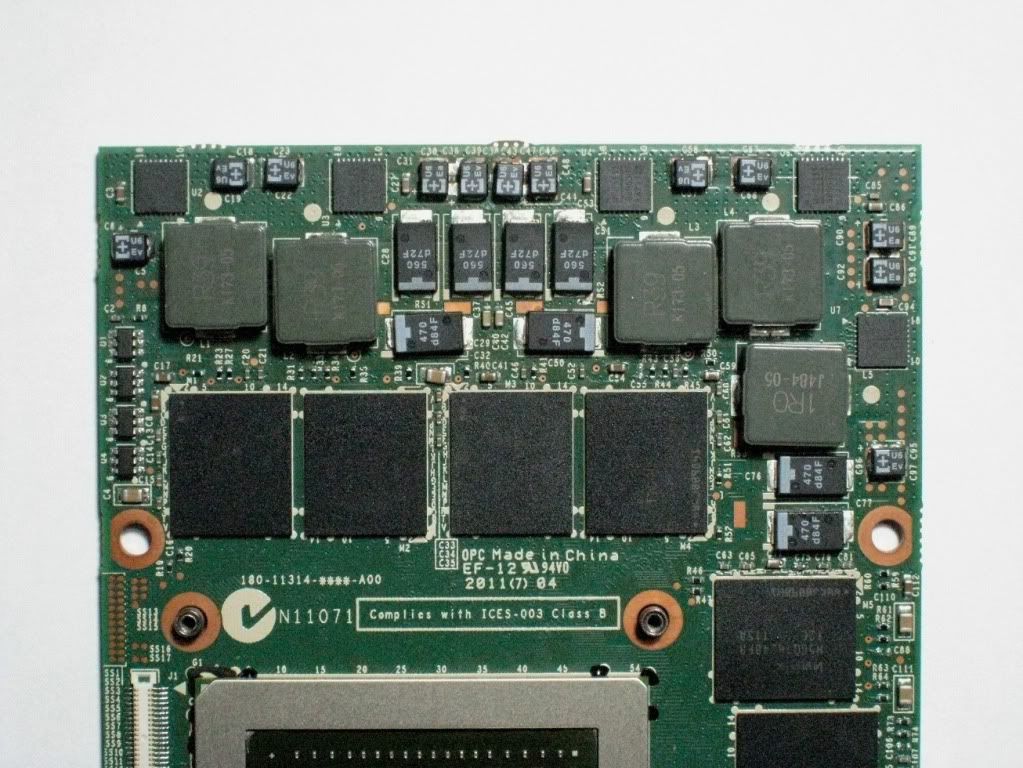

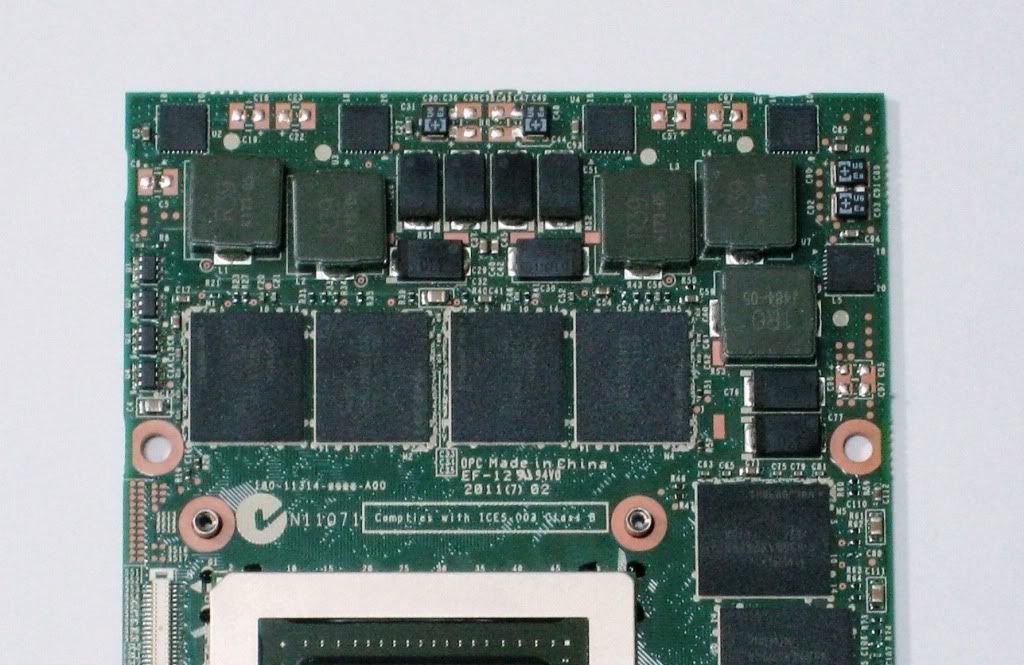

    capacitor modification......a little improvement :)

    ive been thinking about adding more capacitors on 580m since first saw its layout
    stock spcap 2v 330uf*8>>>>poscap 2v 560uf*4(core) 470uf*4(core*2/mem*2)
    add poscap 25v 5.6uf*8(mos)
    [​IMG]

    [​IMG]


    _________________________________________________________________________________

    [​IMG]
    [​IMG]

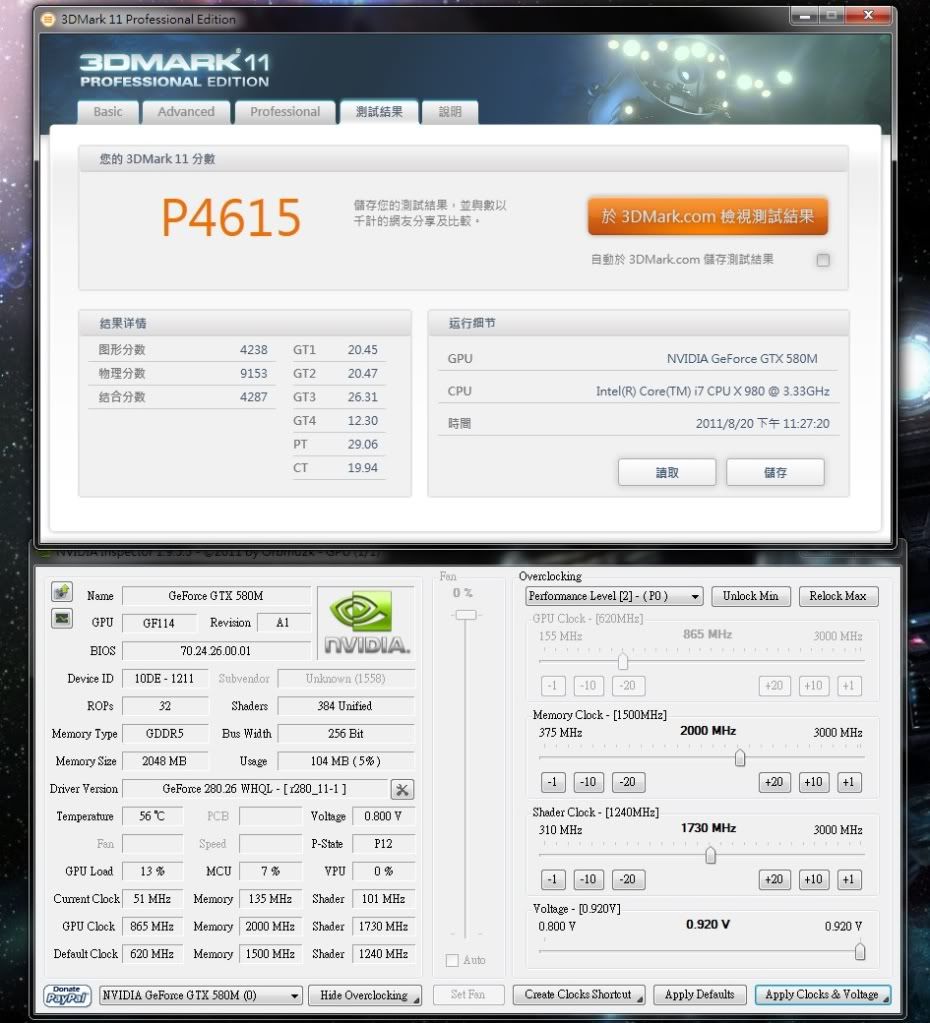

    0.92v
    [​IMG]
    [​IMG]

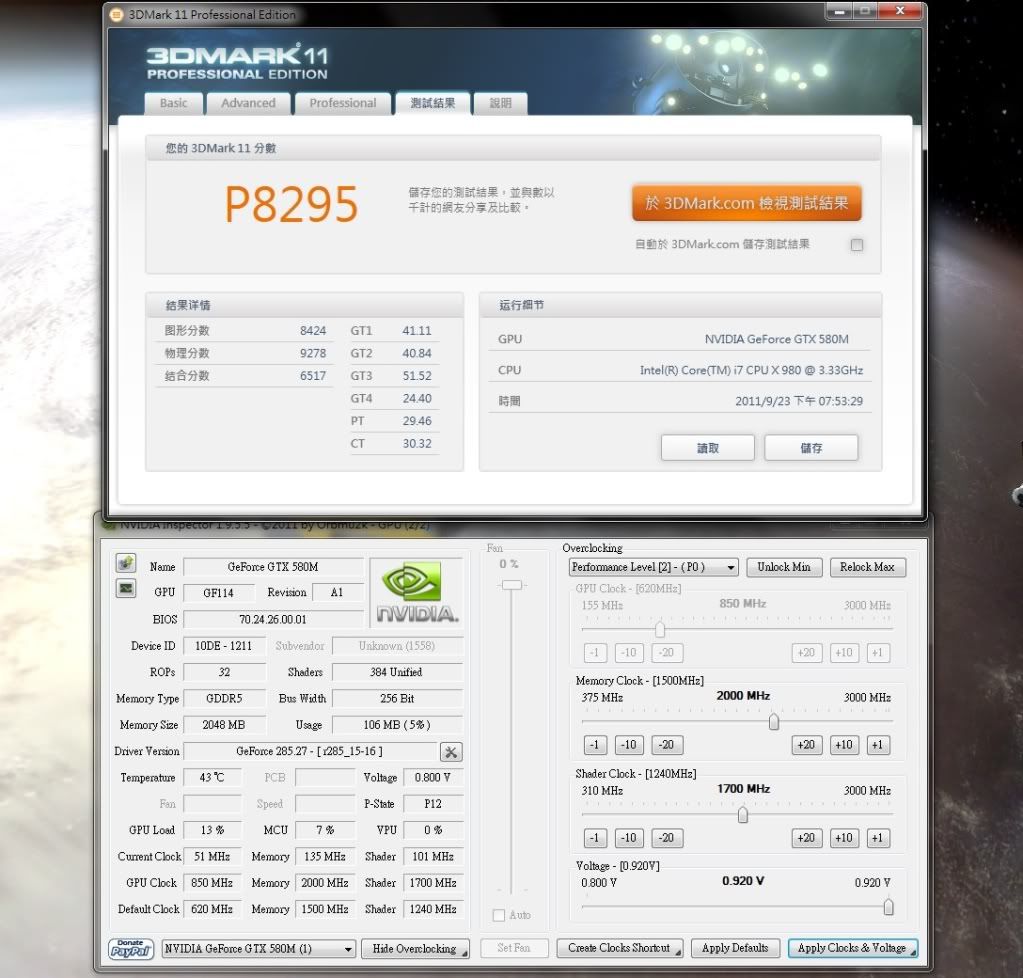

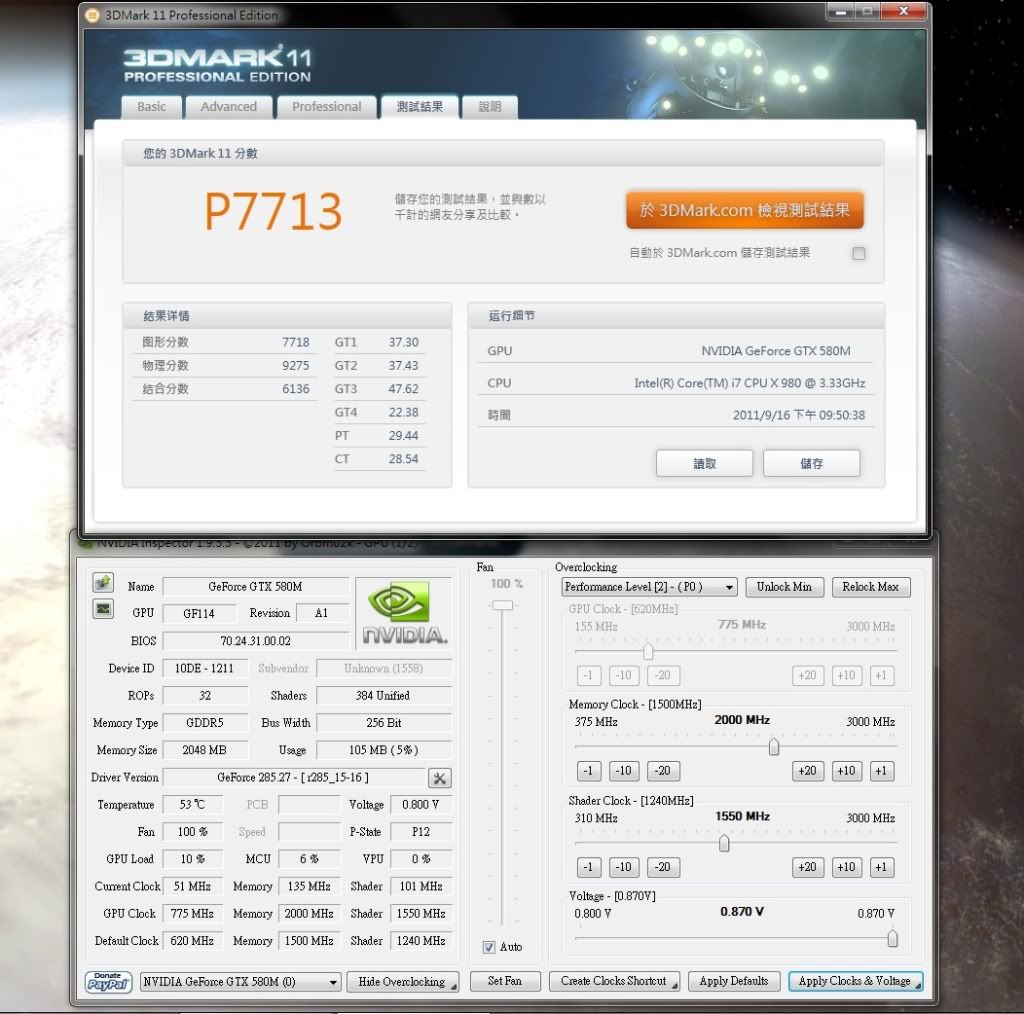

    update 285.27 beta

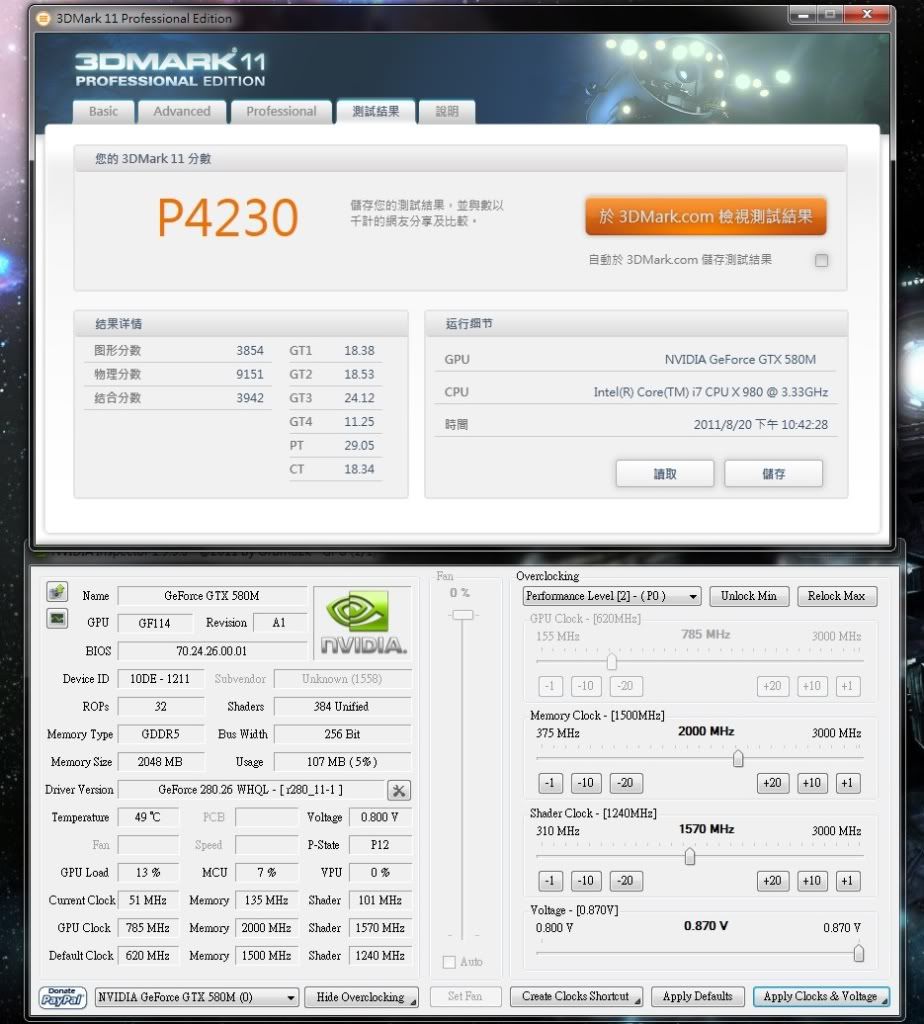

    0.87v
    [​IMG]

    0.92v......gpu score already higher than overall score
    [​IMG]


    so the voltage is still a bottom neck, having a hard time finding which resistance can rise voltage these days, bcz theres no way measuring working laptop vga with multimeter..........anyone can interpret chil pwm? i tried vrtn tsen but no luck :(

    DGDXGDG, Jul 19, 2011
    #2
  3. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    580m really worths $200 more than 485m when extremely overclocking I think.
    And what about temp?

    Saltius, Jul 19, 2011
    #3
  4. Shaden

    Shaden Notebook Deity

    Reputations:
    827
    Messages:
    1,337
    Likes Received:
    7
    Trophy Points:
    56
    Yea a few questions here ... we need to know ...

    Paste ? Stock, IC Diamond, what ?
    Ambient room temp ?
    Any Additional cooling ?
    On flat surface or raised for airflow ?

    Also .. rather weak 3dmark 11 score, my 6970s get that kind of score stock with 2630 CPU ...

    Shaden, Jul 19, 2011
    #4
  5. Shaden

    Shaden Notebook Deity

    Reputations:
    827
    Messages:
    1,337
    Likes Received:
    7
    Trophy Points:
    56
    some crazzzzzzy vantage scores

    Shaden, Jul 19, 2011
    #5
  6. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    i use mx3
    room 26~27c
    no additional cooling, on flat desk

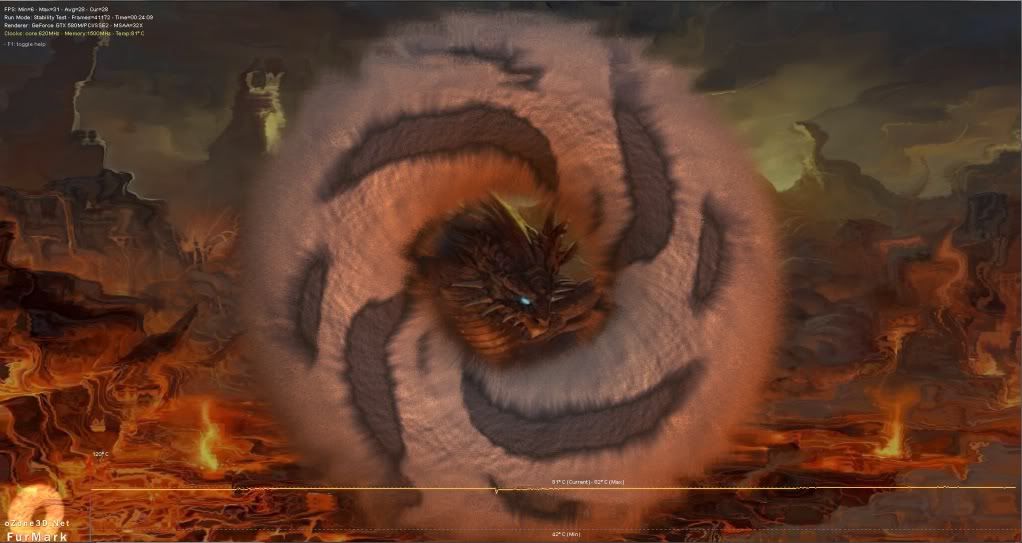

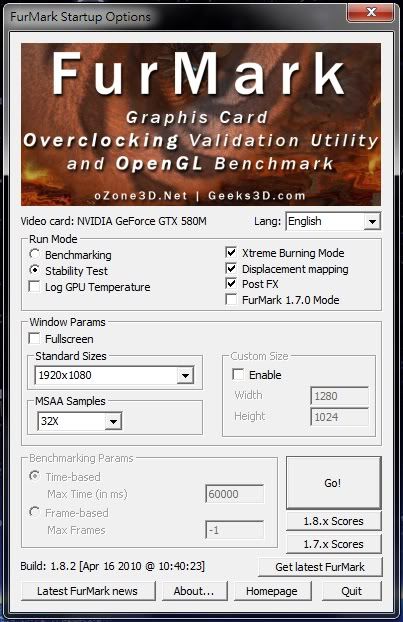

    oc benching/gaming all under 80c, running furmark with 0.92v +stock clocks up to 90~92c

    DGDXGDG, Jul 19, 2011
    #6
  7. Red Line

    Red Line Notebook Deity

    Reputations:
    1,109
    Messages:
    1,289
    Likes Received:
    141
    Trophy Points:
    81
    Yeah, man! we're interested in temps, whith such hell of an overclock you should be in an 15C room, probably) anyways +1rep for the excellent job, as always)

    I'm so excited for my cards to arrive now, we just need to wait for a proper drivers set to make a final judgment! That's why 3dmark11 had some poor scores...

    How did you unlock 0.92v bios? Can you share a profile? Thanks

    Red Line, Jul 19, 2011
    #7
  8. Saltius

    Saltius Notebook Evangelist

    Reputations:
    626
    Messages:
    321
    Likes Received:
    3
    Trophy Points:
    31
    Saltius, Jul 19, 2011
    #8
  9. Red Line

    Red Line Notebook Deity

    Reputations:
    1,109
    Messages:
    1,289
    Likes Received:
    141
    Trophy Points:
    81
    Oh thanks, man! i'll try that later on) hope m18x handles 0.92v, but i have my doubts. I want to acheive a highest stable OC on a stock voltage :cool:

    Red Line, Jul 19, 2011
    #9
  10. Red Line

    Red Line Notebook Deity

    Reputations:
    1,109
    Messages:
    1,289
    Likes Received:
    141
    Trophy Points:
    81
    Hey, DGDXGDG was 760/1800 the maximum overclock for stock voltage on your cards?

    Red Line, Jul 19, 2011
    #10
  11. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    the max for my 485m on stock voltage is 705mhz from 575mhz.

    aduy, Jul 19, 2011
    #11
  12. Grechie

    Grechie Notebook Geek

    Reputations:
    20
    Messages:
    82
    Likes Received:
    3
    Trophy Points:
    16
    Good stuff DGDXGDG!!!

    Ive posted my bios of the 560m over there to see if he can get anything out of it.

    Grechie, Jul 19, 2011
    #12
  13. Speedy Gonzalez

    Speedy Gonzalez Xtreme Notebook Speeder!

    Reputations:
    5,447
    Messages:
    3,143
    Likes Received:
    27
    Trophy Points:
    116
    wow 215mhz over the stock clock you are a serious overclocker :)

    Speedy Gonzalez, Jul 19, 2011
    #13
  14. d2c

    d2c Notebook Consultant

    Reputations:
    6
    Messages:
    214
    Likes Received:
    5
    Trophy Points:
    31
    dam cant wait for my laptop with gtx 580m to arrive, i wont oc since it will void warranty. but nice scores, do u plan to post a review?

    d2c, Jul 19, 2011
    #14
  15. Tirenz

    Tirenz Notebook Evangelist

    Reputations:
    735
    Messages:
    651
    Likes Received:
    26
    Trophy Points:
    41
    Wow, that are some heavy benches especially in vantage! :) Congrats!
    Can´t wait to see what the GTX 580m will get when new certified drivers coming in!

    Right now, for those who are interested, we can compare the results to my GTX 485m SLI overclocked to 580m clocks...: (driver 275.50, I7-970 overclocked to 3.6 GHz)

    Your stock clock GTX 580m SLI Vantage: P25832 / GPU: 24452
    GTX 485m SLI with 580m clocks: P25658 / GPU: 23978

    Your stock clock GTX 580m SLI 3D Mark 11: P5747 / GPU: 5667
    GTX 485m SLI with 580m clocks: P6099 / GPU: 6026

    The results as screenshots can be found in the X7200 Benchmark Thread.

    Tirenz, Jul 19, 2011
    #15
  16. Shaden

    Shaden Notebook Deity

    Reputations:
    827
    Messages:
    1,337
    Likes Received:
    7
    Trophy Points:
    56
    i thought the 580 was going to be better ... ?

    I am sure driver support will increase it ... but so far, looking like there is no point to the 580m

    Shaden, Jul 19, 2011
    #16
  17. oan001

    oan001 Notebook Evangelist

    Reputations:
    256
    Messages:
    482
    Likes Received:
    0
    Trophy Points:
    30
    The 485m in tirenz post is overclocked, while the 580m is stock.

    oan001, Jul 19, 2011
    #17
  18. Shaden

    Shaden Notebook Deity

    Reputations:
    827
    Messages:
    1,337
    Likes Received:
    7
    Trophy Points:
    56
    oooooh whew
    :)

    Shaden, Jul 19, 2011
    #18
  19. Tirenz

    Tirenz Notebook Evangelist

    Reputations:
    735
    Messages:
    651
    Likes Received:
    26
    Trophy Points:
    41
    Well, yeah, I thought it would be interesting how both cards are doing with same clocks. I overclocked my GTX 485m´s to GTX 580m stock clocks and til now it is as stable as with stock clocks. Played a lot of stuff, new and old and never any problems with it.

    Tirenz, Jul 19, 2011
    #19
  20. Kevin

    Kevin Egregious

    Reputations:
    3,289
    Messages:
    10,780
    Likes Received:
    1,773
    Trophy Points:
    581
    17.8k Vantage GPU, on a single 580M?! Holy.... !

    Kevin, Jul 19, 2011
    #20
  21. Chappa'ai

    Chappa'ai Notebook Guru

    Reputations:
    8
    Messages:
    62
    Likes Received:
    0
    Trophy Points:
    15
    With my 580m sitting at 760/1800 I can barely get over 16000. :( ??
    At stock levels I was getting 148XX.

    What am I doing wrong? I have not disabled physx; how is that done?

    Chappa'ai, Jul 21, 2011
    #21
  22. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    @Tirenz im running stock voltage and my 485m at 695/1390/1800 and it never crashes, unless i run like three games at once.

    aduy, Jul 21, 2011
    #22
  23. Tirenz

    Tirenz Notebook Evangelist

    Reputations:
    735
    Messages:
    651
    Likes Received:
    26
    Trophy Points:
    41
    Yes, I am sure I could go higher, too. And I did for some Benches.
    But since I am running SLI there are not too many games I can´t run in highest settings without overlocking, so it´s basically for benching only.
    But I thought in this case it will be interesting to see how the two cards compare and since it is no heavy overclocking, I just keep it ;)

    Tirenz, Jul 21, 2011
    #23
  24. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    too bad the x7200 can't do 3d with sli, one gpu for each eye, it would make sense to do it that way.

    aduy, Jul 21, 2011
    #24
  25. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    is that total score? :confused:
    3dmark vantage latest version will auto disable physx

    x7200 480m sli can do 120hz 3d vision with 266.58 :)

    DGDXGDG, Jul 21, 2011
    #25
  26. Anthony@MALIBAL

    Anthony@MALIBAL Company Representative

    Reputations:
    616
    Messages:
    2,771
    Likes Received:
    3
    Trophy Points:
    56
    Except that would probably take redesigning the whole SLI algorithm :p Right now, SLI works by having each card do a portion of the screen. With 3D Vision that just means each card is doing more work to generate the full 120hz (60 frames alternating per second to each eye)

    Anthony@MALIBAL, Jul 21, 2011
    #26
  27. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    I thought that each gpu rendered a frame, thats what it says on notebook check. hmm i guess that must be old technology.

    aduy, Jul 21, 2011
    #27
  28. Riddhy916

    Riddhy916 Notebook Deity

    Reputations:
    35
    Messages:
    756
    Likes Received:
    87
    Trophy Points:
    41
    from where did you see 6990m oc over 1ghz? any bench scores for that?

    Riddhy916, Jul 22, 2011
    #28
  29. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    hd6990m have to oc up to 1000mhz against gtx580@835mhz in vantage
    [​IMG]
    and most hd6870@1000mhz have to overvolt to 1.2+v

    DGDXGDG, Jul 22, 2011
    #29
  30. brianvp

    brianvp Notebook Consultant

    Reputations:
    49
    Messages:
    281
    Likes Received:
    0
    Trophy Points:
    30
    Would it be possible to flash a 6870 vbios on the 6990m like you did with the 580m through Mavke?

    brianvp, Aug 10, 2011
    #30
  31. Patrck_744

    Patrck_744 Burgers!

    Reputations:
    447
    Messages:
    1,201
    Likes Received:
    41
    Trophy Points:
    66
    ^ Thats a very good idea to turn a card into a brick.

    Patrck_744, Aug 10, 2011
    #31
  32. brianvp

    brianvp Notebook Consultant

    Reputations:
    49
    Messages:
    281
    Likes Received:
    0
    Trophy Points:
    30
    He means the desktop 6870, which is clocked at 915mhz, and was OC'd to 1000mhz. A 6990M is clocked at 715, and wouldn't be able to get near 1000mhz even with a flash, 915 is possible though.

    The 6990M is a 6870 with lower clocks and voltage, with higher core clocks it could come close, memory is a lot lower though.

    brianvp, Aug 10, 2011
    #32
  33. Nisen

    Nisen Notebook Enthusiast

    Reputations:
    10
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    i goto work out how to overvolt flash my 580m to 0.92v and try to match your scores at 835

    vantage at 760/1800 and 0.87v is too unstable on the P170HM but up the memory to 1944 and (except for medium tearing with New Calico) can do P16999 (+200 gpu) giggidy

    Nisen, Aug 10, 2011
    #33
  34. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    true, its harder to oc memory in vantage than 11
    but see
    6990m 1.1v~~~~6870 1.17v
    580m 0.87v/0.92v~~~~560ti 1.00v

    DGDXGDG, Aug 10, 2011
    #34
  35. Nisen

    Nisen Notebook Enthusiast

    Reputations:
    10
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    sry i misread the meaning of that vantage screenshot of the 6870, you were suggesting to match your 0.92v 835 core score, a 6990m would have to get its core >1000

    Nisen, Aug 10, 2011
    #35
  36. bonnie.clyde

    bonnie.clyde Notebook Consultant

    Reputations:
    258
    Messages:
    278
    Likes Received:
    3
    Trophy Points:
    31
    Hi
    Did you already flash your GTX580M? If so, could you tell what and how you did it. For two days I get tired of nvflash 5.100.0.1 and I cant do it.

    bonnie.clyde, Aug 10, 2011
    #36
  37. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    read my post in the gtx 580m thread!

    aduy, Aug 10, 2011
    #37
  38. bonnie.clyde

    bonnie.clyde Notebook Consultant

    Reputations:
    258
    Messages:
    278
    Likes Received:
    3
    Trophy Points:
    31
    bonnie.clyde, Aug 12, 2011
    #38
  39. aduy

    aduy Keeping it cool since 93'

    Reputations:
    317
    Messages:
    1,474
    Likes Received:
    0
    Trophy Points:
    55
    wow thats amazing, and if you use the nvidia inspector and unlock the memory setting it will definantly go higher than 1800. in another thread a forum member was wondering what the maximum memory in your unit could go up to. also thats higher than the stock gtx 560ti clocks, which the card is based on, and thats really really awesome!

    aduy, Aug 12, 2011
    #39
  40. bonnie.clyde

    bonnie.clyde Notebook Consultant

    Reputations:
    258
    Messages:
    278
    Likes Received:
    3
    Trophy Points:
    31
    Raising the memory frequency affects only the result of 3DMark Vanantage http://3dmark.com/3dmv/3388117 vs NVIDIA GeForce GTX 580M video card benchmark result - Intel Core i7-2920XM Processor,CLEVO P150HMx score: P18138 3DMarks, but little change for the 3DMark11 NVIDIA GeForce GTX 580M video card benchmark result - Intel Core i7-2920XM Processor,CLEVO P150HMx score: P4507 3DMarks. Only increasing the core clock gives better results in 3DMark11 NVIDIA GeForce GTX 580M video card benchmark result - Intel Core i7-2920XM Processor,CLEVO P150HMx score: P4560 3DMarks.

    bonnie.clyde, Aug 14, 2011
    #40
  41. godly_skillz

    godly_skillz Notebook Consultant

    Reputations:
    92
    Messages:
    209
    Likes Received:
    0
    Trophy Points:
    0
    If I was to buy a laptop with the 580m gtx how do I go about raising the voltage?

    godly_skillz, Aug 22, 2011
    #41
  42. Eivind

    Eivind Notebook Evangelist

    Reputations:
    87
    Messages:
    668
    Likes Received:
    0
    Trophy Points:
    30
    Open your bios file in nibitor - increase voltage and save it on a bootable usb stick - boot with bootable usb stick - backup original bios with nvflash - flash modified bios with nvflash.

    I suggest you read up on google.

    Nibitor doesnt support GTX 580M, yet.

    Eivind, Aug 22, 2011
    #42
  43. bonnie.clyde

    bonnie.clyde Notebook Consultant

    Reputations:
    258
    Messages:
    278
    Likes Received:
    3
    Trophy Points:
    31
    bonnie.clyde, Aug 22, 2011
    #43
  44. Patrck_744

    Patrck_744 Burgers!

    Reputations:
    447
    Messages:
    1,201
    Likes Received:
    41
    Trophy Points:
    66
    DGDXGDG, Can you post a FurMark test(20 minutes) with all settings maxed out and with the latest drivers.

    Patrck_744, Aug 24, 2011
    #44
  45. IKAS V

    IKAS V Notebook Prophet

    Reputations:
    1,073
    Messages:
    6,171
    Likes Received:
    535
    Trophy Points:
    281
    Great job guys, insane scores!
    What's the program you guys use, I've tried MSI Afterbuner with mixed results.

    IKAS V, Aug 24, 2011
    #45
  46. bonnie.clyde

    bonnie.clyde Notebook Consultant

    Reputations:
    258
    Messages:
    278
    Likes Received:
    3
    Trophy Points:
    31
    I use Nvidia Inspector.

    bonnie.clyde, Aug 25, 2011
    #46
  47. joesipzhou

    joesipzhou Notebook Guru

    Reputations:
    4
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    15
    looking forward to the furmark test.
    My 485m sli can overclock to 750/1700 and completely run all of those 3dmark's programs, but can not barely hold 1 min running furmark. The only oc I can get and being completely stable runing furmark is 620/1600.

    joesipzhou, Aug 25, 2011
    #47
  48. DGDXGDG

    DGDXGDG Notebook Deity

    Reputations:
    737
    Messages:
    787
    Likes Received:
    6
    Trophy Points:
    31
    here furmark 1.8.2
    [​IMG]
    [​IMG]

    DGDXGDG, Aug 25, 2011
    #48
  49. joesipzhou

    joesipzhou Notebook Guru

    Reputations:
    4
    Messages:
    60
    Likes Received:
    0
    Trophy Points:
    15
    u disabled sli?
    82c max? that seems quite higher than 485m...
    Shouldn't 580m be more cooler than 485m?

    joesipzhou, Aug 25, 2011
    #49
  50. Patrck_744

    Patrck_744 Burgers!

    Reputations:
    447
    Messages:
    1,201
    Likes Received:
    41
    Trophy Points:
    66
    Can you do one with SLi enabled, thanks.

    Patrck_744, Aug 25, 2011
    #50
 Next page →
