    GPU Upgrade Clevo P177SM-A

    Discussion in 'Sager and Clevo' started by razor0601, Jul 2, 2019.

  1. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    Hi, I have a P177SM-A with a broken 880m. Which cards can I put in? And will it need an unlocked Bios?

    razor0601, Jul 2, 2019
    #1
  2. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Standard MXM sized cards like the 1060 would fit well. No modded BIOS needed.

    Meaker@Sager, Jul 2, 2019
    #2
  3. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    Only the latest Bios is enough?

    razor0601, Jul 3, 2019
    #3
  4. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    And it must be a Clevo Card?

    razor0601, Jul 3, 2019
    #4
  5. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Clevo are using a custom sized card now so it can't be Clevo.

    Meaker@Sager, Jul 3, 2019
    #5
  6. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    Ok, so a Quadro P4000 or a Zotac GTX 1060 with MSI VBios could work?

    razor0601, Jul 3, 2019
    #6
  7. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    I've not heard of Vbios issues with the cards for as much as that is worth.

    Meaker@Sager, Jul 3, 2019
    #7
  8. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    The Quadro P4000 doesn’t work with the P177SM-A. Code 43

    razor0601, Jul 3, 2019
    #8
  9. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Did the driver install at all?

    Meaker@Sager, Jul 4, 2019
    #9
  10. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    Yes I think so. At the end it says: reboot now

    razor0601, Jul 4, 2019
    #10
  11. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It should give you a report if it installed correctly. Did you have driver signing disabled?

    Meaker@Sager, Jul 4, 2019
    #11
  12. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    A Report? Where to find?
    Yes, I disabled the Driver Signature.

    razor0601, Jul 4, 2019
    #12
  13. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Meaker@Sager, Jul 4, 2019
    #13
  14. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    In the end of the Driver Installation was all successful installed. But after the reboot the Devicemanager says: code 43, device or something was stopped.

    razor0601, Jul 4, 2019
    #14
  15. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    It does sound like a firmware conflict then. What was the source of the GPU?

    Meaker@Sager, Jul 4, 2019
    #15
  16. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    From where I bought the card?

    razor0601, Jul 5, 2019
    #16
  17. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    More the system it came out of.

    Meaker@Sager, Jul 5, 2019
    #17
  18. razor0601

    razor0601 Notebook Evangelist

    Reputations:
    56
    Messages:
    450
    Likes Received:
    88
    Trophy Points:
    41
    The P4000 came from a Dell Precision 7720

    razor0601, Jul 5, 2019
    #18
  19. electrosoft

    electrosoft Perpetualist Matrixist

    Reputations:
    2,771
    Messages:
    4,117
    Likes Received:
    3,979
    Trophy Points:
    331
    Therein lies your problem.... :mad:

    electrosoft, Jul 5, 2019
    #19
  20. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    HP cards tend to get on much better.

    Meaker@Sager, Jul 6, 2019
    #20
  21. xBrunex

    xBrunex Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Hello guys, very nice topic :)

    I have one P177SM-A too and im thinking in upgrade my GPU too.
    The question is, what i need to know for buy one GPU suitable in my laptop ? From what i read in yours posts the GPU should me socket MXM.

    So, all GPUs with socket MXM fit and work fine in my laptop ? What should i need to know more ?


    Thanks guys

    xBrunex, Aug 15, 2019
    #21
  22. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    No. Really no on this one. It needs to be the right shape and have firmware that's happy.

    Meaker@Sager, Aug 16, 2019
    #22
  23. xBrunex

    xBrunex Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for the response but i need something more conclusive to buy other GPU for my laptop.
    Can you tell me what i need to know?


    For example;

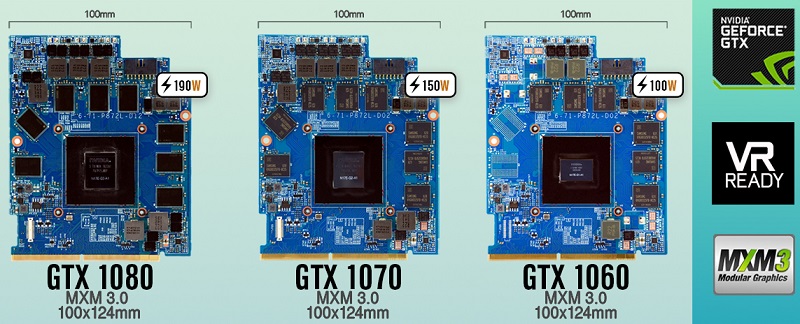

    MXM, my laptop accepts Type B ? or just type A ?
    Whats the plate max size that the laptop supports ?
    Whats the max watts the MB can give to the GPU ?



    [​IMG]

    xBrunex, Aug 16, 2019
    #23
  24. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,909
    Trophy Points:
    931
    Read from the start of the thread.

    Meaker@Sager, Aug 16, 2019
    #24
