    HDD Caddy

    Discussion in 'Sager and Clevo' started by TJ_Laser, Jan 28, 2011.

  1. TJ_Laser

    TJ_Laser Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I'd like to install a second hard drive using the optical bay. Does anyone here have any experience using hdd caddies? If so, how do they work? Are they brand-specific or does one size fit all? I have a Sager 7130. Thanks.

    TJ_Laser, Jan 28, 2011
    #1
  2. MrDJ

    MrDJ Notebook Nobel Laureate

    Reputations:
    2,594
    Messages:
    10,832
    Likes Received:
    363
    Trophy Points:
    501
    hi and welcome to nbr
    as they replace the optical drive im guessing they are all one size. contact your supplier as these are not normally kept as stock and are ordered on a when requested basis.

    MrDJ, Jan 28, 2011
    #2
  3. Justin@XoticPC

    Justin@XoticPC Company Representative

    Reputations:
    4,191
    Messages:
    3,307
    Likes Received:
    0
    Trophy Points:
    105
    Sager just added the Optical Drive Caddies to their line up. You will now see there is a option for a Optical Bay Hard Drive. You can then purchase a USB Optical Drive if you need it. :)

    Justin@XoticPC, Jan 28, 2011
    #3
  4. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    Additional Hard Drive in Optical Drive Bay
    When Selecting, Optical Drive is NOT Included
    320GB 7200RPM (Serial-ATA II 300 - 16MB Cache) in Optical Bay +$75
    External USB 2.0 Slim DVD±R/RW Drive +$48
    =$123

    if you don't select the options you can get:

    Free internal Combo 8x8x6x4x Dual Layer DVD +/-R/RW 5x DVD-RAM 24x CD-R/RW Drive w/Software
    320gb 7200rpm = $50
    external ODD enclosure = $28
    12.7mm sata caddy = $17.50
    = $95.50

    not much difference. xoticpc is a good brand.

    __-_-_-__, Jan 28, 2011
    #4
  5. TJ_Laser

    TJ_Laser Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    TJ_Laser, Jan 28, 2011
    #5
  6. mythlogic

    mythlogic Company Representative

    Reputations:
    1,238
    Messages:
    2,021
    Likes Received:
    277
    Trophy Points:
    101
    They are all standard 12.7 MM ODD HDD caddies that you see in a variety of manufacturers laptops, they fit a standard 2.5" notebook HDD / SSD and fit right in with the same bracket.

    mythlogic, Jan 28, 2011
    #6
  7. TJ_Laser

    TJ_Laser Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Thanks. I guess I was confused because every caddy I've seen online has a different list of compatible notebooks even though they are all standard 12.7 mm caddies.

    TJ_Laser, Jan 28, 2011
    #7
  8. Larry@LPC-Digital

    Larry@LPC-Digital Company Representative

    Reputations:
    3,952
    Messages:
    3,580
    Likes Received:
    283
    Trophy Points:
    151

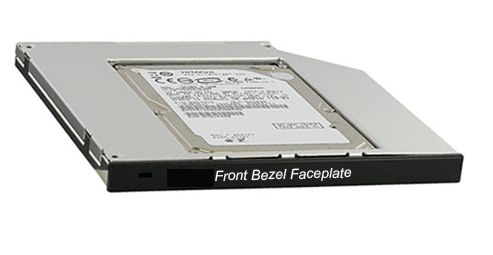

    They are all about the same... :)

    [​IMG]

    Larry@LPC-Digital, Jan 28, 2011
    #8
